Chapter 3 Star ting and ending production Contents 1. Starting production 3- 1 1.1 Resuming operation from the stopped point 3- 4 1.1.1 Loading the saved data 3- 5 1.1.2 Editing mount flags 3- 5 2. Ending production and …
2-39
2
asic operation
n
Checking the tray changer operation
1
Open the tray changer screen.
Press the [Unit] button and then select the [Auto TC] tab to open the tray changer screen.
2
Extract a pallet from the tray changer.
Press the [Pallet Set] button to check whether a pallet is correctly extracted from the tray changer.
Tray changer screen
Selecting a pallet
[Pallet Set]
button
Enter a pallet number
24228-M7-00
Chapter 3 Starting and ending production
Contents
1. Starting production 3-1
1.1 Resuming operation from the stopped point 3-4
1.1.1 Loading the saved data 3-5
1.1.2 Editing mount flags 3-5
2. Ending production and turning power off 3-6
8
3.1 Production 3-8
0
2
4
3.5 Alignment 3-16
3.6 Retry 3-17
8
9
3.9 Pick Pos. (Pickup position offset) 3-20
3.10 Pick Rate Warning 3-22
3-1
3
Starting and ending production
1. Starting production
This section describes how to select the board data which is already registered and perform component
mounting.
1
Select the board data.
1. When the board data is not yet selected, press the [Board] button on the Setup screen.
A list of registered board data appears.
2. Line up the cursor with the board data to use for production and press the [Select] button.
The machine loads the seleted board data.

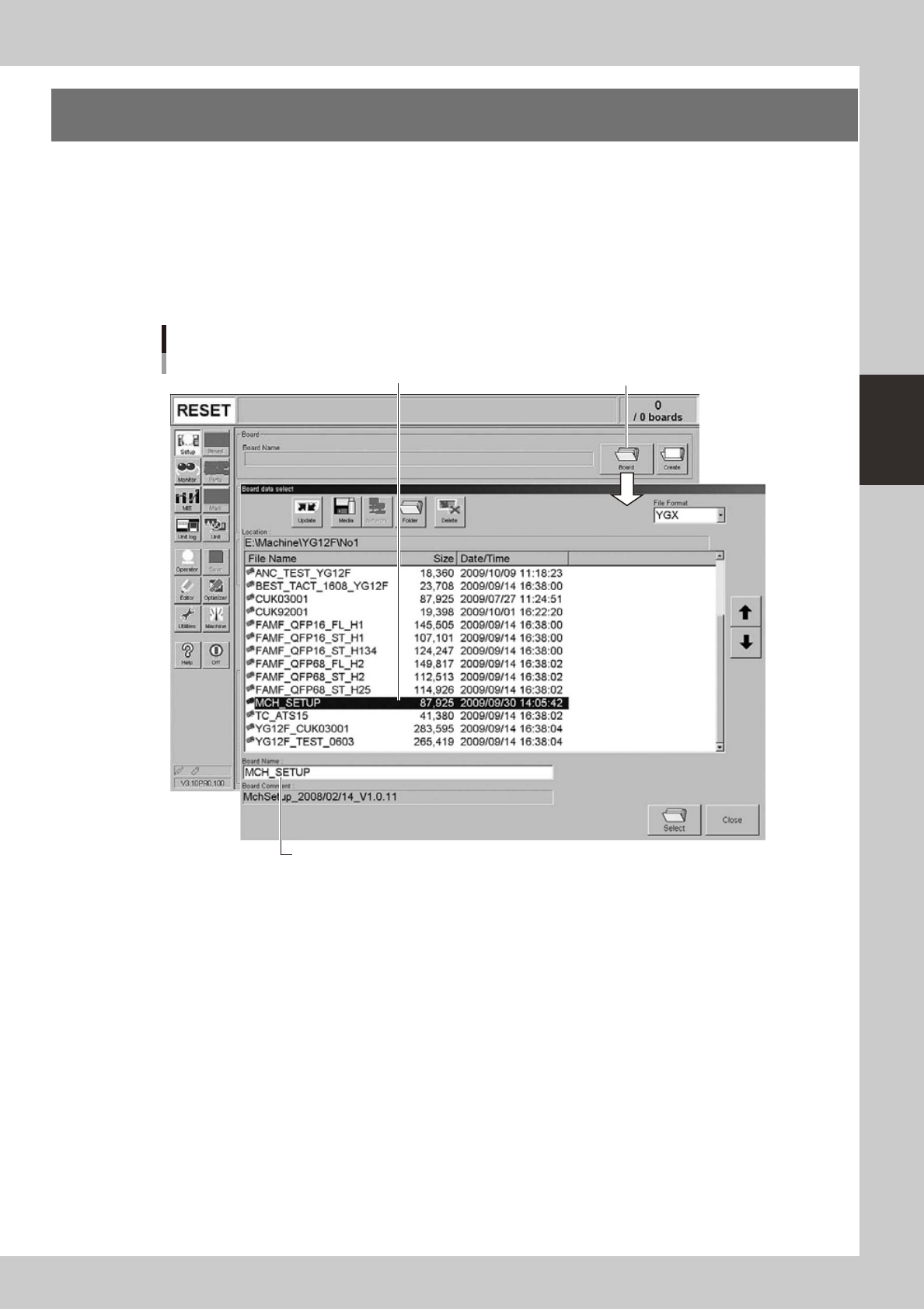

Selecting the board data
Select board data from list.
Press [Board] button.
Selected board name is displayed.
