The PGT120 is an easy to use and complete test station for ESD footwear and wrist str aps. The PGT120 personn el gro undin g tester takes qu ick and accurate re- sistance measurement s of the ESD grounding products and e…

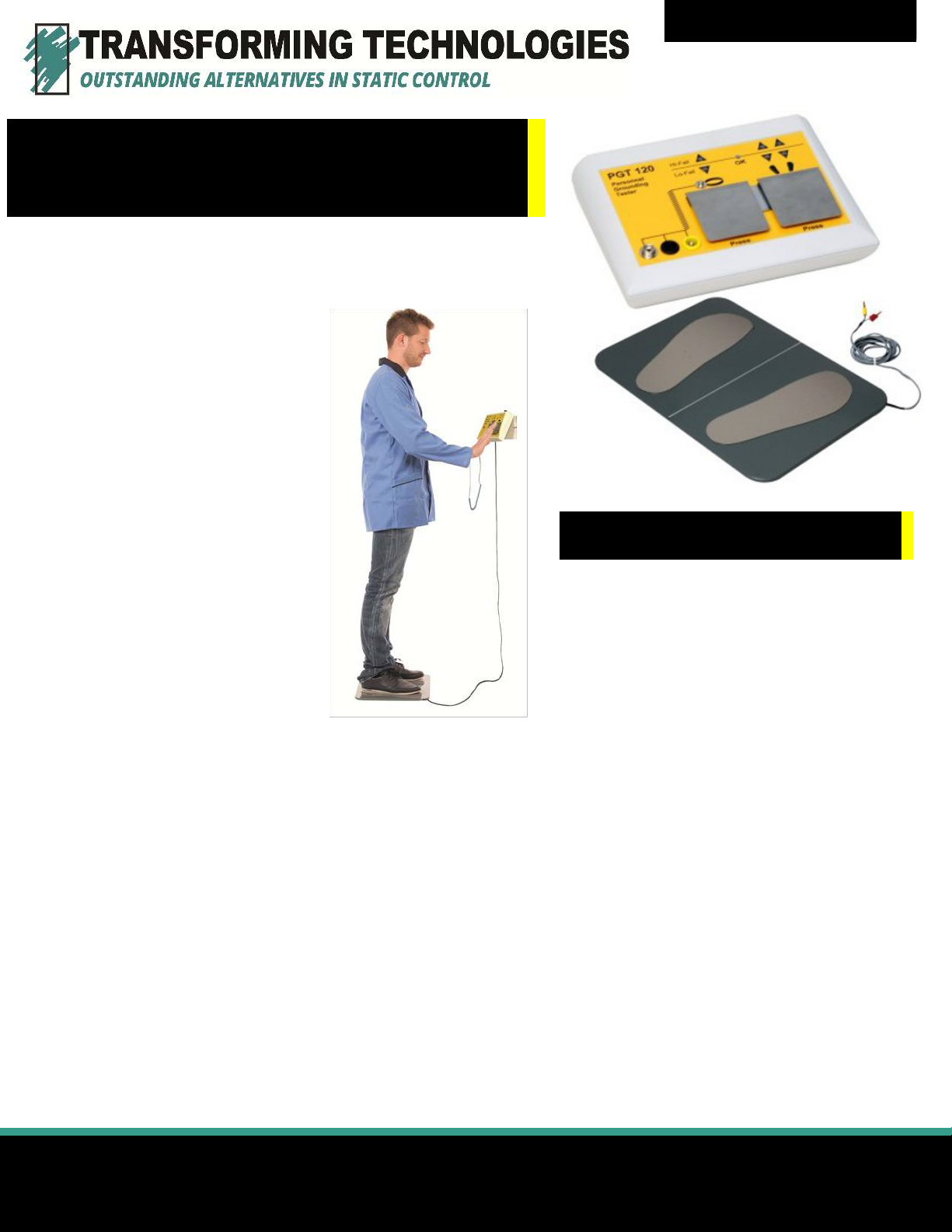

The PGT120 is an easy to use and complete test
station for ESD footwear and wrist straps.
The PGT120 personnel grounding
tester takes quick and accurate re-
sistance measurements of the ESD
grounding products and ensures
they are working properly. The test
results are indicated both with audi-
ble and visual signals.
The unit operates with 3 independ-
ent measuring circuits for the left
shoe, the right shoe and the wrist
strap. This makes it possible to
measure all the values at the same
time. The shoes can even be meas-
ured in a hands free mode which
means that the staff members are
tested automatically when standing
on the plate. PGT120 can be con-
nected to an automatic door opening system which allows en-
try with only passing results.
The PGT120 is supplied complete with footwear testing elec-
trode, flexible cord, transformer with power cord and calibra-
tion protocol. Recommended calibration interval is 24 month
Corresponding wall mounting plate, and electrode anti-fatigue
mat is sold separately.
Warmbier Test Equipment
PGT120 Personal Grounding Tester
Features
Independently Test Footwear & Wrist
Strap Grounding Products
Pass/Fail Results are Indicated
Audibly and Visually
Automatically Test Footwear in
Hands-Free Mode
Can be Integrated into Door/Barrier
Opening System
Applications:
The PGT120 tests the functioning of ESD personal grounding equipment such as ESD shoes, heel
grounders and wrist straps. Testing ESD grounding equipment is an integral part of a complete
ESD program.
www.transforming-technologies.com
This document is prepared for our customers as a service, and is to the best of our knowledge true and accurate. However, it is understood and agreed by
the users of this document that we will accept no liability for the conclusions reached. Users of this document may therefore wish to perform additional
testing before determining that products mentioned are suitable.
3719 King Road
Toledo Ohio 43617
Phone: 419-841-9552
info@transforming-technologies.com
Test Equipment
PGT120 Tester
www.transforming-technologies.com
www.transforming-technologies.com
3719 King Road
Toledo Ohio 43617
Phone: 419-841-9552
Fax: 419-841-3241
info@transforming-technologies.com
About Transforming Technologies
Since 1998, Transforming Technologies has helped electronic manufacturing facilities to protect their products
and processes from the many serious problems associated with static electricity.
Transforming Technologies offers a wide range of unique and outstanding products to detect, protect, eliminate
and monitor electrostatic charges. Our products are integral components of an effective static control program.
TRANSFORMING TECHNOLOGIES
OUTSTANDING ALTERNATIVES IN STATIC CONTROL
Model PGT120 Specifications
Power Input 9 volt battery;
230 VAC power supply
Test range:
Wrist Strap & Coil Cord 750 kΩ ..... 35 MΩ
Shoes (each shoe) < 20 / 35 / 70 / 100 MΩ
Shoes in Hands-free“ Mode < 40 / 70 / 140 / 200 MΩ
Signals:
Green LED “OK”
Red LED’s and buzzer “Hi-Fail“ or ”Lo-Fail”
Door opener Dry contact “OK“
Door opener time 3 seconds
Dimensions:
Meter .59 x 7.87 x 2.4 in
Footwear Electrode 13.7 x 19.6 in
Mat for Footwear Electrode 32.67 x 26.7 x .51 in
Part Numbers:
7100.PGT120: Personal Grounding Tester
7100.PGT120.WK: Wall Mounting Plate
7100.PGT120.CU: Calibration Unit for PGT120
7100.PGT120.SM: Mat for Footwear Electrode with
Yellow Beveled Edges

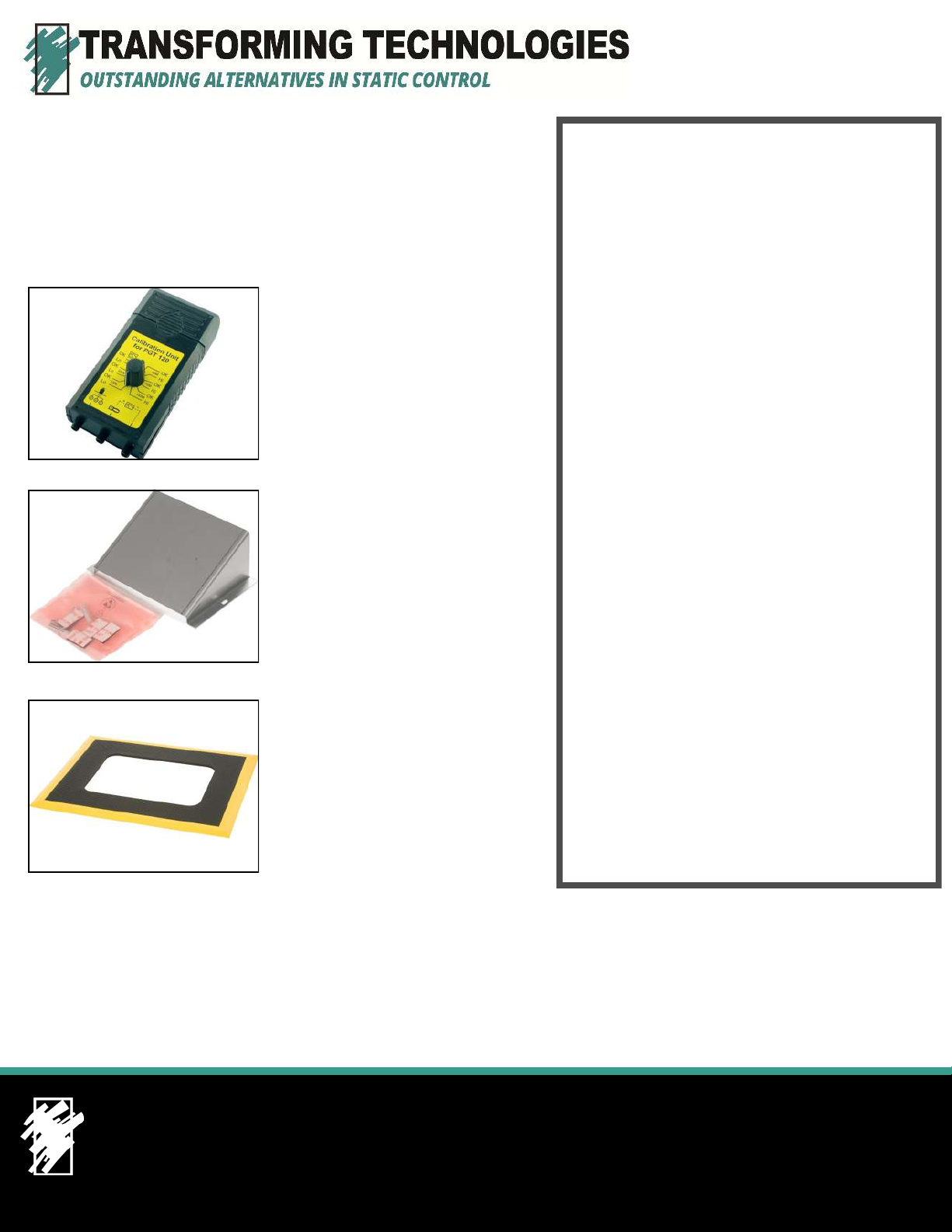

Accessories
The PGT 120 is supplied complete with footwear electrode,
flexible cord, and transformer with power cord. The following
accessories are available:
The PGT120.CU periodic verifi-
cation unit is used to check
that the PGT120 tester is
working properly.
PGT120.WK is a mounting
plate that can securely fix the
PGT120 meter to a wall.
PGT120.SM is a anti-fatigue
mat with a cutout to house
the footwear electrode. Com-
plete with beveled yellow
edges to reduce tripping and
provide a clean look.
