MODEL TCM-3500Z 9810-001 5- 2 Key No. PART No. PART NAME Q' ty REMARKS 1 -1 630 059 3280 BASE 1 678C--02B-001 1 -2 630 059 3297 BASE 1 678C--02B-002 2 630 048 4335 PLATE 4 678C--02B-003 3 411 141 4008 W ASHER V 4X9X…

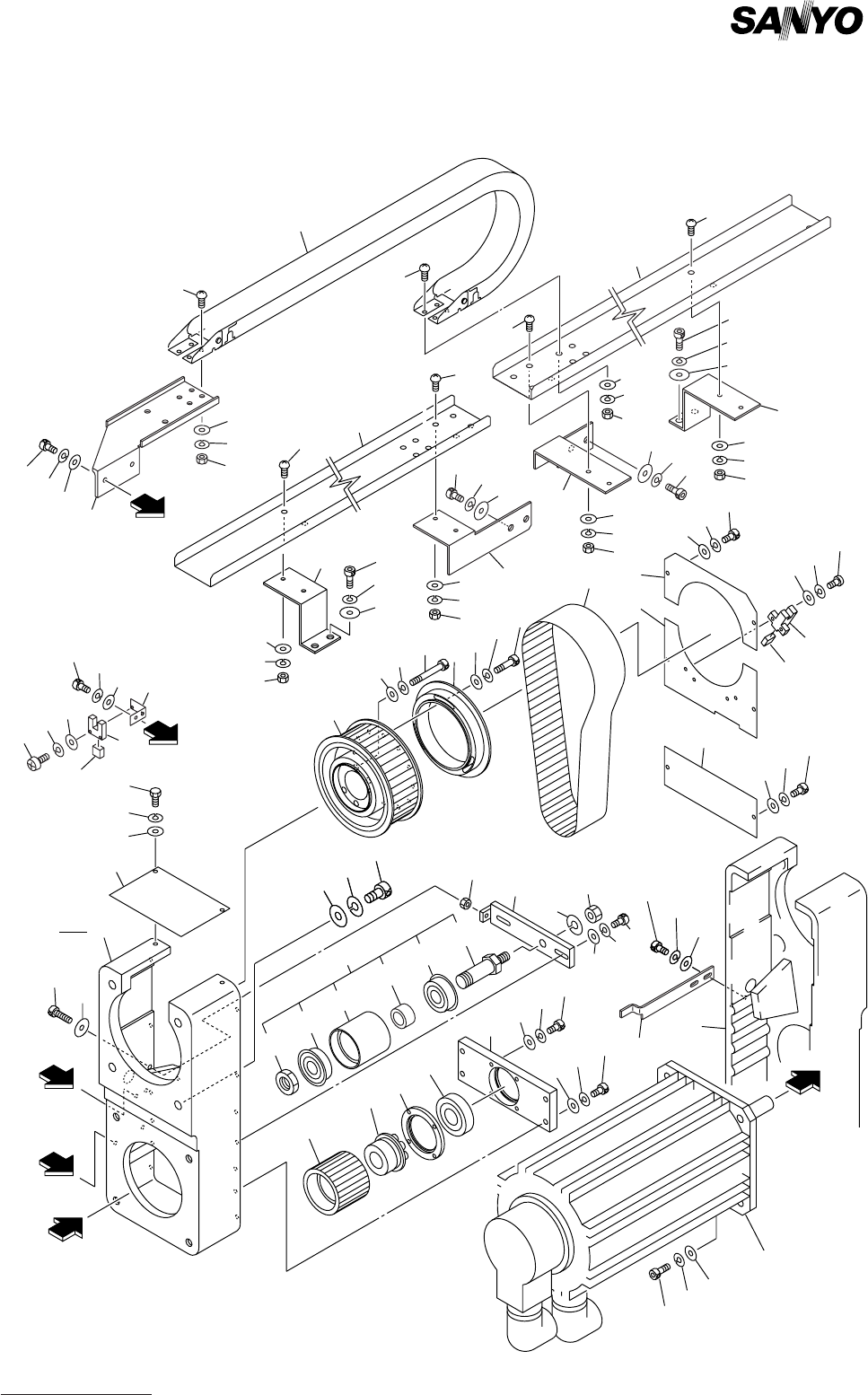

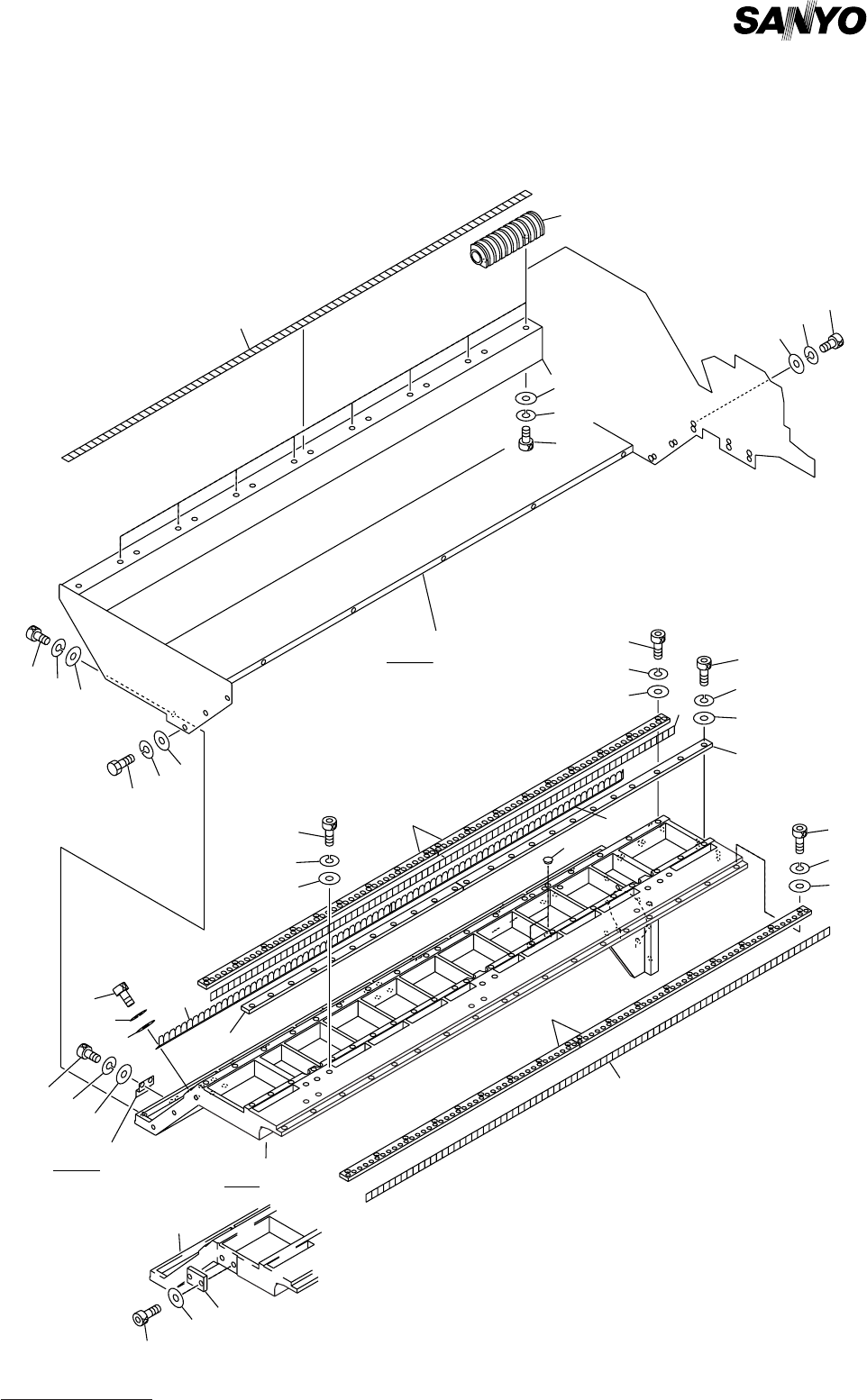

MODEL TCM-3500Z
9810-001
部品供給部 FEEDER CARRIAGE SECTION
Fig. 5-2 リールユニット Feeder Carriage
39
40
41
1-1
2
5
4
3
6
7
8
9
10
11
14
13
12
15
16
17
18
19
21
22
23
36
37
38
32
33
34
35
39
40
41
90
51
52
53
1-2
31-1
31-2
.
.
1-2
24
25
26
27
20-1
20-2
.
90
90
4796
-002
MODEL TCM-3500Z
9810-001
5- 2
Key No. PART No. PART NAME Q'ty REMARKS
1 -1 630 059 3280 BASE 1 678C--02B-001
1 -2 630 059 3297 BASE 1 678C--02B-002
2 630 048 4335 PLATE 4 678C--02B-003
3 411 141 4008 WASHER V 4X9X0.8 36 FW4
4 411 141 2905 WASHER SPR 4 36 SW4
5 630 000 7633 BOLT,HEX-SCT 36 M4X12
6 630 048 4175 PLATE 2 678C--02B-005
7 630 048 4182 PLATE 2 678C--02B-006
8 411 141 4107 WASHER V 5X10X1 46 FW5
9 411 141 6705 WASHER SPR 5 46 SW5
10 630 000 7763 BOLT,HEX-SCT 46 M5X16
11 630 048 4342 PLATE 4 678C--02B-007
12 411 141 4008 WASHER V 4X9X0.8 36 FW4
13 411 141 2905 WASHER SPR 4 36 SW4
14 630 000 7633 BOLT,HEX-SCT 36 M4X12
15 630 048 4359 SUPPORT 2 678C--02B-009
16 630 048 4366 SUPPORT 2 678C--02B-010
17 411 141 4107 WASHER V 5X10X1 16 FW5
18 411 141 6705 WASHER SPR 5 16 SW5
19 630 000 7756 BOLT,HEX-SCT 16 M5X12
20 -1 630 047 6798 BRACKET 1 678C--02B-032
20 -2 630 047 6804 BRACKET 1 678C--02B-033
21 411 141 4008 WASHER V 4X9X0.8 4 FW4
22 411 141 2905 WASHER SPR 4 4 SW4
23 630 000 7619 BOLT,HEX-SCT 4 M4X8
24 411 141 4107 WASHER V 5X10X1 48 FW5
25 411 141 6705 WASHER SPR 5 48 SW5
26 630 000 7763 BOLT,HEX-SCT 48 M5X16
27 630 005 4057 ACCESSORY,SW 4 678C--02H-022
31 -1 630 071 0465 SUPPORT 1 678C--02B-011
31 -2 630 071 0472 SUPPORT 1 678C--02B-012
32 630 055 1792 SUPPORT 16 678C--02B-013
33 411 141 4305 WASHER V 6X12.5X1.6 32 FW6
34 411 141 3001 WASHER SPR 6 32 SW6
35 630 000 7886 BOLT,HEX-SCT 32 M6X16
36 411 141 4305 WASHER V 6X12.5X1.6 12 FW6
37 411 141 3001 WASHER SPR 6 12 SW6
38 630 000 7879 BOLT,HEX-SCT 12 M6X12
39 411 088 1702 WASHER V 5X10X1 16 FW5 F
40 411 008 2109 WASHER SPR 5 16 SW5 F
41 411 140 4900 BOLT HEX 5X12 16 M5X12 HEX
51 630 056 1050 PLATE 1 678C--02B-014
52 411 141 4008 WASHER V 4X9X0.8 2 FW4
53 630 000 7626 BOLT,HEX-SCT 2 M4X10
90 630 047 6378 NAME PLATE,INDEX 6 678C--02H-024
NOTE
MODEL TCM-3500Z
9810-001
部品供給部 FEEDER CARRIAGE SECTION
Fig. 5-3 リールユニット駆動部 Feeder Carriage Driver
1-1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
23
22
21
24
25
26
30
31-4
32
33
31-131-1
31-331-3
31-531-5
37
38
39
40
41
42
4444
4343
4545
4646
4747
4848
4949
5050
5151
5252
60
59
58
57
84
89
90-190-1
92
93
94
99
100
101
102
103
61
62
63
64
TCM-3500E
A
C C
B
B
1-2
.
1-2
31-331-3
5454
5555
5656
5353
94
93
92
100
101101
102102
103103
8989
9595
95
27
28
29
91-191-1
96
97
98
96
97
98
96
97
98
96
97
98
31-231-2
3131
CC
66-166-1
6666
6767
6868
6969
7272
7171
7070
6565
9494
9393
9292
91-291-2
90-290-2
9595
9595
94
93
92
81
82
83
A
