MODEL TCM-3500Z
9810-001

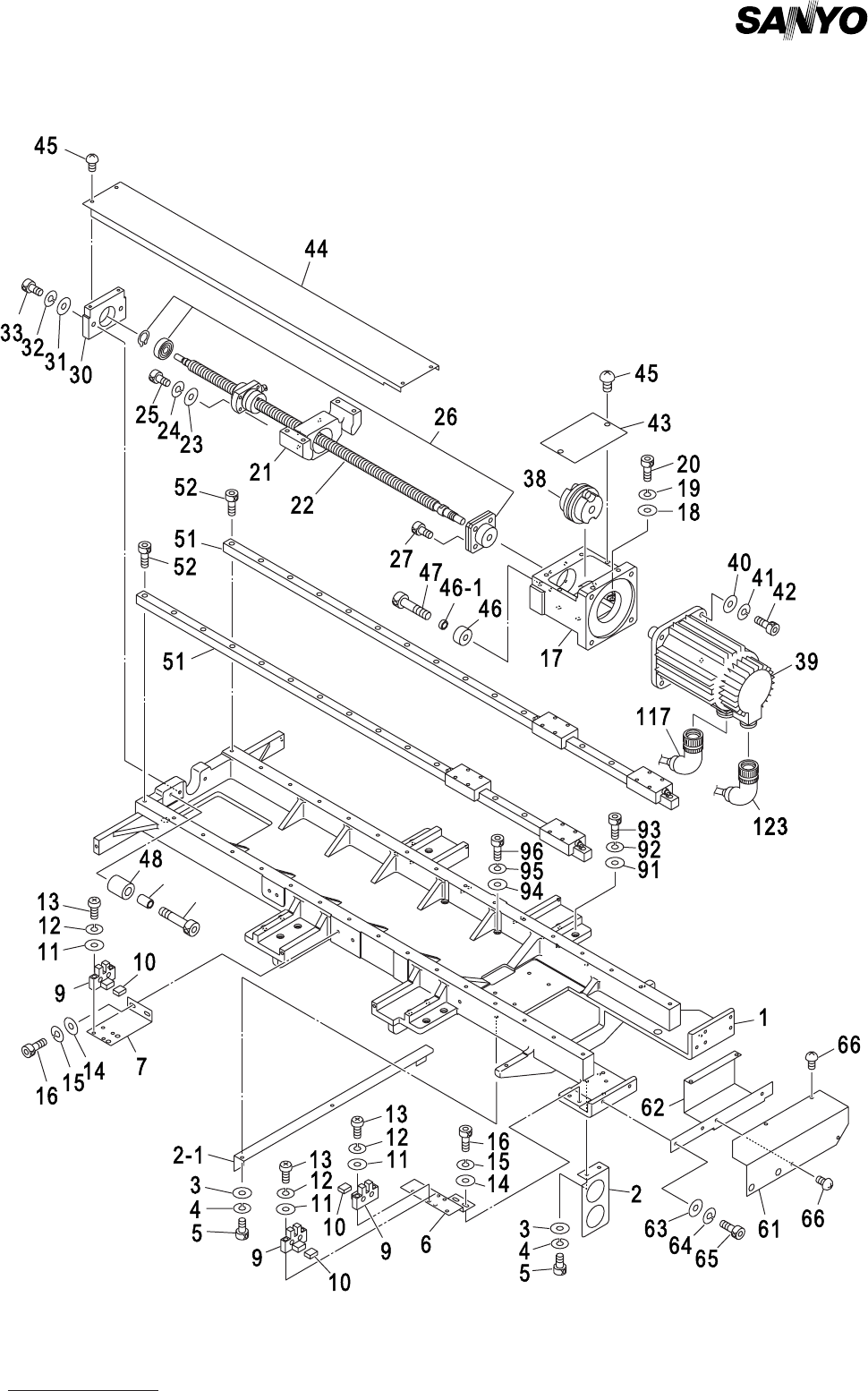

ＸＹテーブル部 XY TABLE SECTION
Fig. 6-2 Ｙ軸 Y Axis
49
50
MODEL TCM-3500Z
9810-001
6- 2
Key No. PART No. PART NAME Q'ty REMARKS
1 630 064 4937 BASE 1 678J--02B-002
2 630 064 5736 PLATE 1 678J--02B-069
2 -1 630 064 5699 PLATE 1 678J--02B-024
3 411 141 4008 WASHER V 4X9X0.8 4 FW4
4 411 141 2905 WASHER SPR 4 4 SW4
5 630 000 7626 BOLT,HEX-SCT 4 M4X10
6 630 067 0004 BRACKET 1 678J--02B-017
7 630 066 1217 BRACKET 1 678J--02B-018
9 630 000 0252 SENSOR,PHOTO 3 678J--02H-071
10 630 000 0269 SENSOR,PHOTO(CONNECTOR) 3 678J--02H-075
11 411 119 1909 WASHER V 3X7X0.5 8 FW3 F
12 411 086 4408 WASHER SPR 3 8 SW3 F
13 411 040 6202 SCR PAN 3X10 8 M3X10 PAN
14 411 141 4008 WASHER V 4X9X0.8 4 FW4
15 411 141 2905 WASHER SPR 4 4 SW4
16 630 000 7633 BOLT,HEX-SCT 4 M4X12
17 630 064 4197 BRACKET,LOCATE 1 678J--02B-005
18 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
19 411 141 3001 WASHER SPR 6 4 SW6
20 630 000 7893 BOLT,HEX-SCT 4 M6X20
21 630 064 5156 BRACKET,LOCATE 1 678J--02B-004
22 630 063 5478 BALL SCREW 1 678J--02H-002
23 411 141 4107 WASHER V 5X10X1 4 FW5
24 411 141 6705 WASHER SPR 5 4 SW5
25 630 000 7787 BOLT,HEX-SCT 4 M5X25
26 630 005 1377 BEARING,UNIT 1 678J--02H-016
27 630 000 7770 BOLT,HEX-SCT 1 M5X20
30 630 064 5576 HOLDER 1 678J--02B-019
31 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
32 411 141 3001 WASHER SPR 6 2 SW6
33 630 000 7893 BOLT,HEX-SCT 2 M6X20
38 630 063 9285 COUPLING 1 678J--02H-007
39 630 063 9292 MOTOR,AC-SERVO 1 678J--02H-009
40 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
41 411 141 3001 WASHER SPR 6 4 SW6
42 630 000 7916 BOLT,HEX-SCT 4 M6X30
43 630 064 5934 COVER 1 678J--02B-070
44 630 064 5897 COVER 1 678J--02B-021
45 411 051 1708 SCR TRS 4X6 6 M4X6 TRS
46 630 064 6009 MECH PARTS 1 678J--02B-065
46 -1 630 064 6047 COLLAR 1 678J--02B-067
47 630 000 7893 BOLT,HEX-SCT 1 M6X20
48 630 064 6016 MECH PARTS 1 678J--02B-066
49 630 064 6054 COLLAR 1 678J--02B-068
50 630 000 7923 BOLT,HEX-SCT 1 M6X35
51 630 064 6313 GUIDE,LINEAR 2 678J--02H-004
52 630 000 7664 BOLT,HEX-SCT 32 M4X20
61 630 066 0548 PANEL 1 678J--02B-071
62 630 066 0555 COVER 1 678J--02B-072
63 411 141 4008 WASHER V 4X9X0.8 2 FW4
NOTE
MODEL TCM-3500Z
9810-001
6- 2
Key No. PART No. PART NAME Q'ty REMARKS
64 411 141 2905 WASHER SPR 4 2 SW4
65 630 000 7633 BOLT,HEX-SCT 2 M4X12
66 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
91 411 141 4107 WASHER V 5X10X1 16 FW5
92 411 141 6705 WASHER SPR 5 16 SW5
93 630 000 7770 BOLT,HEX-SCT 16 M5X20
94 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
95 411 141 3001 WASHER SPR 6 4 SW6
96 630 000 7909 BOLT,HEX-SCT 4 M6X25
117 630 076 5359 ASSY,CORD(C35-Y-SVM) 1
123 630 076 9081 CORD(C35-Y-PG) 1 678FB-02D-807
NOTE
