MODEL TCM-3500Z 9810-001 7- 3 Key No. PART No. PART NAME Q' ty REMARKS 1 630 028 9493 GEAR 2 678G--02H-006 2 630 000 8951 SET SCREW 4 M5X8 SET 3 630 053 0667 SHAFT 1 678G--02B-009 4 630 028 9480 GEAR 2 678G--02H-007…
MODEL TCM-3500Z
9810-001
Ｌコンベア部 L CONVEYOR SECTION

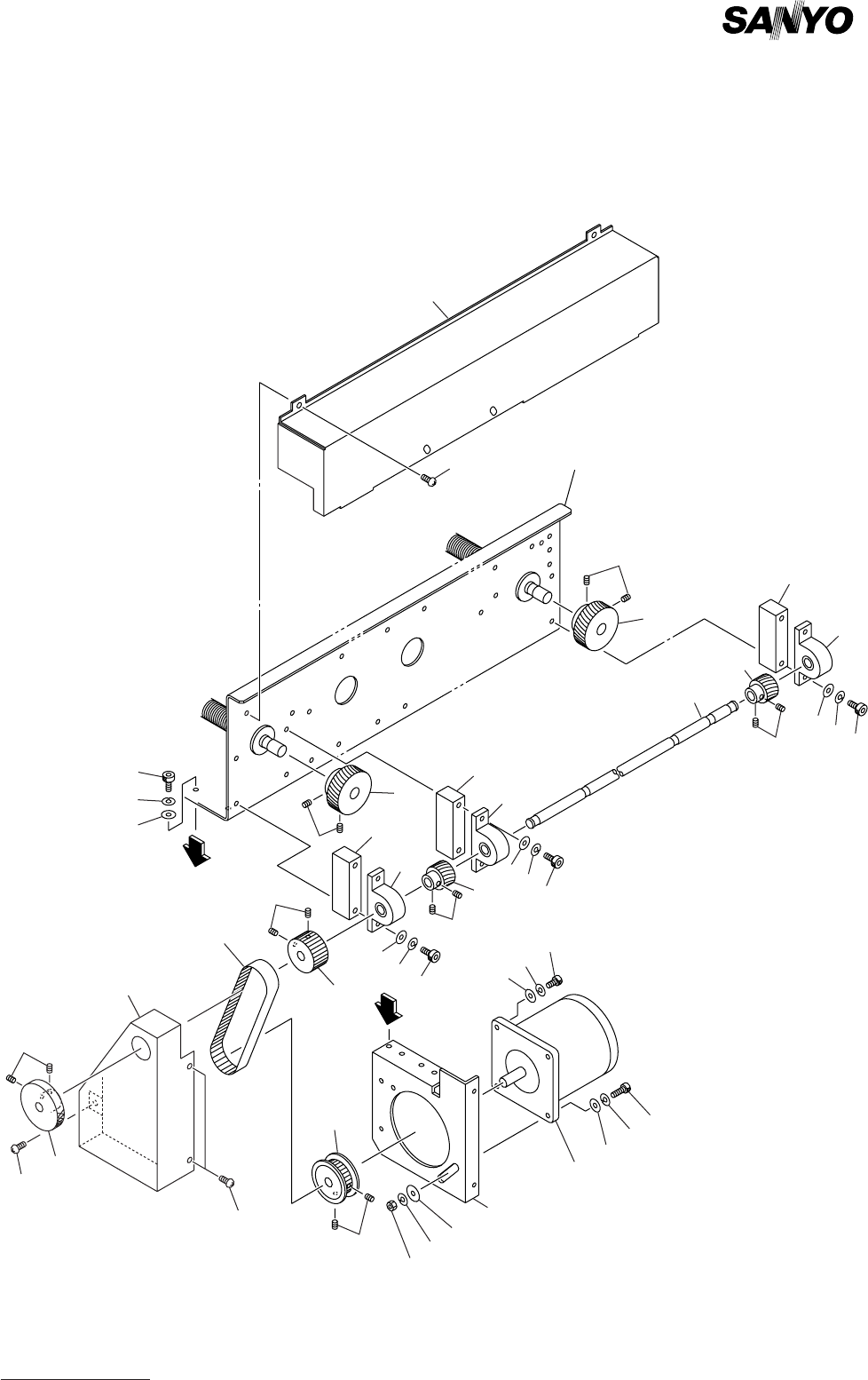

Fig. 7-3 ドライブシャフト Driving Shaft
See Fig.7-1
Key No.2
6-1
5
7
8
9
7
4
8
9
2
1
7
8
9
5
4
3
6
6
6
2
1
42
23
22
21
36
39
37
33
25
26
27
34
30
29
28
20
24
25
26
27-1
38
37
35
17
16
41
6-1
6-1
A
A
4796
MODEL TCM-3500Z
9810-001
7- 3
Key No. PART No. PART NAME Q'ty REMARKS
1 630 028 9493 GEAR 2 678G--02H-006
2 630 000 8951 SET SCREW 4 M5X8 SET
3 630 053 0667 SHAFT 1 678G--02B-009
4 630 028 9480 GEAR 2 678G--02H-007
5 630 008 2296 SET SCREW 4 M4X4 SET
6 630 001 1890 BEARING,UNIT 3 678G--02H-005
6 -1 630 057 7297 COLLAR 3 678G--02B-036
7 411 141 4107 WASHER V 5X10X1 6 FW5
8 411 141 6705 WASHER SPR 5 6 SW5
9 630 000 7800 BOLT,HEX-SCT 6 M5X35
16 630 056 3924 PULLEY,TIMING 1 678G--02H-041
17 630 000 8951 SET SCREW 2 M5X8 SET
20 630 065 1164 BRACKET(MOTOR) 1 678G--02B-043
21 411 141 4107 WASHER V 5X10X1 2 FW5
22 411 141 6705 WASHER SPR 5 2 SW5
23 630 000 7749 BOLT,HEX-SCT 2 M5X10
24 630 009 5869 MOTOR,STEPPING 1 678G--02H-040
25 411 141 4107 WASHER V 5X10X1 2 FW5
26 411 141 6705 WASHER SPR 5 2 SW5
27 630 000 7763 BOLT,HEX-SCT 1 M5X16
27 -1 630 000 7787 BOLT,HEX-SCT 1 M5X25
28 630 001 0220 WASHER 1 678G--02H-027
29 411 141 6705 WASHER SPR 5 1 SW5
30 411 141 0505 NUT HEX 5 1 M5
33 630 056 3917 PULLEY,TIMING 1 678G--02H-042
34 630 000 8951 SET SCREW 2 M5X8 SET
35 630 048 9668 BELT,TIMING 1 678G--02H-043
36 630 056 2781 COVER(L) 1 678G--02B-044
37 411 051 1708 SCR TRS 4X6 3 M4X6 TRS
38 630 035 8384 BOSS(HANDLE) 1 678G--02B-047
39 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
41 630 064 8195 COVER 1 678G--02B-018
42 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
NOTE
