MODEL TCM-3500Z 9810-001 1 1- 9 Key No. PART No. PART NAME Q' ty REMARKS 1 630 071 9901 PLATE 1 678DB-02V-001 2 630 059 7950 UNIT,DISPLAY 1 678DB-02D-002 2 -1 630 075 3189 SPACER 3 678DB-02V-007 2 -2 630 075 2717 W …
MODEL TCM-3500Z
9810-001
電気制御部 ELECTRICAL SECTION
Fig.11-9 タッチパネル Touchpanel
1
3
41
44
43
42
46
45
41
30
5
6
7
4
5
6
7
8
9
10
See Fig.1-1
Key No.13
34
38
39
40
35
36
37
33
32
31
25
24
23
29
28
27
26
21
22
4796
-002
2-1
2-2
2-3
2-4
2-1
2-2
2-3
2-4
2
50
2-5
MODEL TCM-3500Z
9810-001
11- 9
Key No. PART No. PART NAME Q'ty REMARKS
1 630 071 9901 PLATE 1 678DB-02V-001
2 630 059 7950 UNIT,DISPLAY 1 678DB-02D-002
2 -1 630 075 3189 SPACER 3 678DB-02V-007
2 -2 630 075 2717 WASHER 3 678DB-02D-020
2 -3 411 008 1706 WASHER SPR 4 3 SW4 F
2 -4 411 162 1505 SCR PAN 4X20 3 M4X20 PAN
2 -5 630 059 4157 COVER 1 678DB-02V-006
3 630 071 6979 PLATE 1 678DB-02V-002
4 630 073 2757 PLATE 1 678DB-02V-003
5 411 141 4107 WASHER V 5X10X1 4 FW5
6 411 141 6705 WASHER SPR 5 4 SW5
7 630 000 7749 BOLT,HEX-SCT 4 M5X10
8 411 141 4107 WASHER V 5X10X1 2 FW5
9 411 141 6705 WASHER SPR 5 2 SW5
10 630 000 7770 BOLT,HEX-SCT 2 M5X20
21 630 062 0726 BOX 1 678DB-02V-004
22 630 000 4243 SOCKET 2 678DB-02D-006
23 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
24 411 086 4408 WASHER SPR 3 4 SW3 F
25 411 041 8908 SCR PAN 3X6 4 M3X6 PAN
26 411 141 4107 WASHER V 5X10X1 1 FW5
27 411 141 6705 WASHER SPR 5 1 SW5
28 630 000 7756 BOLT,HEX-SCT 1 M5X12
29 411 036 8609 SCR PAN+SW+W 5X12 1
30 411 036 8609 SCR PAN+SW+W 5X12 1
31 411 141 4107 WASHER V 5X10X1 1 FW5
32 411 141 6705 WASHER SPR 5 1 SW5
33 630 000 7756 BOLT,HEX-SCT 1 M5X12
34 630 051 6951 BRACKET 1 678DB-02V-005
35 630 001 0220 WASHER 2 BW5
36 411 141 6705 WASHER SPR 5 2 SW5
37 630 000 7756 BOLT,HEX-SCT 2 M5X12
38 630 001 0220 WASHER 2 BW5
39 411 141 6705 WASHER SPR 5 2 SW5
40 630 000 7756 BOLT,HEX-SCT 2 M5X12
41 630 051 5763 WIRE PARTS 2 678FB-02D-101
42 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
43 411 008 1706 WASHER SPR 4 2 SW4 F
44 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
46 411 036 8609 SCR PAN+SW+W 5X12 7
50 630 060 0896 CORD 1 678DB-02D-018
NOTE
MODEL TCM-3500Z
9810-001
電気制御部 ELECTRICAL SECTION

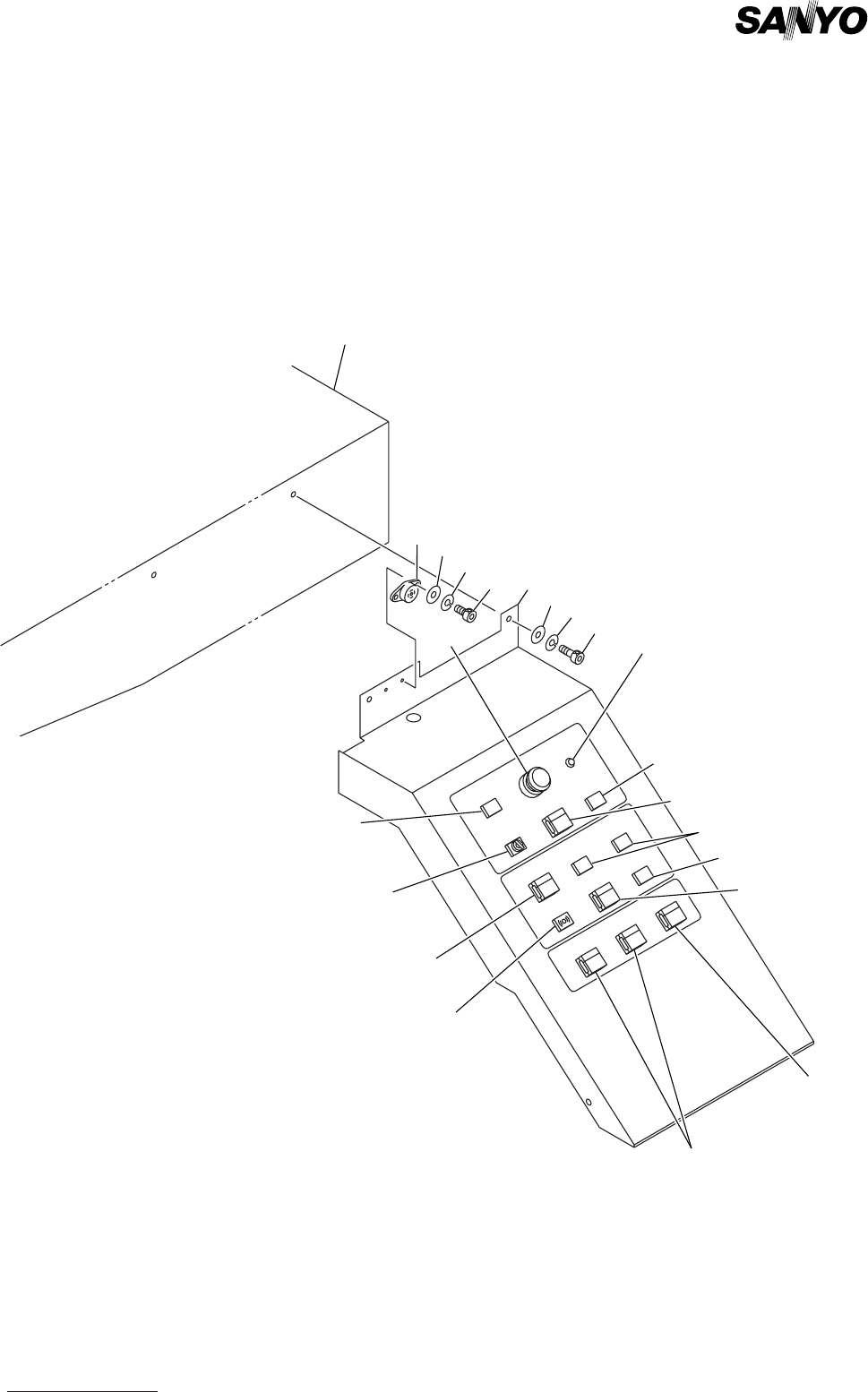

Fig.11-10 前面操作パネル Front Operation Panel
4796R
See Fig.1-1
Key No.13
1
41
42
43
31
32
33
34
28
111213
14
15
27
26
18
. .
2425
.
3637
.
16 17
.
19 20
.
21 22
.
23
