MODEL TCM-3500Z 9810-001 電気制御部 ELECTRICAL SECTION Fig.1 1-13 機械廻り 2 (ベース上面部） Miscellaneous Parts-2 98 92 97 96 91 93 94 95 109 104 103 102 101 105 109 109 106 108 107 1 71 72 73 23 22 24 25 121 122 123 124 3 109 See Fig.…
MODEL TCM-3500Z
9810-001
11-12
Key No. PART No. PART NAME Q'ty REMARKS
118 -1 630 066 2054 STAY 1 678FB-02V-037
119 630 066 2047 COVER 1 678FB-02V-036
120 630 060 5662 FILTER,NOISE 1 678FB-02D-135
121 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
122 411 008 1706 WASHER SPR 4 2 SW4 F
123 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
124 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
124 -1 411 114 7807 SCR PAN+SW+W 4X10 1
NOTE
MODEL TCM-3500Z
9810-001
電気制御部 ELECTRICAL SECTION

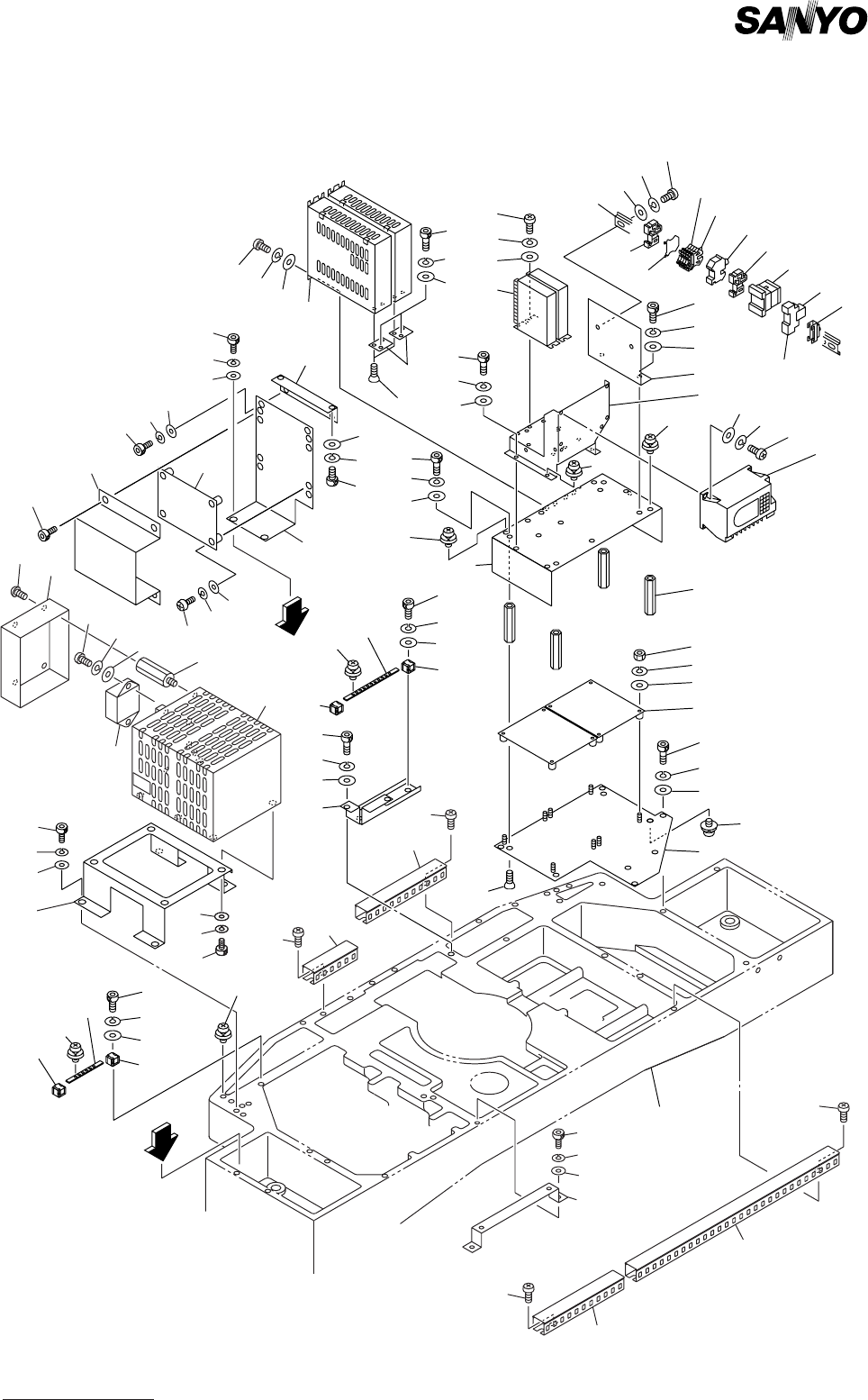

Fig.11-13 機械廻り2 (ベース上面部） Miscellaneous Parts-2
98
92
97
96
91
93
94
95
109
104
103
102
101
105
109
109
106
108
107
1
71
72
73
23
22
24
25
121
122
123
124
3
109
See Fig.1-1
Key No.13
A
42
43
44
45
129
128
127
120
121
126
125
11
12
13
16
15
14
7
8
9
10
17
18
84
83
82
82
83
84
77
81
78
79
80
85
86
87
88
89
90
117
116
114
113
112
115
111
A
2
26
31
32
33
30
41
51
52
53
54-3
54-4
54-5
54-6
54-6
49
48
29
28
27
46 47
.
.
50
134
133
132
131
136
140
135
131
54-1
54-2
4796-002
6-2
29-1
6
5
4
70
6-1
6-2
19
MODEL TCM-3500Z
9810-001
11-13
Key No. PART No. PART NAME Q'ty REMARKS
1 630 062 0689 PLATE 1 678FB-02V-007
2 630 059 2207 STAY 4 678FB-02V-011
3 630 062 0696 PLATE 1 678FB-02V-008
4 411 141 4107 WASHER V 5X10X1 3 FW5
5 411 141 6705 WASHER SPR 5 3 SW5
6 630 000 7756 BOLT,HEX-SCT 3 M5X12
6 -1 411 140 7307 SCR FLT 5X12 3 M5X12 FLT
6 -2 411 036 8609 SCR PAN+SW+W 5X12 2
7 630 051 6555 UNIT,DRIVER 2 678FB-02D-018
8 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
9 411 008 1706 WASHER SPR 4 4 SW4 F
10 411 042 3001 SCR PAN 4X10 4 M4X10 PAN
11 630 075 0447 UNIT,DRIVER 2 678FB-02D-026
12 630 059 2214 PLATE 2 678FB-02V-012
13 411 035 2707 SCR FLT 4X8 4 M4X8 FLT
14 411 141 4008 WASHER V 4X9X0.8 2 FW4
15 411 141 2905 WASHER SPR 4 2 SW4
16 630 000 7619 BOLT,HEX-SCT 2 M4X8
17 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
18 411 008 1706 WASHER SPR 4 4 SW4 F
19 411 043 5004 SCR PAN 4X8 4 M4X8 PAN
22 630 052 3010 P.C.B,MOUNT(MEKAHAI) 2 678FB-02U-001
23 411 119 1909 WASHER V 3X7X0.5 8 FW3 F
24 411 086 4408 WASHER SPR 3 8 SW3 F
25 411 054 6809 NUT HEX 3 8 M3 F
26 630 062 0702 BRACKET 1 678FB-02V-010
27 411 141 4008 WASHER V 4X9X0.8 3 FW4
28 411 141 2905 WASHER SPR 4 3 SW4
29 630 000 7633 BOLT,HEX-SCT 3 M4X12
29 -1 411 114 7807 SCR PAN+SW+W 4X10 1
30 630 058 1386 UNIT,I/O 1 678B--02H-006
31 411 141 4008 WASHER V 4X9X0.8 4 FW4
32 411 141 2905 WASHER SPR 4 4 SW4
33 630 000 7626 BOLT,HEX-SCT 4 M4X10
34 411 113 9109 SCR TRS 5X10 2 M5X10 TRS
41 630 062 0719 BRACKET 1 678FB-02V-029
43 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
44 411 008 1706 WASHER SPR 4 2 SW4 F
45 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
46 630 052 3539 ACCESSORY,WIRING 1
47 630 052 3621 COUNTER 1 678FB-02D-091
48 630 049 2064 SOCKET 1 678FB-02D-094
49 630 052 4727 RELAY 1 678FB-02D-093
50 630 000 1051 BRACKET,WIRING 1
51 411 141 4107 WASHER V 5X10X1 2 FW5
52 411 141 6705 WASHER SPR 5 2 SW5
53 630 000 7756 BOLT,HEX-SCT 2 M5X12
70 411 036 8609 SCR PAN+SW+W 5X12 1
71 411 141 4107 WASHER V 5X10X1 4 FW5
72 411 141 6705 WASHER SPR 5 4 SW5
NOTE
