MODEL TCM-3500Z 9810-001 電気制御部 ELECTRICAL SECTION Fig.1 1-19 コンベア駆動回路 Ｒ Conveyor Driver Circuit R 42 41 See Fig.1-1 Key No.12 See Fig.8-1 Key No.2 9 8 7 10 8 7 6 24 4 25 29 28 27 64 58-1 52 57 54 58 57 52-1 . 53 55 56 . …
MODEL TCM-3500Z
9810-001
11-18
Key No. PART No. PART NAME Q'ty REMARKS
1 630 001 0237 WASHER 4 678G--02H-025
2 630 064 8348 BRACKET(TB) 1 678G--02B-045
3 630 001 0220 WASHER 4 BW5
4 411 141 6705 WASHER SPR 5 4 SW5
5 630 000 7770 BOLT,HEX-SCT 4 M5X20
6 630 066 3150 PLATE 1 678G--02B-053
7 630 001 0237 WASHER 3 BW6
8 411 141 3001 WASHER SPR 6 3 SW6
9 630 000 7893 BOLT,HEX-SCT 2 M6X20
10 630 000 7886 BOLT,HEX-SCT 1 M6X16
11 630 056 2736 PLATE 2 678G--02B-049
12 630 000 0252 SENSOR,PHOTO 2 678G--02H-044
13 630 000 0269 SENSOR,PHOTO(CONNECTOR) 2 678G--02H-045
14 411 119 1909 WASHER V 3X7X0.5 8 FW3 F
15 411 040 7803 SCR PAN 3X12 4 M3X12 PAN
16 411 141 4008 WASHER V 4X9X0.8 4 FW4
17 411 141 2905 WASHER SPR 4 4 SW4
18 630 000 7619 BOLT,HEX-SCT 4 M4X8
21 630 049 1210 RELAY 6 678FD-02D-001
22 411 119 2104 WASHER V 4X9X0.8 12 FW4 F
23 411 008 1706 WASHER SPR 4 12 SW4 F
24 411 042 3001 SCR PAN 4X10 12 M4X10 PAN
27 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
28 411 008 1706 WASHER SPR 4 2 SW4 F
29 411 113 1400 SCR PAN 4X6 2 M4X6 PAN
41 630 064 8201 COVER(L) 1 678G--02B-024
42 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
52 -1 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
53 630 049 3801 TERMINAL 10 678FD-02D-008
54 630 049 3702 ACCESSORY,WIRING 2 678FD-02D-006
55 630 049 3733 ACCESSORY,WIRING 1 678FD-02D-005
57 630 049 3672 BRACKET,WIRING 2 678FD-02D-007
58 630 049 1173 FUSE HOLDER 6 678FD-02D-012
58 -1 423 022 8203 FUSE 250V 3.15A 6 678FD-02D-013
61 630 051 5763 WIRE PARTS 2 678FD-02D-020
62 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
63 411 008 1706 WASHER SPR 4 2 SW4 F
64 411 042 3001 SCR PAN 4X10 2 M4X10 PAN
66 411 036 8609 SCR PAN+SW+W 5X12 9
91 630 064 8386 COVER(TB) 1 678G--02B-046
92 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
97 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
98 411 008 1706 WASHER SPR 4 2 SW4 F
99 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
NOTE
MODEL TCM-3500Z
9810-001
電気制御部 ELECTRICAL SECTION

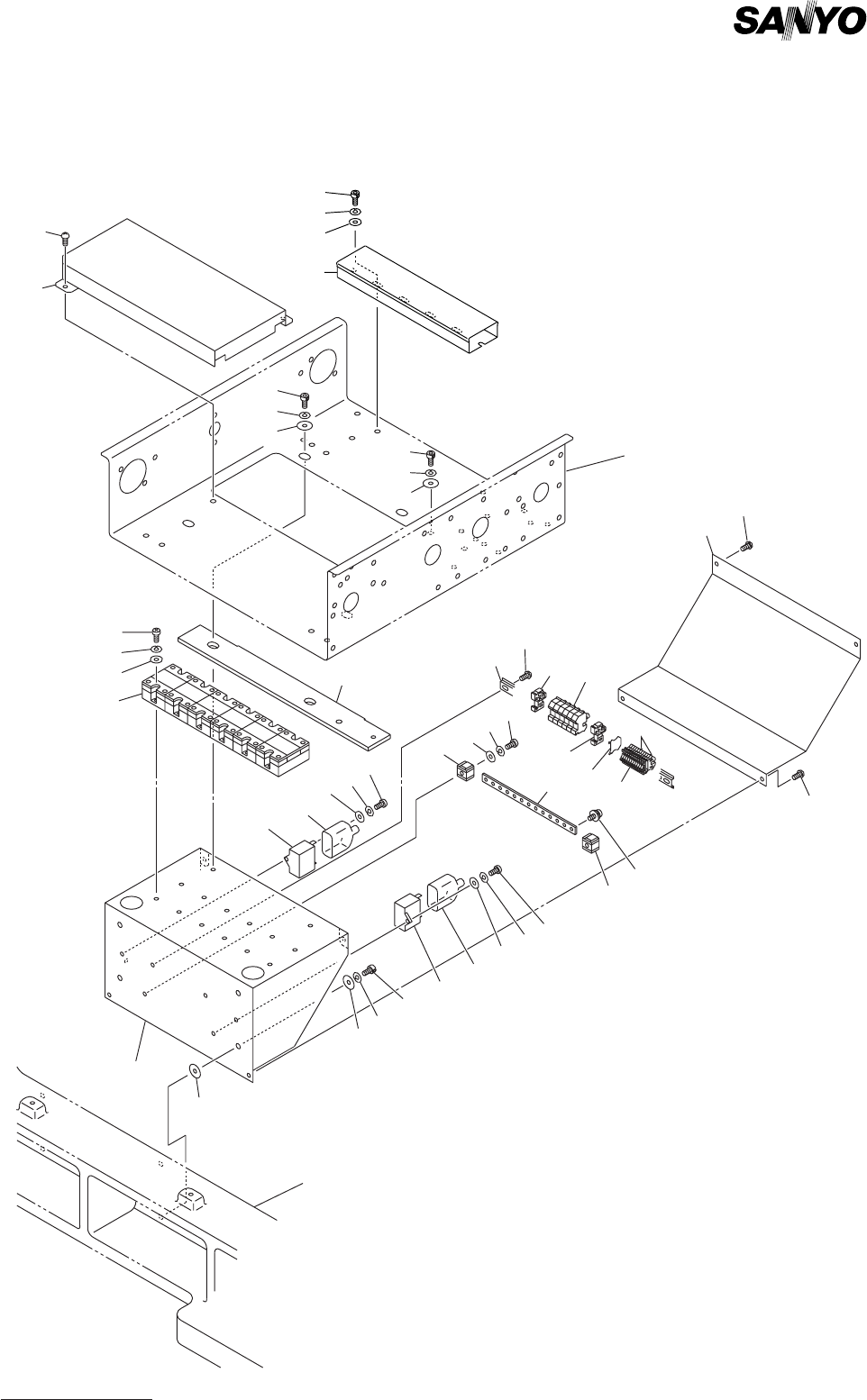

Fig.11-19 コンベア駆動回路 Ｒ Conveyor Driver Circuit R
42
41
See Fig.1-1
Key No.12
See Fig.8-1
Key No.2
9
8
7
10
8
7
6
24
4
25
29
28
27
64
58-1
52
57
54
58
57
52-1
.
53
55
56
.
63
62
61
61
66
65
25-1
26
29
91
92
92
28
27
26-1
3
1
2
5
23
22
21
97
96
98
99
TCM-3500Z
MODEL TCM-3500Z
9810-001
11-19
Key No. PART No. PART NAME Q'ty REMARKS
1 630 001 0237 WASHER 4 678H--02H-025
2 630 064 8379 BRACKET(TB) 1 678H--02B-045
3 630 001 0220 WASHER 4 BW5
4 411 141 6705 WASHER SPR 5 4 SW5
5 630 000 7770 BOLT,HEX-SCT 4 M5X20
6 630 066 3150 PLATE 1 678H--02B-053
7 630 001 0237 WASHER 3 BW6
8 411 141 3001 WASHER SPR 6 3 SW6
9 630 000 7893 BOLT,HEX-SCT 2 M6X20
10 630 000 7886 BOLT,HEX-SCT 2 M6X16
11 630 056 2736 PLATE 2 678H--02B-049
12 630 000 0252 SENSOR,PHOTO 2 678H--02H-044
13 630 000 0269 SENSOR,PHOTO(CONNECTOR) 2 678H--02H-045
14 411 119 1909 WASHER V 3X7X0.5 8 FW3 F
15 411 086 4408 WASHER SPR 3 4 SW3 F
16 411 141 4008 WASHER V 4X9X0.8 4 FW4
17 411 141 2905 WASHER SPR 4 4 SW4
18 630 000 7619 BOLT,HEX-SCT 4 M4X8
21 630 049 1210 RELAY 6 678FD-02D-001
22 411 119 2104 WASHER V 4X9X0.8 12 FW4 F
23 411 008 1706 WASHER SPR 4 12 SW4 F
24 411 042 3001 SCR PAN 4X10 12 M4X10 PAN
27 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
28 411 008 1706 WASHER SPR 4 2 SW4 F
29 411 113 1400 SCR PAN 4X6 2 M4X6 PAN
41 630 064 8287 COVER 1 678H--02B-024
42 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
52 -1 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
53 630 049 3801 TERMINAL 10 678FD-02D-008
54 630 049 3702 ACCESSORY,WIRING 2 678FD-02D-006
55 630 049 3733 ACCESSORY,WIRING 1 678FD-02D-005
57 630 049 3672 BRACKET,WIRING 2 678FD-02D-007
58 630 049 1173 FUSE HOLDER 6 678FD-02D-012
58 -1 423 022 8203 FUSE 250V 3.15A 6 678FD-02D-013
61 630 051 5763 WIRE PARTS 2 678FD-02D-020
62 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
63 411 008 1706 WASHER SPR 4 2 SW4 F
64 411 042 3001 SCR PAN 4X10 2 M4X10 PAN
66 411 036 8609 SCR PAN+SW+W 5X12 9
91 630 064 8386 COVER(TB) 1 678H--02B-046
92 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
97 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
98 411 008 1706 WASHER SPR 4 2 SW4 F
99 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
NOTE
