MODEL TCM-3500Z 9810-001 12- 2 Key No. PART No. PART NAME Q' ty REMARKS 1 630 041 9498 COVER 1 678R--02B-117 2 630 041 9504 COVER 1 678R--02B-118 3 630 065 7333 COVER 1 678R--02B-119 4 630 064 8775 COVER(MR) 1 678R-…
MODEL TCM-3500Z
9810-001
カバー部 COVER SECTION

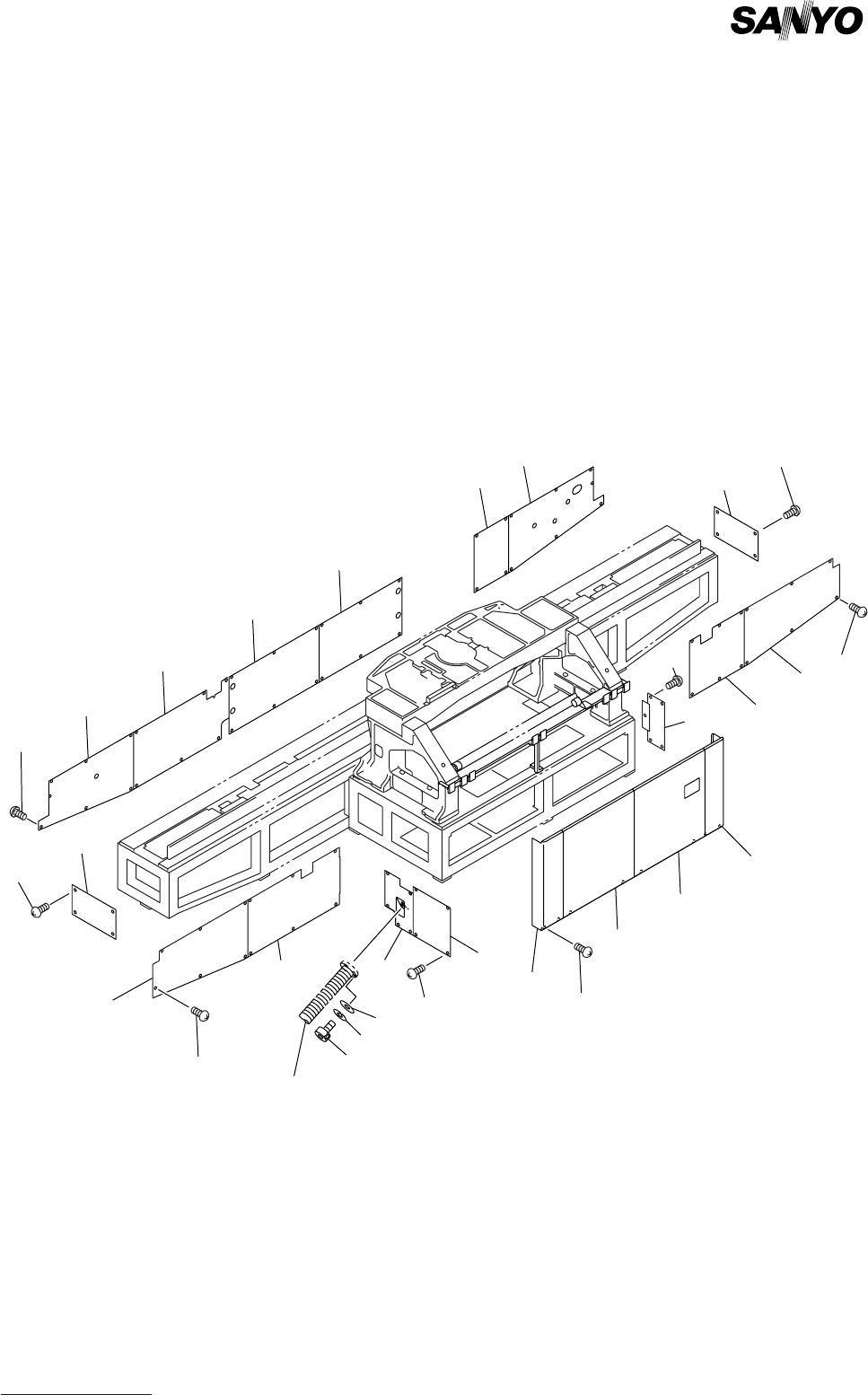

Fig.12-2 本体カバー Body Cover
1
2
3
4
13
8
7
32
31
21
22
23
24
27
26
11
28
TCM-3500E
14
14
5
9
30
29
29
30
See Fig.1-2
Key No.58
12
10
41
42
43
MODEL TCM-3500Z
9810-001
12- 2
Key No. PART No. PART NAME Q'ty REMARKS
1 630 041 9498 COVER 1 678R--02B-117
2 630 041 9504 COVER 1 678R--02B-118
3 630 065 7333 COVER 1 678R--02B-119
4 630 064 8775 COVER(MR) 1 678R--02B-120
5 411 113 9109 SCR TRS 5X10 8 M5X10 TRS
7 630 064 9567 COVER(RFR) 1 678R--02B-123
8 630 058 1621 COVER(RFR) 1 678R--02B-122
9 411 113 9109 SCR TRS 5X10 12 M5X10 TRS
10 630 064 8799 COVER(DUCT) 1 678R--02B-133
11 630 064 8782 COVER(FSL) 1 678R--02B-126
12 630 064 9574 COVER(RFL) 1 678R--02B-124
13 630 058 1591 COVER(RFL) 1 678R--02B-125
14 411 113 9109 SCR TRS 5X10 21 M5X10 TRS
21 630 060 4399 COVER(RBL) 1 678R--02B-127
22 630 058 1331 COVER(RBL) 1 678R--02B-128
23 630 058 1348 COVER(RBC) 1 678R--02B-129
24 630 058 1300 COVER(RBC) 1 678R--02B-130
26 630 058 1355 COVER(RBR) 1 678R--02B-131
27 630 060 4405 COVER(RBR) 1 678R--02B-132
28 411 113 9109 SCR TRS 5X10 38 M5X10 TRS
29 630 058 1584 COVER(RS) 2 678R--02B-134
30 411 113 9109 SCR TRS 5X10 8 M5X10 TRS
31 630 064 9581 COVER 1 678R--02B-138
32 411 113 9109 SCR TRS 5X10 4 M5X10 TRS
41 411 141 4305 WASHER V 6X12.5X1.6 3 FW6
42 411 141 3001 WASHER SPR 6 3 SW6
43 630 000 7893 BOLT,HEX-SCT 3 M6X20
NOTE
MODEL TCM-3500Z
9810-001
カバー部 COVER SECTION

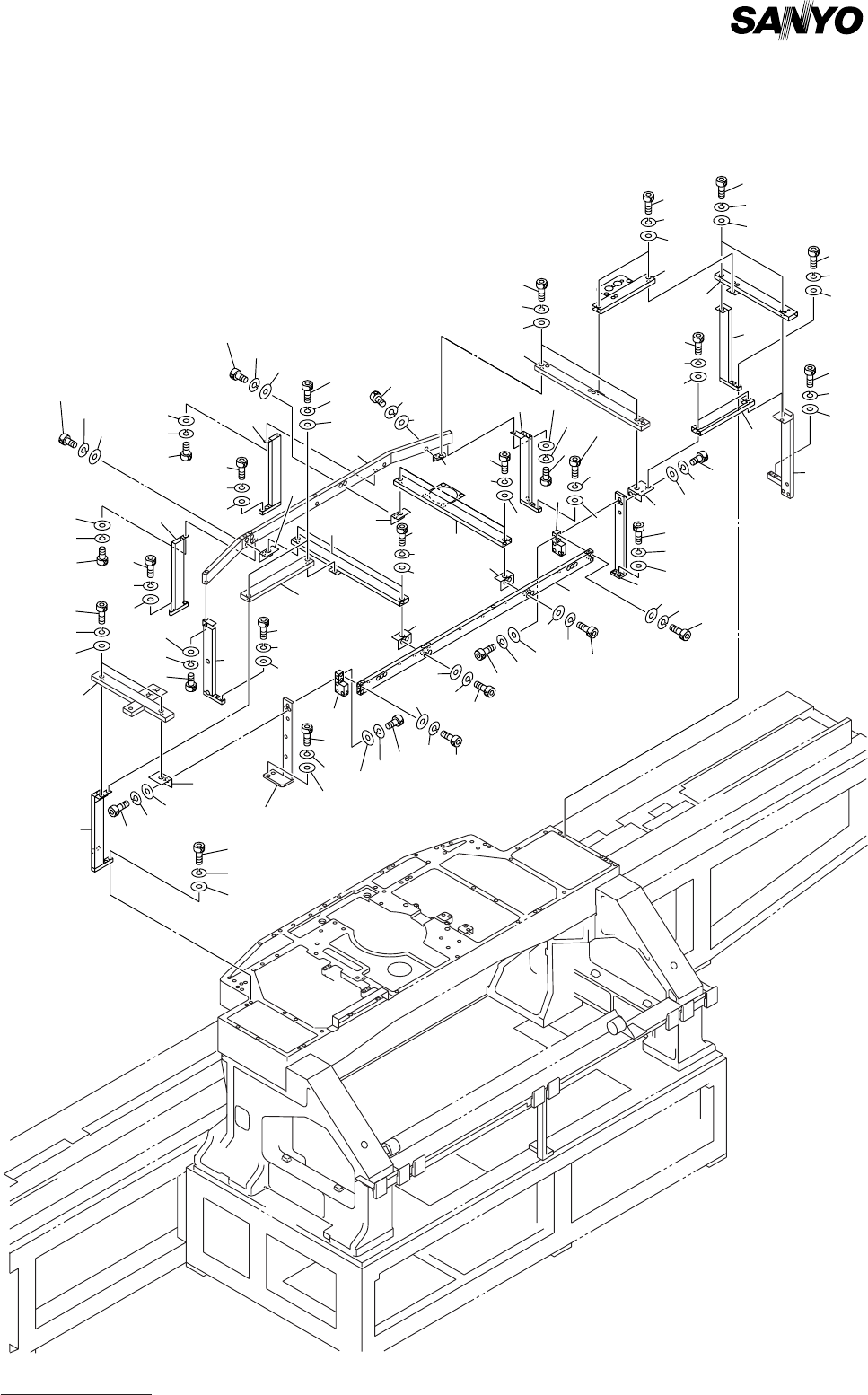

Fig.12-3 上部フレーム Upper Frame
