The X-Feeder Upgrade Package is a retrofitting for X-feeders, which offers the possibility of the opera
-
tion and the film transport of X-feeders significantly.
▪ Modified rocker and film guide! No further distinction is required, if is made with or without PSA film
(Pressure Sensitive Adhesive very sticky film edges). The clips can be dispensed with.
▪ Toothed stuffing gear on film transport! Improved grip on the foil and therefore safer and faithful
transport the film.
▪ Flap on the film container with magnetic lock! Defined force when the valve opens.
The upgrade package is available for 16-104mm X feeder.
▪ SIPLACE X-Feeder Upgrade Package X16 [03096682-xx]
▪ SIPLACE X-Feeder Upgrade Package X24 [03085739-xx]
▪ SIPLACE X-Feeder Upgrade Package X32 [03085751-xx]
▪ SIPLACE X-Feeder Upgrade Package X44 [03085492-xx]
▪ SIPLACE X-Feeder Upgrade Package X56 [03085761-xx]
▪ SIPLACE X-Feeder Upgrade Package X72 [03085771-xx]
▪ SIPLACE X-Feeder Upgrade Package X88 [03085781-xx]
▪ SIPLACE X-Feeder Upgrade Package X104 [03086059-xx]
1.2
1.2 Safety Instructions
Safety Instructions
This manual contains notes that must be observed to guarantee your personal safety and to avoid dam
-
age to equipment. These notes are highlighted by different symbols and are indicated as follows accord
-
ing to the level of risk:
1. Revised with new rocker design stuffing gear
- More grip on the film with uniform insertion force.
2. New film roll
- film is folded automatically, ie the feeder works well,
if you work with or without sticky film.
3. Use cover strip rocker
- Supports the folding of the foil in combination with
the folding roller.
4. Revised flap on the cover foil disposal
- Open immediately, if the foil tank is full (either open
or closed).
NOTICE
Note for the use of safety instructions
Please observe the safety instructions in the user manual of the relevant machine for all work!
CAUTION
Pay attention to feeder module ESD safety:
Before you open the side cover, make sure you are wearing the ESD protection wristband, to
prevent damage to the highly sensitive boards inside the feeder module.
Introduction
Safety Instructions
26 AI X-Feeder Upgrade Package AI X-Feeder Upgrade Package
Required parts
Re-used parts
AI X-Feeder Upgrade Package AI X-Feeder Upgrade Package 27
2
2 Required parts
Required parts
The X-Feeder upgrade package includes all parts to be replaced, for your service / maintenance person
-
nel to enable the automatically perform of retrofitting .
2.1
2.1 Re-used parts
Re-used parts
NOTICE
Reuse of component parts
For the retrofit will be used component parts. Please therefore ensure no dismantled parts to
lose.
NOTICE
Small parts
For greater clarity, we recommend that you loosen the same types of screws together and then
keep them in small, marked bowls.
CAUTION
Surface
Perform the upgrade on a one stable, level and clean surface.

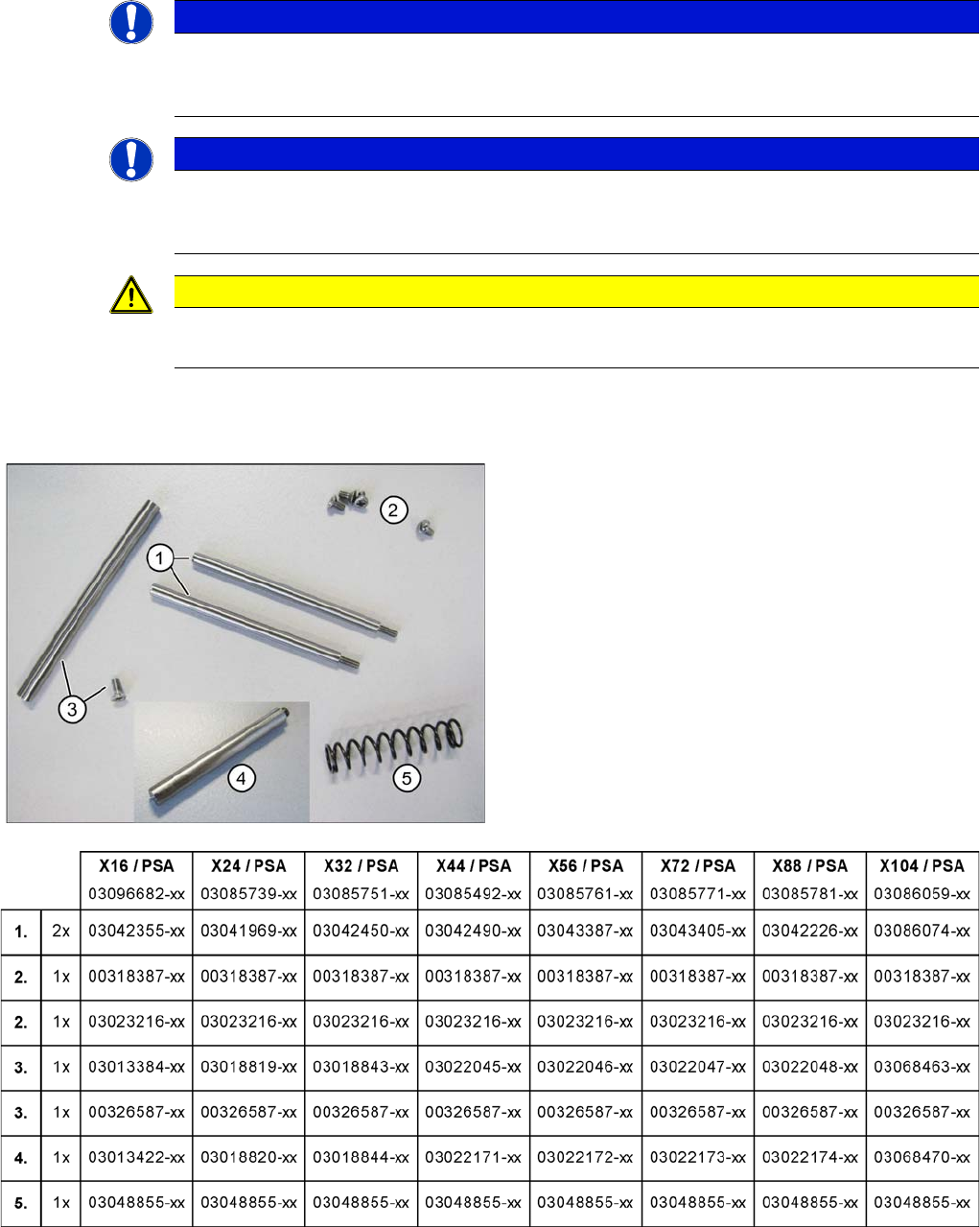

1. Bearing shafts rocker
2. Bolt for Stripping Device Foil Disposal
3. Screw bolts with cover foil disposal
4. Axis D4 foil rocker assembly
5. Compression spring
