1.9 Cleaning the Filter Regulator (Every Week)

Point

The air flowing within the pneumatic piping needs to be clean at all times.

A dirty filter element may make it impossible to supply clean air and lead to equipment

breakdown.

Procedure

WARNING

Turn off the main power before carrying out this procedure.

Release all compressed air from the air system.

1. Close the air intake valve to disconnect the external compressed air source.

2. Release the compressed air from the machine air lines.

Disconnect the air hose and slowly open the valve to release the compressed air.

3. Close the valve lever again when the air has been fully expelled.

Air

Air hose

Air

CP6ML032

Valve lever

Lever type Handle type

Valve handle

CP6ML031

Part 3 Chapter 1 Cleaning

Edition 1.6 3-1-8 CP-6-series Mechanical Reference

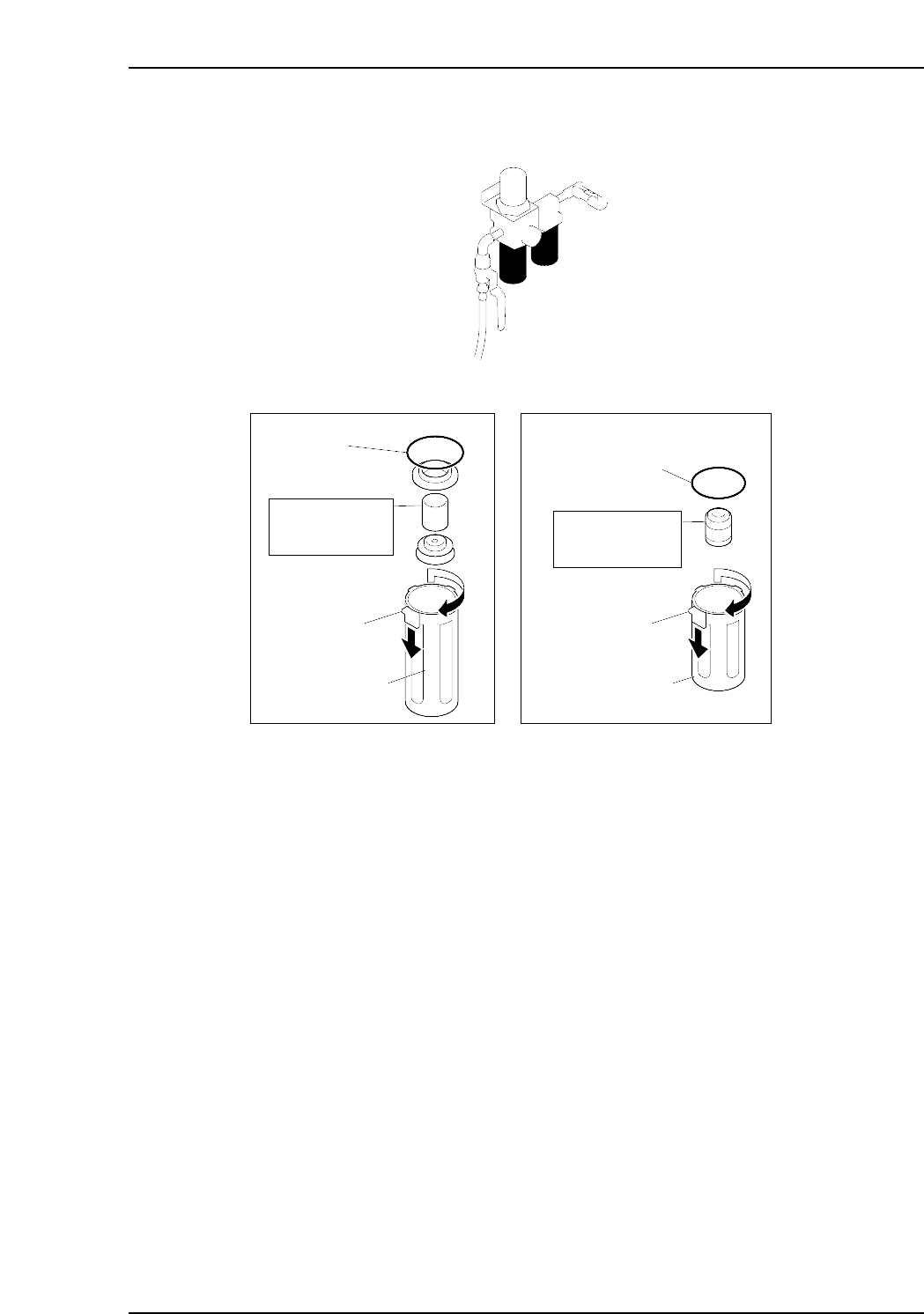

Next remove the filter case and clean the filter element.

1. Disconnect the drain hose from the regulator if there is any.

2. Remove the filter case.

While pressing the lock down, turn to remove the filter case.

3. Remove the drainage collected in the filter case and wash the case with neutral

detergent.

4. Remove and clean the element.

Note: The element should be replaced every 2 years.

Assemble the filter regulator after cleaning, attach the air-hose, and open the valve lever

fully.

CP6ML007

O-ring

Lock knob Lock knob

Filter case

Filter regulator

AW3000-02-BDG

Mist separator

AFM3000-02-D

Model : 111585

Manufacturer : SMC

Filter element

Model : 630617

Manufacturer : SMC

Element assemby

Part 3 Chapter 1 Cleaning

Edition 1.6 3-1-9 CP-6-series Mechanical Reference

1.10 Changing the Nozzle Filter (Every 3 Months)

Point

The filter inside of the shaft-axis becomes dirty with use, and as a general rule should be

replaced with a new one every three months.

Procedure

WARNING

Turn off the 200 V servo power before carrying out this work.

1. Remove the nozzle holder. (Refer to Part 5, Chapter 1. Placing Heads.)

2. Take out the filter with a pair of tweezers.

Filter

CP6ML005E

Part 3 Chapter 1 Cleaning

Edition 1.6 3-1-10 CP-6-series Mechanical Reference
