Grease Gun Kit

A grease gun kits with which grease supply for almost all Fuji equipment can be

performed is available from Fuji. The grease gun kit comes with all the nozzles required

to apply grease to the various grease fitting formats. To obtain the grease gun kit, please

contact your Fuji agent.

Included Parts

GRSKIT02E

Name: Fuji grease gun kit

Code: AWPJ8201

FUJI Grease gun kit contents:

No. Name Code

Format

Quantity

Box Sheet

Sheet

Mushroom Nipple

Grease Gun

Syringe

Rubber Hose

Air Hose

Nozzle

EA506J

PE light (Sponge)

Polyurethane

KH-120 (with HSP-1)

SJ-S30S

SPK-3C

TU0604B-310 mm

L-type

N-type

N-1-type

P-type

Nozzle

Tube

U-type

PTFE tube 2x3-150 mm

Connector

Connector Nipple

PN-1/8-PT1/8-BS

TS6-01

17 Sleeve 40-13

WPJ1271

WPJ1281

WPJ1261

K1153F

S2184A

H5456T

T2063H

N5004A

N5005A

N5006A

N5007A

N5008A

T2061E

K5030T

S2176B

S3084A 1

GRSKIT01E

Part 3 Chapter 2 Lubrication

Edition 1.2 3-2-2 CP-6-series Mechanical Reference

Lubrication Instructions

Illustrations and tables are used to indicate important information about keeping the

machine properly lubricated.

■ Type and Schedule for Lubrication

Within these illustrations, symbols are used to indicate the location, type and schedule

for lubrication.

The lubrication schedules are based on eight hours of operation per day, five days per

week (40 hours) and 20 days per month (160 hours). However, if the machines are being

operated in two or three shifts per day, the lubrication schedules should be used as

follows.

Daily: Eight hours from when the machine is turned on, after every

eight hour shift, or after one day’s operation.

Weekly: After 40 hours of operation, whether the machine is being used

in two or three shifts, or after one week’s operation.

Monthly: After 160 hours of operation, whether the machine is being

used in two or three shifts, or after one month’s operation.

Every 3 months: After 480 hours of operation, whether the machine is being

used in two or three shifts, or after three month’s operation.

■ Locations for Lubrication

Locations for lubrication are indicated in the illustrations using arrows and numbers.

White arrows are used to indicate surfaces that require greasing or oil. Black arrows

indicate grease fittings, and signify that grease should be inserted using a grease pump.

Note: Even LM blocks that do not have a grease fitting can be lubricated by applying grease

between the block and the LM rail (bearing mechanism). The grease that adheres to the

ball bearings and rollers will be taken into the LM block and thereby serve to lubricate the

LM block.

■ Lubrication Checklist

A lubrication checklist is provided at the end of this chapter. This checklist should be

used as follows.

1. Check the lubrication points corresponding to the reference numbers shown in the

illustrations.

2. Mark each check box after lubricating each point.

LM rail

LM block

(1)

(2)

C7SM3004

Part 3 Chapter 2 Lubrication

Edition 1.2 3-2-3 CP-6-series Mechanical Reference

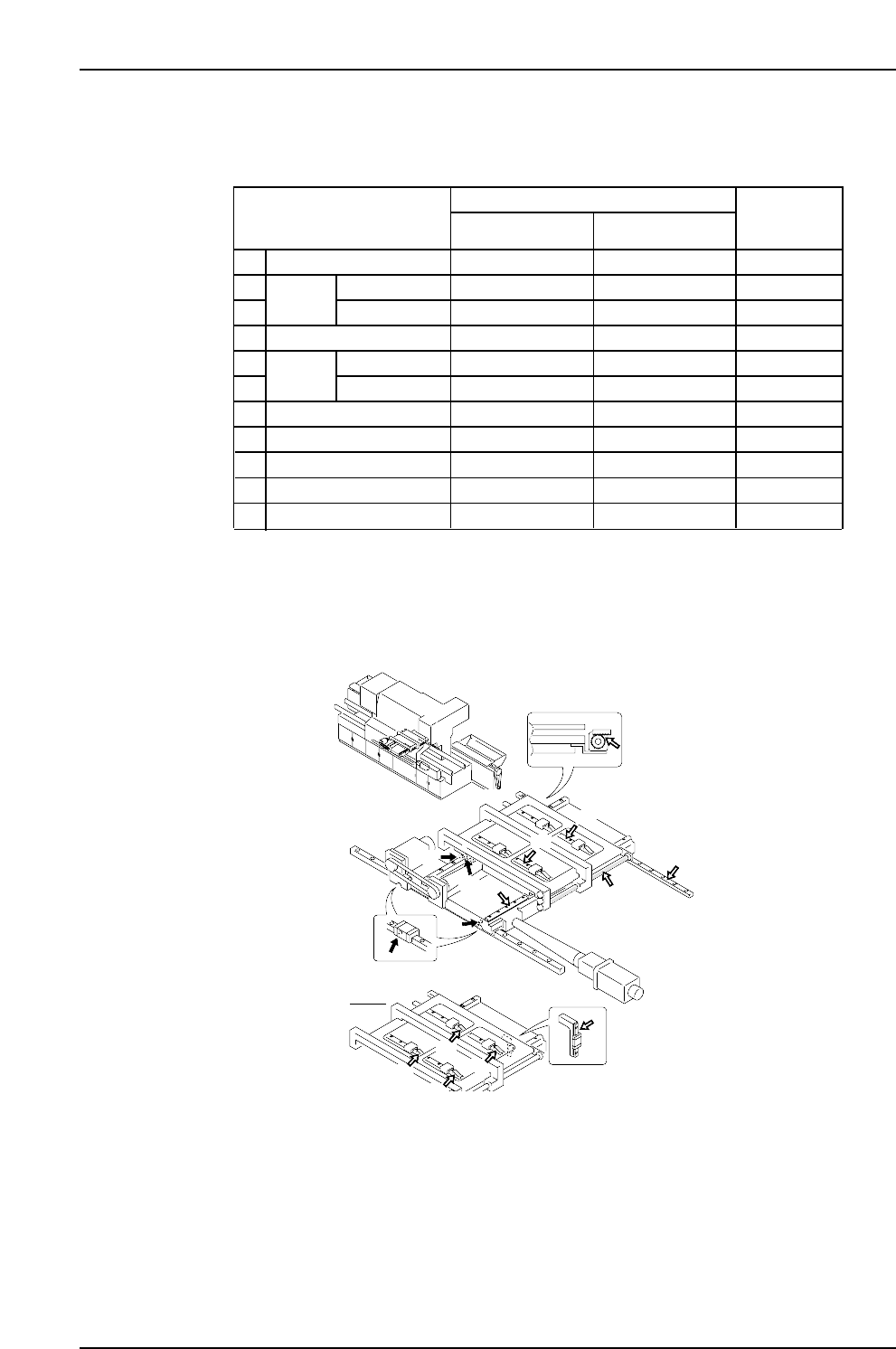

2.1 Lubricating the XY-table

<CP-6/6E, CP-6M/6ME>

Arrow marks in the illustration indicate lubrication points.

Black arrows indicate points where a grease gun is required.

Apply to the Y-axis ball screw

Apply to the X-axis ball screw

(1) :

(4) :

Z-axis

CP6M3010

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(9)

(8)

(10)

(11)

AFC Grease

Daphne

Eponex No. 2

N/A

✔

N/A

✔

N/A

✔

CP6M3009

Lubrication

Points

Lubrication

Frequency

Types of Lubricants

Every month

Every week

Every month

Every week

Every month

Every week

Every month

✔ : Lubricate N/A : Do not lubricate

Ball screw

Gear, Rack gear

Z-axis cam side

Z-axis LM rail

LM rail

Shaft

guide

LM rail

LM block

LM rail

LM block
