2.2 Lubricating the Device T ables Arrow marks in the illustration indicate lubrication points. Black arrows indicate points where a grease gun is required. CP6M3016 (27) (27) (28) (28) (28) (28) (27) (27) (27) (29) (29)…
<CP-65/65E, CP-652CE>

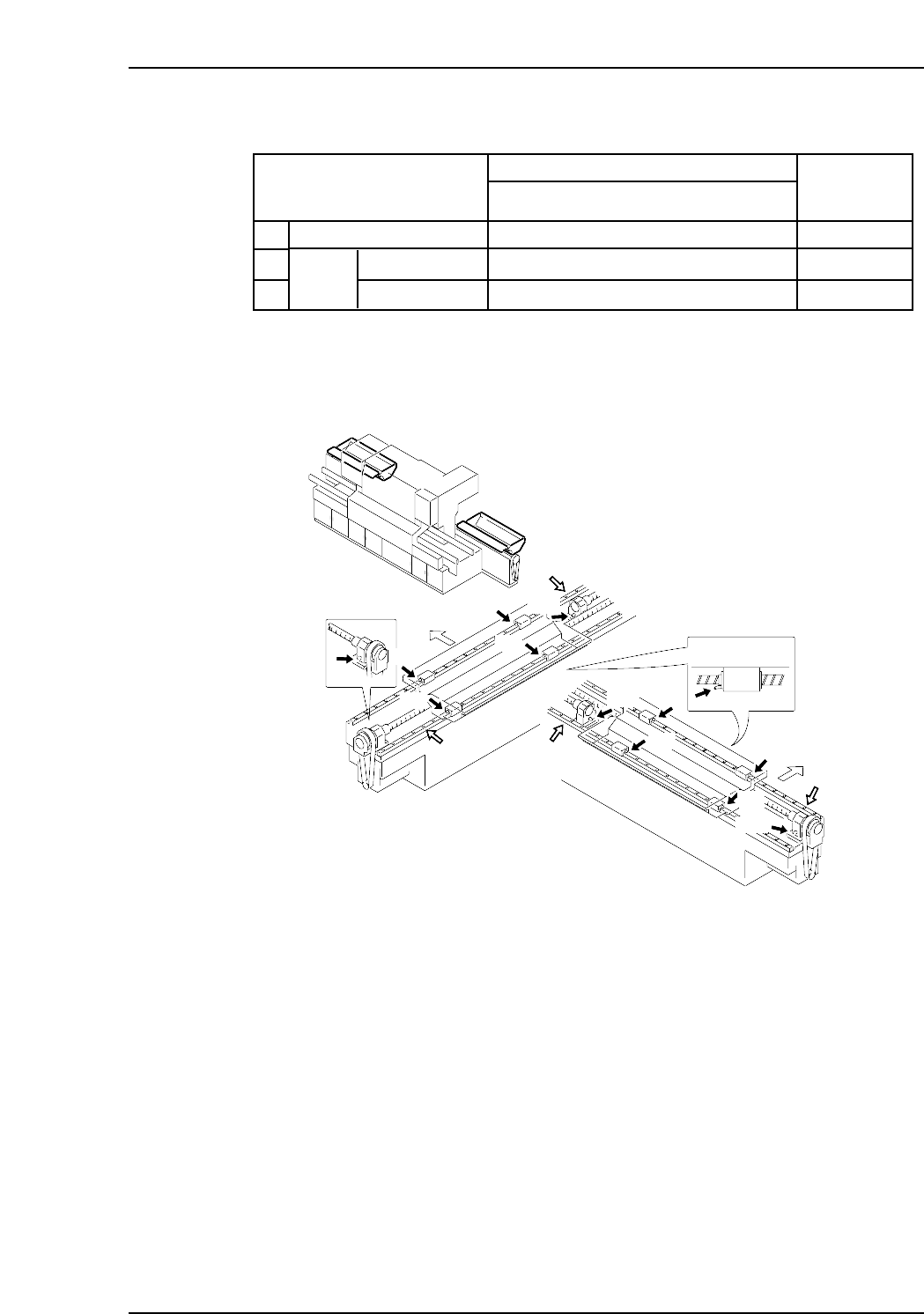

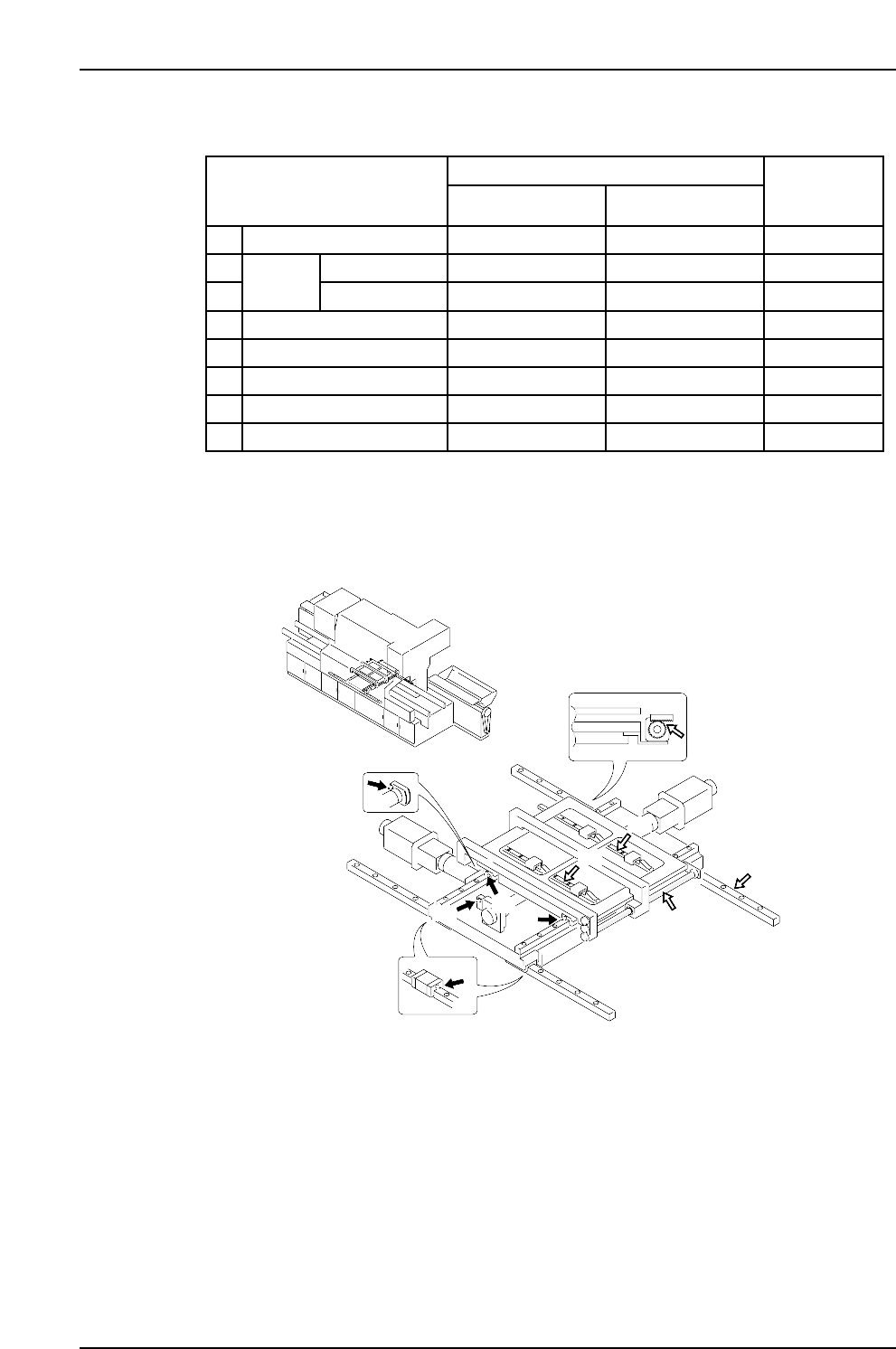

Arrow marks in the illustration indicate lubrication points.
Black arrows indicate points where a grease gun is required.
CP6M3014
(19)
(20)
(21)
(24)
(26)
(22)
(23)
(23)
(25)
(25)
Gear, Rack gear
LM rail
Shaft
AFC grease
Daphne
Eponex No. 2
N/A
N/A
N/A
N/A
N/A
N/A
✔
N/A
✔
✔
✔
✔
✔
✔
N/A
✔
CP6M3013
Lubrication
Points
Lubrication
Frequency
Types of Lubricants
19
20
21
22
23
24
25
26
Every month
Every week
Every month
Every month
Every month
Every week
Every month
Every month
✔ : Lubricate N/A : Do not lubricate
Ball screw
Ball screw
LM
guide
LM rail
LM block
LM block
Part 3 Chapter 2 Lubrication
Edition 1.2 3-2-6 CP-6-series Mechanical Reference
2.2 Lubricating the Device Tables
Arrow marks in the illustration indicate lubrication points.
Black arrows indicate points where a grease gun is required.
CP6M3016
(27)
(27)
(28) (28)
(28)
(28)
(27)
(27)
(27)
(29)
(29)
(29)
(29)
(29)
(29)
(29)
(29)
Front
Front
Daphne
Eponex No. 2
✔
✔
✔
CP6M3015
Lubrication
Points
Lubrication
Frequency
Types of Lubricants
27
28
29
Every month
Every week
Every month
✔ : Lubricate
Ball screw
LM rail
LM block
LM
guide
Part 3 Chapter 2 Lubrication
Edition 1.2 3-2-7 CP-6-series Mechanical Reference
2.3 Lubricating the Conveyor

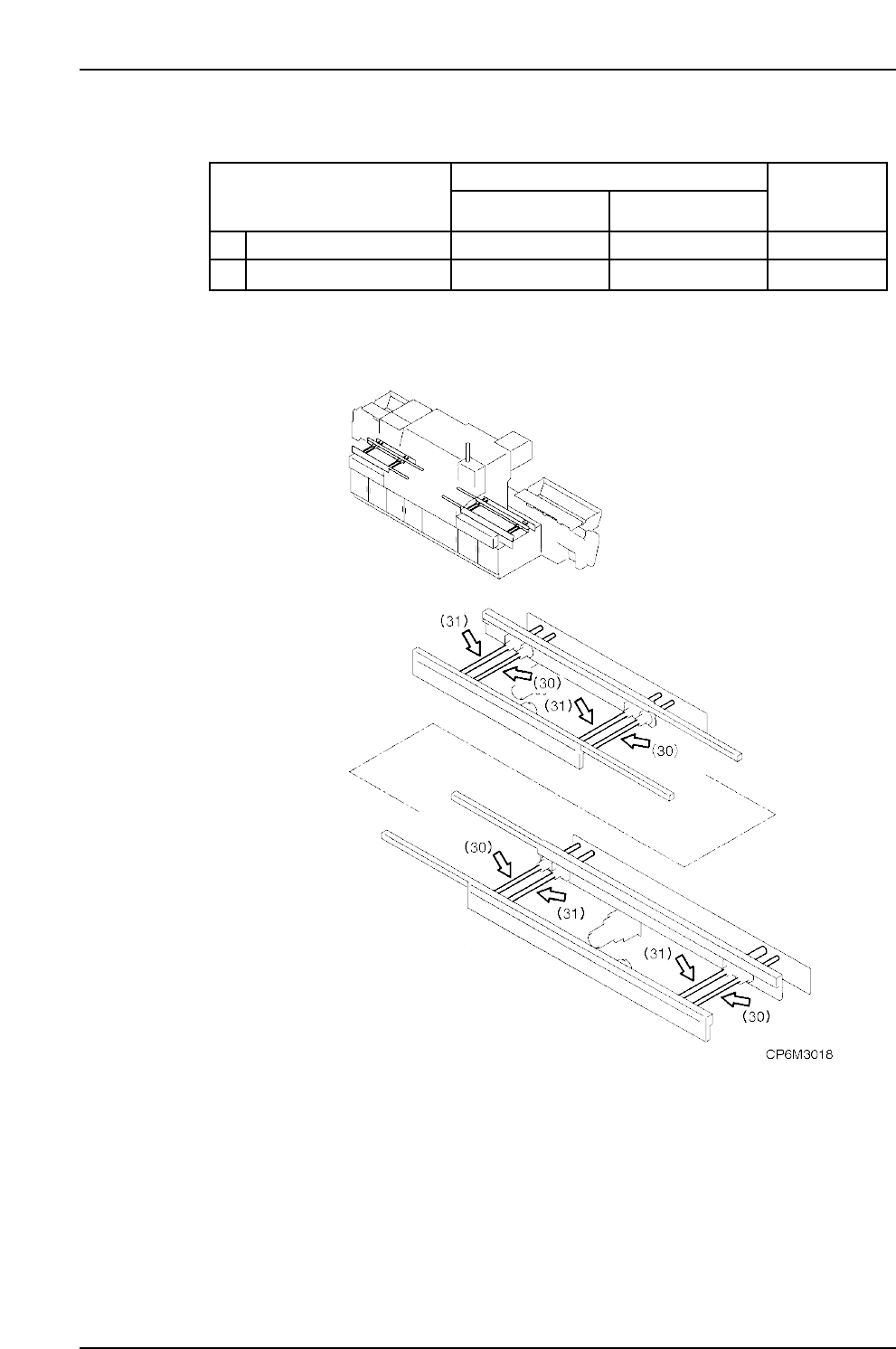

Arrow marks in the illustration indicate lubrication points.
Biral T&D
Daphne
Eponex No. 2
✔
✔
R
R
CP6M3017
Lubrication
Points
Lubrication
Frequency
Types of Lubricants
30
31
Every month
Every month
✔ : Lubricate R : Apply for rust prevention
Ball screw
Shaft
Part 3 Chapter 2 Lubrication
Edition 1.2 3-2-8 CP-6-series Mechanical Reference
