2.10 Lubricating the D-Axis Carrier
<CP-652CE only>
Arrow marks in the illustration indicate lubrication points.
Black arrows indicate points where a grease gun is required.
Guide rail
CP6M3032
(47)
(48)
(49)
(50)
(51)
(52)
(49)
AFC Grease
Daphne
Eponex No. 2
N/A
N/A
N/A
✔
✔
✔
✔
✔
✔
N/A
N/A
N/A
CP6M3031
Lubrication
Points
Lubrication
Frequency
Types of Lubricants
47
48
49
50
51
52
Every month
Every week
Every month
Every week
Every week
Every month
✔ : Lubricate N/A : Do not lubricate
Ball screw
Slider
Guide rail
Lever fulcrum
LM
guide
LM rail
LM block
Part 3 Chapter 2 Lubrication
Edition 1.2 3-2-15 CP-6-series Mechanical Reference

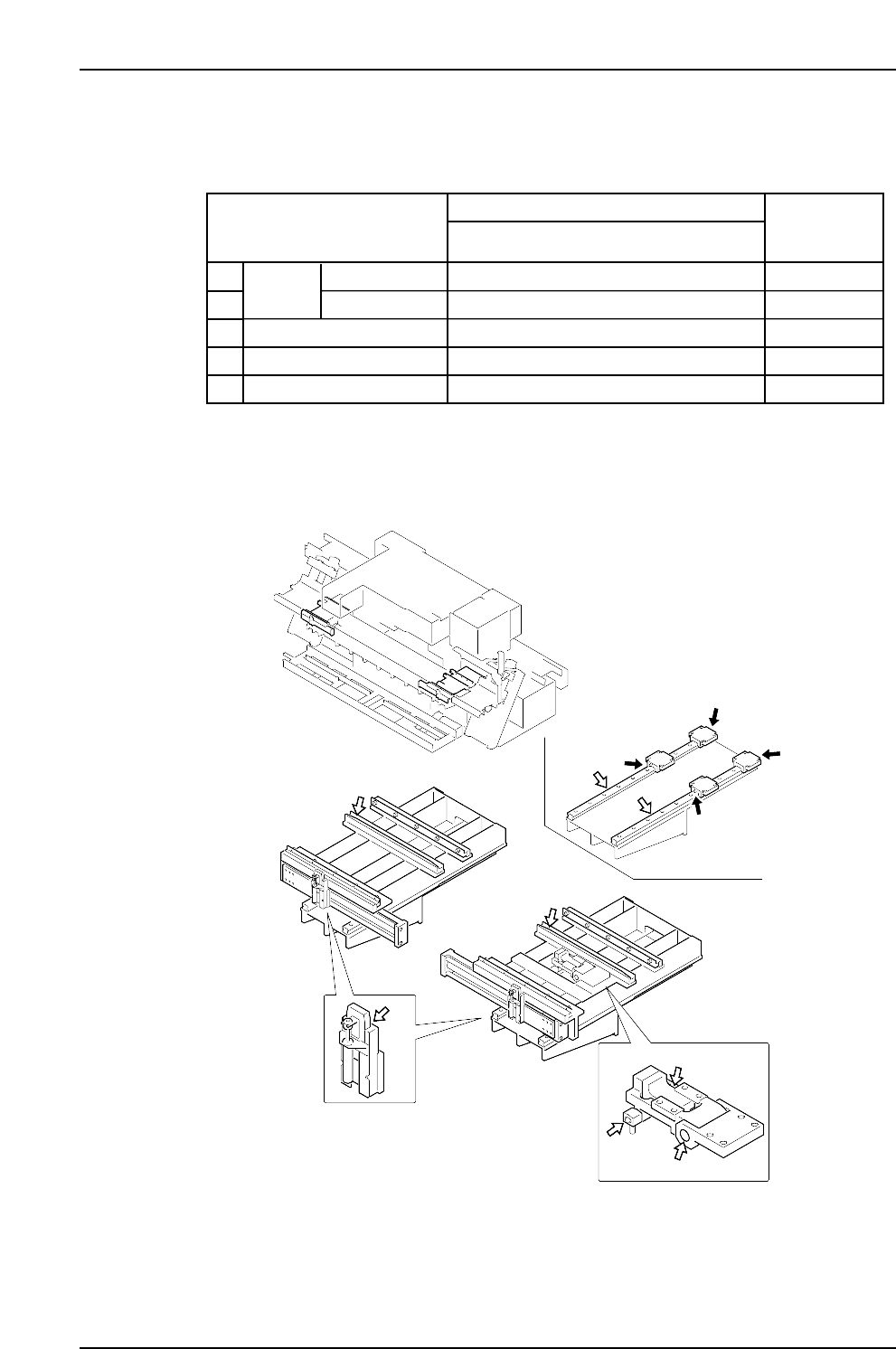

2.11 Lubricating the Setup Station
<CP-652CE only>
Arrow marks in the illustration indicate lubrication points.
Black arrows indicate points where a grease gun is required.
Cam groove
Cam groove
Slider
Stopper
CP6M3034
(53)
(53)
(54)
(54)
(54)
(54)
(55)
(56)
(56)
(56)
(57)
(57)
Daphne Eponex No. 2
✔
✔
✔
✔
✔
CP6M3033
Lubrication
Points
Lubrication
Frequency
Types of Lubricants
53
54
55
56
57
Every month
Every month
Every month
Every month
Every month
✔ : Lubricate
Slider
Stopper sliding part
Cam groove
LM
guide
LM rail
LM block
Part 3 Chapter 2 Lubrication
Edition 1.2 3-2-16 CP-6-series Mechanical Reference
2.12 Lubricating the Elevator <CP-652CE only>
Arrow marks in the illustration indicate lubrication points.
Black arrows indicate points where a grease gun is required.
Front Side
Cam groove
Cam groove
CP6M3036
(59)
(60)
(61)
(62)
(63)
(63)
(62)
(58)
(59)
(63)
(60)
Cylinder cam
Daphne Eponex No. 2
✔
✔
✔
✔
✔
✔
CP6M3035
Lubrication
Points
Lubrication
Frequency
Types of Lubricants
58
59
60
61
62
63
Every month
Every week
Every month
Every month
Every month
Every month
✔ : Lubricate
Gear
Cam groove
Stopper sliding part
LM
guide
LM rail
LM block
Part 3 Chapter 2 Lubrication
Edition 1.2 3-2-17 CP-6-series Mechanical Reference
