2.18 Lubricating the Carrier <CP-643E/643ME only> Arrow marks in the illustration indicate lubrication points. Note: The in-carrier is depicted in the figure above but the same lubrication areas also apply to the o…

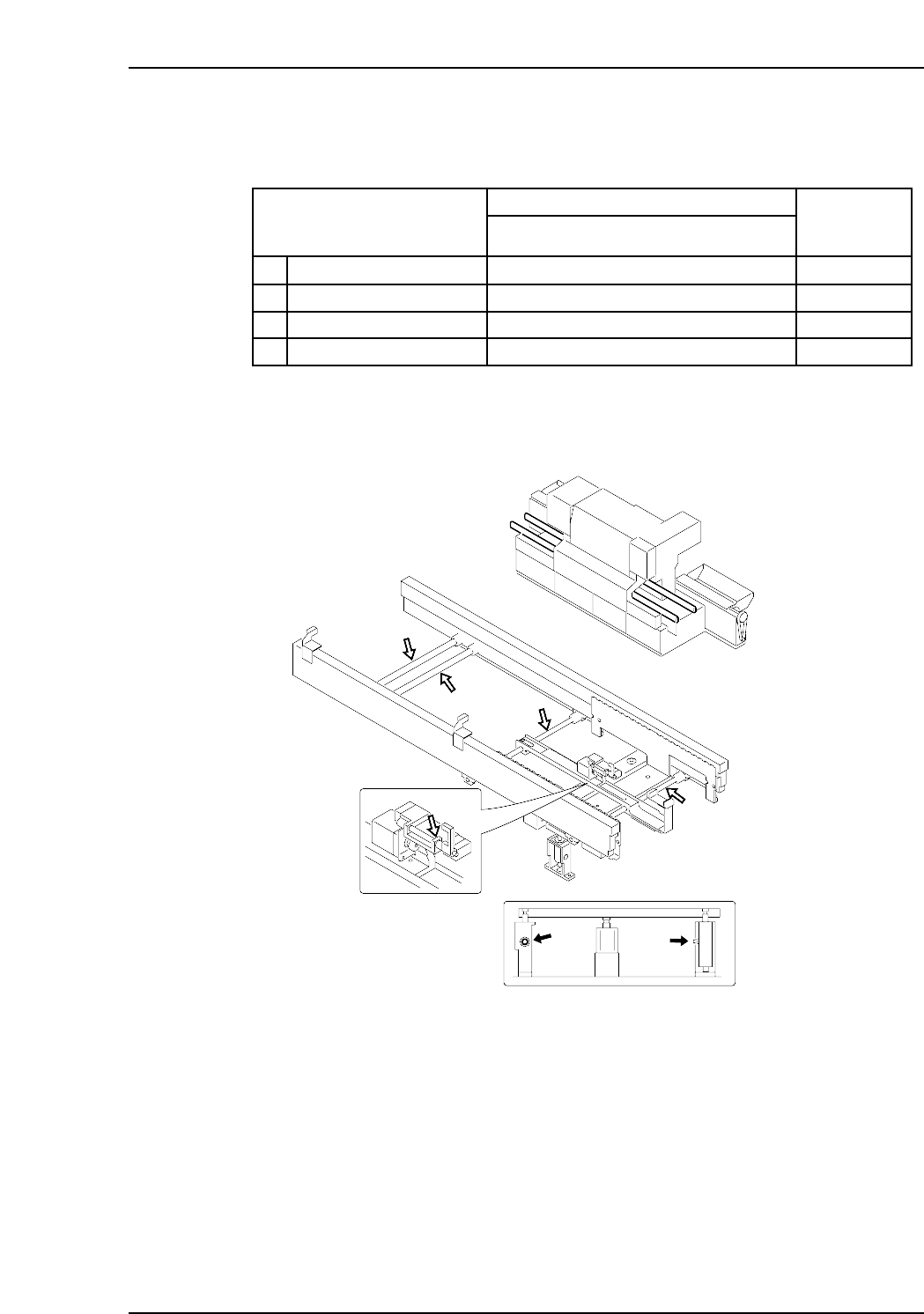

2.17 Lubricating the Carrier System Conveyor
<CP-643E/643ME only>
Arrow marks in the illustration indicate lubrication points.
Note: The in-conveyor is depicted in the figure above but the same lubrication areas also apply to
the out-conveyor.
CP6M3047
Middle stopper
Guide bars
(74)
(74)
(73)
(71)
(71)
(72)
(71)
Ball screw
Shaft
Stopper's bearing
Guide bar
Daphne Eponex No.2
✔
✔
✔
✔
CP6M3046
Lubrication
Points
Lubrication
Frequency
Types of Lubricants
71
72
73
74
Every month
Every month
Every month
Every month
✔ : Lubricate
Part 3 Chapter 2 Lubrication
Edition 1.2 3-2-23 CP-6-series Mechanical Reference
2.18 Lubricating the Carrier <CP-643E/643ME only>
Arrow marks in the illustration indicate lubrication points.
Note: The in-carrier is depicted in the figure above but the same lubrication areas also apply to
the out-carrier.
CP6M3049
(75)
(76)
(75)
(75)(75)
LM rail
Cam follower
Daphne Eponex No.2
✔
✔
CP6M3048
Lubrication
Points
Lubrication
Frequency
Types of Lubricants
75
76
Every month
Every month
✔ : Lubricate
Part 3 Chapter 2 Lubrication
Edition 1.2 3-2-24 CP-6-series Mechanical Reference
2.19 Lubricating the Index Unit
Point
The index unit inside the cam box uses a lubrication oil. This lubrication oil is loaded in
the oil tank that is located on the left side of the machine.
Change the oil once a year irrespective of the total machine operation time.
• Lubrication oil: Bonnok M150 Nippon Oil Company
• Oil amount: 15 litres
Procedure
WARNING
Turn off the main power before carrying out this work.
Before starting, prepare a container to receive the oil.
1. Remove the cover from around the oil tank.
2. Loosen the 2 drain plugs and drain the oil. Be careful not to spill the oil from the
container.
3. Tighten the 2 plugs then remove the cap from the top of the tank.
Slowly pour in the new oil (Bonnok M150).
4. Add sufficient oil to return it to its initial level. The oil gage is between the oil tank
and the cam box.
Lubrication
Point
Type Of Lubricant
Lubrication
Frequency
Oil Cooler
Index Units
Bonnok M150 (Nippon Oil Co.)
✔
Every Year
✔ : Lubricate
77
CP6M3066
Part 3 Chapter 2 Lubrication
Edition 1.2 3-2-25 CP-6-series Mechanical Reference
