2.21 Lubrication with AFC grease, Multemp LRL3,

SRL

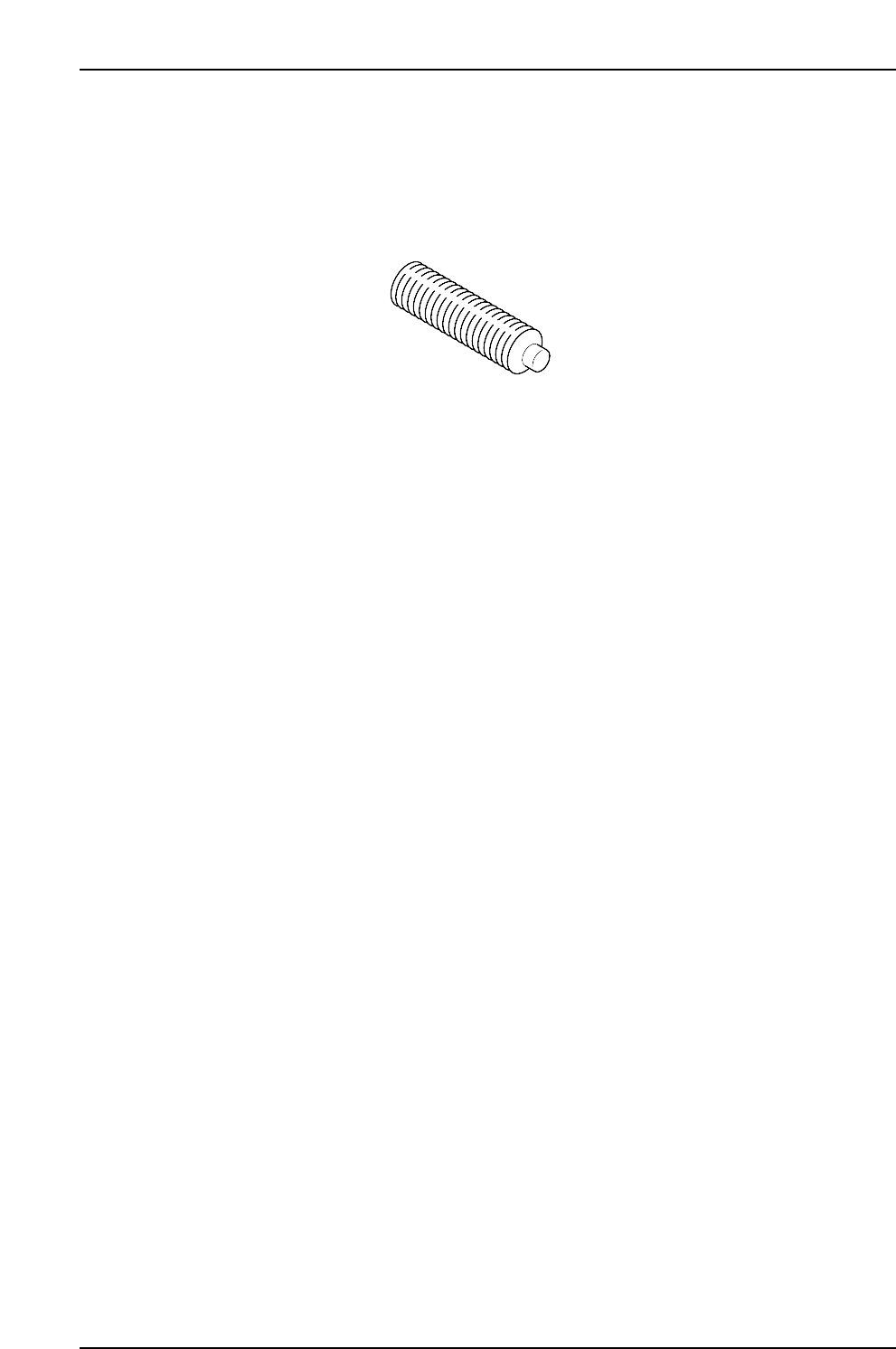

AFC grease, Multemp LRL3, SRL in tubes may be fed into the grease nipples using a

grease gun, or expelled from the tube in the required quantity and applied.

CP6M3054

Part 3 Chapter 2 Lubrication

Edition 1.2 3-2-30 CP-6-series Mechanical Reference

Part 3 Chapter 3 Replacing Consumable Parts

Edition 1.6 3-3-1 CP-6-series Mechanical Reference

3. Replacing Consumable Parts

3.1 Nozzle Replacement

Point

Replace nozzles that become bent, deformed, or blocked. When removing the damaged

nozzle, be careful not to lose the spring loaded under it.

Procedure

Warning

Turn off the 200 V servo power before carrying out this work.

Nozzle

Spring

Push and turn

Remove slowly

CP6M3055

Part 3 Chapter 3 Replacing Consumable Parts

Edition 1.6 3-3-2 CP-6-series Mechanical Reference

0603 and 1005 Nozzles for the CP-6 Series

The standard nozzles for 0603 and 1005 parts are pipe-shaped and will bend relatively

easily when touched. A 0.4-mm nozzle with a short pipe section is available to reduce

bending, and durable tapered nozzles are also available.

Please consider the following points when ordering nozzles for 0603 and 1005 parts.

1. Tapered nozzles are optional and must be requested specifically.

2. When using tapered nozzles, the nozzle shape entails certain limitations of prior

part placements.

3. The 0603 tapered nozzles are only compatible with the CP-642/642M/642ME, CP-

643/643M/643ME, and CP-65/65E.

Ø0.4

6.5 mm

Ø0.4

AWPH970✽

Ø0.97

6.5 mm

3.5 mm

AWPH972✽

Ø0.7

Ø1.27

6.5 mm

3.5 mm

AWPH973✽

CP6MR008

6.5 mm

Ø0.7

AWPH951✽

4.5 mm

Ø0.4

AWPH971✽

0603 pipe-shaped nozzle 1005 pipe-shaped nozzle

0603 tapered nozzle 1005 tapered nozzle
