Part 3 Chapter 3 Replacing Consumable Parts
Edition 1.6 3-3-7 CP-6-series Mechanical Reference

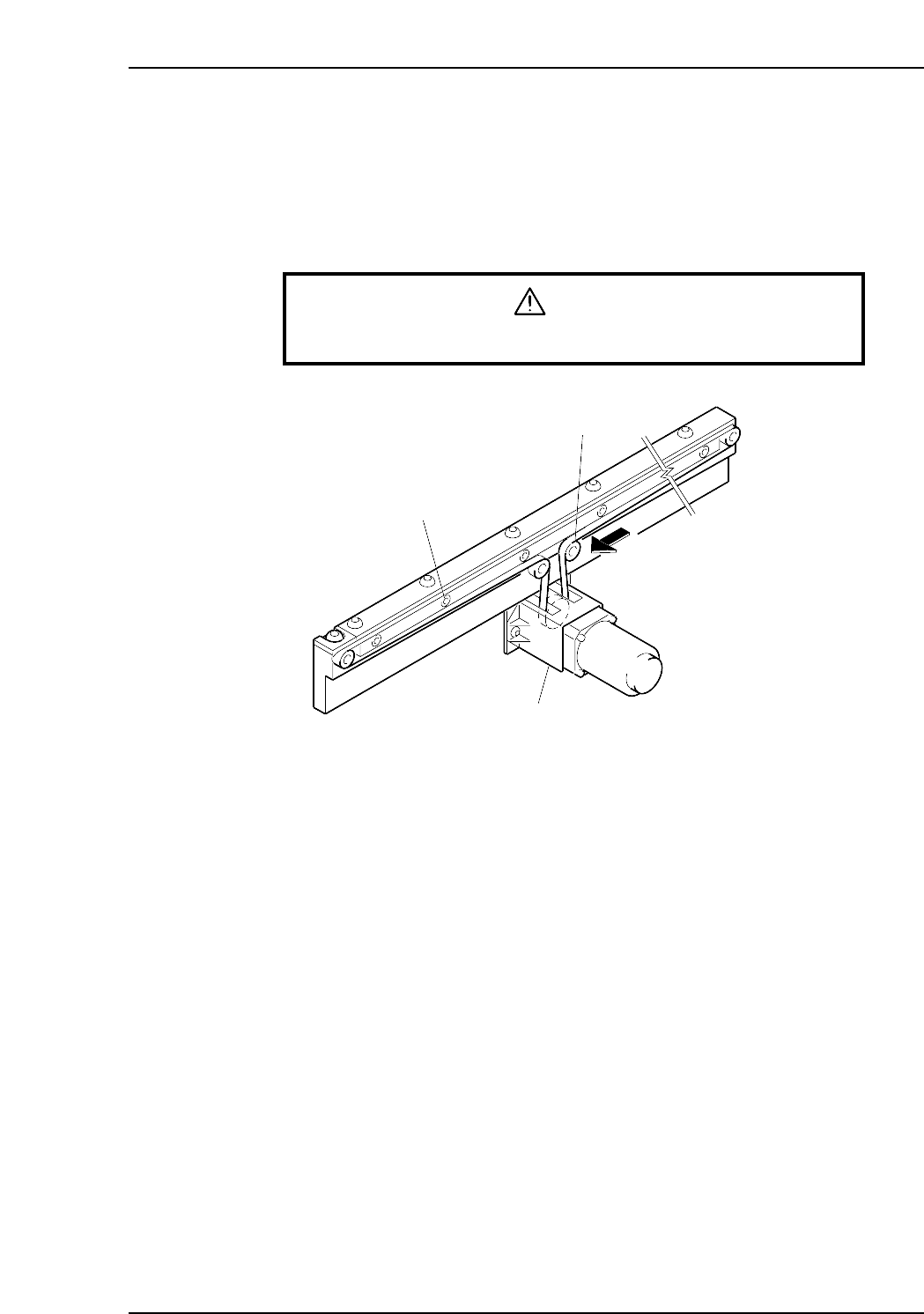

3.5 Conveyor Belt Replacement
Point
Replace the board conveyor belt if it becomes cut or otherwise damaged.
Procedure
Warning
Turn off the 200 V servo power before carrying out this work.
1. Remove the motor cover.
2. Loosen the fixed bolt on the tension pulley to loosen the belt tension.
3. Loosen the belt guide bolts.
4. Replace the belt.
5. Insert a 0.3 mm filler gauge between the plate and the top of the belt, and tighten
the guide belt bolts, while maintaining this 0.3 mm gap.
6. Adjust the strength of the pulley tension to 1 to 1.5 kg, and tighten the tension
pulley bolts. Refer to the arrows in figure above for the direction in which the
tension pulley should be moved to increase the tension. If possible, use a tension
gauge to confirm the 1 to 1.5 kg while fixing the tension pulley. If a tension gauge
is not used, tighten the tension pulley bolts while pressing the tension pulley 1 to 2
mm, when the belt does not have any slack. (1 to 1.5 kg for the pulley strength is
approximately 1 to 2 mm.)
Motor cover
Tension pulley
Belt guide bolt
CP6M3060
Part 3 Chapter 3 Replacing Consumable Parts
Edition 1.6 3-3-8 CP-6-series Mechanical Reference

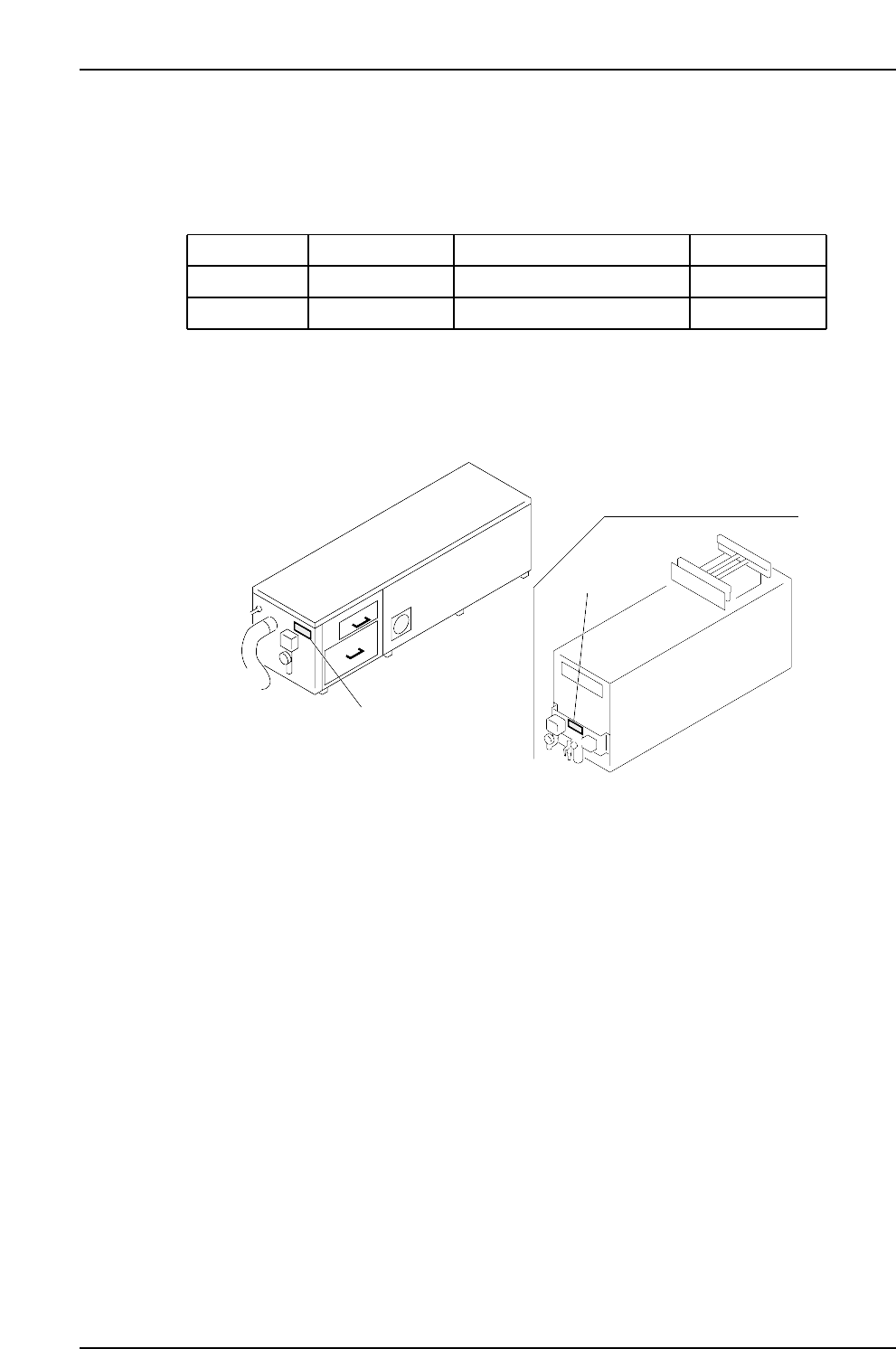

3.6 Replacing Vacuum Pump Parts
Point
The following types of vacuum pumps are used.
When the new type of vacuum pump is used, the maker's seal can be found on the side
noise reduction box.
Sticker
Sticker
CP6M3062
CP-652C
Name
Vacuum pump
Vacuum pump
Machine type
Except CP-652C
CP-652C
No.
KH750A-302-G1
KHA750A-302-G1
Noise reduction box ASSY No.
AMPZ-9410
AYPV-9300
CP6M3061
Part 3 Chapter 3 Replacing Consumable Parts
Edition 1.6 3-3-9 CP-6-series Mechanical Reference

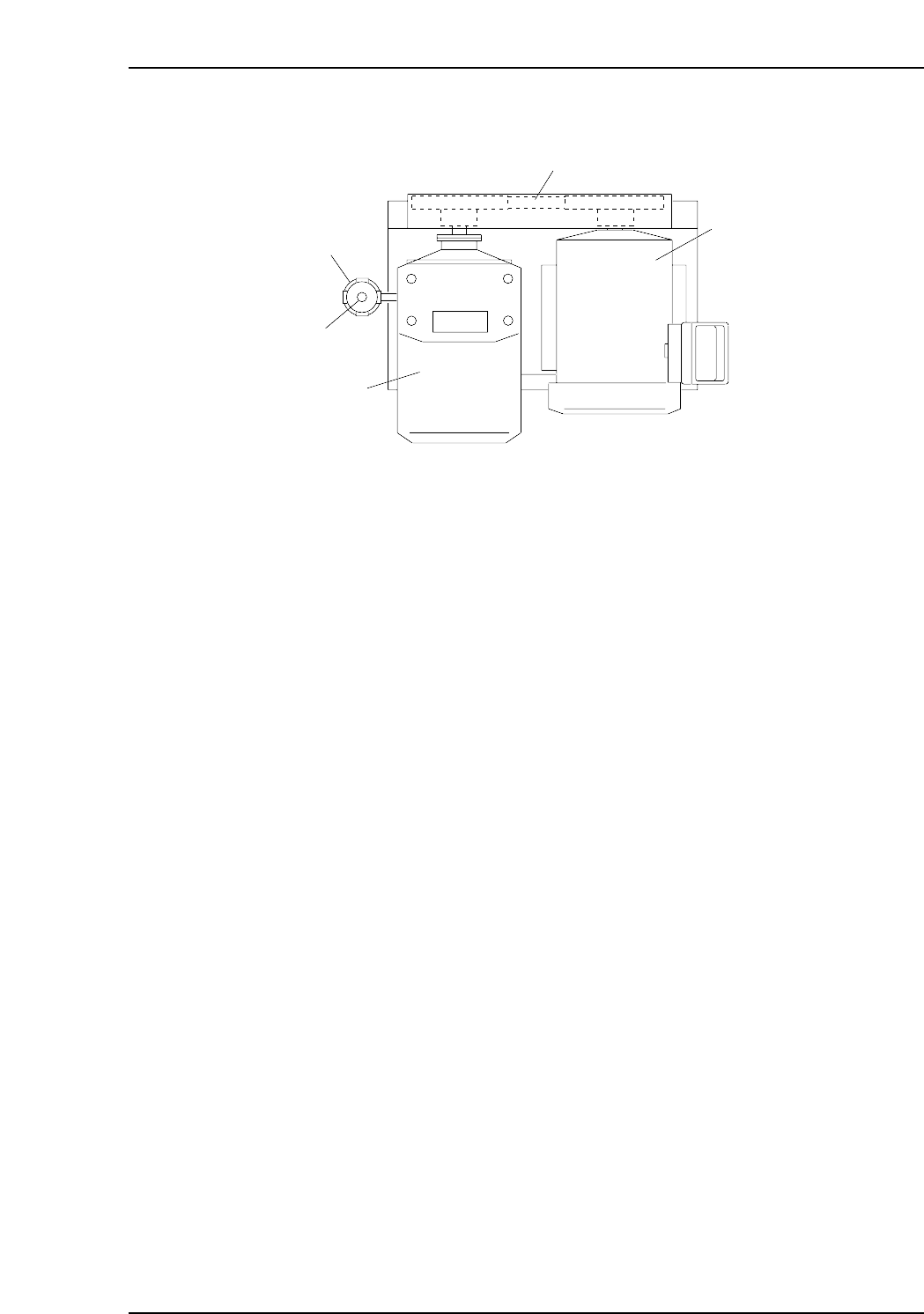

The vacuum pump construction and names of each component are shown below.
(a) Motor 0.75KW, 4P
(b) Vacuum pump KH750A
(c) Belt Polymax belt, 7M-670
(d) Filter 750A
(e) Filter element No. 04A30159010
(a)
(c)
(b)
(d)
(e)
CP6M3063
