Part 3 Chapter 3 Replacing Consumable Parts Edition 1.6 3-3-10 CP-6-series Mechanical Reference 3.7 Replacement of the Packing in the Cam Stopper Air Cylinder (WP A5142) Point Replace the rubber packings in the air cylin…
Part 3 Chapter 3 Replacing Consumable Parts
Edition 1.6 3-3-9 CP-6-series Mechanical Reference
The vacuum pump construction and names of each component are shown below.
(a) Motor 0.75KW, 4P
(b) Vacuum pump KH750A
(c) Belt Polymax belt, 7M-670
(d) Filter 750A
(e) Filter element No. 04A30159010
(a)
(c)
(b)
(d)
(e)
CP6M3063
Part 3 Chapter 3 Replacing Consumable Parts
Edition 1.6 3-3-10 CP-6-series Mechanical Reference

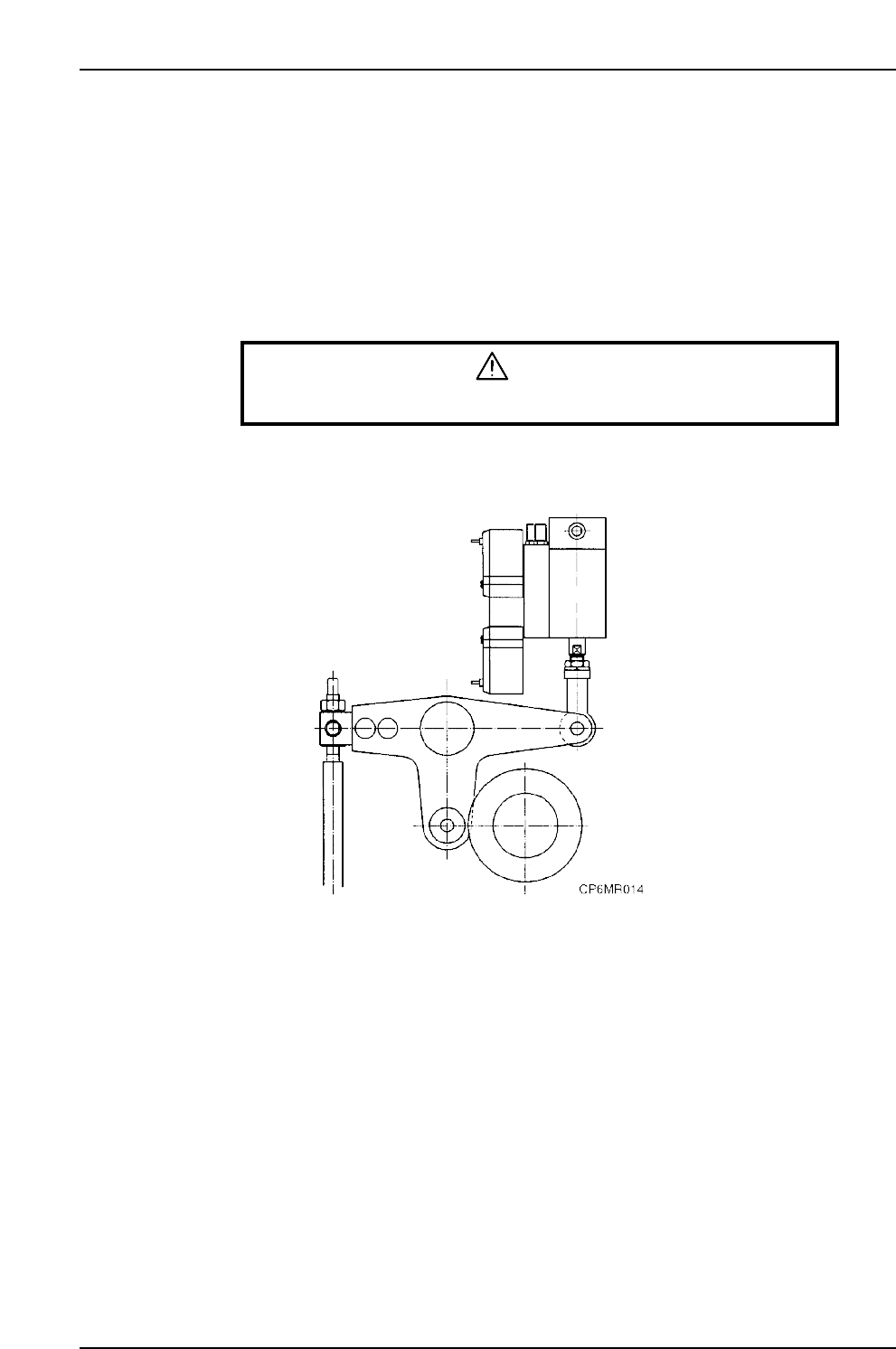

3.7 Replacement of the Packing in the Cam
Stopper Air Cylinder (WPA5142)
Point
Replace the rubber packings in the air cylinders when they leak or do not function
properly.
Procedure
Warning
Turn off the 200 V servo power before carrying out this work.
Part 3 Chapter 3 Replacing Consumable Parts
Edition 1.6 3-3-11 CP-6-series Mechanical Reference
Required items
Two piston packings and one rod packing for each cylinder, and snap ring pliers.
Packing
Code No. Description Type QTY Location
H1156T Packing MYP-25 8 Pistons
H1156Z Packing MYR-10A 4 Rod
1. Loosen the set bolt and remove the pin.
Note: Do not loosen the bracket bolts because they must be positioned with a jig.
The bracket for the ST1 feed indexing cylinder is an exception, and must be
removed to remove the pin. The ST1 feed indexing cylinder has positioning pins and
can be remounted easily.
Set bolt
Pin
Bracket
Bracket bolt
CP6MR011
WPA5142
Piston packings
Code No.: H1156T
Type: MYP-25
Rod packing
Code No.: H1156Z
Type: MYR-10A
Solenoid valve
Air cylinder
CP6MR010
Pin
Set bolt
