2. Leveling
Point
Place the machine on leveling sheets and adjust so that the machine is level to the
ground. If the machine is not level, placing accuracy will be adversely affected.
Leveling Sheets Position
<CP-6>
<CP-6M>
<CP-642, CP-643E>
1005
770
750
755 350
875
770 750 755
45
45
45
515
40
50
50
475
CP6M4012
837 770 750 755
520
275
200
385
371
750
770
271
566
40
40
55
55
55
55
CP6M4011
210
795
770
750
755 350
795
770 750 755
55
55
40
995
40
CP6M4010
Part 4 Chapter 2 Leveling
Edition 1.5 4-2-1 CP-6-series Mechanical Reference
<CP-642M>
<CP-643ME>
<CP-65>
<CP-652C>
64560 590 810 710 590 745 60
645 590 810 710 690 645
735
50
305
170
50
CP6M4016
210
795
770
750
755 350
795
770 750 755
45
45
40
710
83
520
CP6M4015
45 875 770 750 755 45
45
515 275
195
45
45 238.5 636.5
770 750
516.5 238.5 45
CP6M4014
55 836.5 755 768 972 55
45
515 275
200
40
55 566 270.5 755 768 367.5 604.5 55
CP6M4013
Part 4 Chapter 2 Leveling
Edition 1.5 4-2-2 CP-6-series Mechanical Reference
Procedure
To level the machine, place a sprit level on the unpainted surface of the main body of the
machine and adjust the leveling bolts while repeatedly checking the reading on the sprit
level.

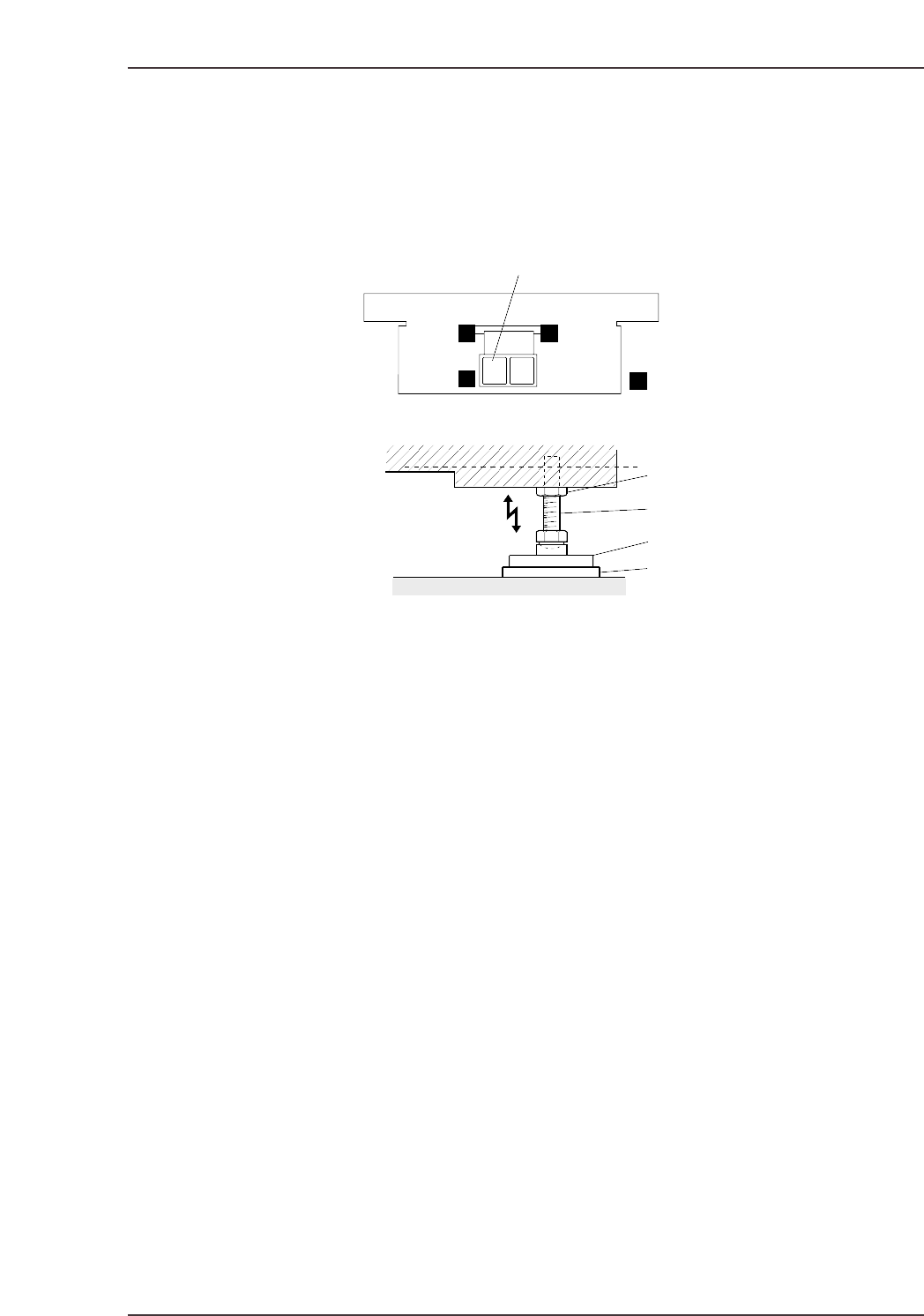

Refer to the figure below for positioning of the spirit level and adjustment of the leveling
bolt.
XY-table
3 level check areas
Body
Lock nut
leveling bolt
leveling sheet
Vibration reduction pad
±15 mm
CP6M4017
Part 4 Chapter 2 Leveling
Edition 1.5 4-2-3 CP-6-series Mechanical Reference
