3.1.7 Raised Feeder Detection

At station 1 there are sensors below and above the feeder to detect any feeder lift. Adjust

the sensitivity and the installation positions of these sensors.

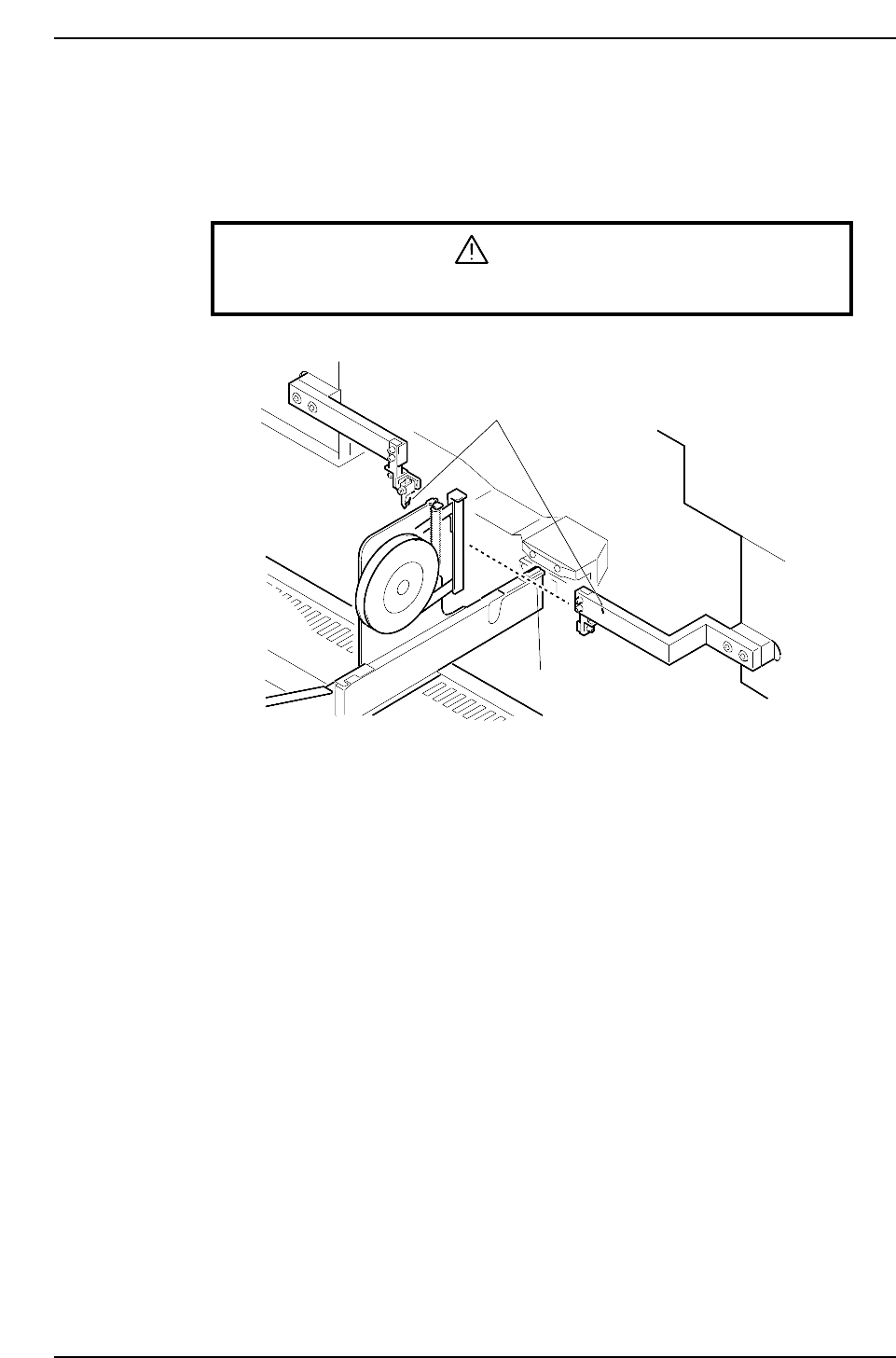

Top Feeder Lift Sensor Adjustment

WARNING

Turn off the 200 V servo power before carrying out this work.

1. Ensure that the feeders are set correctly on the device table (refer to Part 2, Chapter

2 “Feeder Setting”).

2. Move the device table right and left to ensure that the feeder does not collide with

the sensor bracket or break the light beam.

Feeder lift sensor

Light beam

CP6M5036

Part 5 Chapter 3 Station Adjustments

Edition 1.0 5-3-18 CP-6-series Mechanical Reference

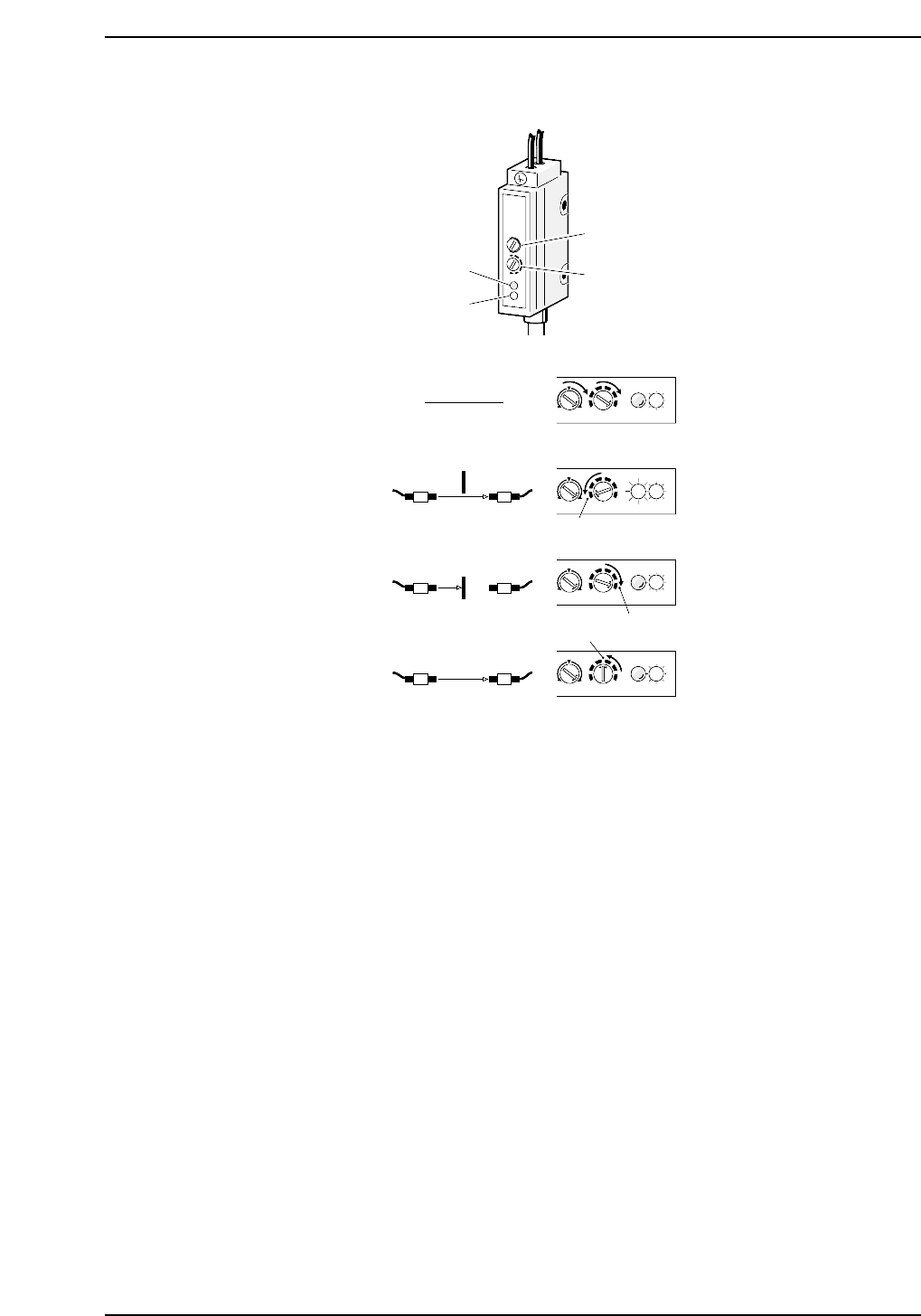

Sensor Sensitivity Adjustment

1. Rotate volumes 1 and 2 all the way to the right.

2. Pass the beam to the receiver. Slowly rotate volume 2 to the left until the red LED

(position A) lights up.

3. Break the light beam with a ruler (or something similar) and slowly rotate volume

2 to the right from (A) until the red LED goes out (position B).

4. Set volume 2 in between (A) and (B).

MAXMIN

Red LED

Green LED

Volume 1

Volume 2

SET

(1)

(2)

(3)

(4)

(B)

(A)

CP6M5037

Part 5 Chapter 3 Station Adjustments

Edition 1.0 5-3-19 CP-6-series Mechanical Reference

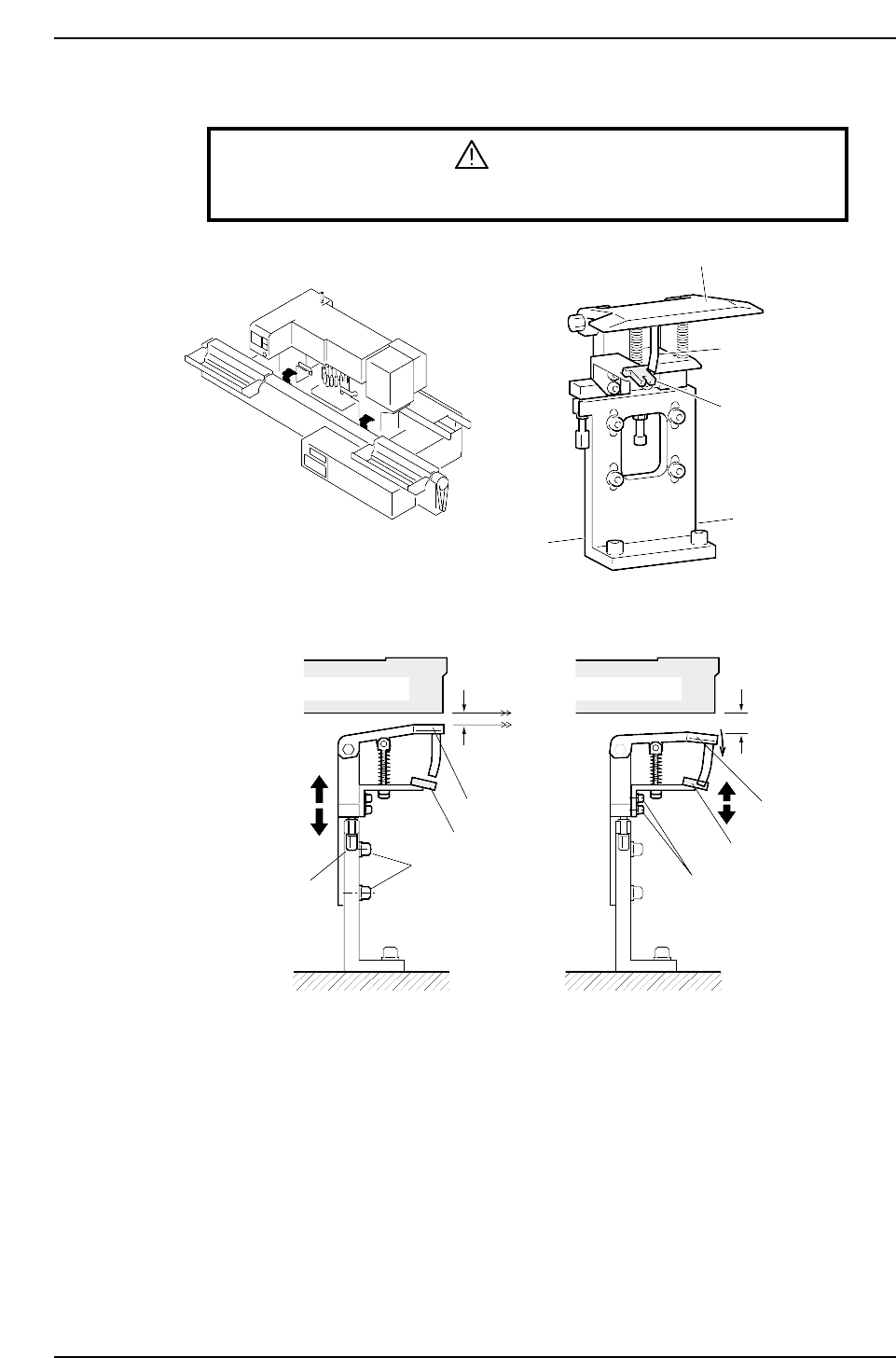

3.1.8 Bottom Feeder Lift Sensor Adjustment

WARNING

Turn off the 200 V servo power before carrying out this work.

1. Set the space between the feeder and the lever to be 0.2 mm.

2. Adjust the sensor height so the sensor goes on if a thickness of 0.7 mm feeler gauge

is inserted between the lower surface of the feeder and the lever (suppressing the

lever 0.5 mm).

Lever

Flag

Sensor

Feeder

Level

(by sight)

Fixed bolts

Lever

Sensor

Adjustment bolt

Lever height adjustment Sensor height adjustment

Adjustment bolts

0.2 mm 0.7 mm

Feeder

CP6M5038

Lever

Sensor

Part 5 Chapter 3 Station Adjustments

Edition 1.0 5-3-20 CP-6-series Mechanical Reference
