3. Place a dial gauge on the nozzle UP/DOWN rod and set the gauge reading to “ 0 ” . In this condition, the cam axis will be at its 0-degree position, and the nozzle UP/DOWN rod will be at its UP limit position. Verify t…

3.5.2 Adjusting the Nozzle UP Limit and DOWN Limit Sensors

The nozzle UP limit and DOWN limit sensors which detect the height of the nozzle

UP/DOWN rod are mounted inside the cam box. Adjust the mounting positions of

these sensors so that they switch ON when the nozzle is at its UP limit and DOWN limit

positions.

WARNING

• Turn off the 200 V servo power before carrying out this work.

• Exercise extreme caution when working on the machine if the cam is

not at its origin (0 deg.). Recoil of the cam axis can endanger the

operator.

Nozzle UP Limit Sensor

1. Set the cam axis at the 0-degree position.

2. Execute the following I/O commands to pull in the ST11 placing stop cylinder

(located in the cam box):

[SET] - [MANUAL] - [I/O] - [Standard I/O] - [OUTPUT] -> Y028 PLACE SOL ON

The cam lever will then follow the cam axis.

Solenoid valve

ST11 placing stop cylinder

Cam lever

Cam axis

CP6M5046

Part 5 Chapter 3 Station Adjustments

Edition 1.0 5-3-28 CP-6-series Mechanical Reference

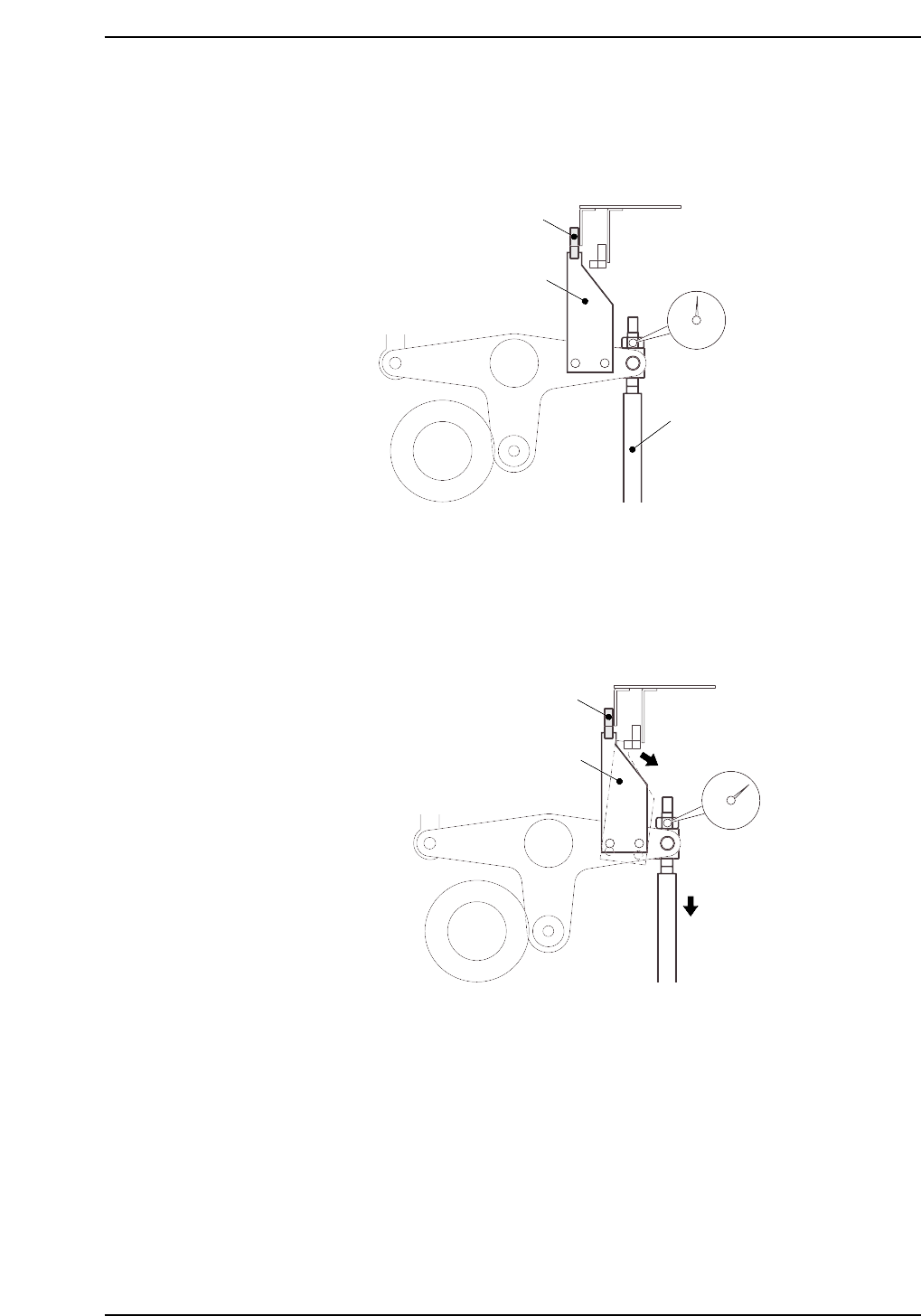

3. Place a dial gauge on the nozzle UP/DOWN rod and set the gauge reading to “0”.

In this condition, the cam axis will be at its 0-degree position, and the nozzle

UP/DOWN rod will be at its UP limit position. Verify that the nozzle UP limit

sensor is ON (I/O INPORT X06B ST11 UP POS is ON).

4. While observing the dial gauge, rotate the cam axis in the forward direction to

lower the nozzle UP/DOWN rod. Adjust the sensor’s mounting position so that

the sensor switches OFF (I/O INPORT X06B ST11 UP POS switches OFF) when

the rod has been lowered 0.3 to 0.4 mm.

CP6M5048

Nozzle UP limit sensor OFF

Dog

Rod lowered

0.3 to 0.4 mm

CP6M5047

Nozzle UP limit sensor ON

Dog

Nozzle UP/DOWN rod

Set dial gauge to “0”

Part 5 Chapter 3 Station Adjustments

Edition 1.0 5-3-29 CP-6-series Mechanical Reference

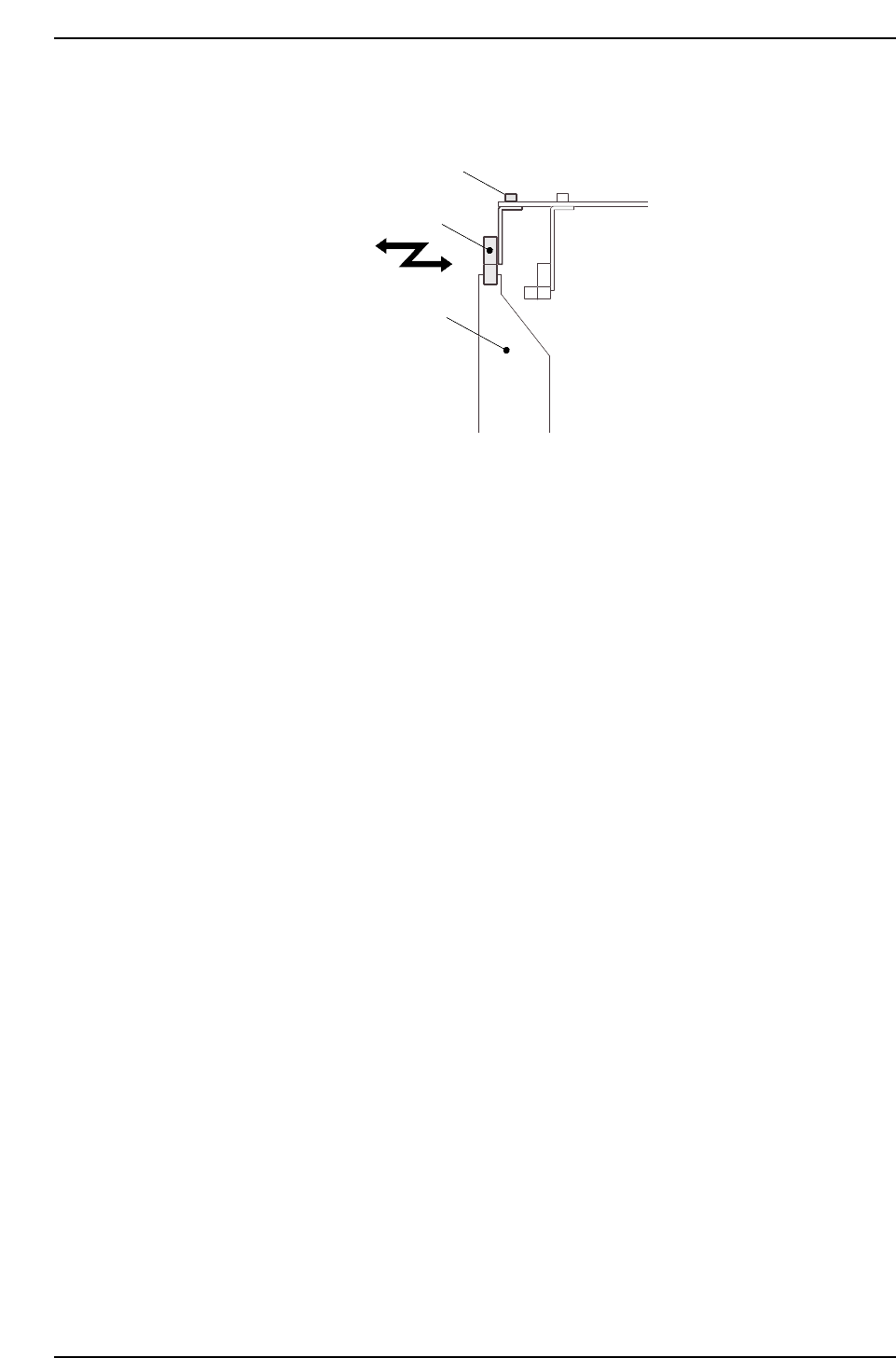

5. Adjust the sensor’s mounting position by loosening the sensor lock screws and

sliding the sensor in the front/back directions.

CP6M5049

Sensor

Lock screws

Dog
