3.9.3 Sensor Sensitivity Adjustment <When using sensors manufactured by SUNX> 1. Move the amplifier ’ s mode changing switch to the SET position. 2. Rotate the rotary holder until the sensor goes on (to a place oth…

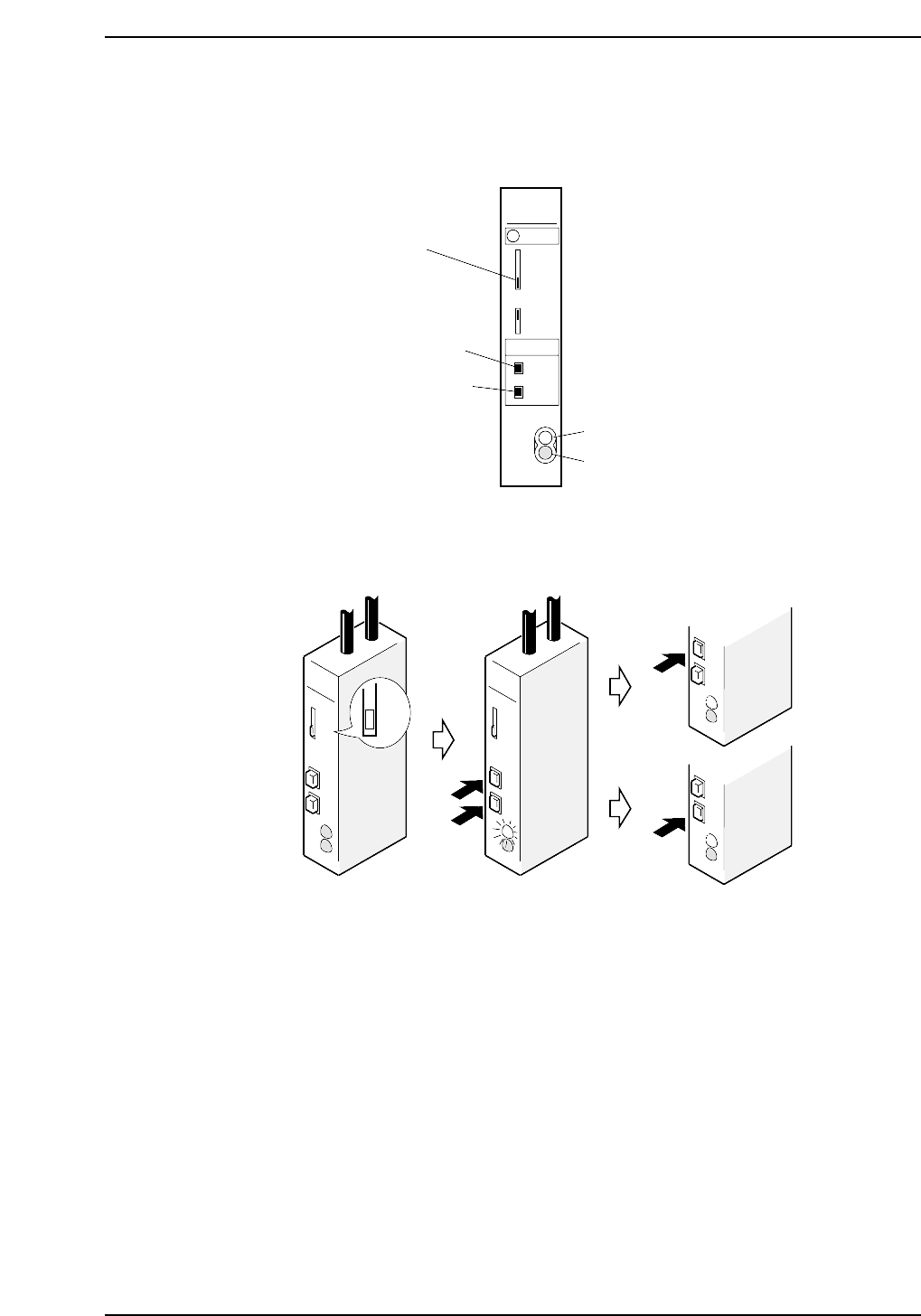

3.9.2 Sensor Interference Prevention
It is possible to set the amplifier frequencies so that no interference occurs between the
sensors even though the sensors are very close together.
1. Move the amplifier’s mode changing switch to SET.
2. Press the ON and OFF buttons simultaneously to cause the green LED to flash.
3. Press the ON button to set frequency A and the OFF button to set frequency B.
SET
SET
ON
OFF
ON
OFF
ON
OFF
ON
OFF
SET
(1)
(2) (3)
A
B
CP6M5065
SUNX
RUN
SIF
SET
NON
OFD
FX-7
ON
OFF
STB
OUT
ON button
OFF button
Mode changing
switch
Green LED
Red LED
CP6M5064
Part 5 Chapter 3 Station Adjustments
Edition 1.0 5-3-41 CP-6-series Mechanical Reference

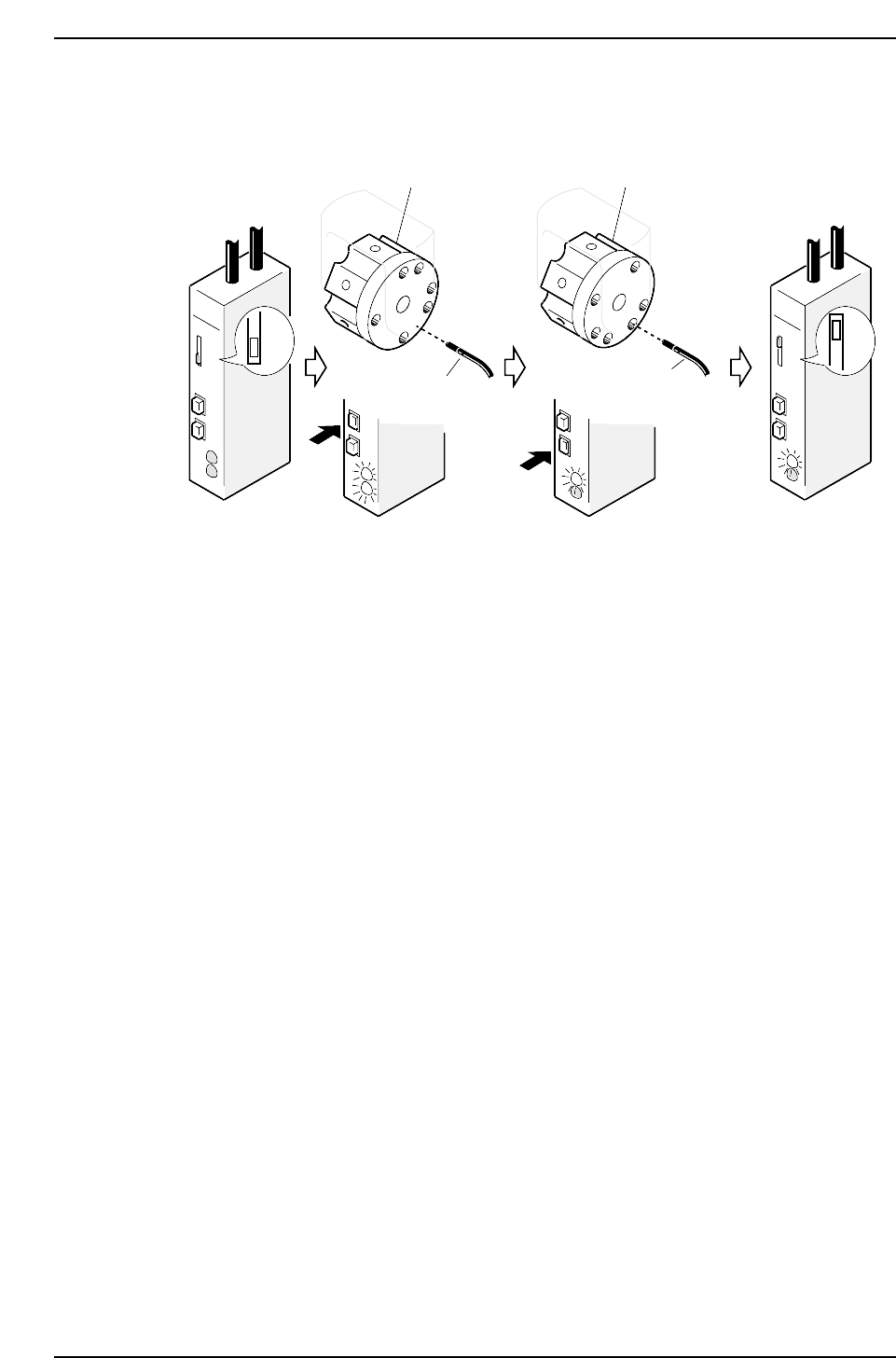

3.9.3 Sensor Sensitivity Adjustment
<When using sensors manufactured by SUNX>
1. Move the amplifier’s mode changing switch to the SET position.
2. Rotate the rotary holder until the sensor goes on (to a place other than a hole).
3. Press the ON button, both the red and green LEDs will then flash two or three
times and then go constant.
4. Rotate the rotary holder to an OFF position (to a hole).
5. Press the OFF button, the green LED will then flash two or three times and then go
constant.
6. Set the mode changing switch to RUN, the green LED will then start to flash. It is
possible to check the sensitivity condition by counting the number of time the LED
flashes.
No. of flashes: 0 ~ 4 5
Sensitivity: Bad Good
The setting is complete if the LED flashes five times.
7. Perform the following settings once again if the number of LED flashes is less than
five.
• Check connection between the amplifier and the fiber-optic cable.
• Confirm that the frequencies of each sensor are set so no light beam interference
occurs.
SET
ON
OFF
ON
OFF
ON
OFF
RUN
ON
OFF
RUN
SET
Rotary holder
Sensor 3
Rotary holder
Sensor 3
CP6M5066
Part 5 Chapter 3 Station Adjustments
Edition 1.0 5-3-42 CP-6-series Mechanical Reference

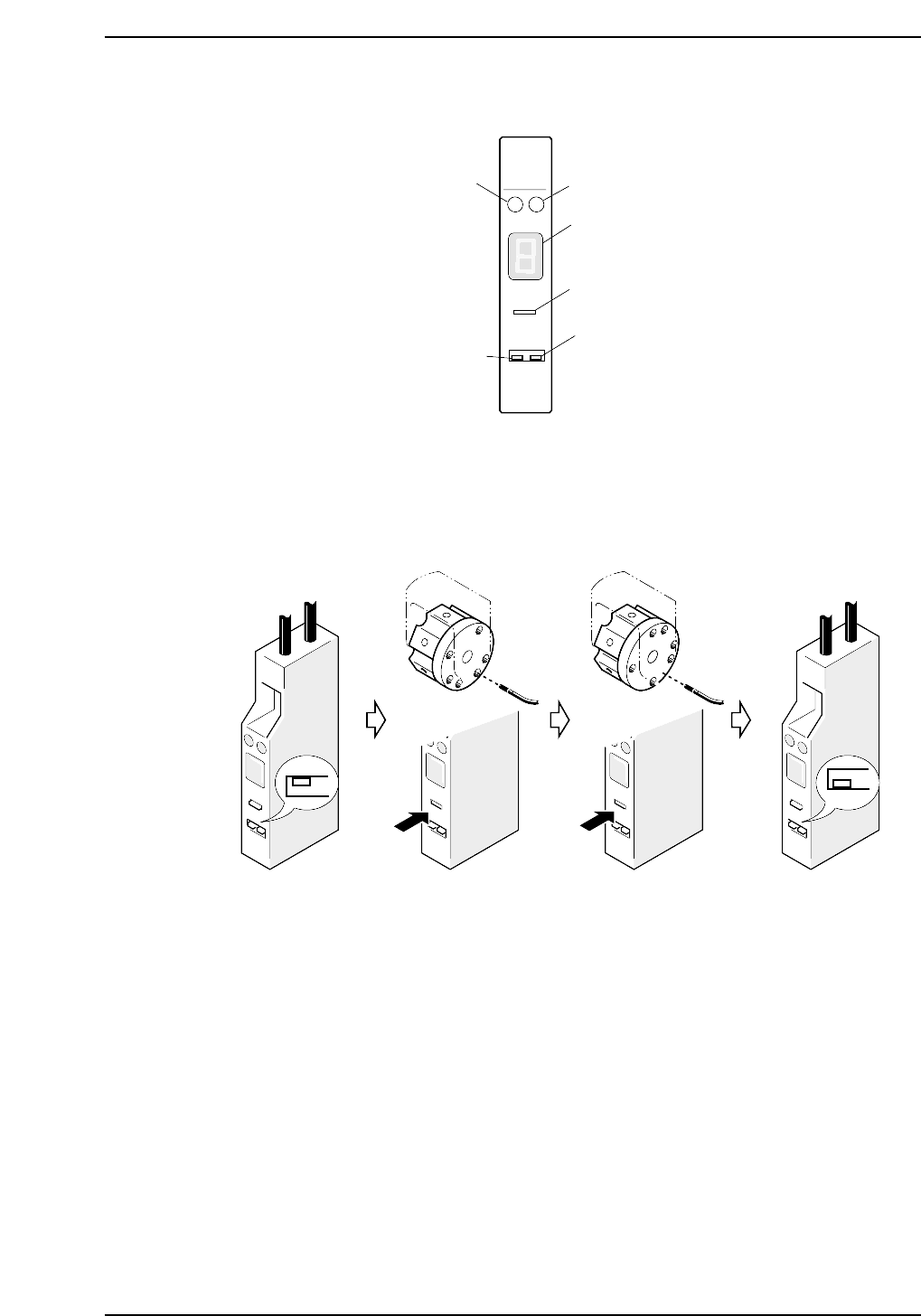

<When using sensors manufactured by YAMATAKE>
Set the L-ON/D-ON switch to "D-ON" for the Station 12 CLUTCH ORIGIN amplifer and
the Station 15 CLUTCH ORIGIN amplifier. Set this switch to "L-ON" for other
amplifiers.
1. Move the amplifier's mode change switch to the "SET" position.
2. Rotate the nozzle holder until the sensor light beam is adjacent to a solid area.
3. Rotate the nozzle holder until the sensor light beam is adjacent to a through hole.
4. Return the amplifier's mode changing switch to the "RUN" position.
At this time the sensitivity of the sensor can be checked on the digital display.
Digital display :
0 ~ 3: Stable interruption range
6 ~ 9: Stable light input range
If the display is within the stable range, setting is complete.
5. If the display is not within the stable range, check the items below and make the
necessary adjustments.
• Check the connections between the amplifier and the fiber optic cable.
• Check the position of the sensor.
SET
RUN
CP6M5068
SO
DELAY
TUNING
SET D-ON
RUN L-ON
HPY-T1
Green LED
Red LED
Digital display
Tuner
L-ON/D-ON switch
Mode changing
switch
CP6M5067
Part 5 Chapter 3 Station Adjustments
Edition 1.0 5-3-43 CP-6-series Mechanical Reference
