Part 8 Chapter 4 Elevators
Edition 1.0 8-4-6 CP-6-series Mechanical Reference
5. Return Conveyors

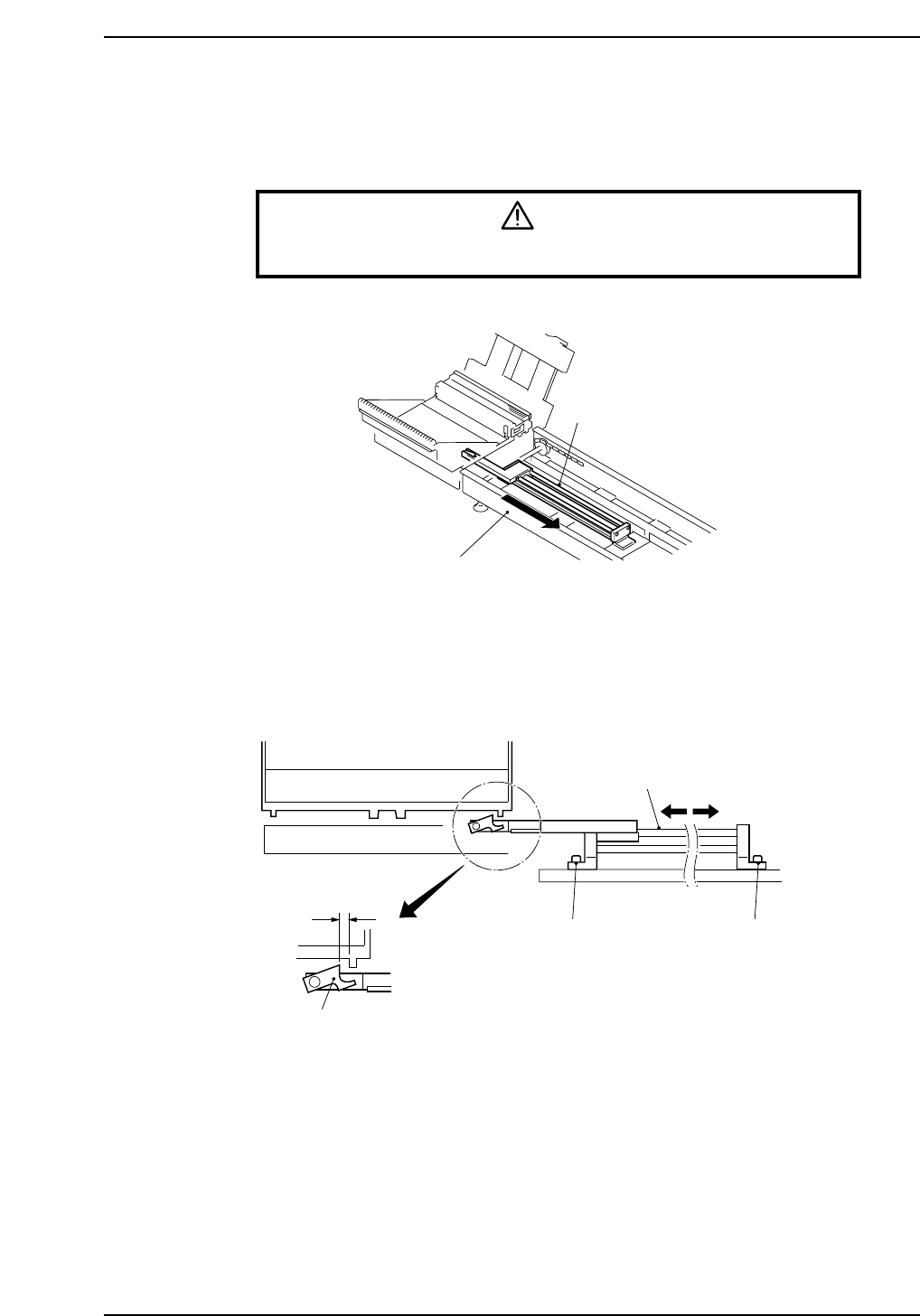

5.1 Adjustment of the Pallet Intake Cylinder
Warning
Turn off the 200 V servo power before carrying out this work.
1. Place a pallet on the "down" lifter and lower the lifter.
2. At the fully retracted position of the pallet intake cylinder, adjust the location of
the cylinder so as to obtain a clearance of 5 to 10 mm between the tab and the hook
on the bottom of the pallet, then secure in place with the bolts.
5-10 mm
Pallet
Pneumatic cylinder
Securing bolt Securing bolt
Tab
CP6M9029
Pallet intake cylinder
Return conveyor
CP6M9028
Part 8 Chapter 5 Return Conveyors
Edition 1.0 8-5-1 CP-6-series Mechanical Reference

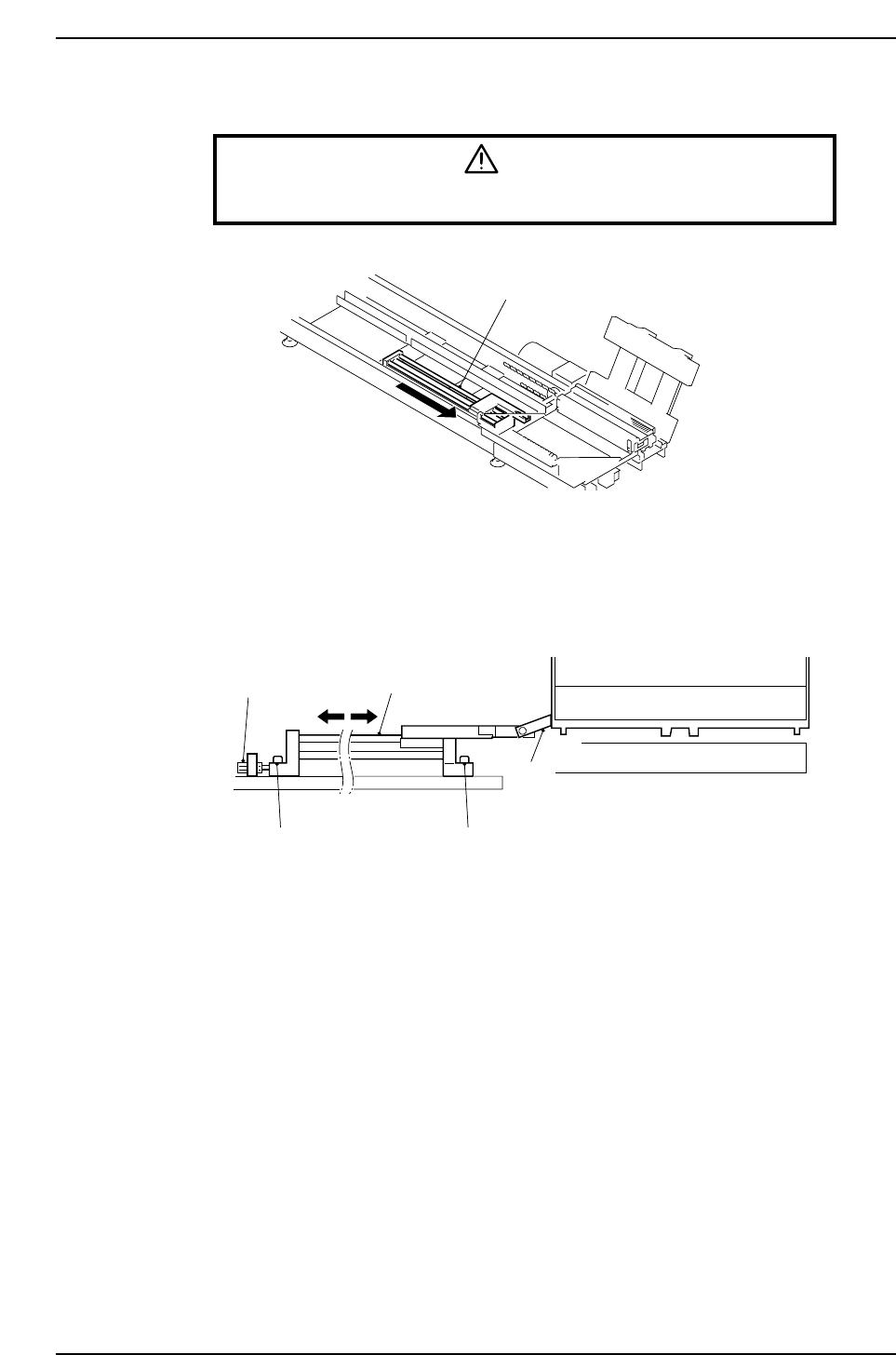

5.2 Adjustment of the Pallet Ejection Cylinder
Warning
Turn off the 200 V servo power before carrying out this work.
1. Push a pallet on the return conveyor into the UP lifter.
2. At the fully advanced position of the pallet ejection cylinder, position the cylinder
so that there is no play between the tab and the side of the pallet. Use the nut to
perform fine adjustment.
Pallet
Pneumatic cylinder
Securing bolt Securing bolt
Tab
Adjustment nut
CP6M9031
Pallet ejection cylinder
CP6M9030
Part 8 Chapter 5 Return Conveyors
Edition 1.0 8-5-2 CP-6-series Mechanical Reference
