6. Pallet Pushers

6.1 Pallet Intake Pusher

The pallet intake pusher is driven by the pneumatic cylinder to push pallets on the lifter

toward the D-axis carrier.

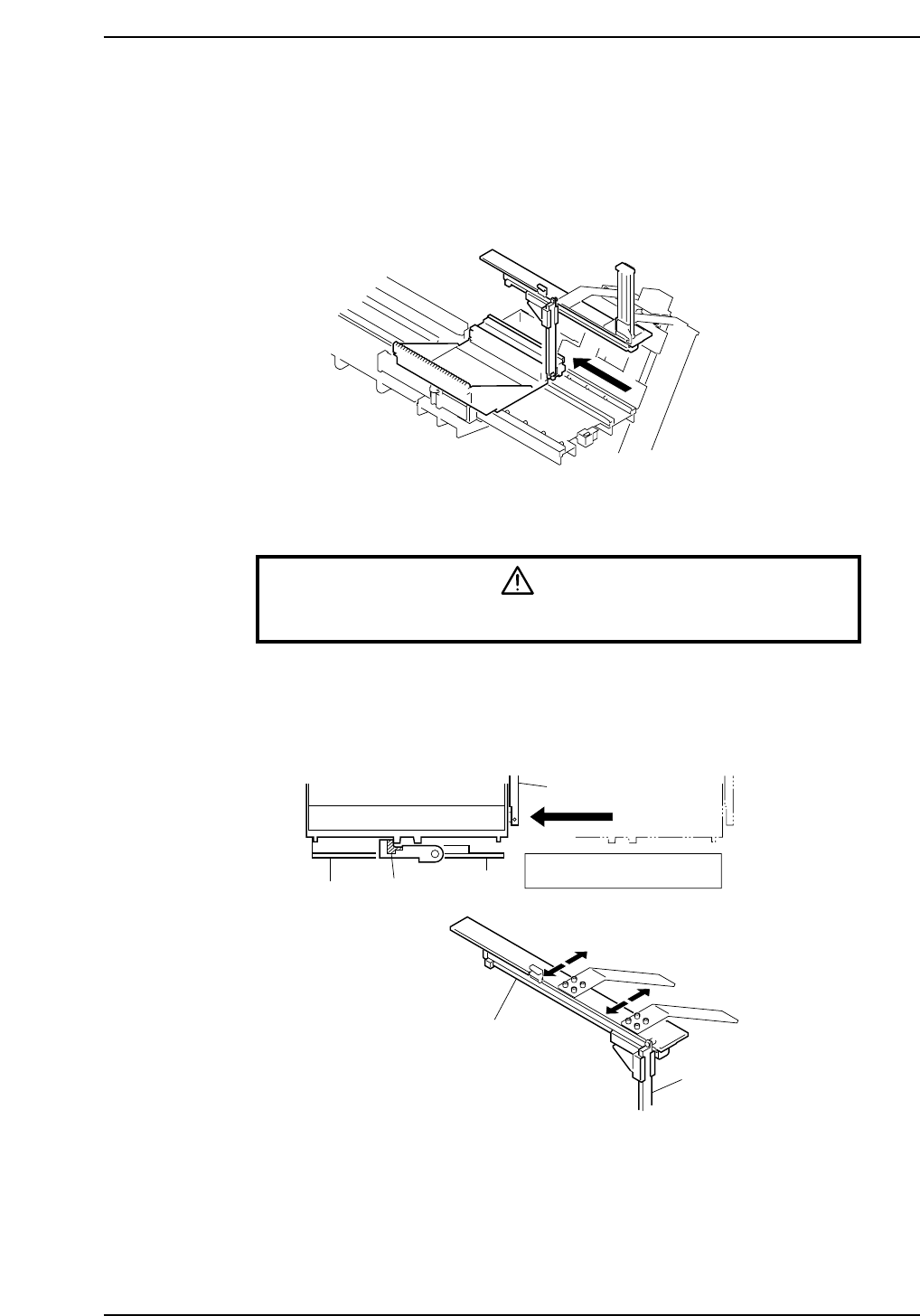

Adjusting the Position of the Pneumatic Cylinder

Warning

Turn off the 200 V servo power before carrying out this work.

1. Push a pallet to the pallet IN stopper.

2. Adjust the position of the cylinder so that there is no play between the side of the

pallet and the gate arm at this time.

Pallet

Gate arm

Pallet IN stopper

Pneumatic cylinder

CP6M9038

CP6M9037

Part 8 Chapter 6 Pallet Pushers

Edition 1.0 8-6-1 CP-6-series Mechanical Reference

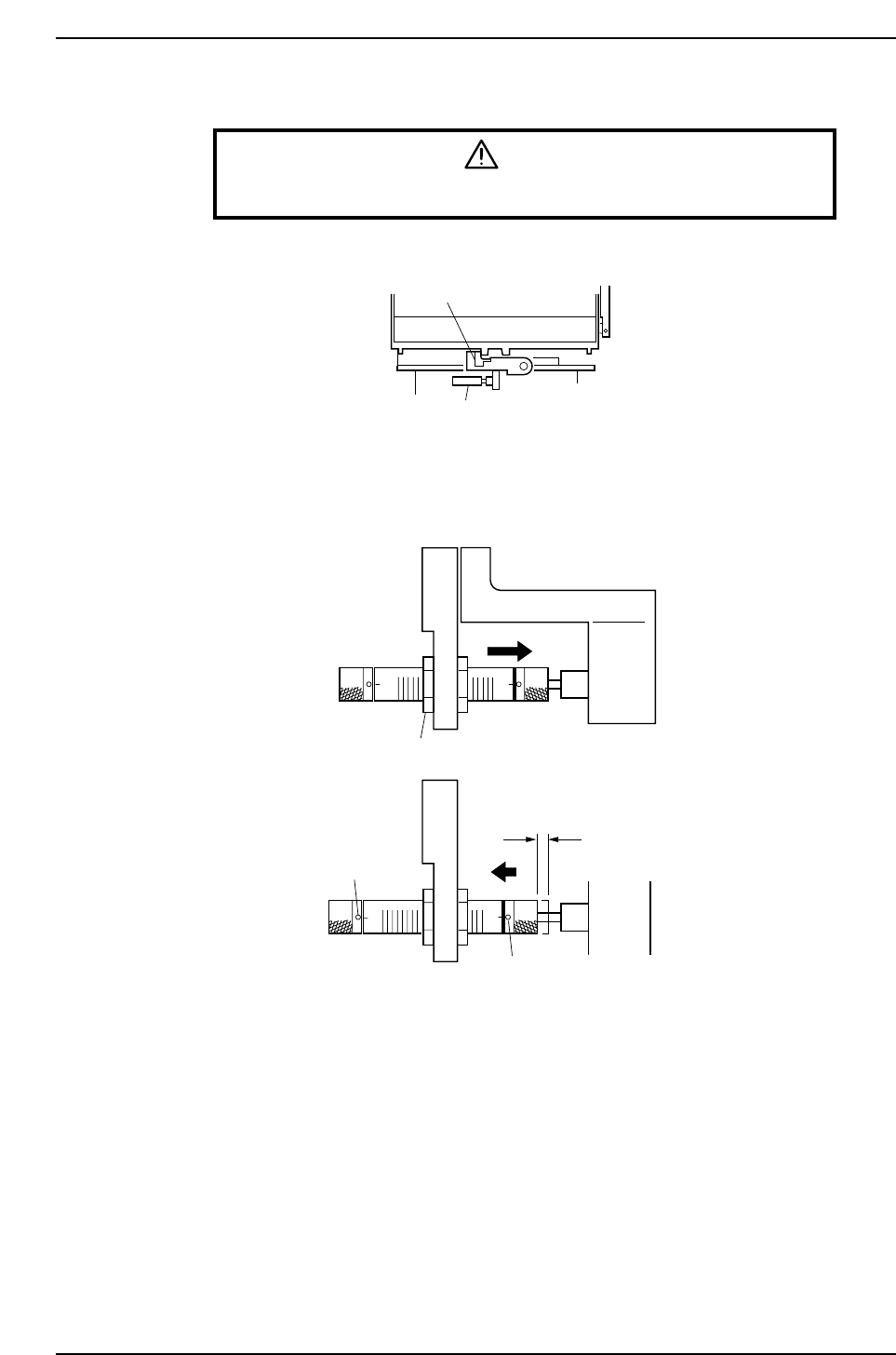

Adjusting the Shock Absorber

Warning

Turn off the 200 V servo power before carrying out this work.

Adjust in the same way as for the setup station advance and retraction shock absorbers.

Set the scale indicator at "5".

0.5 - 1.0 mm

Nut

Scale indicator

CP6M9040

Pallet IN stopper

Shock absorber

CP6M9039

Part 8 Chapter 6 Pallet Pushers
