Notes: Part 9 Chapter 3 In-Carrier Edition 1.4 9-3-4 CP-6-series Mechanical Reference

Part 9 Chapter 3 In-Carrier

Edition 1.4 9-3-3 CP-6-series Mechanical Reference

Note: Perform the above adjustment on the four carrier open/close cylinders.

CP6M10015

Notes:

Part 9 Chapter 3 In-Carrier

Edition 1.4 9-3-4 CP-6-series Mechanical Reference

Part 9 Chapter 4 Main Conveyor

Edition 1.0 9-4-1 CP-6-series Mechanical Reference

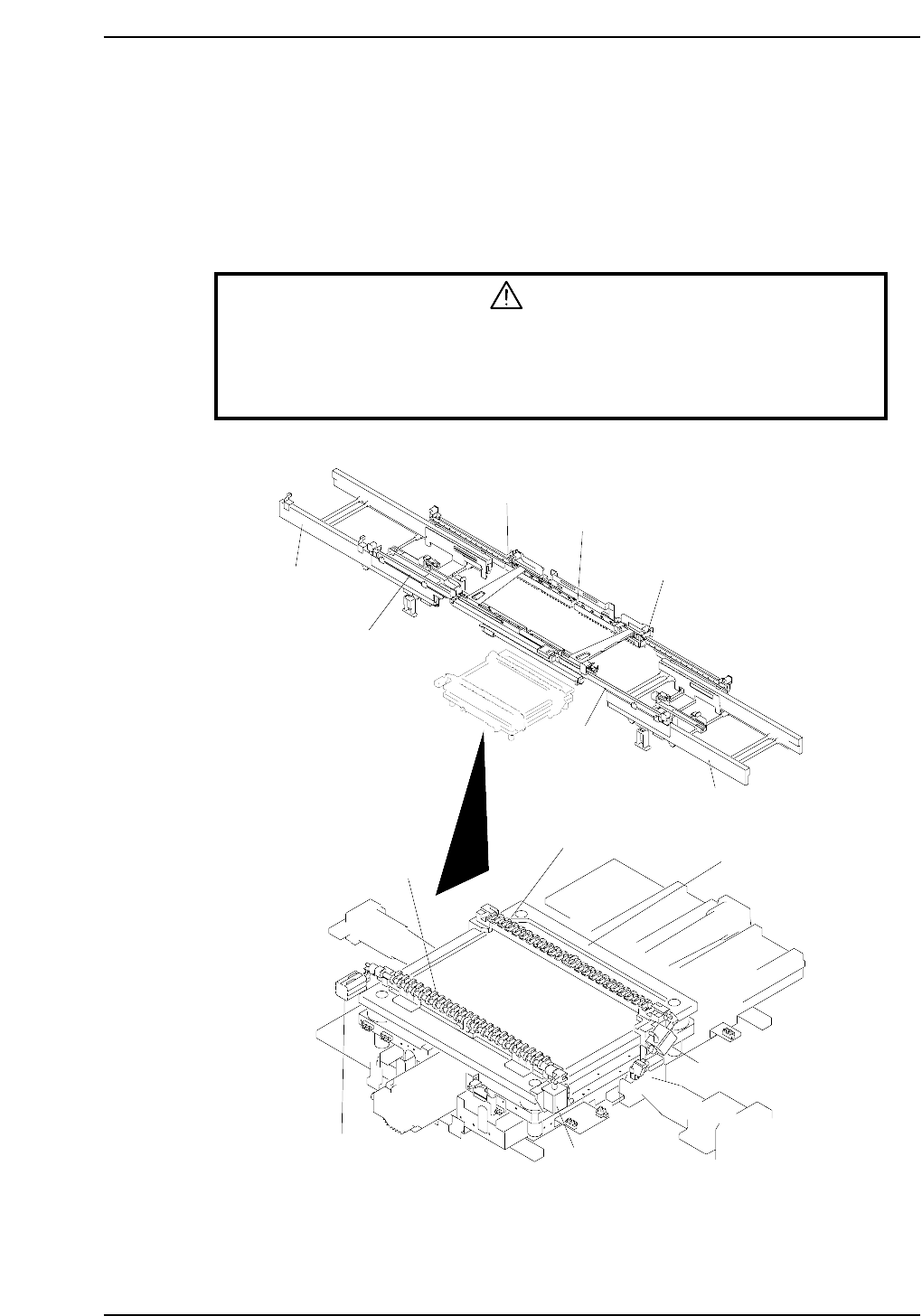

4. Main Conveyor

The main conveyor is equipped with board clampers and the air cylinders which drive

them. Boards are received from the in-carrier and are then transferred to the out-carrier

after part placement.

The in- and out-conveyors are equipped with engagement sensors (3 locations) which

ensure that the main conveyor’s adjustable rail is engaged (no interference) with the in-

and out-conveyor adjustable rails when the main conveyor is raised.

WARNING

• A laser type sensor is used as the main conveyor’s adjustable rail

engagement sensor.

• Performing procedures which are not described in this manual

could result in exposure to unsafe levels of radiation.

CP6M10016

Board clamper (adjustable rail side)

Board clamper

(fixed rail side)

Open/close cylinder

Adjustable rail engagement sensor 1

Adjustable rail engagement sensor 2

Adjustable rail engagement

sensor 3

Out-conveyor

Out-carrier

In-conveyor

Main conveyor

In-carrier
