Station 1 1 (nozzle up/down limit) <for CP-643 series only> Station 12 (nozzle origin/clutch meshing check) I/O Address X052 X053 I/O Name Description NOZ ORG POS ST 12 NOZ CLUT. ST 12 St 12 nozzle clutch origin po…

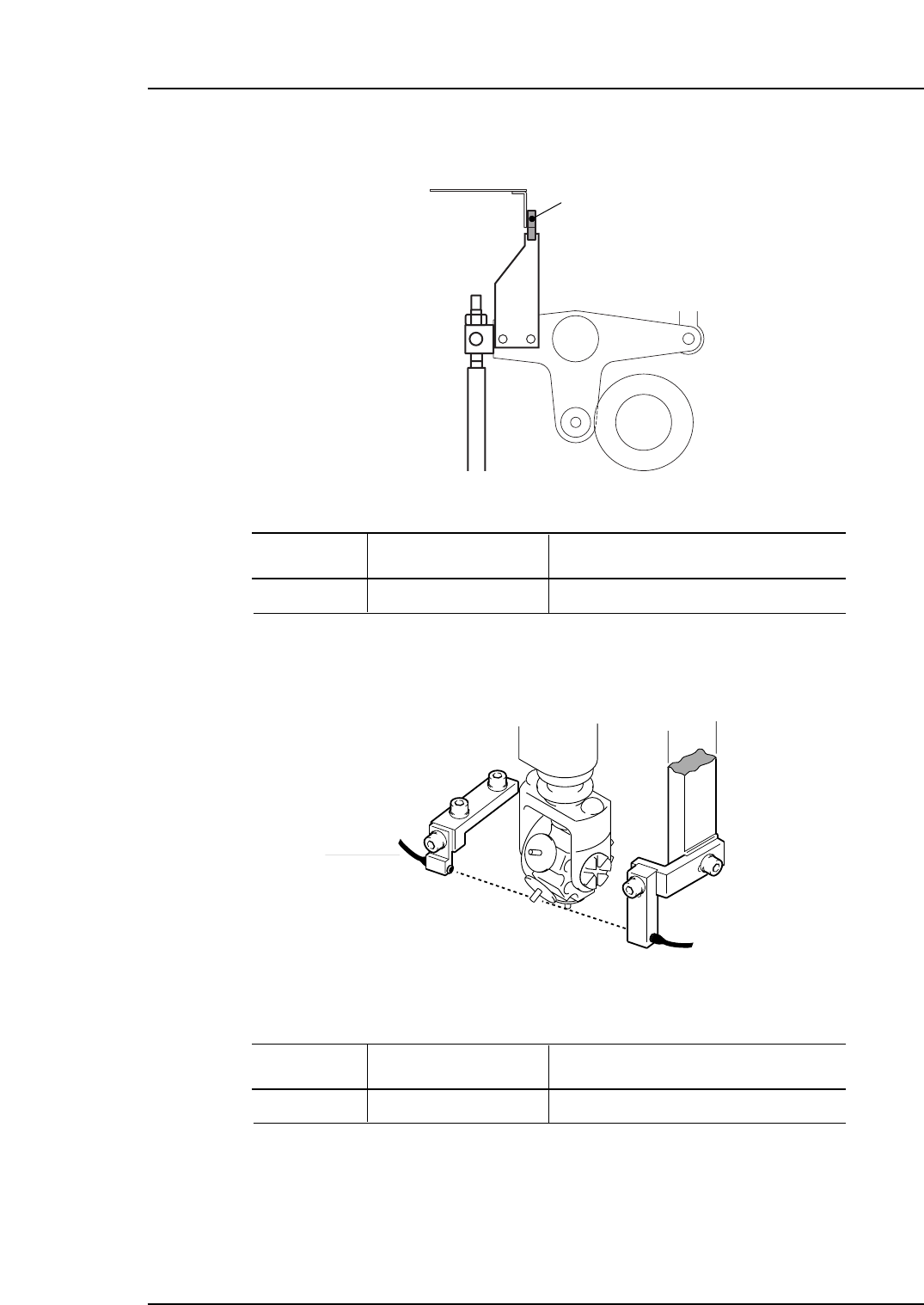

Station 1 (nozzle up limit)
<for CP-643 series only>
Station 2 (large parts check)
I/O Address
X043
I/O Name
Description
L PICKUP CHK
Station 2 large parts pickup
CP6M1038a
CP6M1038
X043
I/O Address
X06A
I/O Name
Description
ST1 UP POS
St1 cylinder upper limit
CP6M1037a
CP6M1037
X06A
Part 1 Chapter 3 Sensor Positions
Edition 1.0 1-3-3 CP-6-series Mechanical Reference

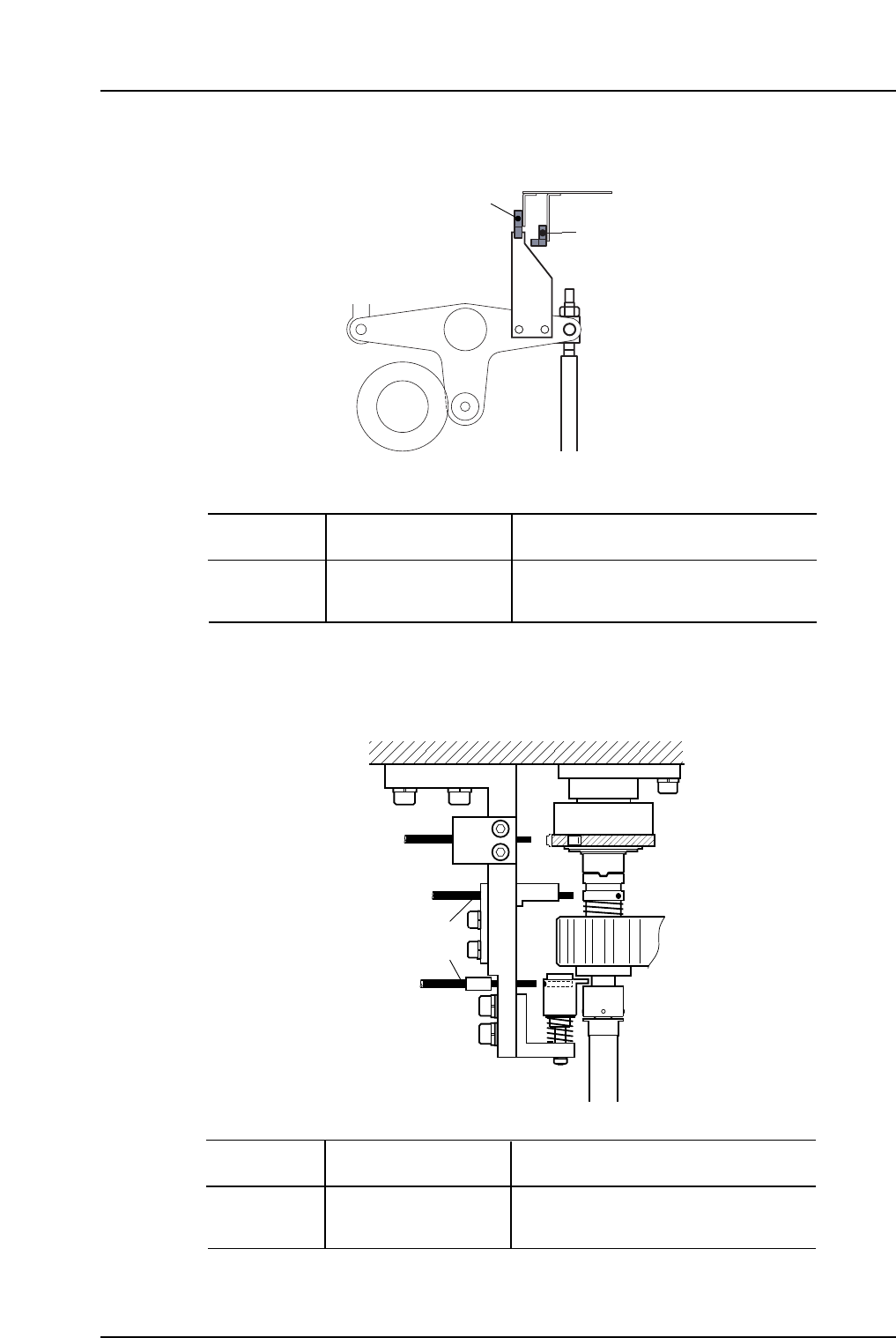

Station 11 (nozzle up/down limit)
<for CP-643 series only>
Station 12 (nozzle origin/clutch meshing check)
I/O Address
X052
X053
I/O Name
Description
NOZ ORG POS ST 12
NOZ CLUT. ST 12
St 12 nozzle clutch origin position
St 12 nozzle clutch engaged
CP6M1040a
CP6M1040
X052
X053
I/O Address
X06B
X03F
I/O Name
Description
ST 11 UP POS
ST 11 DN POS
St 11 cylinder upper limit
St 11 cylinder lower limit
CP6M1039a
CP6M1039
X06B
X03F
Part 1 Chapter 3 Sensor Positions
Edition 1.0 1-3-4 CP-6-series Mechanical Reference

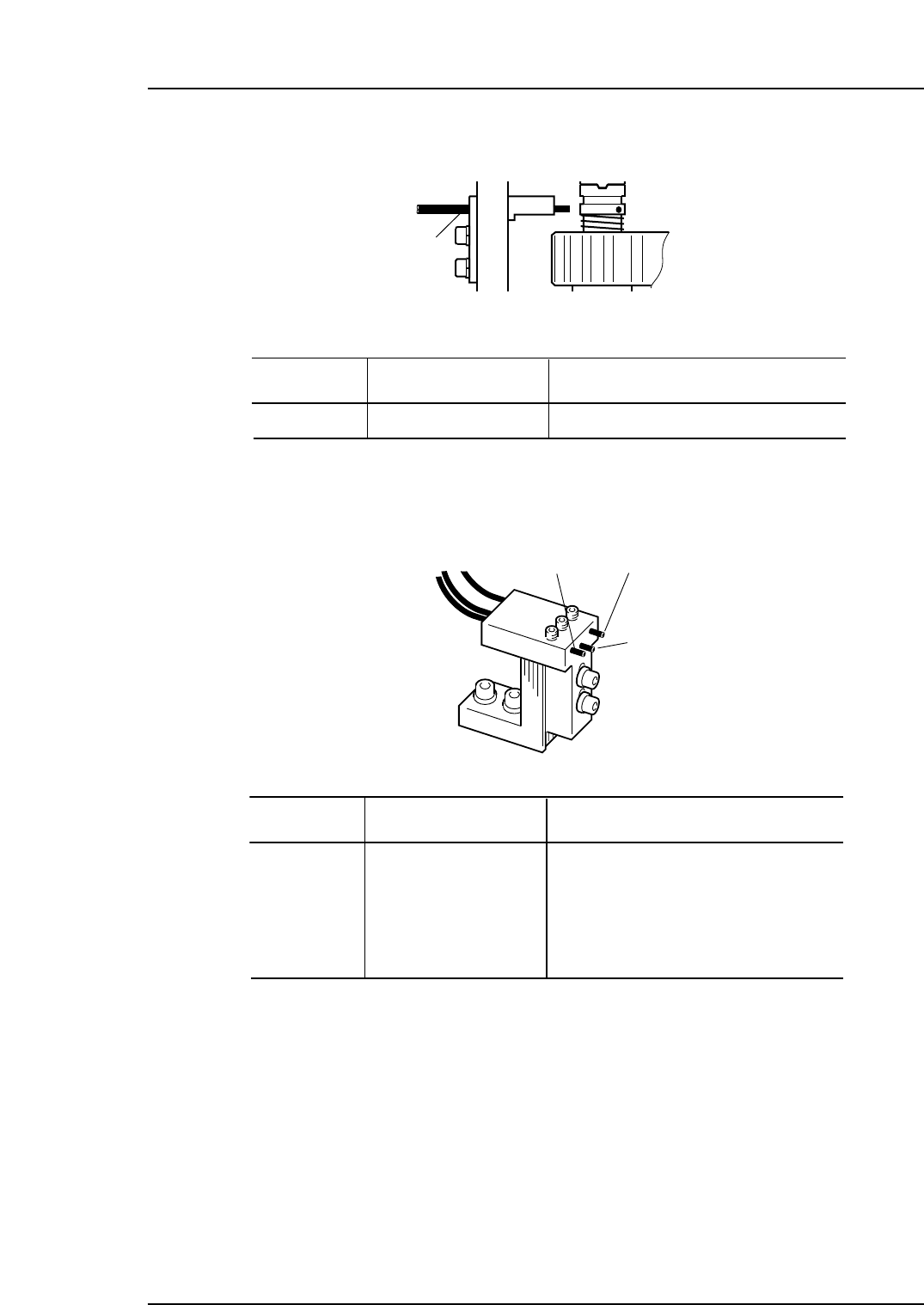

Station 15 (nozzle origin position check)
Station 17/19 (nozzle pre/post change check)
I/O Address
X04A
X04B
X04C
X04D
X04E
X04F
I/O Name
Description
NOZ CHK ST 17 1
NOZ CHK ST 17 2
NOZ CHK ST 17 3
NOZ CHK ST 19 1
NOZ CHK ST 19 2
NOZ CHK ST 19 3
St 17 nozzle type check 1
St 17 nozzle type check 2
St 17 nozzle type check 3
St 19 nozzle type check 1
St 19 nozzle type check 2
St 19 nozzle type check 3
CP6M1042a
X04A/4D
X04B/4E
X04C/4F
CP6M1042
I/O Address
X056
I/O Name
Description
NOZ ORG POS ST 15
St 15 nozzle clutch origin position
CP6M1041a
CP6M1041
X056
Part 1 Chapter 3 Sensor Positions
Edition 1.0 1-3-5 CP-6-series Mechanical Reference
