Part 2

Preparation for

Production

1. Changing the Conveyor Width

Point

Conveyor width adjustments must be performed simultaneously for the in-conveyor,

XY-table, and the out-conveyor which are all linked.

Adjust the conveyor to a width which permits the boards to be transported and clamped

in a smooth manner.

Procedure

1. Perform the following command sequence to move the XY-table to the loading

position: [LOADER] - [LOADING PSTN] - START button.

2. Use the [LIFTER▲] command to raise the XY-table until it is linked to the in/out-

conveyor.

3. Turn the handle on the out-conveyor to adjust the conveyor width until the panel

can be conveyed smoothly. First increase the conveyor width then reduce it to

between 0.5~1.0 mm wider than the panel width (W) .

On CP-652C machines, be sure to adjust the conveyor above the noise-reduction

box in the same manner as that described above.

4. Use the [LIFTER▼] command to lower the XY-table.

5. Run a board through the conveyor system to verify that the board is conveyed in a

smooth manner.

Caution: Be sure to check the positions of the backup pins after adjusting the conveyor width to

be sure that they do not interfere with the conveyor rail.

On CP-643E/643ME machines, the main conveyor and out-carrier can be linked using

the following command sequence: [LOADER] - [LOADING PSTN] - [WIDTH CH ADJ].

Refer to the CP-643 System Reference Manuall for further details.

After linking the main conveyor and the out-carrier, turn the conveyor width adjusting

handle to adjust the conveyor width to the width of the board in the same manner as that

described above.

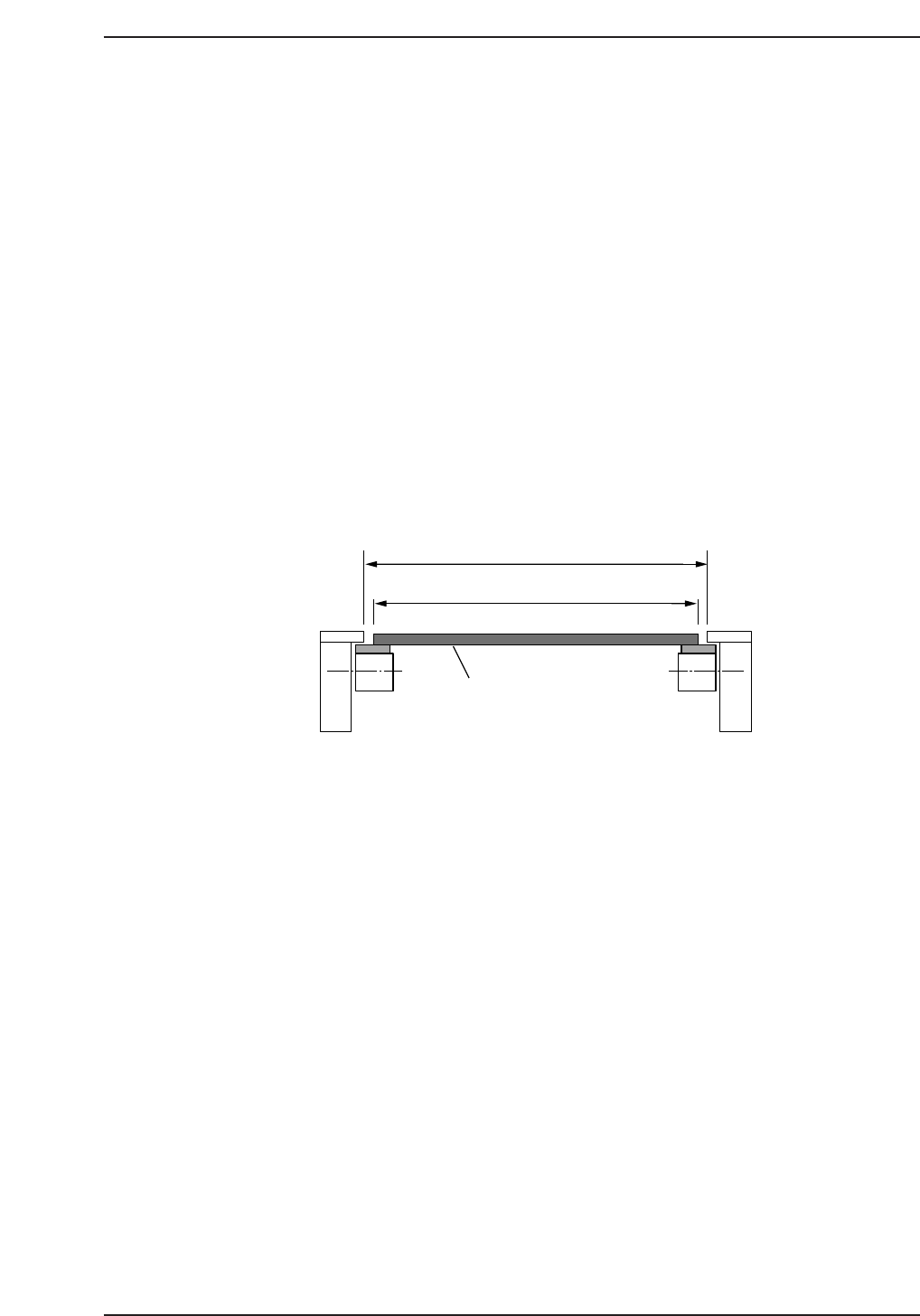

W + (0.5~1.0 mm)

C7SM2001Ea

Panel

Part 2 Chapter 1 Changing the Conveyor Width

Edition 1.3 2-1-1 CP-6-series Mechanical Reference

Notes:

Part 2 Chapter 1 Changing the Conveyor Width

Edition 1.3 2-1-2 CP-6-series Mechanical Reference
