1 – 4 Y X Y X Y X Int r oduc tion The pr ima r y aim of thi s job gui de is to ma ke it easi er for com missi oning eng ineer s and use rs of SI P L A CE mach ines to select nozz les. Y ou look f or the c ompon ent to be…
General Information on Components,
Standard Nozzles and Adapters
Introduction
Introduction
1 – 4
Y
X
Y
X
Y
X
Introduction
The primary aim of this job guide is to make it easier for
commissioning engineers and users of SIPLACE machines
to select nozzles.
You look for the component to be placed (or the package
form) in order to find out the appropriate nozzle to use.
This job guide shows nozzles for SIPLACE machines.
“Calibration Nozzles” you can find on page 1 – 24.
Structure of the Job Guide
This job guide is divided up into separate chapters that deal with different component groups. To aid
orien tation, a sample component of the relevant component group appears on the tab for each chapter.
In the first (left-hand) column on each page you will find the package form specifications of the different
components. On the right you will find the name of the associated package form (GF) file.

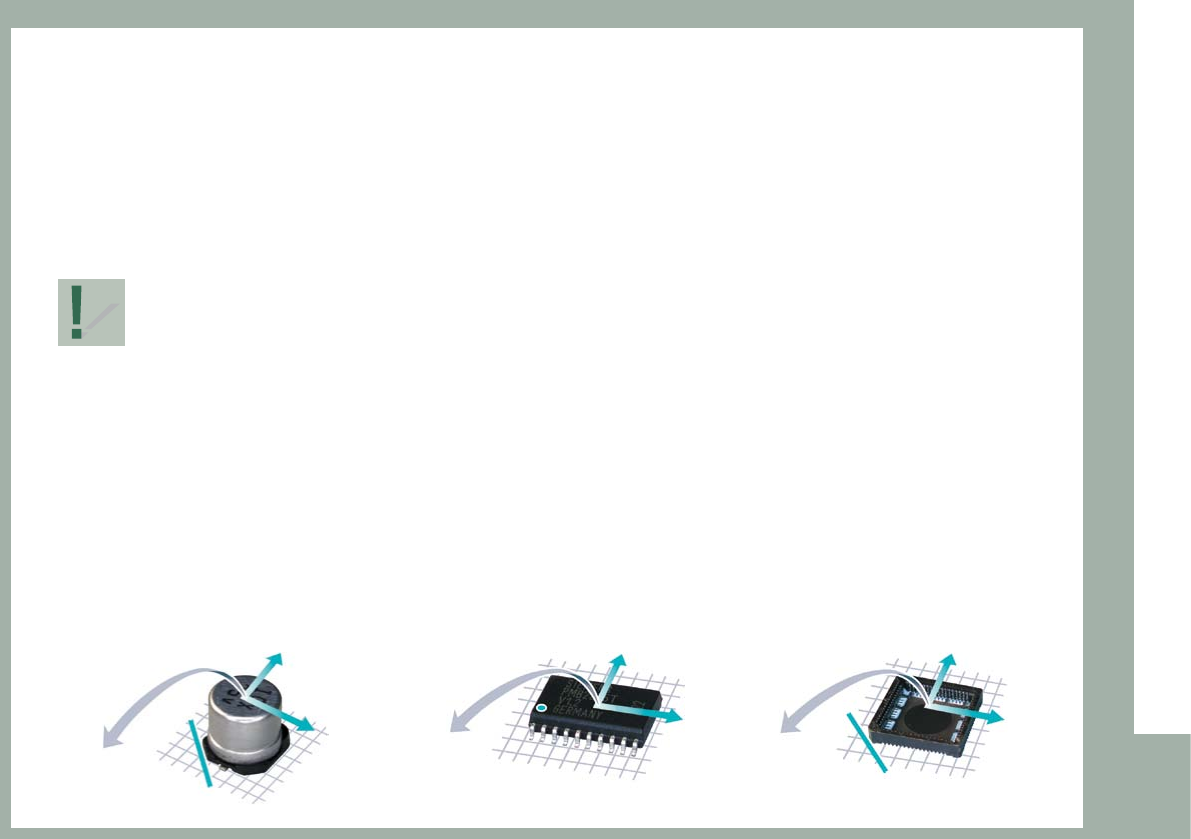

In addition, the 0° description of the sample component is shown on page 2 of each chapter.
Here are some examples:
0º
Description
0º
Description
0º
Description
1 – 5
Introduction
The names of the package form (GF) files correspond to the
original file names in the package form (GF) editor of the line computer.
The nozzles that can be used for the package form(s) are shown in the five main columns
headed “Placement Head C&P-20, C&P-12, C&P-6, P&P Head and Twin Head”.

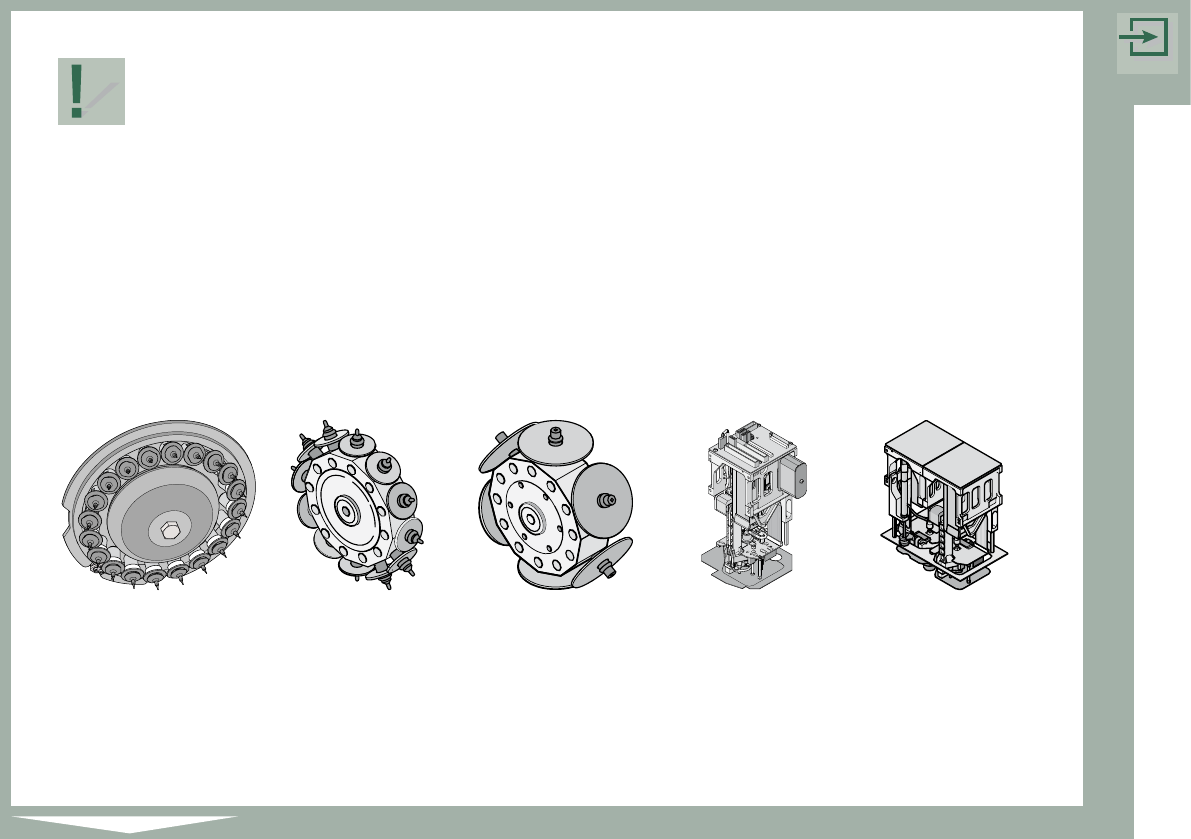

The following placement heads are used on SIPLACE machines:
C&P-20
Collect & Place
20-Segment
C&P-12
Collect & Place
12-Segment
C&P-6
Collect & Place
6-Segment
P&P
Pick & Place
Head
Twin Head
