- - 53. MAIN LINE FILTER COMP ONENTS 2 4 1 5 1 4 1 6 1 7 2 1 2 0 7 8 1 1 9 3 4 6 1 8 1 9 1 2 5 2 1 1 0 2 4 2 3 2 2 2 5 1 3 2 6
- -

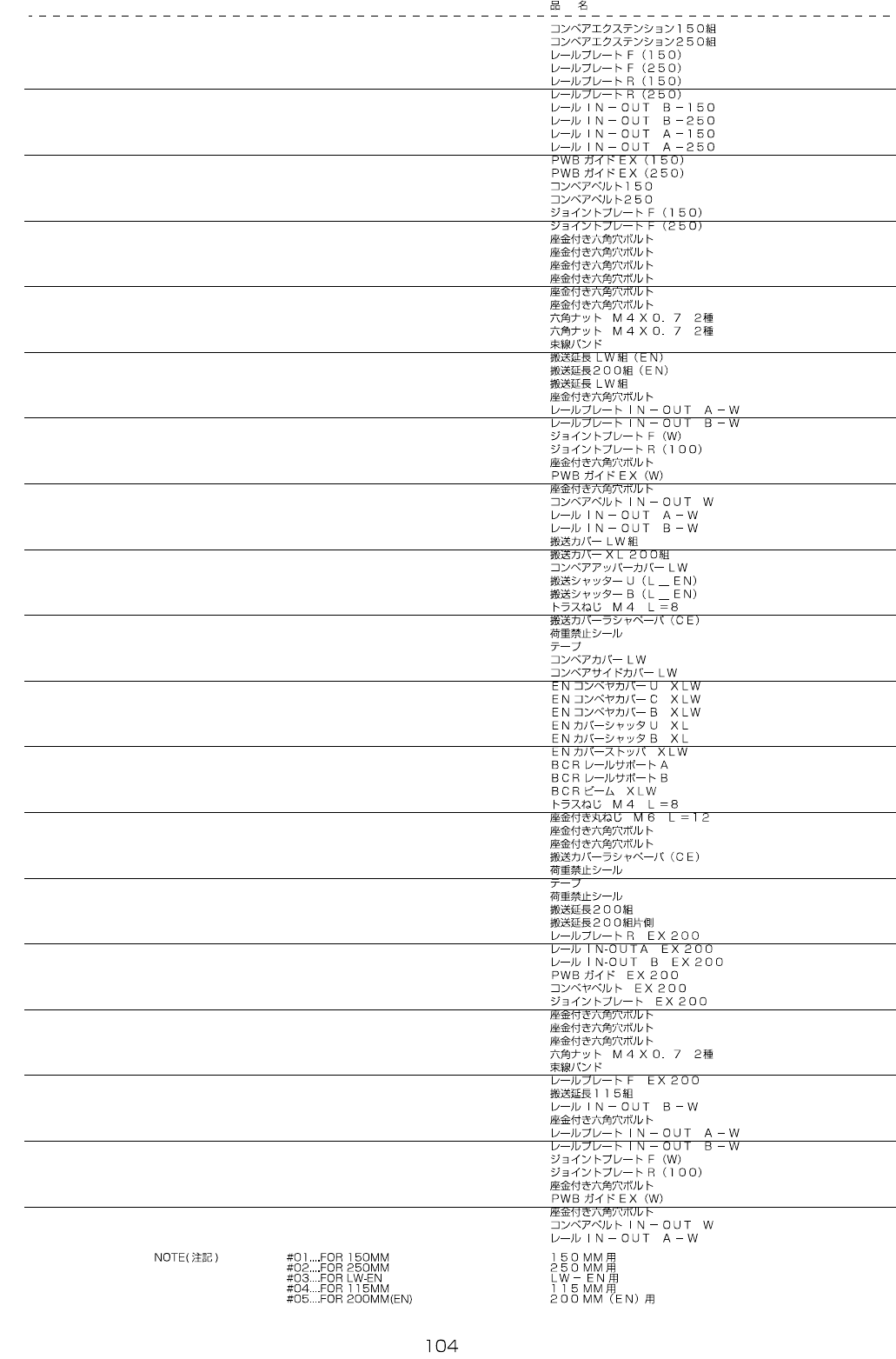

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-73916 CONVEYOR EXTENSION 150 ASM 1
2
#02
400-73915 CONVEYOR EXTENSION 250 ASM 1
3
#01
400-11053 RAIL PLATE F(150) (1)
4
#02
400-11060 RAIL PLATE F(250) (1)
5
#01
400-11054 RAIL PLATE R(150) (1)
6
#02
400-11061 RAIL PLATE R(250) (1)
7
#01
400-73884 RAIL IN-OUT B-150 (1)
8
#02
400-73886 RAIL IN-OUT B-250 (1)
9
#01
400-73883 RAIL IN-OUT A-150 (1)
10
#02
400-73885 RAIL IN-OUT A-250 (1)
11
#01
400-11057 PWB GUIDE EX(150) (2)
12
#02
400-11064 PWB GUIDE EX(250) (2)
13
#01
400-73709 CONVEYOR BELT 150 (2)
14
#02
400-73708 CONVEYOR BELT 250 (2)
15
#01
400-11072 JOINT PLATE F(150) (2)
16
#02
400-11066 JOINT PLATE F(250) (2)
17
#01
SL-6031092-TN SCREW (6)
18
#02
SL-6031092-TN SCREW (8)
19 SL-6031492-TN SCREW (4)
20 SL-6041292-TN SCREW (6)
21
#01
SL-6041092-TN SCREW (8)
22
#02
SL-6041092-TN SCREW (12)
23
#01
NM-6040002-SN NUT M4 (8)
24
#02
NM-6040002-SN NUT M4 (12)
25 HX-0044000-00 CABLE BAND (5)
26
#03
400-73917 CONVEYOR EXTENSION LW ASM(EN) 1
27
#05
400-94069 CONVEYOR EXTENSION XL 200 ASM(EN) 1
28 400-46881 CONVEYOR EXTENSION LW ASM (1)
29 SL-6031092-TN SCREW (16)
30 400-46990 RAIL PLATE IN-OUT A-W (2)
31 400-46991 RAIL PLATE IN-OUT B-W (2)
32 400-00791 JOINT PLATE F(W) (4)
33 E2176-725-000 JOINT PLATE R(100) (4)
34 SL-6041292-TN SCREW (16)
35 400-00789 PWB GUID EX(W) (4)
36 SL-6030892-TN SCREW (8)
37 400-46938 CONVEYOR BELT IN-OUT W (4)
38 400-46988 RAIL IN-OUT A-W (2)
39 400-46989 RAIL IN-OUT B-W (2)
40 400-47307 CONVEYOR COVER LW ASM (1)
41
#05
400-94067 CONVEYOR COVER XL 200 ASM (1)
42 400-47228 CONVEYOR UPPER COVER LW (2)
43 400-01484 CONVEYOR SHUTTER U(L_EN) (2)
44 400-01485 CONVEYOR SHUTTER B(L_EN) (2)
45 SM-0040801-SC SCREW (40)
46 E1143-721-000 WOOLEN CLOTH PAPER (8)
47 E5721-729-000 LABEL (2)
48 400-01490 TAPE (3)
49 400-47226 CONVEYOR COVER LW (2)
50 400-47227 CONVEYOR SIDE COVER LW (2)
51
#05
400-92188 EN CONVEYOR COVER U XLW (2)
52
#05
400-92189 EN CONVEYOR COVER C XLW (2)
53
#05
400-92063 EN CONVEYOR COVER B XLW (2)
54
#05
400-92186 EN COVER SHUTTER U XL (2)
55
#05
400-92187 EN COVER SHUTTER B XL (2)
56
#05
400-92074 EN COVER STOPPER XLW (2)
57
#05
400-94206 BCR RAIL SUPPORT A XL (2)
58
#05
400-92076 BCR RAIL SUPPORT B XL (2)
59
#05
400-92065 BCR BEAM XLW (4)
60
#05
SM-0040801-SC SCREW (50)
61
#05
SL-3061232-TN SCREW (8)
62
#05
SL-6041092-TN SCREW (4)
63
#05
SL-6051692-TN BOLT (4)
64
#05
E1143-721-000 WOOLEN CLOTH PAPER (8)
65
#05
E5721-729-000 LABEL (2)
66
#05
400-01490 TAPE (3.6)
67 401-05884 LOAD PROHIBITION LABEL (2)
68
#05
400-94068 CONVEYOR EXTENSION XL 200 ASM (1)
69 400-94209 CONVEYOR EXTENSION XL 200 ONE SIDE ASM (2)
70 400-92042 RAIL PLATE R EX200 (1)
71 400-92037 RAIL IN-OUT A EX200 (1)
72 400-92041 RAIL IN-OUT B EX200 (1)
73 400-92039 PWB GUIDE EX200 (2)
74 400-92062 CONVEYOR BELT EX200 (2)
75 400-92040 JOINT PLATE F EX200 (2)
76 SL-6031092-TN SCREW (12)
77 SL-6041292-TN SCREW (6)
78 SL-6041092-TN SCREW (14)
79 NM-6040002-SN NUT M4 (14)
80 HX-0044000-00 CABLE BAND (5)
81 400-92038 RAIL PLATE F EX200 (1)
82
#04
400-73300 CONVEYOR EXTENSION 115 ASM 1
83 400-46989 RAIL IN-OUT B-W (1)
84 SL-6031092-TN SCREW (8)
85 400-46990 RAIL PLATE IN-OUT A-W (1)
86 400-46991 RAIL PLATE IN-OUT B-W (1)
87 400-00791 JOINT PLATE F(W) (2)
88 E2176-725-000 JOINT PLATE R(100) (2)
89 SL-6041292-TN SCREW (8)
90 400-00789 PWB GUID EX(W) (2)
91 SL-6030892-TN SCREW (4)
92 400-46938 CONVEYOR BELT IN-OUT W (2)
93 400-46988 RAIL IN-OUT A-W (1)
- -
53.MAIN LINE FILTER COMPONENTS
2 4
1 5
1 4
1 6
1 7
2 1
2 0
7
8
1 1
9
3
4
6
1 8
1 9
1 2
5
2
1
1 0
2 4
2 3
2 2
2 5
1 3
2 6
- -

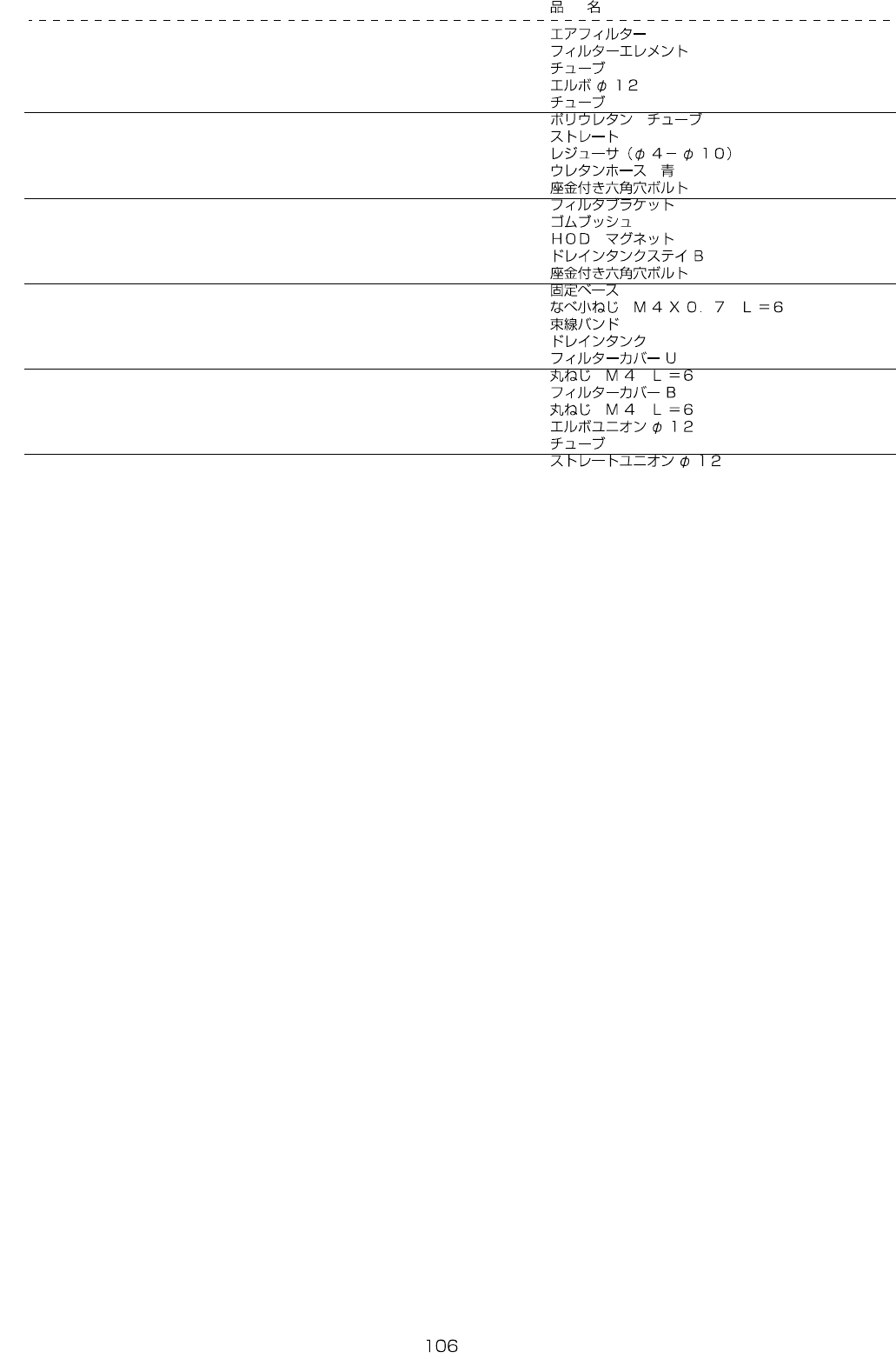

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 PF-0154010-A0 AIR FILTER 1
2 PF-9010070-00 FILTER ELEMENT (1)
3 BT-1200801-EF TUBE 0.8
4 PJ-3041200-01 ELBOW D=12 1
5 BT-1200801-EF TUBE 1
6 BT-1000651-EB POLYURETHANE TUBE 0.7
7 PJ-3031000-02 STRAGHT 1
8 PJ-3090400-03 STRAGHT 1
9 BT-0400251-EA TUBE HOSE, BLUE 0.16
10 SL-6061692-TN BOLT 2
11 400-31183 FILTER BRACKET 1
12 HX-0005500-0J RUBBER BUSHING 1
13 E1387-700-000 HOD MAGNET 2
14 400-17146 DRAIN TANK STAY B 1
15 SL-6040892-TN BOLT 2
16 HX-0029400-00 FIXED BASE 1
17 SM-4040601-SC SCREW M4X0.7 L=6 1
18 EA-9500B01-00 CABLE BAND 1
19 400-16815 DRAIN TANK 1
20 400-31184 FILTER COVER U 1
21 SM-3040652-TN SCREW M4 L=6 6
22 400-31185 FILTER COVER B 1
23 SM-3040652-TN SCREW M4 L=6 4
24 PJ-3041254-01 ELBOW UNION D=12 2
25 BT-1200801-EF TUBE 0.2
26 400-73368 STRAIGHT UNION 12 1
