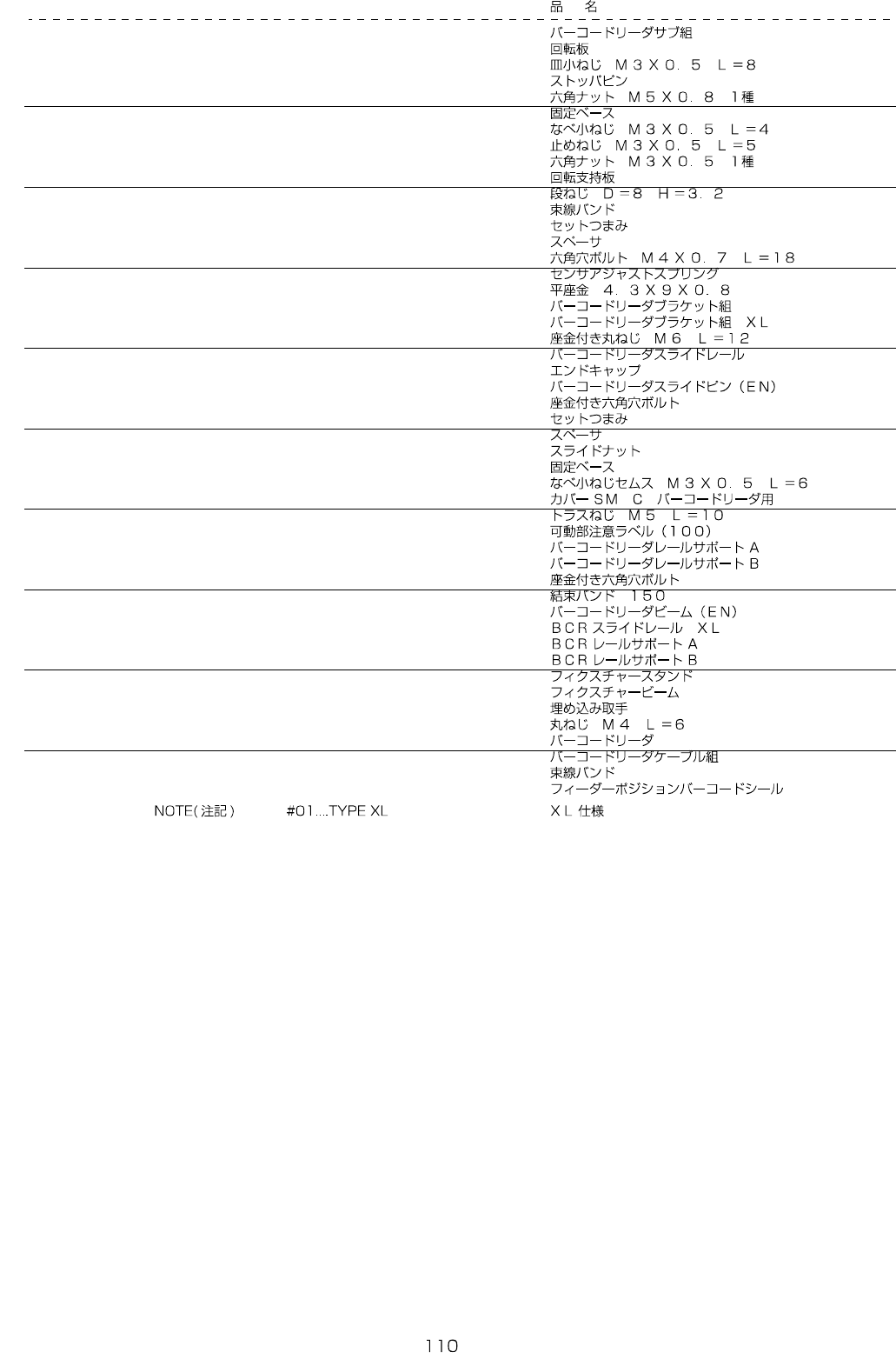

- - 56. RFID COMPONENTS (MP C) 5 1 7 1 2 1 3 1 4 1 5 4 1 1 0 9 3 6 7 8 2 2 1 1 1 6 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-80572 BARCODE READER SUB ASM 1
2 400-28299 ROTARY PLATE (1)
3 SM-1030801-SC SCREW M3 L=8 (2)
4 G6025-875-000 STOPPER PIN (1)
5 NM-6050001-SC NUT M5 (1)
6 HX-0029400-00 FIXED BASE (3)
7 SM-4030401-SC SCREW M3X0.5 L=4 (3)
8 SM-8030502-TP SCREW M3 L=5 (1)
9 NM-6030001-SC NUT M3 (1)
10 400-28300 ROTARY SUPPORT PLATE (1)
11 SD-0800327-TP SHOULDER SCREW (1)
12 EA-9500B01-00 CABLE BAND (3)
13 G6518-880-000 SET PICK-UP (1)
14 400-58815 SPACER (1)
15 SM-6041802-TN SCREW M4X0.7 L=18 (2)
16 400-00912 SENSOR ADJUST SPRING (2)
17 WP-0430801-SC WASHER 4.3X9X0.8 (4)
18 400-80567 BCR BRACKET ASM 1
19
#01
400-99587 BCR BRACKET ASM XL 1
20 SL-3061232-TN SCREW (4)
21 400-80456 BCR SLIDE RAIL (1)
22 400-28301 END CAP (2)
23 400-33900 BCR SLIDE PIN(EN) (2)
24 SL-6040692-TN BOLT (2)
25 G6518-880-000 SET PICK-UP (2)
26 400-58815 SPACER (2)
27 400-28302 SLIDE NUT (7)
28 HX-0029400-00 FIXED BASE (3)
29 SL-4030691-SC SCREW M3X6 (3)
30 400-80459 COVER SM C-BCR (1)
31 SM-0051001-SC SCREW (1)
32 CM-3009001-06 LABEL(100) (1)
33 400-80457 BCR RAIL SUPPORT A (1)
34 400-80458 BCR RAIL SUPPORT B (1)
35 SL-6041092-TN SCREW (4)
36 EA-9500B02-00 CABLE BAND 150 (10)
37 400-33897 BCR BEAM(EN) (2)
38
#01
400-92169 BCR SLIDE RAIL XL 1
39
#01
400-94206 BCR RAIL SUPPORT A XL 1
40
#01
400-92076 BCR RAIL SUPPORT B XL 1
41 400-80411 FIXTURE STAND 2
42 400-80410 FIXTURE BEAM 2
43 400-66022 EMBEDDED PULLS 2
44 SM-3040652-TN SCREW M4 L=6 12
45 HX-0061000-00 BARCODE READER 1
46 400-48200 BARCODE READER CABLE ASM 1
47 EA-9500B01-00 CABLE BAND 10
48 400-80595 FEEDER POSITION BARCODE SEAL 3
- -

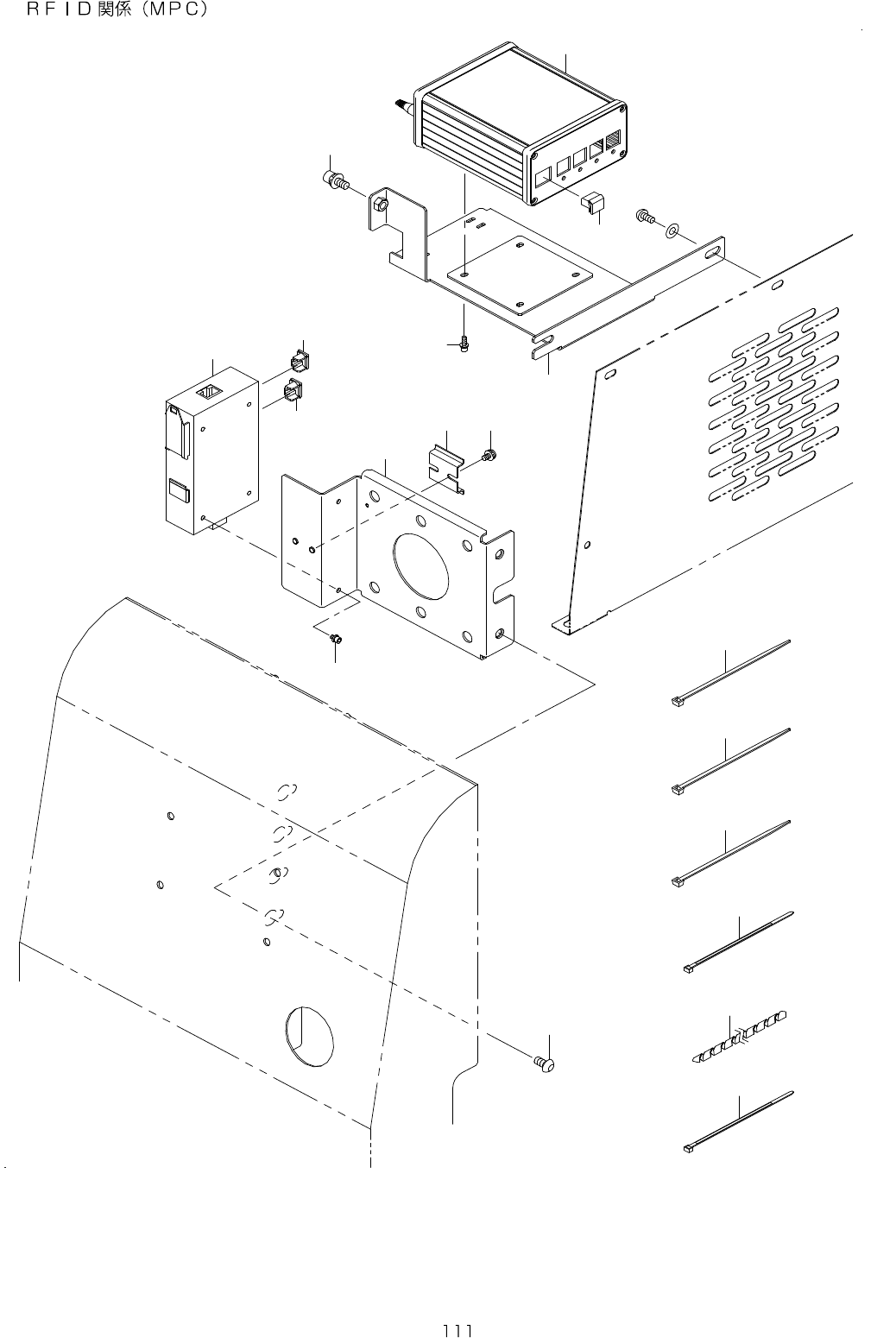

56.RFID COMPONENTS (MPC)
5
1 7
1 2
1 3
1 4
1 5
4
1
1 0
9
3
6
7 8
2
2
1 1
1 6
2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-73032 4 PORT MPC 1
2 HX-0066000-00 DUST COVER 3
3 400-73033 SWITCHING HUB 1
4 401-13917 MPC_BR 1
5 SL-6030892-TN SCREW 4
6 401-13918 HUB_BR 1
7 400-71597 CAREER_RAIL_30 1
8 SL-4040891-SC SCREW M4 L=8 2
9 SL-6030592-TN SCREW M3 L=5 2
10 SL-6061492-TN BOLT 1
11 SL-3061232-TN SCREW 2
12 EA-9500B01-00 CABLE BAND 20
13 EA-9500B02-00 CABLE BAND 150 20
14 HX-0006500-0C CABLE BAND 10
15 HX-0031400-0C SPIRAL TUBE 0.5
16 HX-0006500-0B CABLE BAND 2
17 EA-9500B01-00 CABLE BAND 1
