- - 58. CONVEYOR BARC ODE READER COMPO NENTS 1 2 3 7 6 5 8 8 9 1 0 1 1 8 8 4 1 4 1 2 1 3 1 5
- -

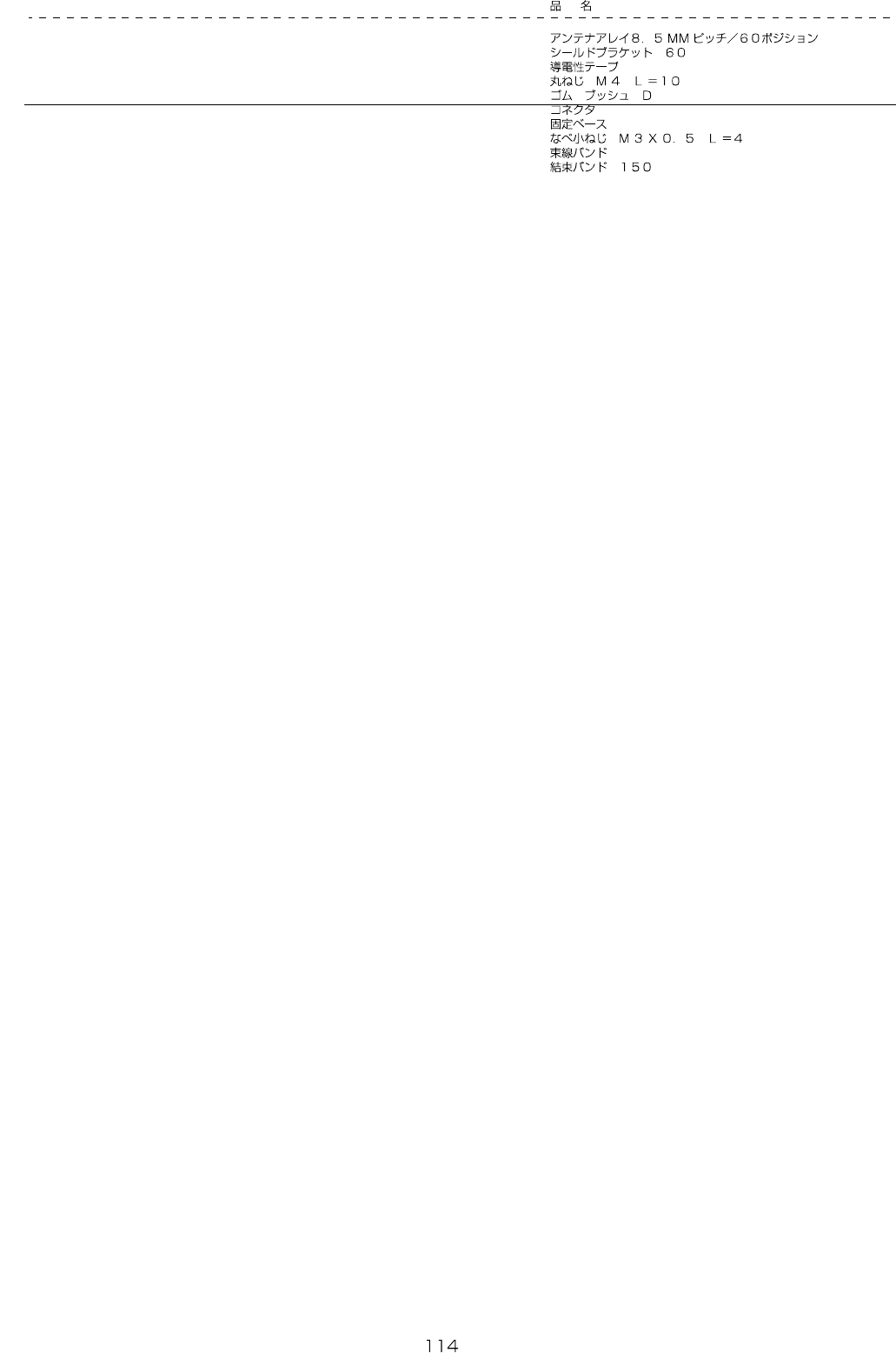

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-73664 ANTENNA ARRAY 8.5MM PITCH / 60 POSITION 1
2 400-81207 SHIELD BRACKET 60 1
3 HX-0026800-00 CONDUCTIVE TAPE 0.26
4 SM-3041052-TN SCREW M4 L=10 6
5 HX-0005500-0D RUBBER BUSH D 1
6 HK-0651200-60 CONNECTOR 1
7 HX-0029400-00 FIXED BASE 7
8 SM-4030401-SC SCREW M3X0.5 L=4 7
9 EA-9500B01-00 CABLE BAND 40
10 EA-9500B02-00 CABLE BAND 150 40
- -

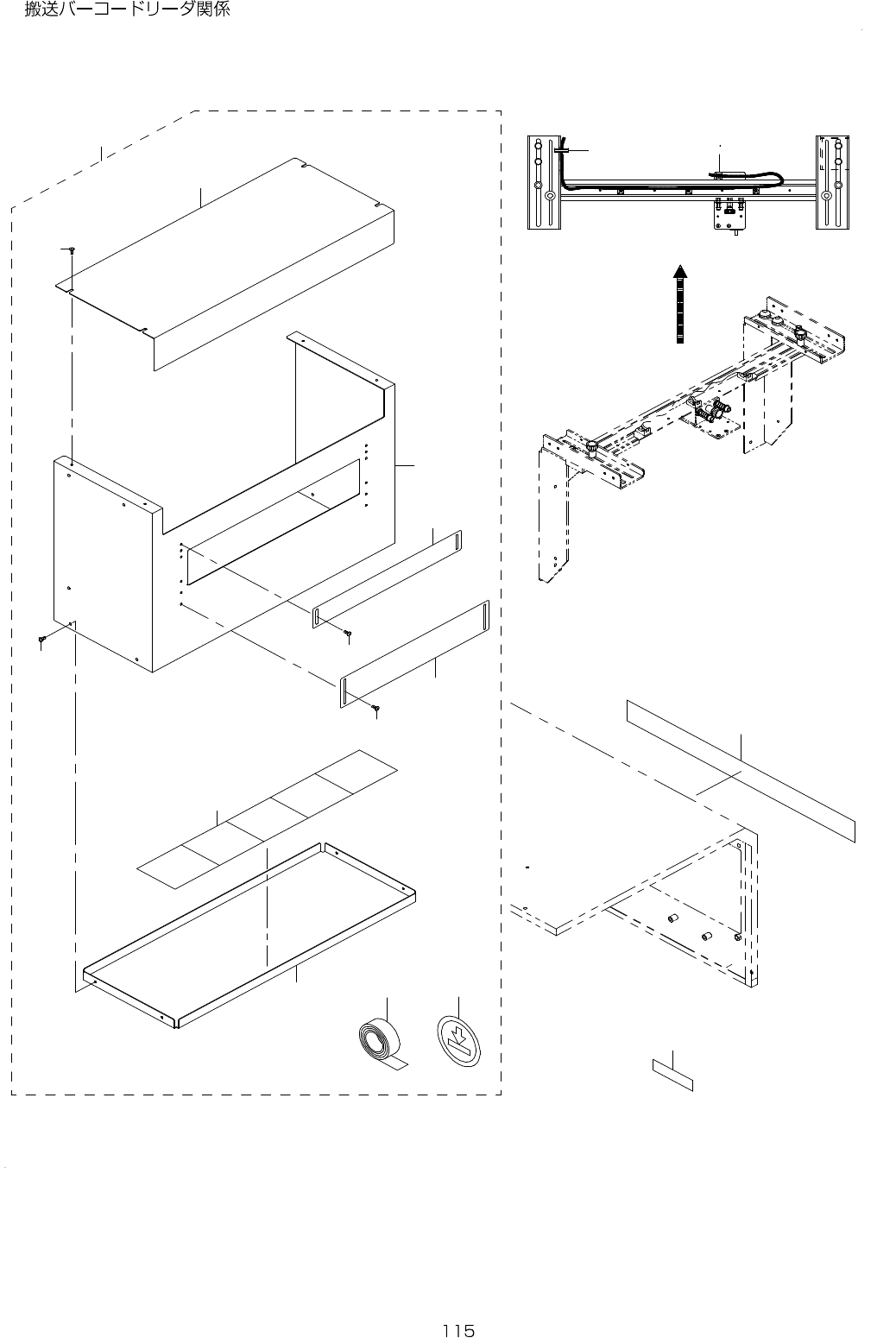

58.CONVEYOR BARCODE READER COMPONENTS
1 2
3
7
6
5
8
8
9
1 0
1 1
8
8
4
1 4
1 2
1 3
1 5
- -

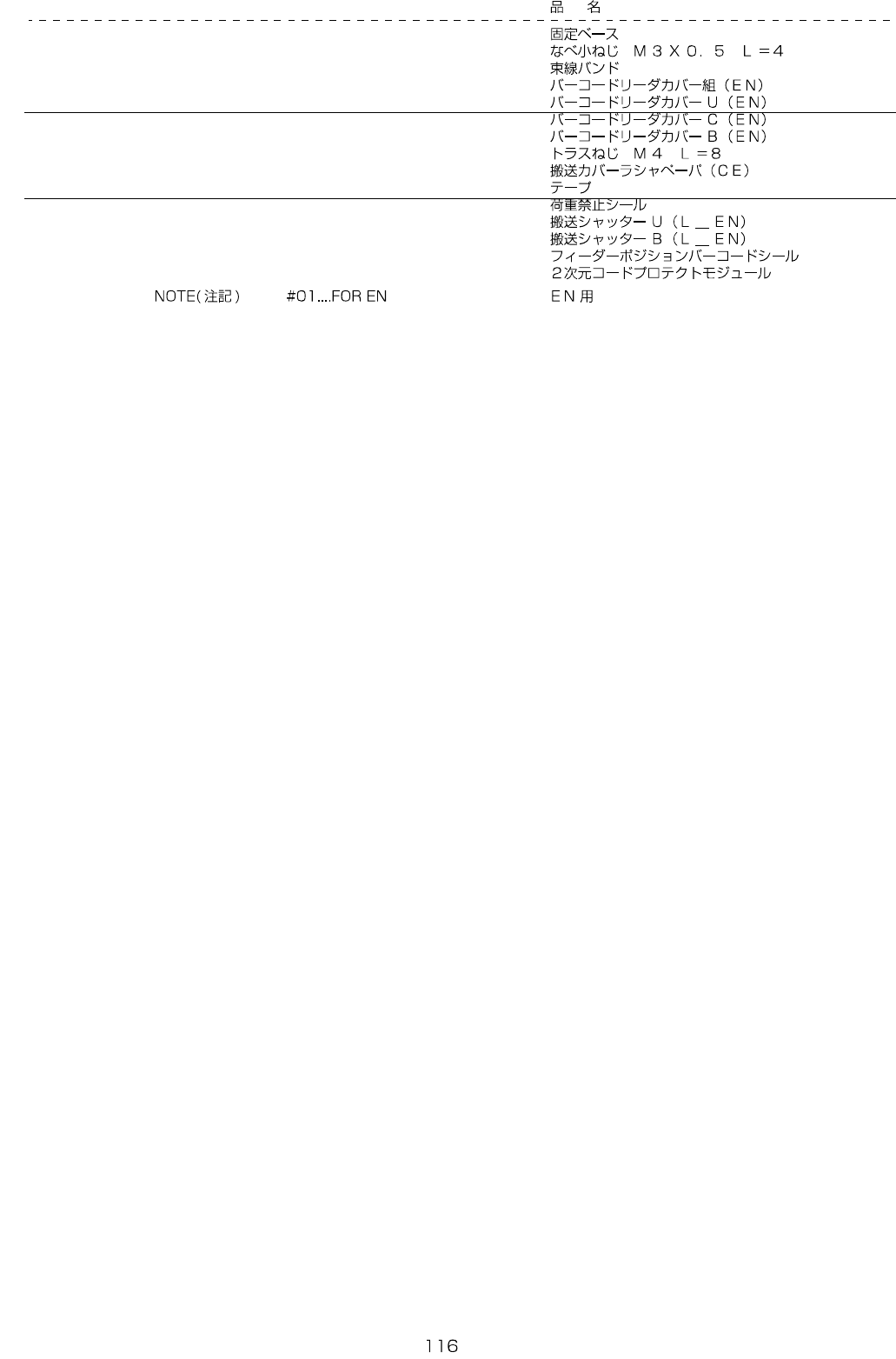

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 HX-0029400-00 FIXED BASE 1
2 SM-4030401-SC SCREW M3X0.5 L=4 1
3 EA-9500B01-00 CABLE BAND 7
4
#01
400-80568 BCR COVER ASM(EN) 1
5
#01
400-80460 BCR COVER U-EN (1)
6
#01
400-80461 BCR COVER C-EN (1)
7
#01
400-80462 BCR COVER B-EN (1)
8 SM-0040801-SC SCREW (22)
9
#01
E1143-721-000 WOOLEN CLOTH PAPER (4)
10 400-01490 TAPE (1.5)
11 E5721-729-000 LABEL (1)
12
#01
400-01484 CONVEYOR SHUTTER U(L_EN) (1)
13
#01
400-01485 CONVEYOR SHUTTER B(L_EN) (1)
14 400-80595 FEEDER POSITION BARCODE SEAL 4
15 400-38992 2D PROTECT MODULE 1
