- - REF.NO NOTE P ART NO D E S C R I P T I O N Qty 1 40 0-84912 ETF_TROLLEY_ASSY 4 2 #01 401-20938 ETF_TROLLEY_ASSY_950 4 3 40 0-84917 E_TROLLEY_SUB_A SSY (1) 4 #01 401-20910 E_TROLLEY_SUB_ASSY_950 (1) 5 40 1-22298 ASM…
- -

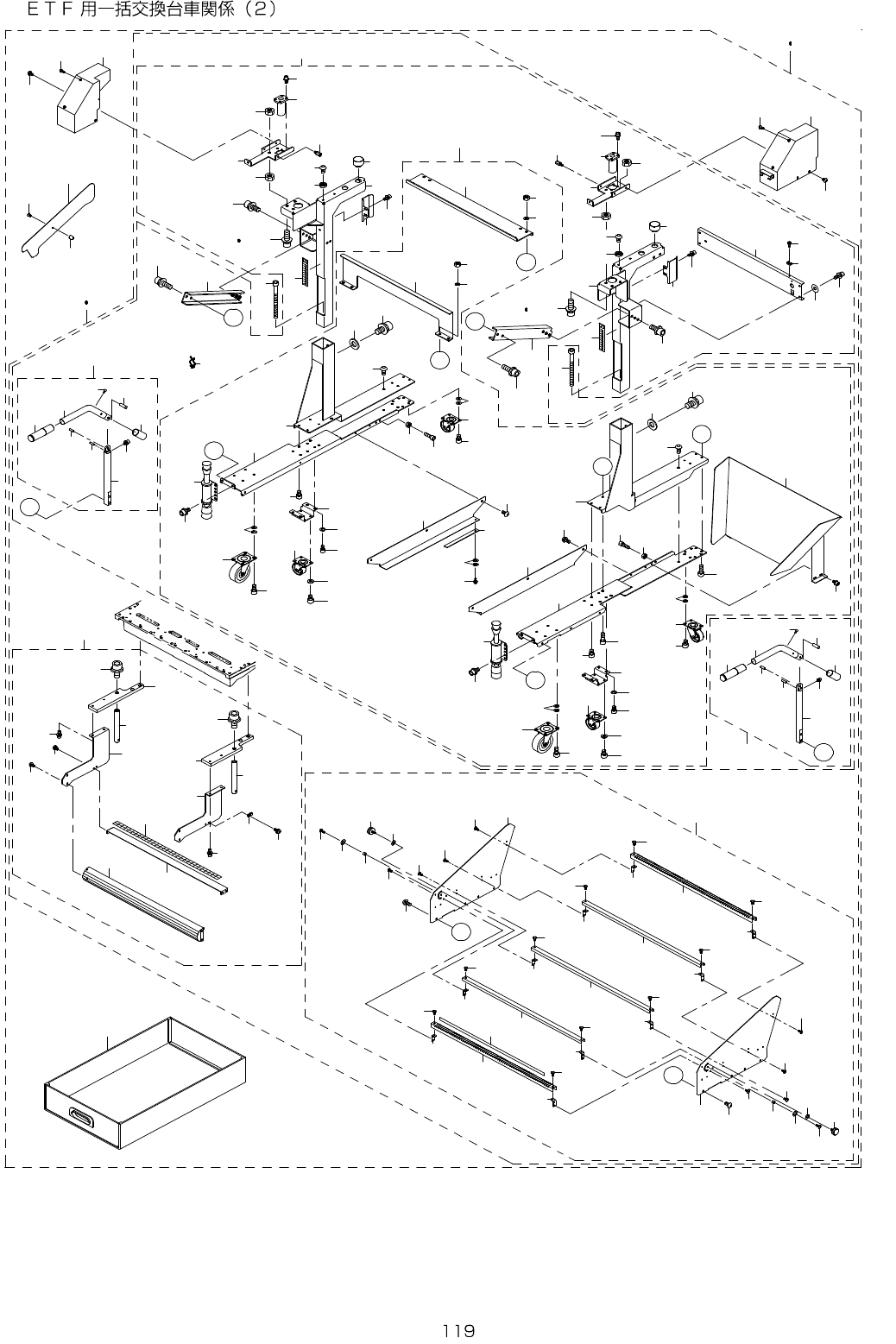

60.REPLACING OVERALL CHANGER TRUCK COMPONENTS FOR ETF (2)
9
9
1 0
1 0
1 2
1 4
1 5
1 6
1 7
1 8
1 7
1 8
1 9
2 0
2 2
2 1
5 3
5 8
5 1
6 3
6 4
6 6
6 5
5
4 4
4 3
1 0 1
1 0 5
1 0 5
1 0 6
1 0 6
9 4
9 5
9 6
1 0 4
B
9 1
8 1
8 2
8 4
8 3
4 7
1 1 4
1 2
5 7
1 3
8
1 0 7
4 4
4 3
5 1
9 7
1 1 2
8 3
1 1 5
1 0 8
1 1
1 1
2 8
2 8
2 3 2 4
2 5
2 5
2 5
2 1
2 2
2 5
2 6
2 6
2 7
7
4 5
5 0
B
6 7
A
A
6 7
6 8
6 8
6 9
6 9
7 0
7 0
7 2
7 2
7 1
7 1
5 4
5 5
5 5
5 2
5 6
5 6
5 7
7 3
7 3
5 8
7 5
6 1
6 2
7 5
6 1
6 2
6 3
6 4
4 9
1 0 2
1 0 3
9 5
9 9
7 9
9 0
8 5
8 7
8 7
8 0
9 0
8 0
8 0
9 0
8 0
9 0
7 9
7 9
8 9
7 9
7 9
7 9
D
9 0
C
8 0
8 0
9 0
7 9
8 9
7 9
9 0
9 1
9 1
8 0
8 0
7 9
7 9
9 0
8 0
8 2
8 8
8 8
8 4
8 1
8 0
D
1 1 4
1 1 3
1 1 1
1 0 9
7 8
9 3
3 4
9 8
C
8 6
4 6
1 1 0
4 8
7 4
6 0
5 7
7 6
7 7
5 9
7 6
5 9
7 7
5 7
7 4
6 0
2 3 2 4
4 0
F
2 9
6
E
4 0
3 0
6
4 1
4 1
3 9
3 1
3 8
F
3 2
3 3
3 4
3 6
3 6
3 7
3 5
3 5
3 6
3 9
3 6
3 8
3 4
3 3
3 2
3 7
E3 1
1 1 1
4 2
1 0 0
9 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-84912 ETF_TROLLEY_ASSY 4
2
#01
401-20938 ETF_TROLLEY_ASSY_950 4
3 400-84917 E_TROLLEY_SUB_ASSY (1)
4
#01
401-20910 E_TROLLEY_SUB_ASSY_950 (1)
5 401-22298 ASM_E_TROLLEY_UPPER (1)
6 SM-6125052-TR SCREW M12 L=150 (2)
7 400-63433 TROLLEY_FRAM_U_L (1)
8 400-63434 TROLLEY_FRAM_U_R (1)
9 400-01730 SCALE MARKS SEAL (2)
10 400-01731 TROLLEY RUBBER B (4)
11 400-89239 E_TROLLEY_PLATE (2)
12 400-84655 TROLLEY_JOINT_BAR (1)
13 SL-6051492-TN BOLT (4)
14 HX-0029400-00 FIXED BASE (1)
15 SL-4030881-SC SCREW M3 L=8 (1)
16 HX-0067300-00 CABLE CLAMP (1)
17 400-89386 TROLLEY_DOG (2)
18 SL-6041092-TN SCREW (4)
19 400-97567 TROLLEY_COVER_STAY_L (1)
20 400-97568 TROLLEY_COVER_STAY_R (1)
21 SB-8160005-C0 BEARING (2)
22 SL-6041042-TN BOLT (8)
23 SL-6082592-TN BOLT (4)
24 SL-6061692-TN BOLT (2)
25 NM-6080001-SC NUT M8X1.25 (10)
26 HX-0033900-00 STUD (2)
27 WP-0561616-SC WASHER 5.6X16X1.6 (4)
28 SM-3061052-TN SCREW M6 L=10 (2)
29 401-11888 HANDLE_SUPPORT_L (1)
30 401-11889 HANDLE_SUPPORT_R (1)
31 400-21962 TROLLEY HANDLE ASSY (2)
32 E2641-729-000 HANDLE CLIP (1)
33 400-21920 TROLLEY HANDLE (1)
34 SL-6030642-TN SCREW M3 L=6 (1)
35 400-21919 HANDLE SHAFT (1)
36 PS-0400122-KP SPRING PIN (2)
37 E2635-729-000 HANDLE SLIDER (1)
38 PS-0600182-KP SPRING PIN (1)
39 SL-6040642-TN BOLT (1)
40 SL-6082592-TN BOLT (4)
41 SL-6082092-TN BOLT (6)
42 401-22299 ASM_E_TROLLEY_BOTTOM (1)
43 WP-1052001-SC WASHER 10,5X21X2 (4)
44 SL-6102042-TN SCREW (4)
45 400-21912 TROLLEY FRAME BL (1)
46 400-21913 TROLLEY FRAME BR (1)
47 400-97558 TROLLEY_FRAME_BASE_L (1)
48 400-97559 TROLLEY_FRAME_BASE_R (1)
49 400-97560 TROLLEY_FRAME_BASE_F (1)
50 400-97561 TROLLEY_FRAME_BASE_C (1)
51 SM-3061252-TN SCREW M6 L=12 (4)
52 400-23476 FG GUM SHEET (1)
53 WP-0430801-SC WASHER 4.3X9X0.8 (1)
54 SL-4030891-SC SCREW M3X8 (1)
55 400-97562 TRASH_BOX_GUIDE (2)
56 SM-3051052-TN SCREW M5 L=10 (6)
57 400-84677 CASTER_F (4)
58 SM-6060802-TN BOLT (8)
59 401-11890 CASTER_C_BASE (2)
60 SM-6060802-TN BOLT (8)
61 400-21957 TROLLEY CASTER (75) (2)
62 SM-6061202-TN BOLT (8)
63 E2711-721-000 TROLLEY STOPPER (2)
64 SL-6061242-TN BOLT (4)
65 400-97563 TAPE_GUIDE_SLOPE (1)
66 SL-6040892-TN BOLT (4)
67 NM-6060001-SC NUT M6 (12)
68 WP-0641601-SC WASHER (12)
69 SM-6061602-TN SCREW M6 L=16 (12)
70 SM-6060802-TN BOLT (2)
71 SM-6051602-TN BOLT (2)
72 NM-6050001-SC NUT M5X0.8 TYPE1 (2)
73 WP-0641601-SC WASHER (16)
74 WP-0612516-SD WASHER 6.1X15.2X2.5 (8)
75 WP-0641601-SC WASHER (16)
76 SM-6050802-TN BOLT (8)
77 WP-0531001-SC WASHER M5 (8)
78 400-84921 REEL_HOLDER_ASSY (1)
79 400-84674 REEL_SUPPORT_ANGLE (10)
80 SM-0030601-SC SCREW M3X0.5 L=6 (14)
81 SM-0030801-SC SCREW M3 X 8 (2)
82 WP-0531001-SC WASHER (2)
83 E2076-721-000 BU HAND KNOB (2)
84 E2779-721-000 STOPPER COLLAR (2)
85 400-95374 REEL_HOLDER_COVER_L (1)
86 400-95375 REEL_HOLDER_COVER_R (1)
87 SM-3051052-TN SCREW M5 L=10 (6)
88 WP-0430801-SC WASHER M4 (2)
89 400-97566 REEL_FIXING_BAR (2)
90 SM-0030601-SC SCREW M3X0.5 L=6 (12)
91 400-84673 REEL_SUPPORT (3)
92 401-13032 ETF_POSITION_LABEL(30)_2 (1)
93 400-84920 TAPE_GUIDE_ASSY (1)
94 400-95372 TAPE_GUIDE_BRACKET_R (1)
95 SL-6041092-TN SCREW (4)
96 400-89564 TAPE_GUIDE (1)
97 SM-3040652-TN SCREW M4 L=6 (4)
98 400-95373 TAPE_GUIDE_SUPPORT (1)
99 SM-3040652-TN SCREW M4 L=6 (4)
100 400-84639 ETF_POSITION_LABEL(30) (1)
101 400-97564 E_SUPPORT_PLATE_L (1)
102 HX-0034400-00 HARNESS PARTS (1)
103 SL-4041091-SC SCREW M4 L=10 (1)
104 400-97565 E_SUPPORT_PLATE_R (1)
105 400-47016 BU_SHAFT_L (2)
106 SL-6102042-TN SCREW (2)
107 400-95371 TAPE_GUIDE_BRACKET_L (1)
108 SM-1031001-SC SCREW M3X0.5 L=10 (20)
109 400-95379 TRASH_BOX_ASM (1)
110 400-97557 E_TROLLEY_COVER_R (1)
111 SM-3061052-TN SCREW M6 L=10 (4)
112 400-84676 SEPARATION_PLATE (20)
113 400-97556 E_TROLLEY_COVER_L (1)
114 SM-3040652-TN SCREW M4 L=6 (4)
115 E1612-706-C00 REEL SH (20)
- -
61.LIFTER UNIT COMPONENTS FOR ETF (1)
1 6
1 6
1 5
1 4
1 7
9
1 0
1 1
1 1
1 0
9
2
8
6 7
6 8
7
6
3
5
4
1 3
5 8
5 8
5 7
5 4
5 9
5 1
5 2
5 3
5 3
5 2
5 1
4 6
4 7
4 5
4 9
4 8
4 4
5 0
5 5
5 6
2 4
2 5
1 2
7 0
3 6
3 8
3 2
3 0
3 9
3 5
3 3
3 1
1
7 5
7 3
7 7
7 8
7 9
7 6
7 1
7 4
3 7
4 0
8 6
8 2
8 0
8 1
8 8
8 7
8 5
8 8
8 4
3 4
8 2
8 5
7 2
8 3
8 9 9 0
4 1
6 9
6 1
6 4
6 3
6 5
6 2
4 2
4 3
6 0
6 6
2 8
2 9
2 7
2 6
2 3
2 1
1 9
2 2
2 0
1 8
