- - 67. FIXING BANK COMP ONENT S FOR ETF(3) 6 1 5 1 6 1 7 1 8 2 1 1 4 2 9 2 4 2 8 2 6 2 7 2 3 2 2 2 5 2 4 5 1 2 5 3 3 1 3 0 3 1 7 8 1 3 1 0 1 1 9 1 2 2 1 2 1 1 8 1 9 2 1 2 0 2 1
- -

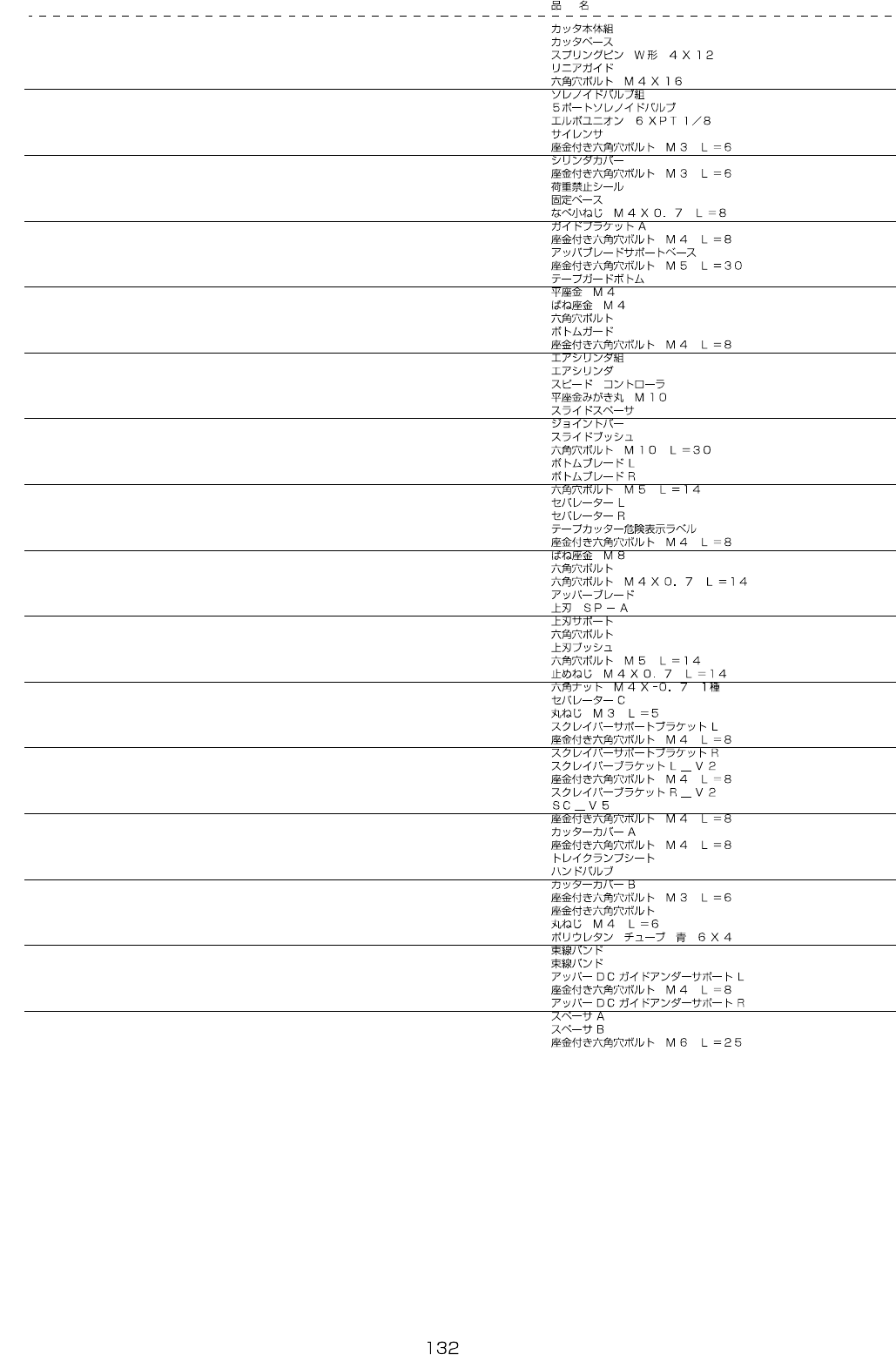

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-38491 CUTTER_BODY_ASSY 4
2 400-84696 CUTTER_BASE (1)
3 PS-0400122-KP SPRING PIN TYPE W 4X12 (2)
4 400-84693 LINEAR_GUIDE (2)
5 SM-6041602-TN SCREW M4X16 (4)
6 401-26009 SOLENOID_VALVE_ASM (1)
7 PV-1502120-A0 5-PORT SOLENOID VALVE (1)
8 PJ-3040651-01 ELBOW UNION 6XPT1/8 (1)
9 PX-0551040-00 SILENCER (2)
10 SL-6030692-TN SCREW M3 L=6 (2)
11 401-37907 CYLINDER_COVER (1)
12 SL-6030692-TN SCREW M3 L=6 (4)
13 E5721-729-000 LABEL (1)
14 HX-0029400-00 FIXED BASE (5)
15 SM-4040801-SC SCREW M4X0.7 L=8 (5)
16 401-25977 GUIDE_BR_A (1)
17 SL-6040892-TN SCREW M4 L=8 (4)
18 400-84685 UPPER_BLADE_SUPPORT_BASE (4)
19 SL-6053092-TN SCREW M5 L=30 (8)
20 401-25976 TAPE_GUARD_BOTTOM (1)
21 WP-0430801-SC WASHER M4 (6)
22 WS-0410002-KN SPRING WASHER M4 (6)
23 SM-6040602-TN SCREW (6)
24 401-25951 BOTTOM_GUARD (1)
25 SL-6040892-TN SCREW M4 L=8 (4)
26 401-26011 AIR_CYLINDER_ASM (1)
27 PA-6305001-A0 AIR CYLINDER (1)
28 PC-0152030-00 SPEED CONTROLLER (2)
29 WP-1052001-SC WASHER 10 (2)
30 400-84690 SLIDE_SPACER (2)
31 401-26031 JOINT_BAR (1)
32 400-84691 SLIDE_BUSH (1)
33 SM-6103002-TN SCREW M10 L=30 (1)
34 401-26029 BOTTOM_BLADE_L (1)
35 401-26030 BOTTOM_BLADE_R (1)
36 SM-6051402-TN SCREW M5 L=14 (8)
37 401-25978 SEPARATER_L (1)
38 401-25979 SEPARATER_R (2)
39 400-92716 TAPE CUTTER DANGER LABEL (1)
40 SL-6040892-TN SCREW M4 L=8 (4)
41 WS-0820002-KN SPRING WASHER M8 (2)
42 SM-6085002-TN SCREW (2)
43 SM-6041402-TN SCREW M4X0.7 L=14 (8)
44 400-84686 UPPER_BLADE (1)
45 E6110-700-000 UPPER_BLADE (4)
46 401-25982 UPPER_BLADE_SUPPORT (4)
47 SM-6051602-TN SCREW (8)
48 E6109-700-000 UPPER_BLADE_BUSH (4)
49 SM-6051402-TN SCREW M5 L=14 (4)
50 SM-8041402-TP SCREW M4X0.7 L=14 (4)
51 NM-6040001-SC NUT M4X0.7 TYPE1 (4)
52 401-25992 SEPARATER_C (1)
53 SM-3030552-TN SCREW M3 L=5 (6)
54 401-37904 SCRAPER_SUPPORT_BR_L (1)
55 SL-6040892-TN SCREW M4 L=8 (4)
56 401-37903 SCRAPER_SUPPORT_BR_R (1)
57 401-37916 SCRAPER_BR_L_V2 (1)
58 SL-6040892-TN SCREW M4 L=8 (2)
59 401-37915 SCRAPER_BR_R_V2 (4)
60 401-37914 SC_V5 (1)
61 SL-6040892-TN SCREW M4 L=8 (4)
62 401-37905 CUTTER_COVER_A (1)
63 SL-6040892-TN SCREW M4 L=8 (2)
64 E1572-726-000 TRAY CLAMP SHEET (1)
65 PV-0100060-00 HAND VALVE (1)
66 401-37906 CUTTER_COVER_B (1)
67 SL-6030692-TN SCREW M3 L=6 (6)
68 SL-6042592-TN SCREW (1)
69 SM-3040652-TN SCREW M4 L=6 (4)
70 BT-0600400-EC URETHANE TUBE BLUE 6X4 8.36
71 EA-9500B01-00 CABLE BAND 36
72 EA-9500B02-00 CABLE BAND 8
73 401-25984 UPPER_DC_GUIDE_UNDER_SUPPORT_L 4
74 SL-6040892-TN SCREW M4 L=8 16
75 401-25983 UPPER_DC_GUIDE_UNDER_SUPPORT_R 4
76 400-84697 SPACER_A 8
77 400-84698 SPACER_B 24
78 SL-6062592-TN SCREW M6 L=25 16
- -
67.FIXING BANK COMPONENTS FOR ETF(3)
6
1 5
1 6
1 7
1 8
2 1
1 4
2 9
2 4
2 8
2 6
2 7
2 3
2 2
2 5
2
4
5
1
2
5
3
3 1
3 0
3 1
7
8
1 3
1 0
1 1
9
1 2
2 1
2 1
1 8
1 9
2 1
2 0
2 1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-37917 UPPER_DC_GUIDE_STAND_L 4
2 SL-6061292-TN SCREW M6 L=12 8
3 401-37918 UPPER_DC_GUIDE_STAND_R 4
4 401-37902 UPPER_DC_GUDE_B 4
5 SL-6040892-TN SCREW M4 L=8 16
6 401-38493 UPDC_COVER_ASSY 4
7 401-37913 UPDC_COVER_B (1)
8 401-38507 WSHER_TM-147-1 (2)
9 SL-6030892-TN SCREW M3 L=8 (2)
10 401-37912 UPDC_COVER_SUP_PLATE (1)
11 E4607-717-000 STACKER HANDLE (2)
12 SM-6861052-TP SCREW (4)
13 WP-0280500-SC WASHER (4)
14 401-38497 SHUTTER_ASSY_EO 4
15 401-25954 SHUTTER_ARM_L (1)
16 401-25955 SHUTTER_ARM_R (1)
17 401-37910 UPPER_DC_GUIDE_SHUTTER (1)
18 WP-0430801-SC WASHER M4 (4)
19 401-25952 LOCK_BR_L (1)
20 401-25953 LOCK_BR_R (1)
21 SM-3040652-TN SCREW M4 L=6 (12)
22 401-26034 BOTTOM_DISCHARGE_GUIDE(EO) 4
23 SM-3051052-TN SCREW M5 L=10 16
24 401-26033 BOTTOM_COVER_ANGLE 4
25 SL-6040892-TN SCREW M4 L=8 16
26 SM-3040652-TN SCREW M4 L=6 8
27 401-26035 BOTTOM_DISCHARGE_COVER(EO) 4
28 CM-3002000-05 FINGER INJURY CAUTION LABEL (75) 4
29 SM-3040652-TN SCREW M4 L=6 24
30 401-37911 UPDC_GUIDE 4
31 SM-3040552-TN SCREW M4 L=5 24
