- - 74. SYSTEM DIAG RAM (HEAD LF/LR) 1 2 3 1 4 1 1 8 5 1 2 1 3 1 5 1 6 5 6 1 7 7 2 0 1 9 1 8 9 1 0 2 8 2 9 2 9 3 0 3 1 2 7 2 6 2 4 2 2 2 1 2 3 2 5 3 9 4 0 3 8 3 2 3 3 3 4 3 5 3 6 3 7 4 1 5 4 2 4 3 4 4 5 1 2 4 5 9 1 0 2…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-44535 4AXIS SERVO AMP 12
2 400-48287 Z1-Z2 MOTOR EXTENSION CABLE ASM 9
3 400-44533 SERVO MOTOR 10W 24
4 400-48065 SERVO MOTOR 30W 20
5 400-48288 Z3-Z4 MOTOR EXTENSION CABLE ASM 8
6 400-91910 1394 POWER CABLE ASM 1
7 400-48065 SERVO MOTOR 30W 4
8 400-48289 Z5-Z6 MOTOR EXTENSION CABLE ASM 7
9 400-70445 LNC60 I/F CABLE ASM A 4
10 400-45547 LNC60 4
11 400-44517 1394 ROBOT CABLE ASM 4
12 400-48078 IEEE1394 REPEATER BOARD 4
13 400-48003 IEEE1394 BOARD 4
14 400-48033 1394 CABLE 4.5M 4
- -
74.SYSTEM DIAGRAM (HEAD LF/LR)
1 2
3
1 4
1 1
8
5
1 2 1 3
1 5 1 6
5
6
1 7
7
2 0
1 9
1 8
9 1 0
2 8
2 9
2 9
3 0
3 1
2 7
2 6
2 4
2 2
2 1 2 3 2 5
3 9
4 0
3 8
3 2
3 3
3 4
3 5
3 6
3 7
4 1
5
4 2 4 3
4 4
5
1 2
4 5
9 1 0
2 7
2 5
2 2
2 4
2 3
2 6
2 1
6
4 6
9
1 0
4
4 8
4 7
4 9
7
2 0
1 91 8
2 8
3 1
3 0
2 9
2 9
4 1
3 8
5
4 2
4 3
4 4
3 9
4 0
3 2
3 3
3 4
3 5
3 6
3 7
9 1 0
- -

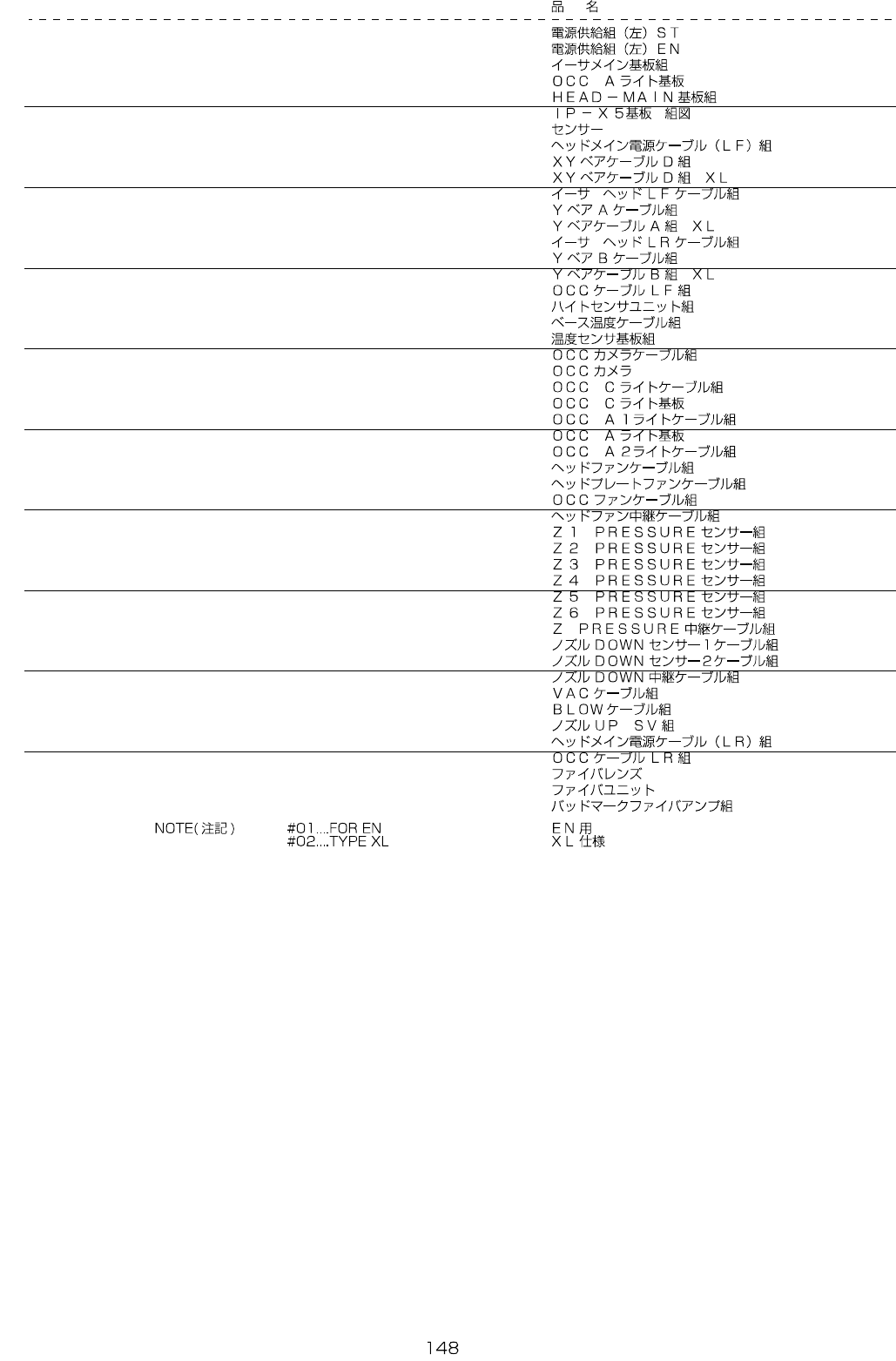

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-98974 POWER_SUPPLY_ASSY_L(ST) 2
2
#01
400-93149 POWER SUPPLY ASSY L(EN) 2
3 401-49647 ETHER-MAIN PCB ASM 1
4 400-47507 OCC A LIGHT PCB 1
5 400-47506 HEAD-MAIN PCB ASM 5
6 400-47528 IP-X5 PCB ASM 2
7 HD-0022500-00 SENSOR 2
8 400-91530 HEAD MAIN PWR CABLE (LF) ASM 1
9 400-47500 XY BEAR CABLES D ASM 4
10
#02
400-89837 XY BEAR CABLES D ASM XL 4
11 400-47946 ETHER HEAD LF CABLE ASM 1
12 400-47810 Y BEAR A CABLES ASM 1
13
#02
400-89838 Y BEAR A CABLES ASM XL 1
14 400-47947 ETHER HEAD LR CABLE ASM 1
15 400-47811 Y BEAR B CABLES ASM 1
16
#02
400-89839 Y BEAR B CABLES ASM XL 1
17 400-47942 OCC CABLE LF ASM 1
18 400-47874 HIGHT SENSOR UNIT ASM 2
19 400-48272 BASE TEMP CABLE ASM 2
20 400-29824 TEMPERATURE SENSOR PCB ASM 2
21 400-47865 OCC CAMERA CABLE ASM 2
22 400-48028 OCC CAMERA 2
23 400-47866 OCC C LIGHT CABLE ASM 2
24 400-47511 OCC C LIGHT PCB 2
25 400-47867 OCC A1 LIGHT CABLE ASM 2
26 400-47507 OCC A LIGHT PCB 2
27 400-47868 OCC A2 LIGHT CABLE ASM 2
28 400-82666 HEAD FAN CABLE ASM 2
29 400-82667 HEAD PLATE FAN CABLE ASM 4
30 400-82668 OCC FAN CABLE ASM 2
31 400-65161 HEAD FAN RELAY CABLE ASM 2
32 400-48279 Z1 PRESSURE SENSOR ASM 2
33 400-48280 Z2 PRESSURE SENSOR ASM 2
34 400-48281 Z3 PRESSURE SENSOR ASM 2
35 400-48282 Z4 PRESSURE SENSOR ASM 2
36 400-48283 Z5 PRESSURE SENSOR ASM 2
37 400-48284 Z6 PRESSURE SENSOR ASM 2
38 400-47877 Z PRESSURE RELAY CABLE ASM 2
39 400-92835 NOZZLE DOWN SENSOR1 ASM 2
40 400-92836 NOZZLE DOWN SENSOR2 ASM 2
41 400-47980 NOZZLE DOWN RELAY CABLE ASM 2
42 400-47869 VAC CABLE ASM 2
43 400-47870 BLOW CABLE ASM 2
44 400-47982 NOZZLE UP SV ASM 2
45 400-91531 HEAD MAIN PWR CABLE (LR) ASM 1
46 400-47943 OCC CABLE LR ASM 1
47 E9638-729-000 FIBER LENS 1
48 HD-0013100-30 FIBER UNIT 1
49 400-47981 BAD MARK FIBER AMP ASM 1
