- - REF.NO NOTE PART NO D E S C R I P T I O N Qty 1 #01 400-94032 XY DRIVER UNIT 2 2 #02 400-94055 XY DRIVER UNIT(EN) 2 3 400-92116 XY DRIVER BRACKET A (1) 4 400-92118 XY DRIVER SUPPORT A (1) 5 #01 SL-4040891-SC SCREW …
- -

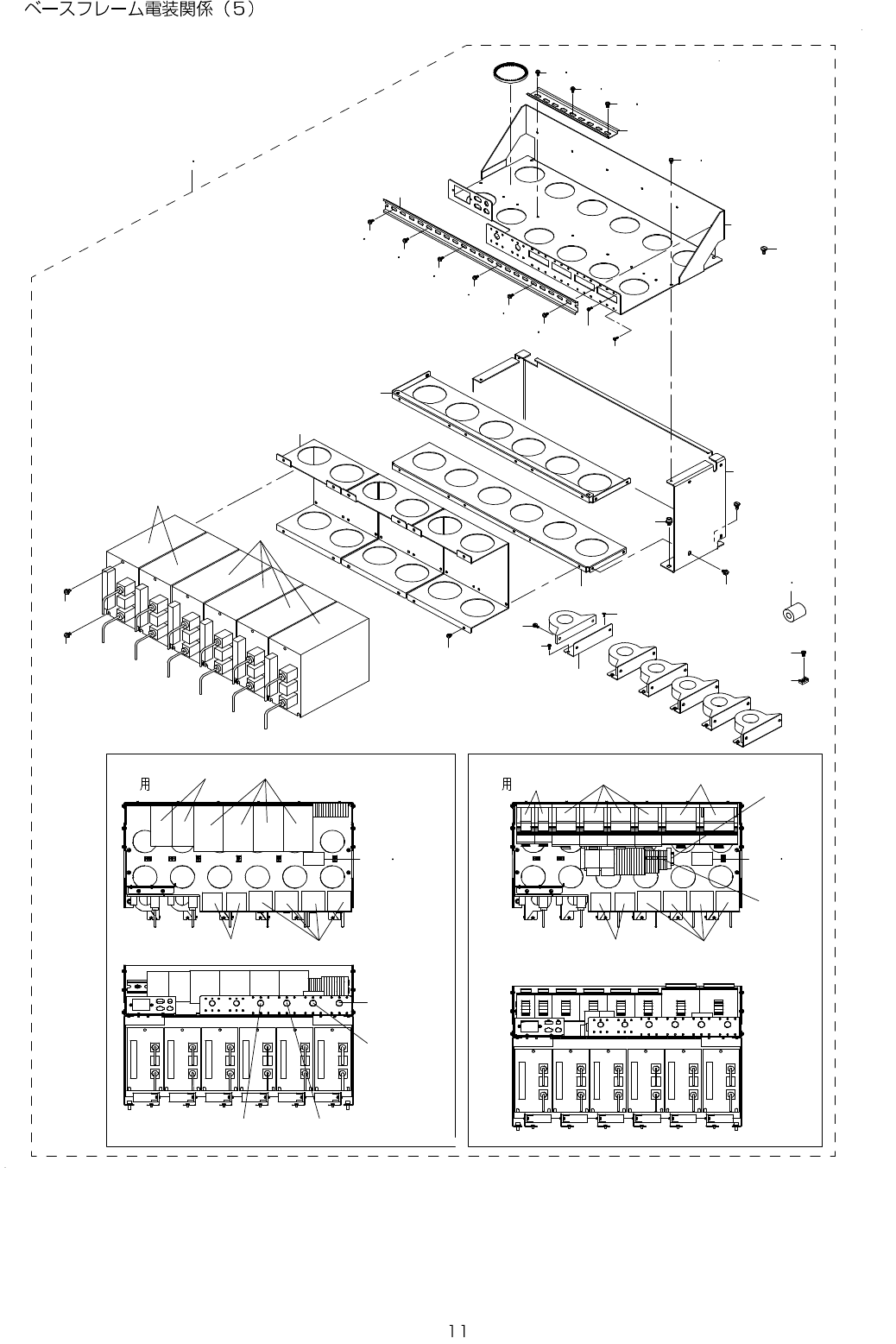

6. BASE FRAME ELECTRIC APPARATUS COMPONENTS (5)
5 3 5
6
6
7
8
9
6
9
99
7
F OR S T
S T
1 2
F OR E N
E N
1 0 1 3
3
1 5
1 4
1 7
5
1 9
1 8
1 4
4
5 3 5
2 7
2 6
2 0
2 1
2 3
2 4
2 2
3 1 3 2
3 3
3 4
1 6
3 0
9
2 8 2 9
2 8 2 9
3 0
9
1 1
1 2
2 5
5 3 5
5 3 5
5 3 5
5 3 5
5 3 5
5 3 5
5 3 5
5 3 5
- -

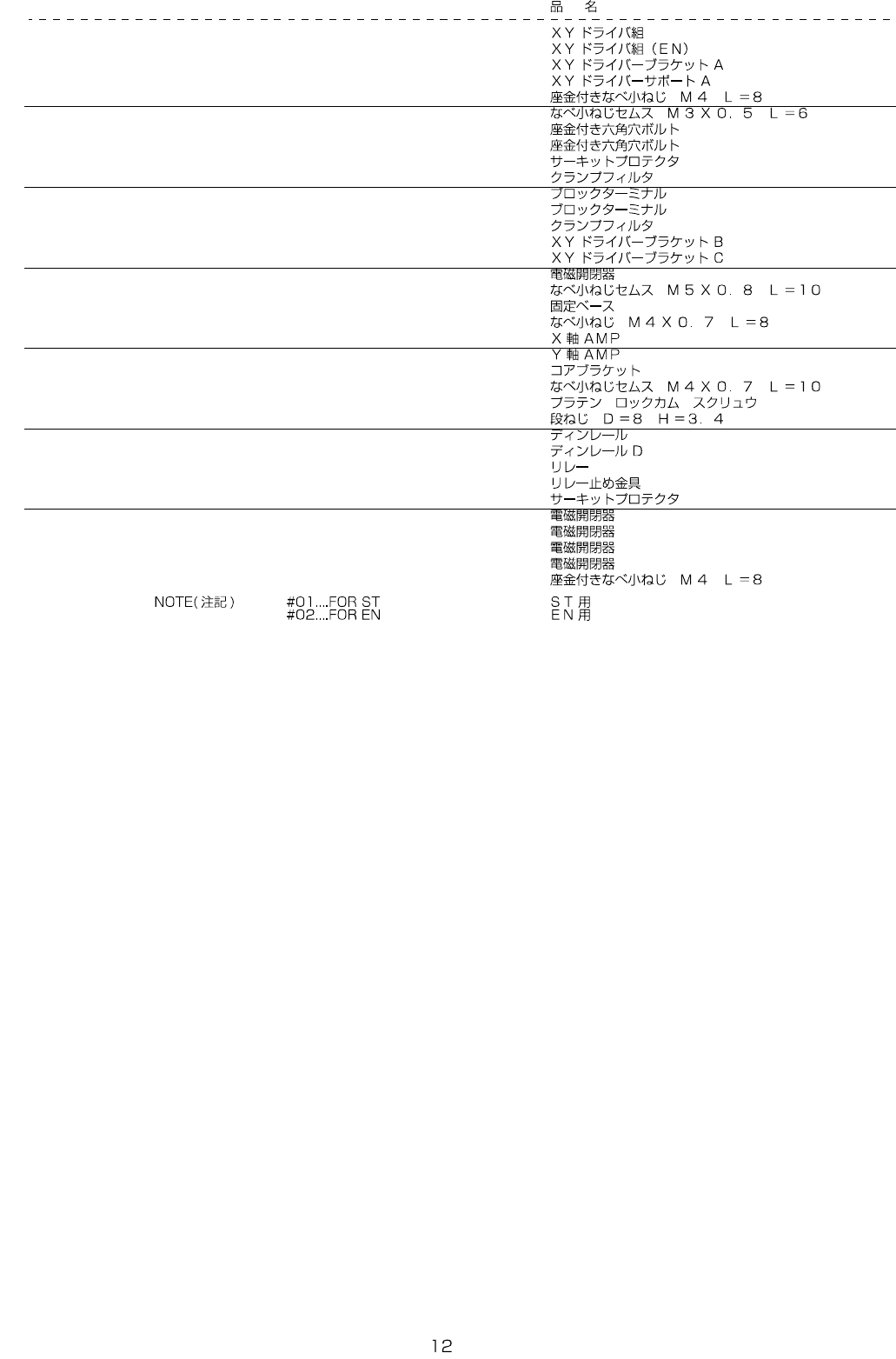

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-94032 XY DRIVER UNIT 2
2
#02
400-94055 XY DRIVER UNIT(EN) 2
3 400-92116 XY DRIVER BRACKET A (1)
4 400-92118 XY DRIVER SUPPORT A (1)
5
#01
SL-4040891-SC SCREW M4 L=8 (19)
6 SL-4030691-SC SCREW M3X6 (44)
7 SL-6051492-TN BOLT (18)
8 SL-6061292-TN SCREW (2)
9 HA-0062700-00 CIRCUIT PROTECTOR (4)
10
#02
HN-0014900-0A CLAMP FILTER (6)
11
#02
HK-0691900-0B BLOCK TERMINAL (2)
12
#02
HK-0696900-00 BLOCK TERMINAL (2)
13
#02
HN-0014900-00 CLAMP FILTER(L) (6)
14 400-92117 XY DRIVER BRACKET B (2)
15 400-92119 XY DRIVER BRACKET C (3)
16
#02
HA-0060300-00 MAGNETIC CONTACTOR (2)
17 SL-4051091-SC SCREW M5X0.8 L=10 (8)
18
#02
HX-0029400-00 FIXED BASE (3)
19
#02
SM-4040801-SC SCREW M4X0.7 L=8 (3)
20 400-48019 SERVO AMP 2KW (2)
21 400-48020 SERVO AMP 3.5KW (4)
22 400-63468 CORE BRACKET (6)
23 SL-4041091-SC SCREW M4 L=10 (12)
24 E1038-871-000 PLATEN LOCK CAM SCREW (6)
25 SD-0800346-TP SHOULDER SCREW (2)
26 400-47092 DIN RAIL (1)
27
#02
400-63485 DIN RAIL D (1)
28 HB-0012800-0C RELAY (1)
29 HB-0005800-10 RELAY (1)
30 HA-0055800-0A CIRCUIT PROTECTOR (2)
31
#01
HA-0055500-00 MAGNETIC CONTACTOR (2)
32
#01
HA-0062100-00 MAGNETIC CONTACTOR (4)
33
#02
HA-0059800-00 MAGNETIC CONTACTOR (2)
34
#02
HA-0060400-00 MAGNETIC CONTACTOR (4)
35
#02
SL-4040891-SC SCREW M4 L=8 (22)
- -

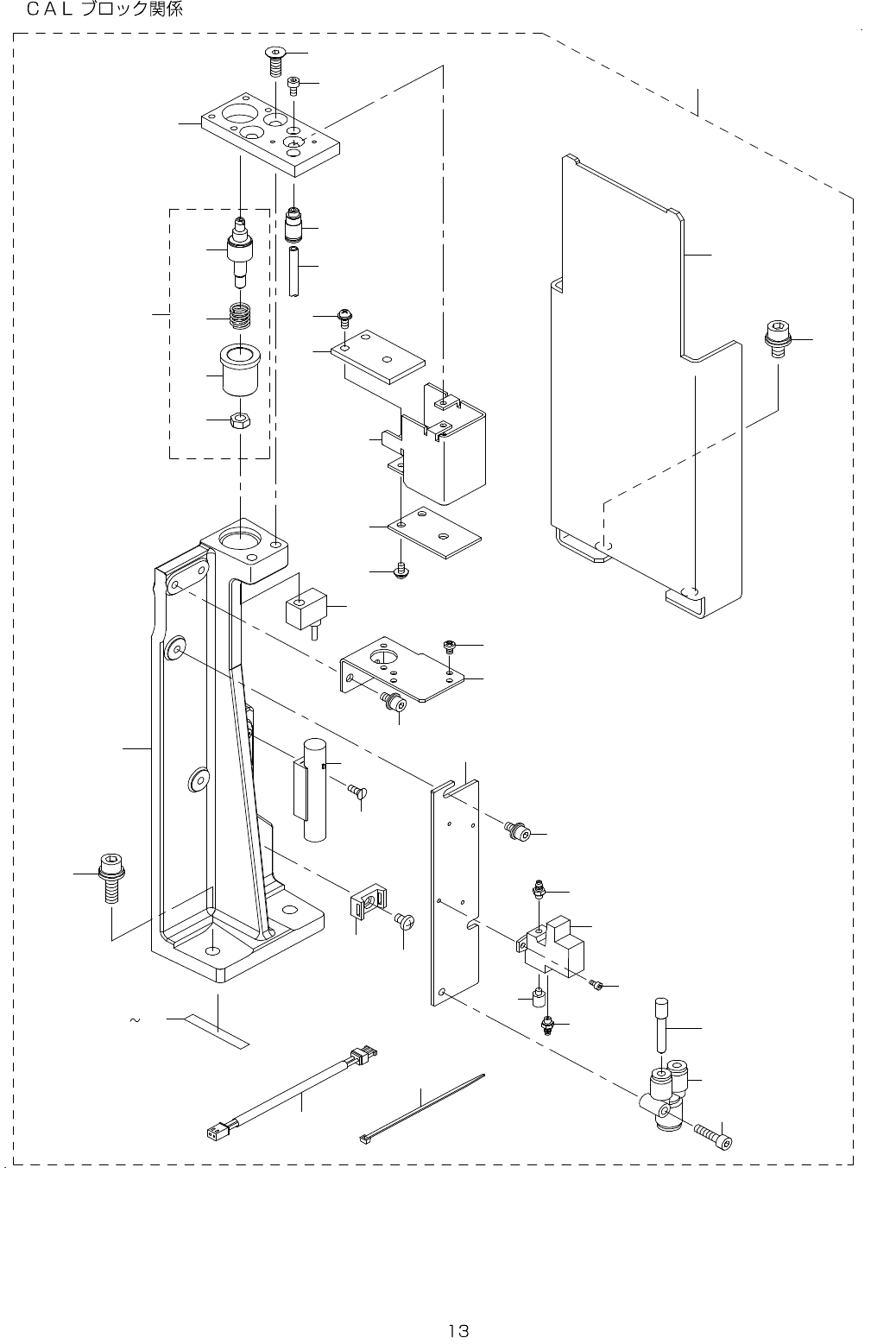

7. CAL BLOCK COMPONENTS
6
1 0
8
1 1
1 6
1 5
1 4
1 3
5
1 2
4
7
9
3 6
2
1 8
2 0
2 2
2 3
2 5
2 4
2 7
2 9
3 0
3 1
2 5
2 6
3 2
3 3
1 7
3
2 1
2 8
1 9
4 0 4 2
3 7
3 9
3 5
3 4
1
3 8
