- - 31. PWB CONV EYOR COMPONEN TS (6) 1 7 4 6 8 7 9 2 2 1 0 1 0 1 1 1 1 2 6 1 2 2 1 3 2 2 2 2 3 2 4 2 5 2 6 2 6 2 7 3 3 1 9 2 7 7 1 1 1 1 2 6 2 5 1 2 1 3 2 8 2 9 1 4 3 0 1 5 1 6 3 1 3 4 3 4 2 5 1 8 3 2 0 1 3 5
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#05
SL-6030692-TN BOLT 2
2 400-46964 STOPPER A ASM 1
3 400-46966 STOPPER PLATE (1)
4 400-46967 STOPPER ARM A (1)
5 400-46972 STOPPER CHIP B (1)
6 400-46969 CYLINDER BRACKET (1)
7 400-46970 ROD SPACER (1)
8 PA-1004514-A0 AIR CYLINDER (1)
9 PC-0105080-00 SPEED CONTROLLER (2)
10 WZ-0640200-KP WAVE WASHER (1)
11 WP-0430801-SC WASHER 4.3X9X0.8 (2)
12 SL-6041092-TN SCREW (2)
13 SL-6040892-TN BOLT (2)
14 SM-6030602-TN HEX SCREW M3 X 6 (4)
15 SM-6030502-TN SCREW M3 L=5 (4)
16 400-46973 LINEAR WAY-S (1)
17 400-46965 STOPPER B ASM 1
18 400-46966 STOPPER PLATE (1)
19 400-46971 STOPPER ARM B (1)
20 400-46972 STOPPER CHIP B (1)
21 400-46969 CYLINDER BRACKET (1)
22 400-46970 ROD SPACER (1)
23 PA-1004514-A0 AIR CYLINDER (1)
24 PC-0105080-00 SPEED CONTROLLER (2)
25 WZ-0640200-KP WAVE WASHER (1)
26 WP-0430801-SC WASHER 4.3X9X0.8 (2)
27 SL-6041092-TN SCREW (2)
28 SL-6040892-TN BOLT (2)
29 SM-6030602-TN HEX SCREW M3 X 6 (4)
30 SM-6030502-TN SCREW M3 L=5 (4)
31 400-46973 LINEAR WAY-S (1)
32 WP-0430801-SC WASHER 4.3X9X0.8 2
33 SL-6041492-TN SCREW 2
34 PJ-3080400-06 UNION 2
35 BT-0400251-EA TUBE HOSE, BLUE 5.6
36
#05
400-70250 STOPPER SENSOR BRACKET 1
37
#05
400-70243 STOPPER LANE SUPPORT A 1
38
#05
SL-6042092-TN SCREW M4 L=20 2
39
#05
400-70244 STOPPER LANE SUPPORT B 1
40
#05
SL-6040842-TN SCREW M4 L=8 2
41
#05
SL-6030692-TN BOLT 2
42
#05
400-70242 STOPPER LANE 1
43
#05
SL-6041092-TN SCREW 2
44
#06
400-70241 STOPPER SLIDE PLATE 1
45
#06
SL-4041091-SC SCREW M4 L=10 2
46
#06
E2284-725-000 HOLD PLATE B 1
47
#06
SL-6041492-TN SCREW 2
48
#06
400-70245 STOPPER FRAME A 1
49 400-65184 CONV STOPPER DETECT SNS ASM 1
50
#06
400-70246 STOPPER FRAME B 2
51
#06
SL-6041292-TN SCREW 1
52
#06
400-70247 STOPPER LANE SUPPORT C 1
53
#06
SL-6040892-TN BOLT 2
54
#05
400-70248 STOPPER DOG 1
55
#05
SL-6030692-TN BOLT 2
56
#05
400-70249 STOPPER DOG SPACER 1
57 SM-4860801-SC SCREW M2.6 L=8 1
58
#02
400-46894 STOPPER 180 ASM 2
59 400-70495 STOPPER LANE A 180 (1)
60 SL-6051292-TN BOLT (2)
61 400-70496 STOPPER LANE B 180 (1)
62 SL-6051292-TN BOLT (2)
63 400-70497 STOPPER LANE STUD A 180 (2)
64 SL-6051292-TN BOLT (2)
65 400-70498 STOPPER LANE STUD B 180 (1)
66 SL-6051292-TN BOLT (1)
67 400-70499 STOPPER LANE STUD C 180 (1)
68 SL-6051292-TN BOLT (1)
69 400-70500 STOPPER SUPPORT PLATE A 180 (1)
70 SL-6041092-TN SCREW (2)
71 400-70501 STOPPER SUPPORT PLATE B 180 (1)
72 SL-6042092-TN SCREW M4 L=20 (2)
73 400-70502 STOPPER SUPPORT SPACER 180 (2)
74 PJ-3030400-02 STRAIGHT UNION (2)
75 BT-0400251-EA TUBE HOSE, BLUE (0.6)
76 HX-0034400-00 HARNESS PARTS (6)
77 SM-4040601-SC SCREW M4X0.7 L=6 (6)
78 EA-9500B01-00 CABLE BAND (16)
79
#01
BT-0400251-EA TUBE HOSE, BLUE 6.2
80
#04
400-92036 STOPPER LANE A 280 XL 1
81
#01
SL-6061292-TN SCREW 1
82
#03
400-92035 STOPPER LANE B 280 XL 1
83
#01
SL-6041042-TN BOLT 2
84
#03
400-92034 STOPPER SUPPORT PLATE B 280 XL 1
85
#03
SL-6041092-TN SCREW 3
86
#01
SL-6041292-TN SCREW 1
- -
31.PWB CONVEYOR COMPONENTS (6)
1 7
4
6
8
7
9
2 2
1 0
1 0
1 1
1 1
2 6
1 2
2 1
3 2
2 2
2 3
2 4
2 5
2 6
2 6
2 7
3 3
1 9
2 7
7
1 1
1 1
2 6
2 5
1 2
1 3
2 8
2 9
1 4
3 0
1 5
1 6
3 1
3 4
3 4
2
5
1 8
3
2 0
1
3 5
- -

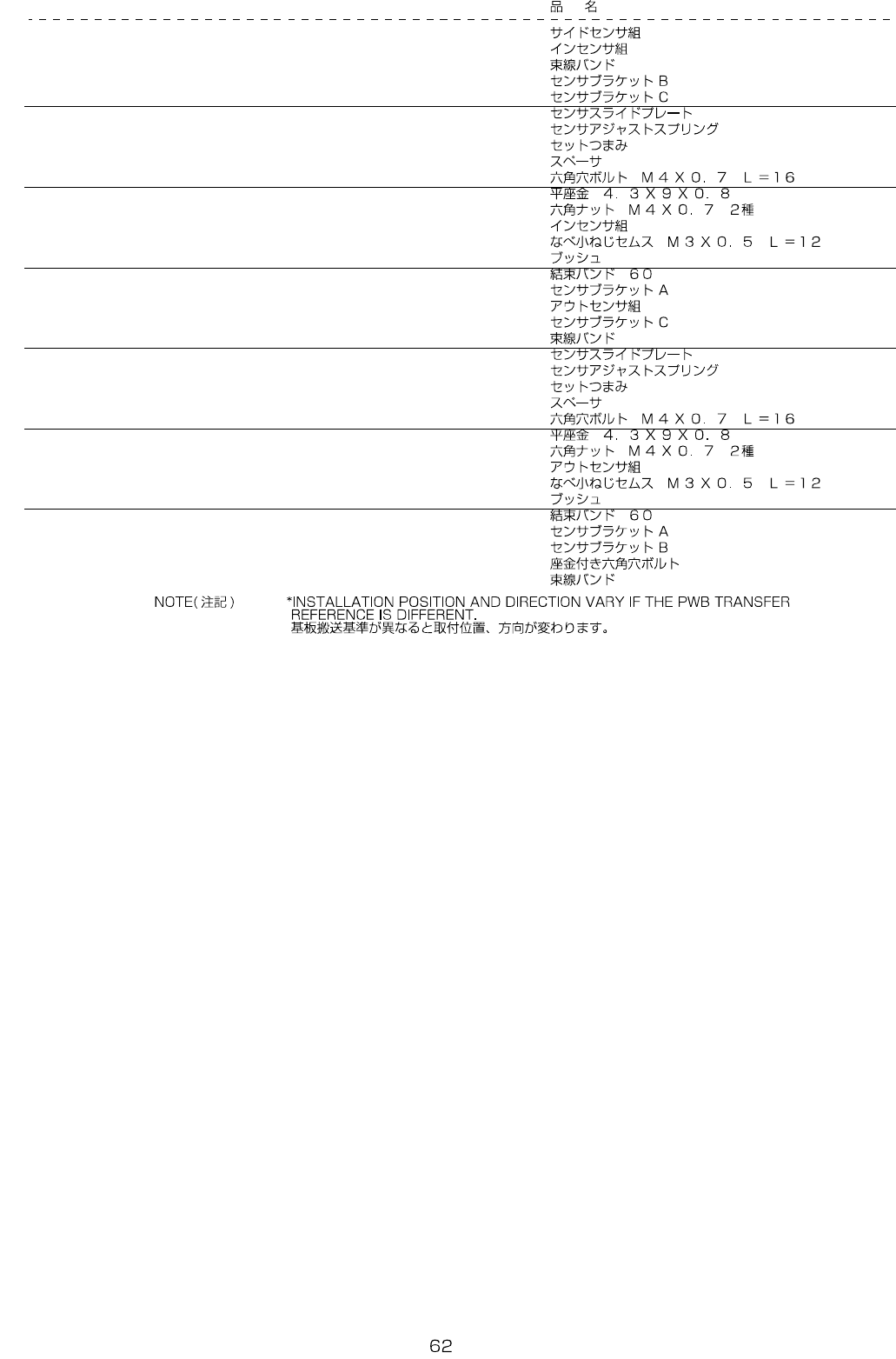

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00907 SIDE SENSOR ASM 1
2 400-00908 IN SENSOR ASM. (1)
3 HX-0044000-00 CABLE BAND (1)
4 400-01078 SENSOR BRAKET B (1)
5 400-01079 SENSOR BRAKET C (1)
6 400-01076 SENSOR SLIDE PLATE (1)
7 400-00912 SENSOR ADJUST SPRING (3)
8 G6518-880-000 SET PICK-UP (1)
9 400-58815 SPACER (1)
10 SM-6041602-TN SCREW M4 X 16 (3)
11 WP-0430801-SC WASHER 4.3X9X0.8 (6)
12 NM-6040002-SE NUT M4X0.7 (3)
13 400-02208 IN SENS ASM (1)
14 SL-4031291-SC SCREW M3X12 (1)
15 HX-0036700-0A BUSH (0.16)
16 EA-9500B00-00 CLIP CV-70S (5)
17 400-01077 SENSOR BRAKET A (1)
18 400-00914 OUT SENSOR ASM. (1)
19 400-01079 SENSOR BRAKET C (1)
20 HX-0044000-00 CABLE BAND (1)
21 400-01076 SENSOR SLIDE PLATE (1)
22 400-00912 SENSOR ADJUST SPRING (3)
23 G6518-880-000 SET PICK-UP (1)
24 400-58815 SPACER (1)
25 SM-6041602-TN SCREW M4 X 16 (3)
26 WP-0430801-SC WASHER 4.3X9X0.8 (6)
27 NM-6040002-SE NUT M4X0.7 (3)
28 400-02210 OUT SENS ASM (1)
29 SL-4031291-SC SCREW M3X12 (1)
30 HX-0036700-0A BUSH (0.16)
31 EA-9500B00-00 CLIP CV-70S (5)
32 400-01077 SENSOR BRAKET A (1)
33 400-01078 SENSOR BRAKET B (1)
34 SL-6031092-TN SCREW (4)
35 HX-0044000-00 CABLE BAND (4)
