FX-3-Rev13(k-) - 第67页
- - REF.NO NOTE PART NO D E S C R I P T I O N Qty 1 400-00907 SIDE SENSOR ASM 1 2 400-00908 IN SENSOR ASM. (1) 3 HX-0044000-00 CABLE BAND (1) 4 400-01078 SENSOR BRAKET B (1) 5 400-01079 SENSOR BRAKET C (1) 6 400-01076 …
- -
31.PWB CONVEYOR COMPONENTS (6)
1 7
4
6
8
7
9
2 2
1 0
1 0
1 1
1 1
2 6
1 2
2 1
3 2
2 2
2 3
2 4
2 5
2 6
2 6
2 7
3 3
1 9
2 7
7
1 1
1 1
2 6
2 5
1 2
1 3
2 8
2 9
1 4
3 0
1 5
1 6
3 1
3 4
3 4
2
5
1 8
3
2 0
1
3 5
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00907 SIDE SENSOR ASM 1
2 400-00908 IN SENSOR ASM. (1)
3 HX-0044000-00 CABLE BAND (1)
4 400-01078 SENSOR BRAKET B (1)
5 400-01079 SENSOR BRAKET C (1)
6 400-01076 SENSOR SLIDE PLATE (1)
7 400-00912 SENSOR ADJUST SPRING (3)
8 G6518-880-000 SET PICK-UP (1)
9 400-58815 SPACER (1)
10 SM-6041602-TN SCREW M4 X 16 (3)
11 WP-0430801-SC WASHER 4.3X9X0.8 (6)
12 NM-6040002-SE NUT M4X0.7 (3)
13 400-02208 IN SENS ASM (1)
14 SL-4031291-SC SCREW M3X12 (1)
15 HX-0036700-0A BUSH (0.16)
16 EA-9500B00-00 CLIP CV-70S (5)
17 400-01077 SENSOR BRAKET A (1)
18 400-00914 OUT SENSOR ASM. (1)
19 400-01079 SENSOR BRAKET C (1)
20 HX-0044000-00 CABLE BAND (1)
21 400-01076 SENSOR SLIDE PLATE (1)
22 400-00912 SENSOR ADJUST SPRING (3)
23 G6518-880-000 SET PICK-UP (1)
24 400-58815 SPACER (1)
25 SM-6041602-TN SCREW M4 X 16 (3)
26 WP-0430801-SC WASHER 4.3X9X0.8 (6)
27 NM-6040002-SE NUT M4X0.7 (3)
28 400-02210 OUT SENS ASM (1)
29 SL-4031291-SC SCREW M3X12 (1)
30 HX-0036700-0A BUSH (0.16)
31 EA-9500B00-00 CLIP CV-70S (5)
32 400-01077 SENSOR BRAKET A (1)
33 400-01078 SENSOR BRAKET B (1)
34 SL-6031092-TN SCREW (4)
35 HX-0044000-00 CABLE BAND (4)
- -

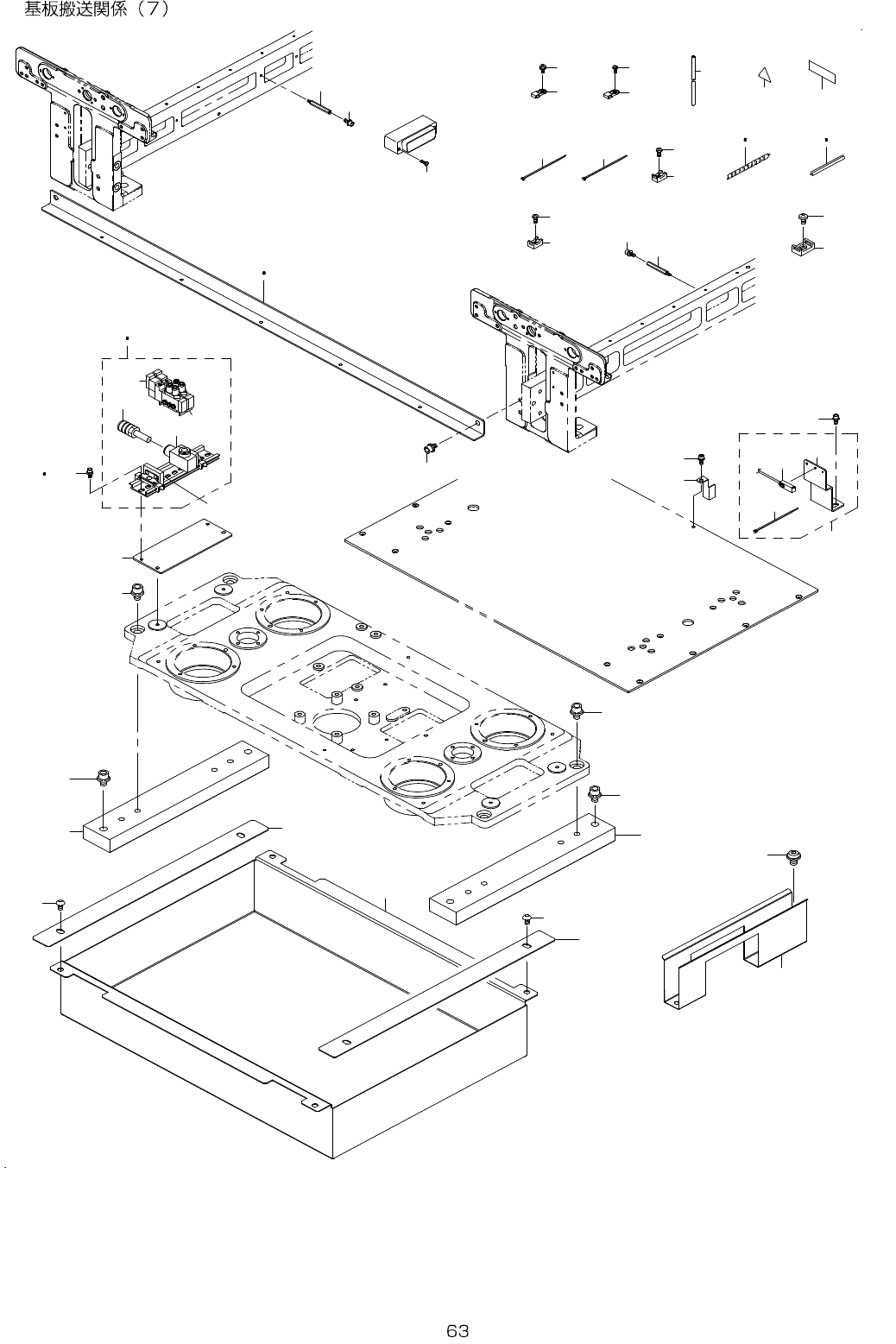

32.PWB CONVEYOR COMPONENTS (7)
8
9
1 2
1 2
4 3 4 4
5
1 4
1 3
4
4
3 8
1 1
1 6
1 7
1 8
1 5
1 9
2 0
2 1 2 2
2 3
2 4
2 5 4 1
4 2
2 6 3 0 2 7 3 1
3 2
3 3
3 4
3 4
3 5
3 7
3 7
3 6
3 6
8
1 0
2 8
2 9
3 3
3 5
4 0
3 9
4 5
4 6
4 8
4 7
6
7
3
7
2 8
