FX-3-Rev13(k-) - 第78页
- - 37. HMS CO MPONENTS 5 2 4 2 1 6 3
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2076-721-000 BU HAND KNOB 2
2 400-46985 GUIDE BLOCK BOLT 1
3 400-46986 GUIDE BLOCK SUPPORT 1
4 SM-6030802-TN BOLT 2
5 SM-6031002-TN BOLT M3 L=10 8
6
#01
E2148-721-000 SENSOR BRACKET R 1
7
#02
E2147-721-000 SENSOR BRACKET L 1
8 400-46978 GUIDE BLOCK A ASM 1
9 400-46981 GUIDE BLOCK B (1)
10 SB-7040001-00 BEARING (2)
11 E2122-715-000 GB SLEEVE (1)
12 400-46979 GUIDE BLOCK B ASM 1
13 400-46980 GUIDE BLOCK A (1)
14 SB-7040001-00 BEARING (2)
15 E2122-715-000 GB SLEEVE (1)
16 400-15791 DAMPER PLATE L 1
17 400-15792 DAMPER PLATE R 1
18 400-15793 LOCK SPRING 2
19 400-00895 DAMPER BLOCK R 1
20 SL-6030892-TN SCREW 4
21 400-00891 STOPER SLIDE LEVER L 1
22 400-00897 STOPER SLIDE LEVER R 1
23 400-00892 DAMPER BLOCK L 1
24 400-46987 LINEAR WAY-P 2
25 400-00978 DAMPER LOCK LINK 2
26 400-00950 DAMPER SPRING 2
27 RE-0300000-K0 E-RING 3 6
28 EA-9500B00-00 CLIP CV-70S 1
29 HX-0031400-00 SPIRAL TABE 0.3
30 400-01081 CENTERING PIN 4.0 2
31 400-00877 GUIDE BLOCK CLAMP 1
32 SM-6041602-TN SCREW M4 X 16 1
33 400-02122 T.PIN SENS ASM 1
34 SL-6030692-TN BOLT 1
35 SL-4031091-SC SCREW M3 X 10 2
36 RE-0300000-K0 E-RING 3 2
37 400-00896 DAMPER LOCK PIN 2
38 400-46984 GUIDE BLOCK CLAMP A ASM 1
39 SM-6030802-TN BOLT 28
- -
37.HMS COMPONENTS
5
2
4
2
1
6
3
- -

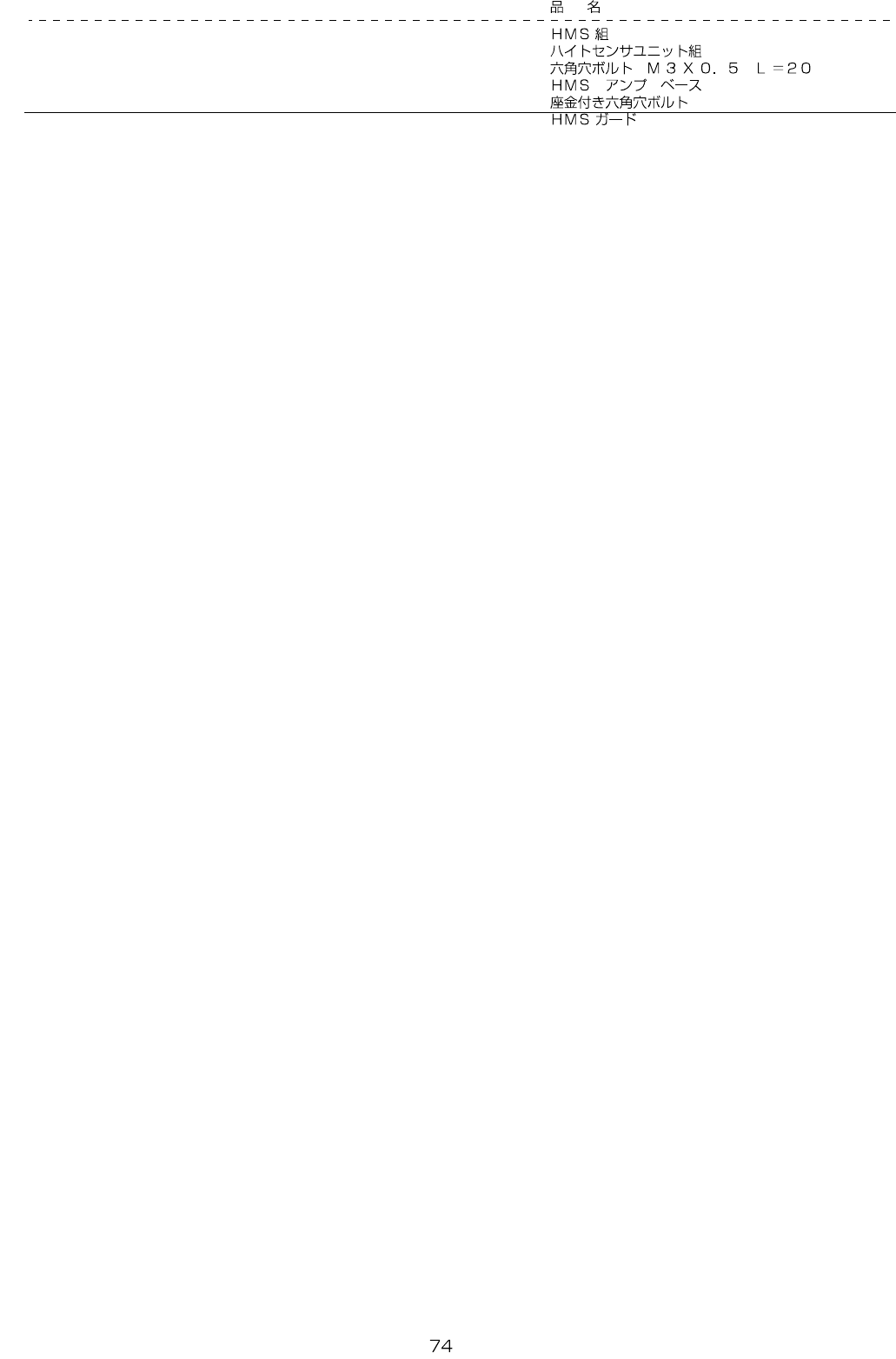

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-46817 HMS ASSY 4
2 400-47874 HIGHT SENSOR UNIT ASM (1)
3 SM-6032002-TN SCREW M3X0.5 L=20 (2)
4 L245E-021-000 HMS AMP BASE (1)
5 SL-6041092-TN SCREW (2)
6 400-83697 HMS GUARD (1)
