- - 2. BASE FRA ME ELECTRIC AP PARATUS COMPONENTS ( 1) 6 1 6 2 1 9 9 2 9 3 0 3 1 3 1 6 5 7 5 7 6 5 7 1 3 1 6 3 7 2 5 5 1 5 1 3 5 3 4 3 2 3 6 4 2 4 3 3 9 2 7 4 4 3 1 5 7 A A 3 7 3 2 7 2 6 2 4 1 8 4 0 6 3 2 0 4 8 4 7 4 5…
- -

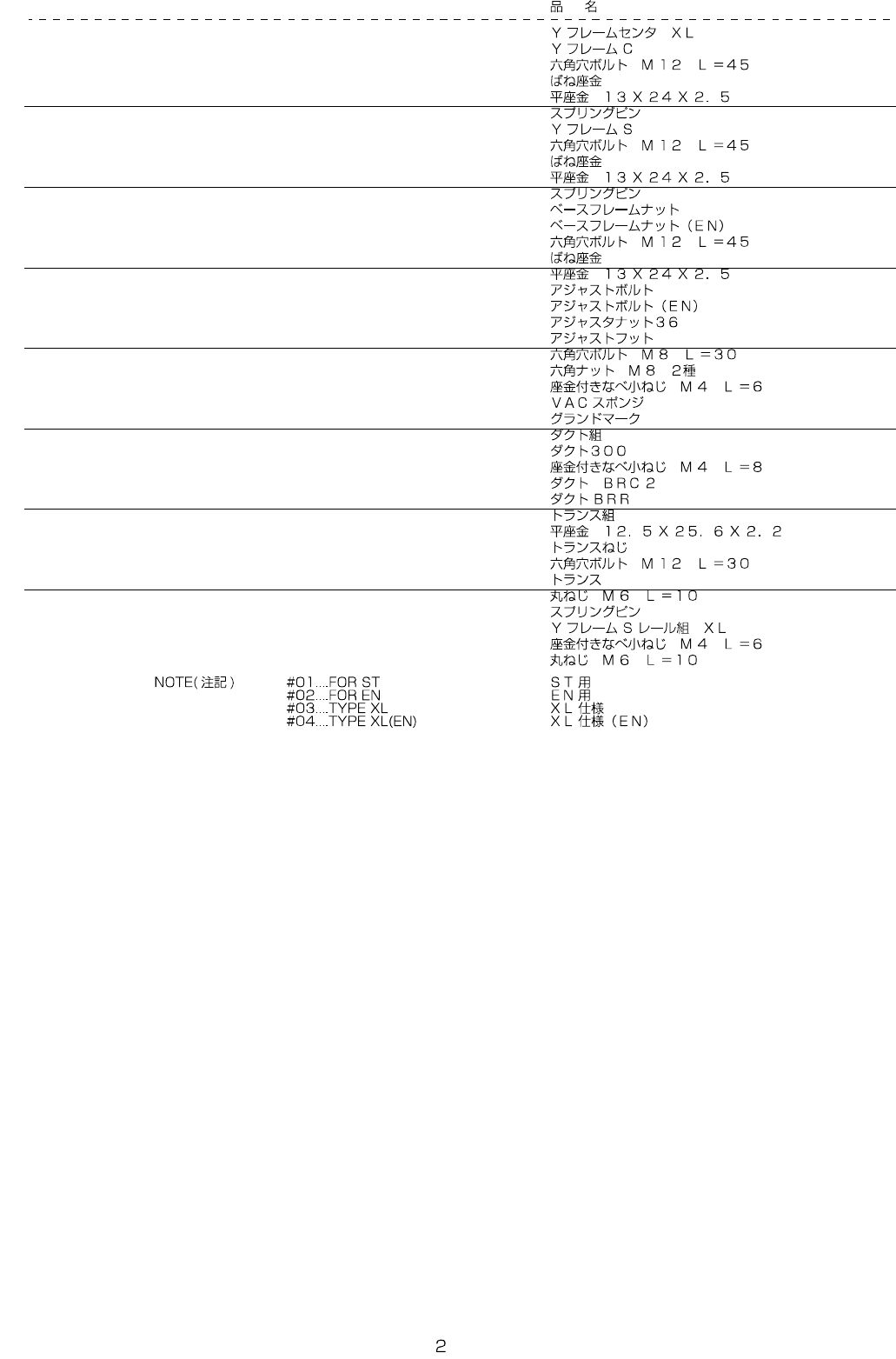

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#03
400-92176 Y FRAME C XL 1
2 400-46706 Y FRAME C 1
3 SM-6124502-TN BOLT M12 L=45 16
4 WS-1220002-KN SPRING WASHER 16
5 WP-1302501-SC WASHER 13X24X2.5 16
6 PS-0500142-KP SPRING PIN 4
7 400-46707 Y FRAME S 2
8 SM-6124502-TN BOLT M12 L=45 16
9 WS-1220002-KN SPRING WASHER 16
10 WP-1302501-SC WASHER 13X24X2.5 16
11 PS-0500142-KP SPRING PIN 4
12
#01
400-00519 BASEFRAME NUT 6
13
#02
400-00535 BASEFRAME NUT(EN) 6
14 SM-6124502-TN BOLT M12 L=45 18
15 WS-1220002-KN SPRING WASHER 18
16 WP-1302501-SC WASHER 13X24X2.5 18
17
#01
400-00403 ADJUST BOLT 6
18
#02
400-00404 ADJUST BOLT(EN) 6
19 E1044-729-000-A ADJUSTER NUT 36 6
20 E1035-729-000 ADJUSTER FOOT 6
21 SM-6083002-TN SCREW M8 L=30 36
22 NM-6080002-SC NUT M8 18
23 SL-4040691-SC SCREW M4 L=6 104
24 E4595-855-000 VAC SPONGE 24
25 100-04109 GROUND MARK 4
26 400-94027 DUCT ASSY 1
27 400-92136 DUCT 300 (2)
28 SL-4040891-SC SCREW M4 L=8 (10)
29 400-00526 DUCT BRC 2 (2)
30 400-00524 DUCT BRR (1)
31 400-94028 TRANSFORMAR ASSY 1
32 WP-1252210-SC WASHER 12.5X25.6X2.2 (2)
33 401-12792 TRANS_SCREW (2)
34 SM-6123002-TN SCREW M12 L=30 (2)
35 400-48085 TRANSFORMER (1)
36
#01
SM-3061052-TN SCREW M6 L=10 52
37
#03
PS-0500142-KP SPRING PIN 8
38
#03
400-93157 Y FRAME S RAIL ASM. XL 2
39
#04
SL-4040691-SC SCREW M4 L=6 100
40
#03
SM-3061052-TN SCREW M6 L=10 56
- -

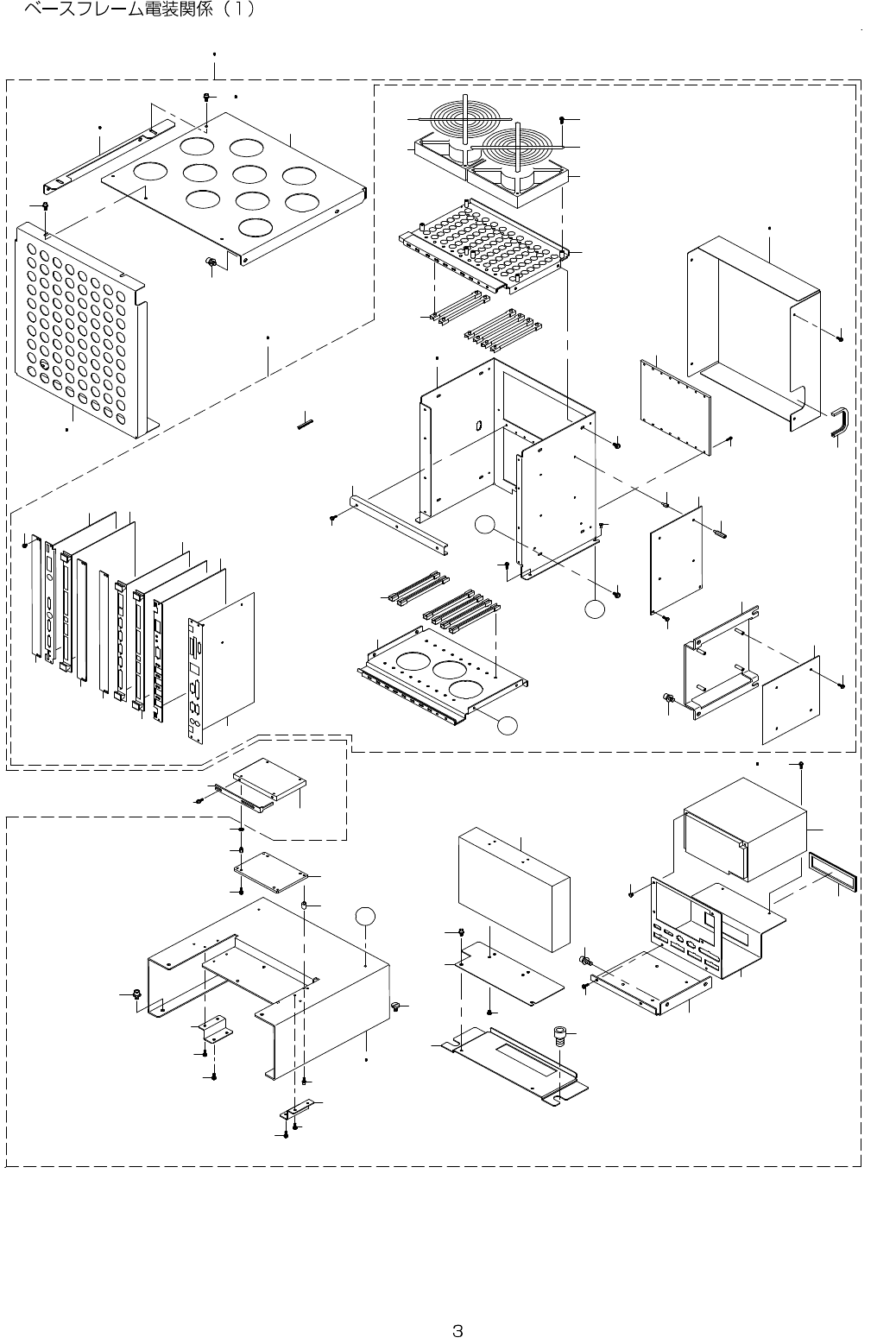

2. BASE FRAME ELECTRIC APPARATUS COMPONENTS (1)
6 1 6 2
1 9
9
2 9
3 0
3 1
3 1
6
5 7
5 7
6
5 7
1 3
1 6
3 7
2 5
5 1
5 1
3 5
3 4
3 2
3 6
4 2 4 3
3 9
2 7 4 4
3 1
5 7
A
A
3 7
3 2
7
2 6
2 4
1 8
4 0
6 3
2 0
4 8
4 7
4 5
4 6
5 3
5 3
5 3
B
B
2 2 2 3
1 2
3 1
4 7
8 5 6
9 5 9
6 6 6 7
1 4
3 3
3 8
4 9
5 0
5 2
5 2
5 4
6 9
7 1
2 8
7 0
5
1 1
1 2
1 7 5 7
1 0
6 4
1 9
4
5 8
1 2
3
6 5
2 1
6 0
5 5
4 1
6 8
1 5
- -

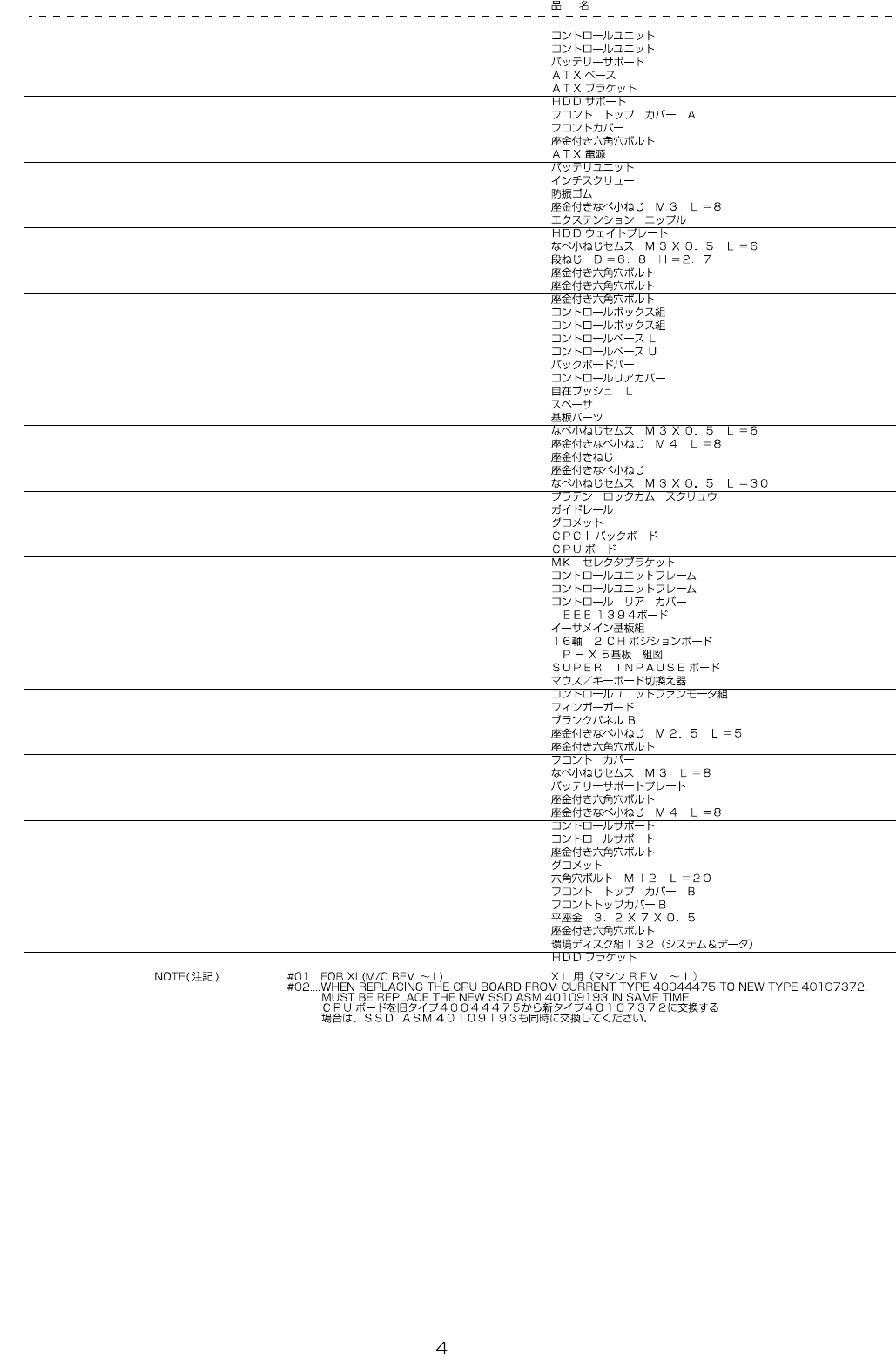

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-94033 CONTROL UNIT ASSY 1
2 400-94065 CONTROL UNIT ASSY 1
3 400-92121 BATTERY SUPPORT (1)
4 400-92120 ATX BASE (1)
5 400-63463 ATX BRACKET (1)
6
#01
400-63464 HDD SUPPORT (2)
7 400-72706 FRONT TOP COVER A (1)
8
#01
400-63476 FRONT COVER (1)
9 SL-6040892-TN BOLT (6)
10 400-48006 ATX PSU (1)
11 400-48007 BATTERY UNIT (1)
12 400-48047 INCH SCREW (8)
13 E1612-721-000 VIBROISOLATING RUBBER (4)
14 SL-4030881-SC SCREW M3 L=8 (4)
15 E3032-700-000 EXTENSION NIPPLE (4)
16 400-11588 HDD WEIGHT PLATE (1)
17 SL-4030691-SC SCREW M3X6 (2)
18 SD-0680276-TP SHOULDER SCREW D=6.8 H=2.7 (2)
19 SL-6061292-TN SCREW (4)
20 SL-6061092-TN SCREW (4)
21 SL-6041092-TN SCREW (2)
22
#01
400-47083 CTRL BOX ASSY (1)
23 400-94075 CTRL BOX ASSY (1)
24 400-47085 CTRL BASE L (1)
25 400-47086 CTRL BASE U (1)
26 400-47087 BACK BOAD BAR (1)
27
#01
400-47088 CTRL REAR COVER (1)
28 EA-9002B11-00 BUSHING L (0.23)
29 HX-0035400-0N SPACER (6)
30
#02
HX-0035400-00 STUD (4)
31 SL-4030691-SC SCREW M3X6 (20)
32 SL-4040891-SC SCREW M4 L=8 (8)
33 SL-4851091-SC SCREW (16)
34 SL-4031491-SC SCREW M3X14 (3)
35 SL-4033091-SC SCREW M3 L=30 (4)
36 E1038-871-000 PLATEN LOCK CAM SCREW (2)
37 HX-0002600-00 GUIDE RAIL (12)
38 HX-0066900-00 GROMMET (0.2)
39 400-48002 CPCI BACK BOARD (1)
40
#02
401-07372 CPU BOARD (1)
41 400-93490 MK SELECTOR BRACKET (1)
42
#01
400-47084 CTRL UNIT FRAME (1)
43 400-93491 CTRL UNIT FRAME (1)
44 400-93494 CTRL REAR COVER (1)
45 400-48003 IEEE1394 BOARD (1)
46 401-49647 ETHER-MAIN PCB ASM (1)
47 400-44540 16AXIS 2CH SERVO CONTROLLER (2)
48 400-47528 IP-X5 PCB ASM (1)
49 400-48082 SUPER INPAUSE BOARD (1)
50
#01
400-03281 MOUSE/KEYBOARD SELECTOR (1)
51 400-47702 CTRL UNIT FAN ASM (1)
52 HM-0003300-20 FINGER GUARD (2)
53 E1649-729-000 BRANK PANEL B (3)
54 SL-4850591-SC SCREW M2.5 L=5 (6)
55 SL-6061292-TN SCREW (2)
56 400-93493 FRONT COVER (1)
57
#01
SL-4030891-SC SCREW M3X8 (10)
58 400-92122 BATTERY SUPPORT PLATE (1)
59
#01
SL-6040892-TN BOLT (8)
60 SL-4040891-SC SCREW M4 L=8 (2)
61
#01
400-47081 CTRL SUPPORT (1)
62 400-93492 CTRL SUPPORT (1)
63 SL-6030892-TN SCREW (4)
64 HX-0067100-00 GROMMET (0.43)
65 SM-6122002-TN SCREW M12 L=20 (2)
66
#01
400-72707 FRONT TOP COVER B (1)
67 400-93495 FRONT TOP COVER B (1)
68 WP-0320501-SC WASHER M3 (4)
69 SL-6030692-TN BOLT 2
70
#02
401-09193 ENVIRONMENT SYSTEM 132 ASM 1
71 400-57003 HDD BRACKET 1
