FX-3-Rev13(k-) - 第81页
- - REF.NO NOTE PART NO D E S C R I P T I O N Qty 1 400-63877 FEEDER BANK FULL ASM 1 2 400-47244 LOCK SHAFT(HSM) (1) 3 SM-6040802-TN SCRE W (13) 4 400-47245 FIXING PLATE(HSM) (1) 5 SL-6041692-TN SCREW (8) 6 400-47246 F…
- -

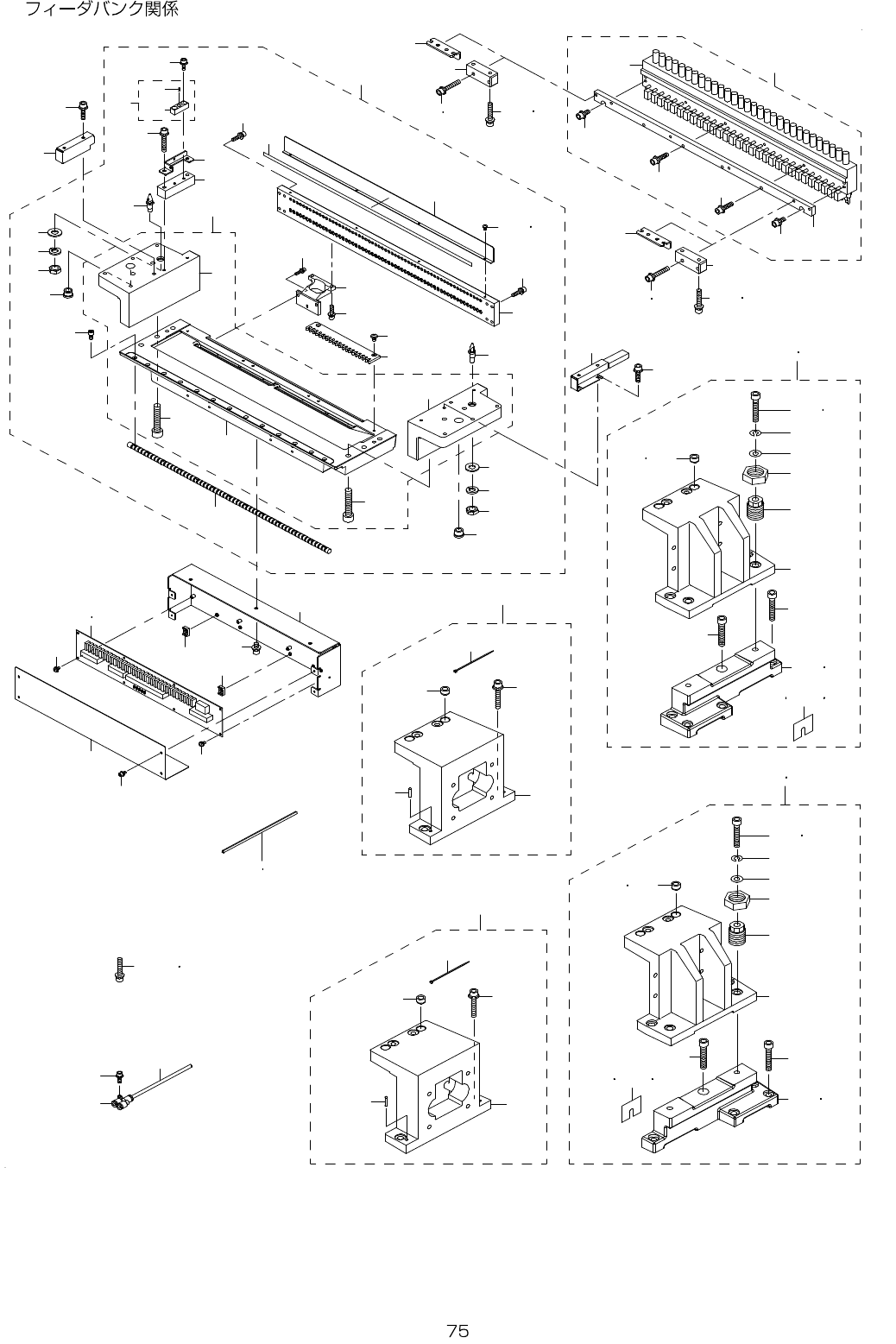

38.FEEDER BANK COMPONENTS
3
1 0
1 0
4
5
2 4
2 3
2 5
2 6
2 7
2 7
2 6
2 5
1 1
1 1
1 9
1 8
2 0
2 2
2 1
5
3 0 3 1
2 9
9
2
7
8
6
3 6
3 8
3 8
3 7
3 5
3 4
4 5
4 4
4 3
4 7
3 9
3 7
4 7
4 6
1
3 9
4 2
1 0 4
3 3
4 8
2 8
5 0
5 2
4 9
5 1
4 6
7 5
7 6
5 8
5 9
6 3
6 0 6 1
6 2
8 0
7 7 7 8
7 9
8 7
8 3 8 4
5 5
5 6 5 7
7 3 7 4
6 8
8 5
6 9
8 6
8 1 8 2 8 8
6 4 6 5 7 0
5 3 5 4
6 6 6 7
7 1 7 2
9 1
9 7
9 3
9 5
9 6
4 0 8 9
4 0 8 9
1 0 3 1 0 7
4 0 8 9
4 0 8 9
1 0 8
1 0 8
4 1 9 0
9 4
9 2
9 9
1 0 1
1 0 2
1 0 0
9 8
1 0 5 1 0 6
1 5
1 3
1 2
1 6
1 4
1 7
3 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-63877 FEEDER BANK FULL ASM 1
2 400-47244 LOCK SHAFT(HSM) (1)
3 SM-6040802-TN SCREW (13)
4 400-47245 FIXING PLATE(HSM) (1)
5 SL-6041692-TN SCREW (8)
6 400-47246 FEEDER BANK(HSM) (1)
7 400-47286 FEEDER BANK BASE (1)
8 400-47287 FEEDER BANK R (1)
9 400-47288 FEEDER BANK L (1)
10 SM-6084002-TN SCREW M8 L=40 (6)
11 E2602-721-000 BANK LOCATE BUSH A (2)
12 400-93514 MARK ADAPTER L (1)
13 SL-6053092-TN SCREW (2)
14 E2505-729-0A0 MARK ASM. (1)
15 E2601-725-000 MARK (1)
16 E2505-729-000 MARK BASE (1)
17 SL-6041292-TN SCREW (2)
18 E2513-729-000-A FIXING PLATE B (3)
19 SM-4040655-SN SCREW M4X0.7 L=6 (6)
20 E2608-721-000 PLATE SUPPORT (4)
21 SL-6031292-TN BOLT (12)
22 SL-6041692-TN SCREW (8)
23 E2609-721-000 BANK LOCATE PIN A (1)
24 E2610-721-000 BANK LOCATE PIN B (1)
25 NM-6080003-SC NUT M8 (2)
26 WP-0841601-SC WASHER 8.4X17.4X1.6 (2)
27 WS-0820002-KN SPRING WASHER M8 (2)
28 400-98254 POSITION LABEL FX3 (1)
29 E2706-729-000 NUMBER PLATE (30) (1)
30 SM-6030552-KS SCREW (4)
31
#01
SM-4030501-SN SCREW M3 L=5 (4)
32 400-93515 MARK COVER (1)
33 SL-6041292-TN SCREW 2
34 400-47254 DRIVE CYLINDER(FX3) ASM 1
35 400-63859 DRIVE CYLINDER (1)
36 E2708-729-000 DRIVE BRACKET (30) (1)
37 SL-6052092-TN SCREW (4)
38 SL-6051292-TN BOLT (2)
39 400-91383 DRIVER BRACKET 2
40 SL-6051292-TN BOLT 4
41 400-82808 MECHANICAL BANK PCB ASM 1
42 400-47310 REAR PANEL 1
43 SL-6051092-TN BOLT 3
44 400-47311 FRONT PANEL 1
45 SL-6030692-TN BOLT 4
46 SL-4030681-SC SCREW M3 L=6 8
47 HX-0029400-00 FIXED BASE 4
48 BT-0600400-EC TUBE HOSE, BLUE 2
49 400-77609 FEEDER BANK COVER L 1
50 SL-6051092-TN BOLT 2
51 400-77610 FEEDER BANK COVER R 1
52 SL-6051092-TN BOLT 2
53 400-66141 BANK SUPPORTER SI LF_RR ASM 1
54
#01
400-94157 BANK SUPPORTER SI LF_RR ASM XL 2
55 400-47243 BANK SUPPORTER SI (1)
56 E2623-721-000 BANK LOCATE BUSH B (2)
57
#01
E2623-721-000 BANK LOCATE BUSH B (1)
58
#02
400-00555 BANK LOCK BOLT (2)
59
#02
400-00556 BANK LOCK NUT (2)
60
#02
SM-6105502-TN HEXAGONAL-HOLE BOLT M10 L=55 (2)
61
#01
SM-6103002-TN SCREW M10 L=30 (2)
62
#02
WP-1052000-SC WASHER 10.5X18X2 (2)
63
#02
WS-1020002-KN SPRING WASHER M10 (2)
64 400-70379 BANK SHIM100 (3)
65 400-70380 BANK SHIM50 (2)
66 400-47251 ADJUSTER BASE L (1)
67
#01
400-92180 ADJUSTER BASE L XL (1)
68 SM-6103002-TN SCREW M10 L=30 (4)
69 SM-6105502-TN HEXAGONAL-HOLE BOLT M10 L=55 (1)
70 400-93382 BANK SHIM20 (2)
71
#01
400-94158 BANK SUPPORTER SI RF_LR ASM XL 2
72 400-66142 BANK SUPPORTER SI RF_LR ASM 1
73 E2623-721-000 BANK LOCATE BUSH B (2)
74
#01
E2623-721-000 BANK LOCATE BUSH B (1)
75
#02
400-00555 BANK LOCK BOLT (2)
76
#02
400-00556 BANK LOCK NUT (2)
77
#02
SM-6105502-TN HEXAGONAL-HOLE BOLT M10 L=55 (2)
78
#01
SM-6103002-TN SCREW M10 L=30 (2)
79
#02
WP-1052000-SC WASHER 10.5X18X2 (2)
80
#02
WS-1020002-KN SPRING WASHER M10 (2)
81 400-70379 BANK SHIM100 (3)
82 400-70380 BANK SHIM50 (2)
83 400-47250 ADJUSTER BASE R (1)
84
#01
400-92181 ADJUSTER BASE R XL (1)
85 SM-6103002-TN SCREW M10 L=30 (4)
86 SM-6105502-TN HEXAGONAL-HOLE BOLT M10 L=55 (1)
87 400-47243 BANK SUPPORTER SI (1)
88 400-93382 BANK SHIM20 (2)
89
#01
SL-6051292-TN BOLT 16
90
#01
400-82808 MECHANICAL BANK PCB ASM 4
91
#01
400-66139 BANK SUPPORTER CE LF_RR ASM 2
92 400-47242 BANK SUPPORTER CE (1)
93 E2623-721-000 BANK LOCATE BUSH B (1)
94 SL-6063592-TN SCREW (4)
95 PS-0500202-KP SPRING PIN 5X20 (1)
96 EA-9500B02-00 CABLE BAND 150 (2)
97
#01
400-66140 BANK SUPPORTER CE RF_LR ASM 2
98 400-47242 BANK SUPPORTER CE (1)
99 E2623-721-000 BANK LOCATE BUSH B (1)
100 SL-6063592-TN SCREW (4)
101 PS-0500202-KP SPRING PIN 5X20 (1)
102 EA-9500B02-00 CABLE BAND 150 (2)
103 SL-6053092-TN SCREW 4
104 PJ-3080600-03 Y UNION 1
105 HX-0067100-0A GROMMET 0.13
106 HX-0067100-00 GROMMET 0.19
107
#01
SL-6051292-TN BOLT 16
108
#01
400-91383 DRIVER BRACKET 8
- -

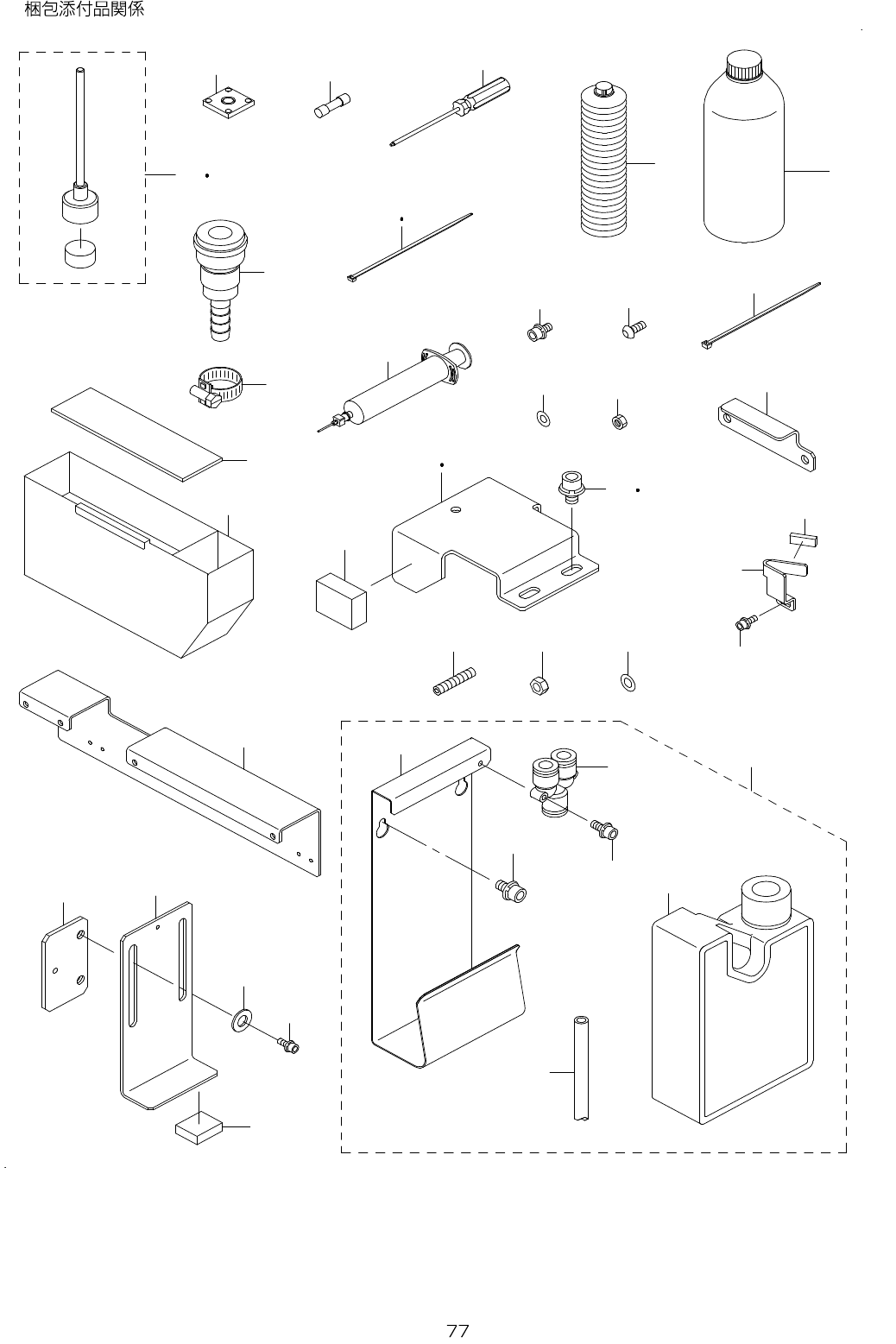

39.ACCESSORIES PART COMPONENTS
