39.ACCESSORIES PART COMPONENTS
5
6
1 1
1 2
3 1
4
4 0
3 9
1 5
1 8 1 9
3 5
2 9
1 7 3 8
2 5 2 6
3 0
2 0
3 3
3 2
2 1
2 2
2 3
3 4
1 6
9
7
8
1 4
1 3 3 7
1
4 1
3
3 6
2 7
2 8
1 0
2 4
2
4 44 34 2
- -

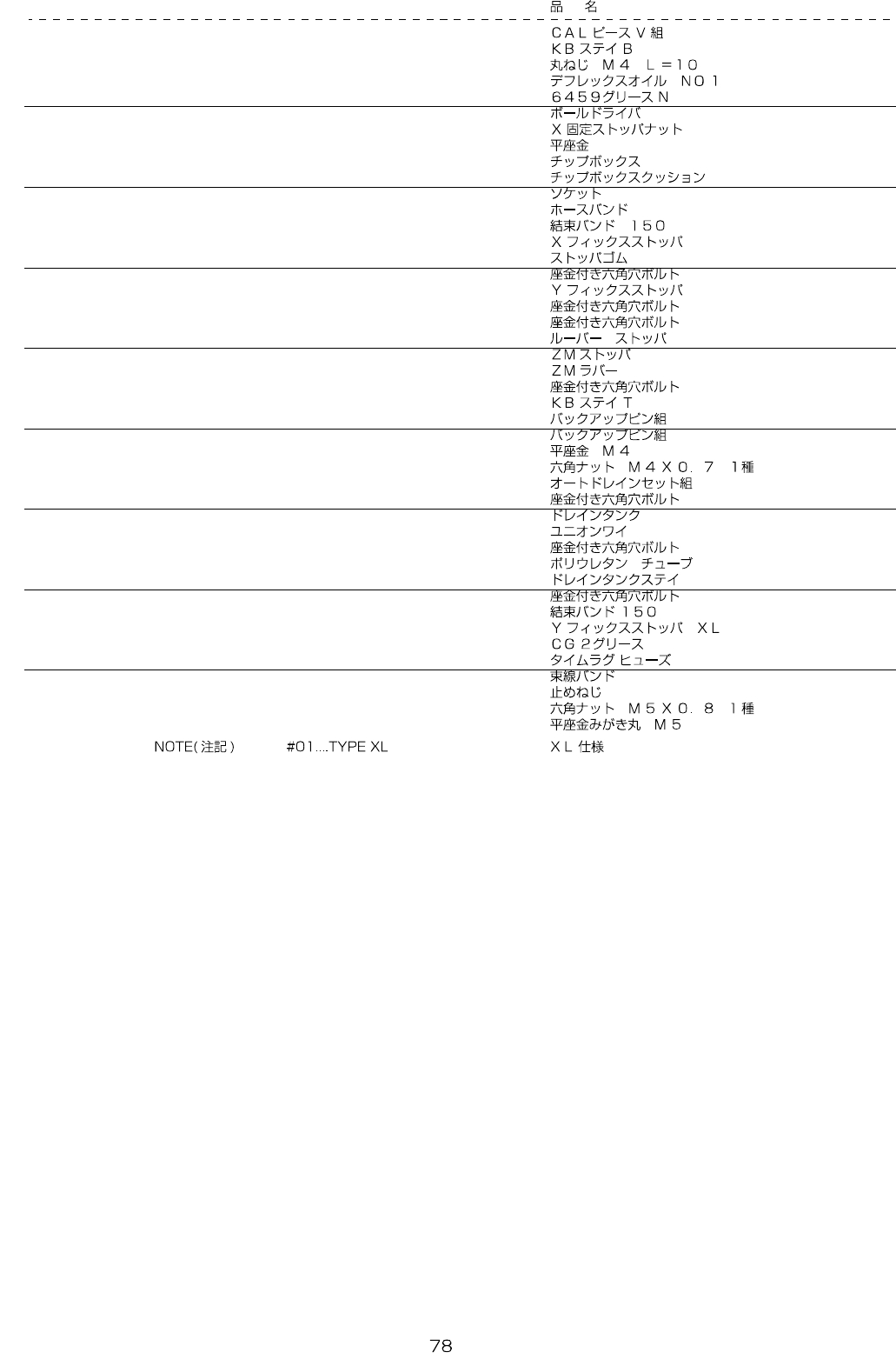

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E5190-729-0A0 CAL PIECE 4
2 400-84416 KB STAY B 1
3 SM-3041052-TN SCREW M4 L=10 2
4 MDF-RX1001L0-9 DEFRIX OIL NO.1(800CC) 1
5 400-32449 6459GREASE N 1
6 J1080-000-000 BOLL SCREWDRIVER 1
7 400-70190 X FIX STOPPER NUT 4
8 WP-0651001-SC WASHER 8
9 400-45985 CHIP BOX 4
10 400-45986 CHIP BOX CUSHION 4
11 PJ-0700000-01 SOCKET 1
12 161-21907 HOSE BAND 1
13 EA-9500B02-00 CABLE BAND 150 10
14 400-70509 X FIX STOPPER 4
15 E2424-725-000 STOPPER RUBBER R 4
16 SL-6051692-TN BOLT 8
17 400-47392 Y FIX STOPPER 8
18 SL-6061292-TN SCREW 8
19 SL-6051492-TN BOLT 8
20 L131E-121-000 RUBBER STOPPER 4
21 400-46528 ZM STOPPER 24
22 400-46644 ZM RUBBER 24
23 SL-6030892-TN SCREW 24
24 400-84415 KB STAY T 1
25 400-34506 BACK UP PIN ASSEMBLY 24
26
#01
400-34506 BACK UP PIN ASSEMBLY 28
27 WP-0430801-SC WASHER M4 2
28 NM-6040001-SC NUT M4X0.7 TYPE1 2
29 400-47290 AUTO DRAIN SET ASM 1
30 SL-6051092-TN BOLT (2)
31 400-16815 DRAIN TANK (1)
32 PJ-3081000-01 UNION Y (1)
33 SL-6042592-TN SCREW (1)
34 BT-1000651-EB POLYURETHANE TUBE (0.2)
35 400-47185 DRAIN TANK STAY (1)
36 SL-6040892-TN BOLT 4
37 EA-9500B02-00 CABLE BAND 150 10
38
#01
400-93162 Y FIX STOPPER XL 4
39 400-46643 CG2 GREASE 1
40 HF-0013005-P0 TIME LAG FUSE 3
41 EA-9500B01-00 CABLE BAND 10
42 SM-8052502-TP SCREW M5X0.8 L=25 36
43 NM-6050001-SC NUT M5X0.8 TYPE1 36
44 WP-0531001-SC WASHER M5 36
- -
OPTION
40.BAD MARK READER COMPONENTS
1 5
1 6
1 3
1 4
1 7
2 0
2 1
2 4
2 3
2 2
8
9
2
5
4
6
3
7
1 1
1 0
1
2 5
1 8
1 2
1 9
