Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 03/2010 EN 4.1 Standard Monitoring Application (SMA)
53
NOTE
If the Select SQL Server instance dialog box shows no entries, you need to specify the SQL
server instance manually. 4
→ Click on the Refresh icon. All production lines available for import from OIS will be shown.
4
Fig. 4 - 5 Step 1: Import OIS lines
→ The values for every station at Machine Type will be initialized with default values. These
values are imported of the SIS database. This is only possible, if a download of the recipe has
been performed before.
→ If at Machine Type the value <Select> is displayed you need to select the relevant machine
type for each station and production line. The corresponding OIS descriptor will then be
automatically displayed in the Descriptor field.
NOTE
It is assumed that the machine types are known for each production line. 4
→ Once you have entered all settings, confirm your choice with OK.
4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.1 Standard Monitoring Application (SMA) Edition 03/2010 EN
54

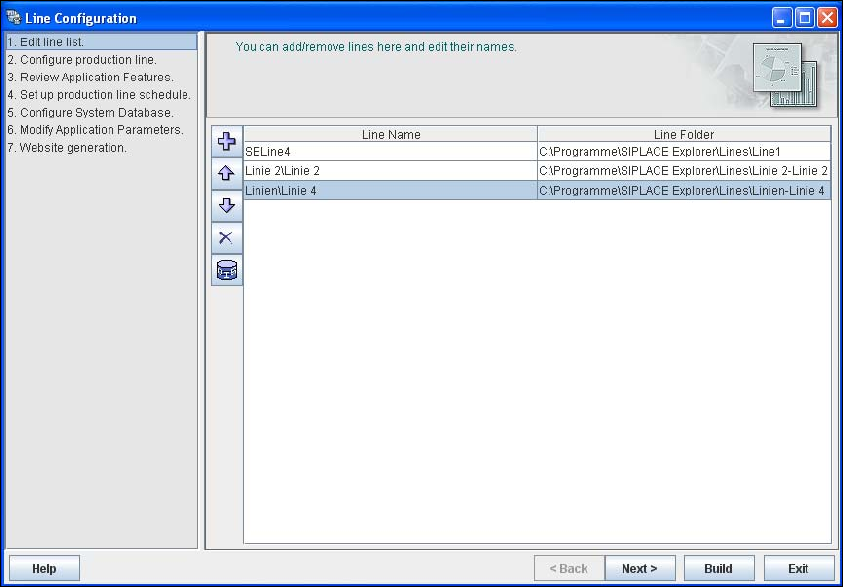

→ The added production lines will be shown in the Line Configuration - Edit Line List dialog
box.
4
Fig. 4 - 6 Step 1: edit line list
→ The OIS line name will be automatically used as production line name.
→ You can modify the production line name and the line folder at which the configured monitoring
application is to be stored for this production line. A *.gms file with the configuration settings
for the corresponding monitoring application will then be saved at the specified path.
→ Click on Next to continue with the next step.
Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 03/2010 EN 4.1 Standard Monitoring Application (SMA)
55
4.1.1.3 Step 2 - Configure Production Line
→ This is where you can configure your production line. Select the relevant production line with
Select Line and specify the parameters for access to the SIPLACE OIS database.
→ If you have already configured another application for your production line, you can import the
production line configuration from that existing application (.gms file). The equipment
information will be adopted from this imported data.
→ The data is automatically adopted if you import a production line from the OIS.
4
Fig. 4 - 7 Step 2 - configure production line
→ If you have not imported the line configuration from OIS, you will need to manually configure
all machines in the production line. Repeat the procedure for each machine in the line.
– Click on the Add equipment icon in the toolbar. The Select Equipment Descriptor
and Name dialog box will appear.
4
Fig. 4 - 8 Step 2 - configure production line
