4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.1 Standard Monitoring Application (SMA) Edition 03/2010 EN
64
→ In the Maintenance Schedule panel click on the Edit button.
→ The DB Administrator Login dialog box will open.
4
Fig. 4 - 20 DB administrator login
→ Enter the access data here and confirm your entries with OK.
→ The input fields in the DB Maintenance dialog box will be enabled. The following details
can be defined:
– The file and path for the archived data
– A schedule specifying the intervals and times when data is to be removed from the line
system database and stored in the archive.
– When to execute the maintenance schedule.
– The archiving schedule defined here will be stored in the database and can be called up
when required.
4
Fig. 4 - 21 DB maintenance
Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 03/2010 EN 4.1 Standard Monitoring Application (SMA)
65
→ In the DB Backup Schedule panel click on the Edit button.
→ The DB Administrator Login dialog box will open.
4
Fig. 4 - 22 DB administrator login
→ Enter the access data here and confirm your entries with OK.
→ The input fields in the DB Maintenance dialog box will be enabled. The following details
can be defined:
– The file and path for the saved data
– A schedule specifying the intervals and times when data is to be removed from the line
system database and stored in the archive.
– When to execute the backup schedule.
– The backup schedule defined here will be stored in the database and can be called up
when required.
– Database compression with the next database maintenance.
4
Fig. 4 - 23 DB backup
→ Check your entries and confirm with OK.
→ Once you have defined all settings in Step 5, click on Next to continue with the next step.
4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.1 Standard Monitoring Application (SMA) Edition 03/2010 EN
66

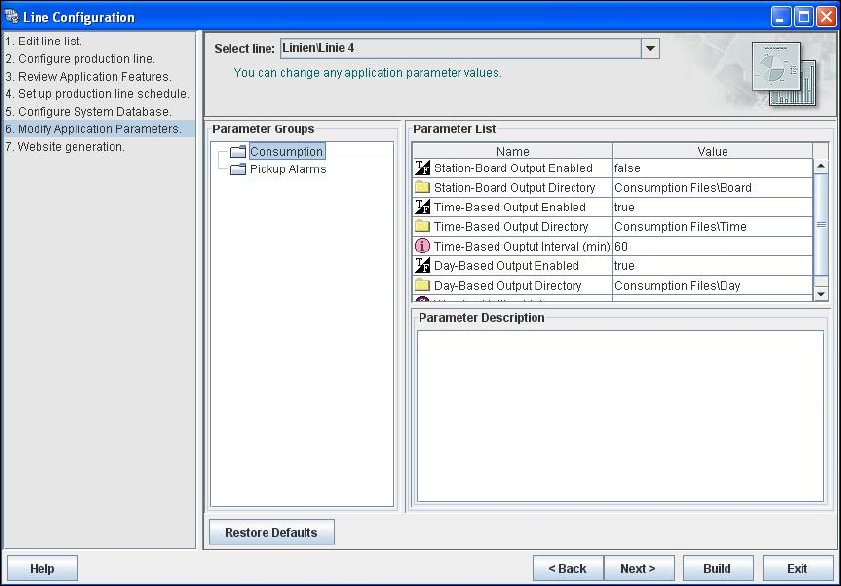

4.1.1.7 Step 6 - Modify Application Parameters
→ Parameters for the application you have created can be checked and edited here.
4
Fig. 4 - 24 Step 6: modify application parameters
→ Once you have made all modifications, click on Next to continue with the next step.
