4 Configuration Installation and Configuration Guide SIPLACE Explorer

4.2 Configuring the Factory Configuration Utility Edition 03/2010 EN

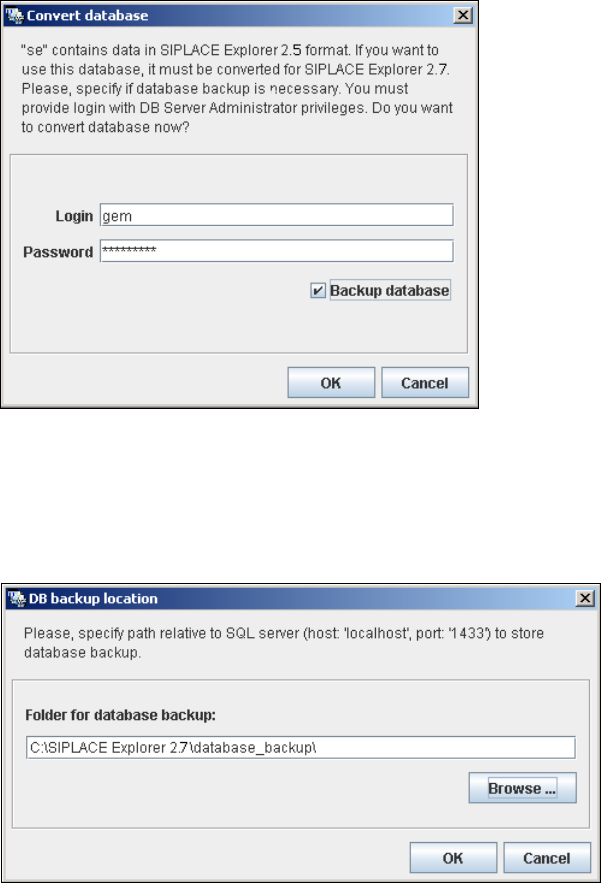

Fig. 4 - 33 Convert database

→ Specify the access data for the database administrator and enable the Backup database

option.

→ Confirm your entries with OK. The DB backup location dialog box will open

Fig. 4 - 34 DB backup location

→ Before performing the conversion, the system creates a backup file of the database. Specify

the folder for this file in the Folder for database backup field. Click on the Browse ...

button to select an existing folder.

Installation and Configuration Guide SIPLACE Explorer 4 Configuration

Edition 03/2010 EN 4.2 Configuring the Factory Configuration Utility

→ Confirm your choice with OK. The database will be converted. This may take up to one

hour. The conversion time depends on the size of the database.

Fig. 4 - 35 DB backup

→ After successful conversion of the database, the following information window will open:

Fig. 4 - 36 Success

→ Dependent of the database size, you can compress the database, the following information

window will open:

Fig. 4 - 37 Database compression

NOTE

We recommend activating this DB compression step, when the user has restored the

SIPLACE Explorer factory database or has moved the raw database files to another disk or

to another computer.

With the DB compression it is possible to avoid extended access times of the websites. 4

→ Click Yes, to compress the database at next DB maintenance.

→ Click OK. The Factory Configuration Utility dialog box will open.

4 Configuration Installation and Configuration Guide SIPLACE Explorer

4.2 Configuring the Factory Configuration Utility Edition 03/2010 EN

4.2.2 Configuring Production Lines

The SIPLACE Explorer Factory Configuration Utility can be used to add production lines to an ex-

isting list of lines to be monitored. This is performed by calling up the relevant production line data

from the SIPLACE Explorer host. A list of the lines already configured in SIPLACE Explorer will

be provided via the connection to the SIPLACE Explorer host. 4

If you have already configured a production line with the Line Configuration and generated a web-

site, the configured production line will automatically be added to the Factory Configuration Utility

and to the factory website. 4

NOTE

We do not recommend that you change the production line data in SIPLACE Explorer Factory

Configuration Utility. If you do so, you must also adjust/synchronize this data in the SIPLACE

Explorer host. 4

After editing the data in the Factory Configuration Utility, save the modified data in the factory da-

tabase in which all Factory Configuration Utility data are stored. During data backup, data is sent

between the SIPLACE Explorer line host and the factory host. To be more exact, the sequence of

transfer is from the SIPLACE Explorer factory host to the line host and from the SIPLACE Explorer

line host to the SIPLACE Explorer factory host. 4

Transfer of data from SIPLACE Explorer factory host to SIPLACE Explorer line host: 4

– Factory Calendar

– Factory database settings

– Central user management, with e-mail accounts

Transfer of data from SIPLACE Explorer line host to SIPLACE Explorer factory host: 4

– Line names

– Line URLs
