Smart Pin Support
Page 6 / 8 24.11.2021
Smart Pin Support
Page 7 / 8 24.11.2021
Smart Pin Support
Page 8 / 8 24.11.2021
Pos. Item no. Description Part marking
1 03089621-01 SPS PIN PICKER SX1/2
2 03090168S01 CYLINDER - FRONT PART COMPL. /
SPS
SPARE PART
3 03089379S01 CYLINDER - BACK PART COMPL. /
SPS
SPARE PART
4 03084323S01 LINEAR GUIDING/ SPS SPARE PART
5 03089614S02 BOARD CONTROL / SPS SPARE PART
6 03088119S01 BALL JOINT WITH INTERNAL TH.
KBRM-03 MH
SPARE PART
7 03088037S01 PNEUMATIC CYLINDER / SPS SPARE PART
8 03090227S01 SPIRAL HOSE / SPS SPARE PART
9 03090273-01 SPIRAL CABLE FOR SPS - GRIPPER SPARE PART
10 03095442-01 CONNECTING HOSE / SPS
00359177S01 HOSE 4*2,5 PUN-CM-4 (PLACEMENT
HEAD)
SPARE PART
12 03089675-01 PULL SPRING - REDUCED EYE/ SPS SPARE PART
13 03093273S01 INDUCTIVE SENSOR TOP CPL. / SPS SPARE PART
14 03090192S01 INDUCTIVE SENSOR BOTTOM CPL. /
SPS
SPARE PART
15 03088646-01 ONE-WAY RESTRICTOR AS1201F-
M3-04
SPARE PART
16 03085498-01 3/2-WAY - MAGNET VALVE /
V114A-5MOU
SPARE PART
17 03042523-01 ISO 4762 - M 2 X 4-A2-70
03088170-02 CABLE: SPS VALVE SPARE PART
19 03089582S01 SUPPORT PIN COMPL. / SPS SPARE PART
20 03073457S01 O-RING 5 X 2 NBR WEAR PART
21 03087886S02 MAGAZINE HOLDER L10 CPL. SPARE PART

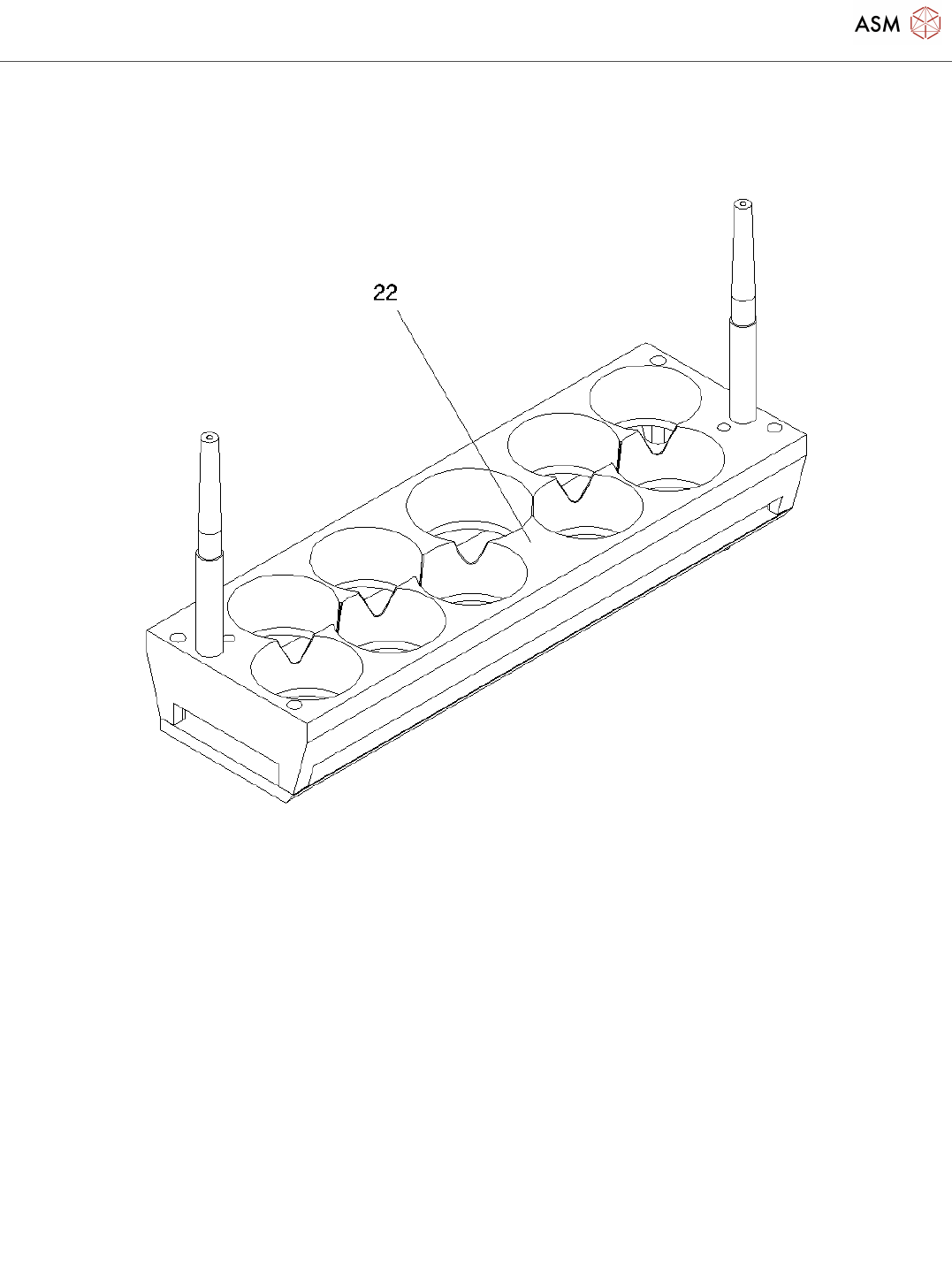

22 03087404-01 STORAGE SPS - L10 CPL. SPARE PART

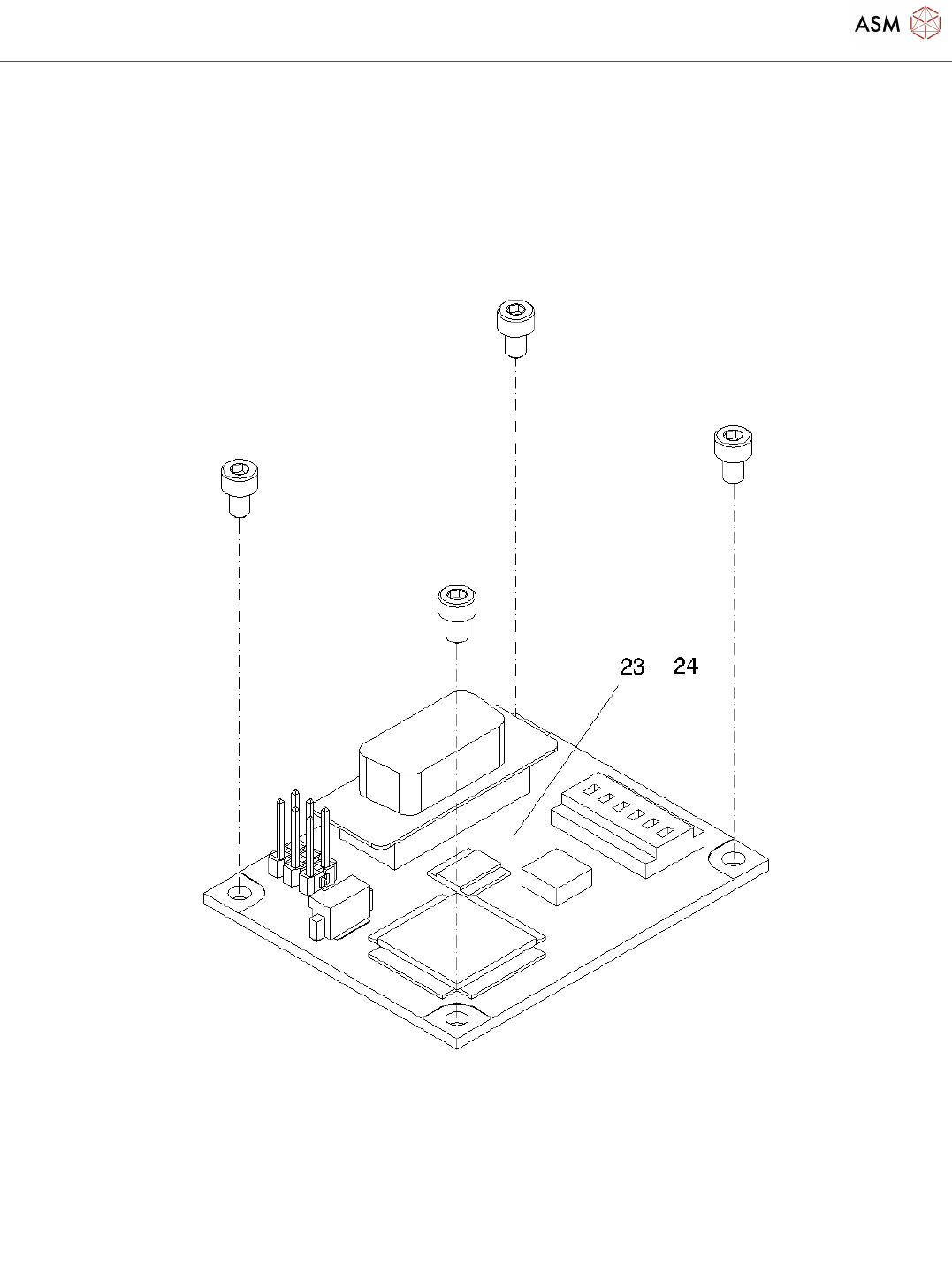

23 03093494-01 MAGAZINE RECOGNITION CPL.
24 03091134-01 PCB MAGAZINE IDENTIFICATION
SPS
SPARE PART
