Excellent Modular Component Placer EXCEN Series EXCEN PRO(M)/(D)/(L) Technical Reference - 第130页
Page +$1:+$ 124 EXCEN PRO(M) EXCEN PRO(D ) EXCEN PRO(L) Docking Cart(2/2) 27 33 33 9 9 34 31 30 28 29 23 37 20 23 32 35 38 26 24 15 11 7 6 9 10 13 21 29 22 39 39 40 40 8 2 1 3 4 5 12 14 11 6 37 6 16 25 12 10 14 9 18 19 5…
Page
+$1:+$
123
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
Page
+$1:+$
124
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)
Docking Cart(2/2)
27
33
33
9
9
34
31
30
28
29
23
37
20
23
32
35
38
26
24
15
11
7
6
9
10
13
21
29
22
39
39
40
40
8
2
1
3
4
5
12
14
11
6
37
6
16
25
12
10
14
9
18
19
5
22
37
36
18
13
17
OLD
OLD
FC09-006247A
DC_ROLLER_SUPPORT_BKT
Page
+$1:+$
125

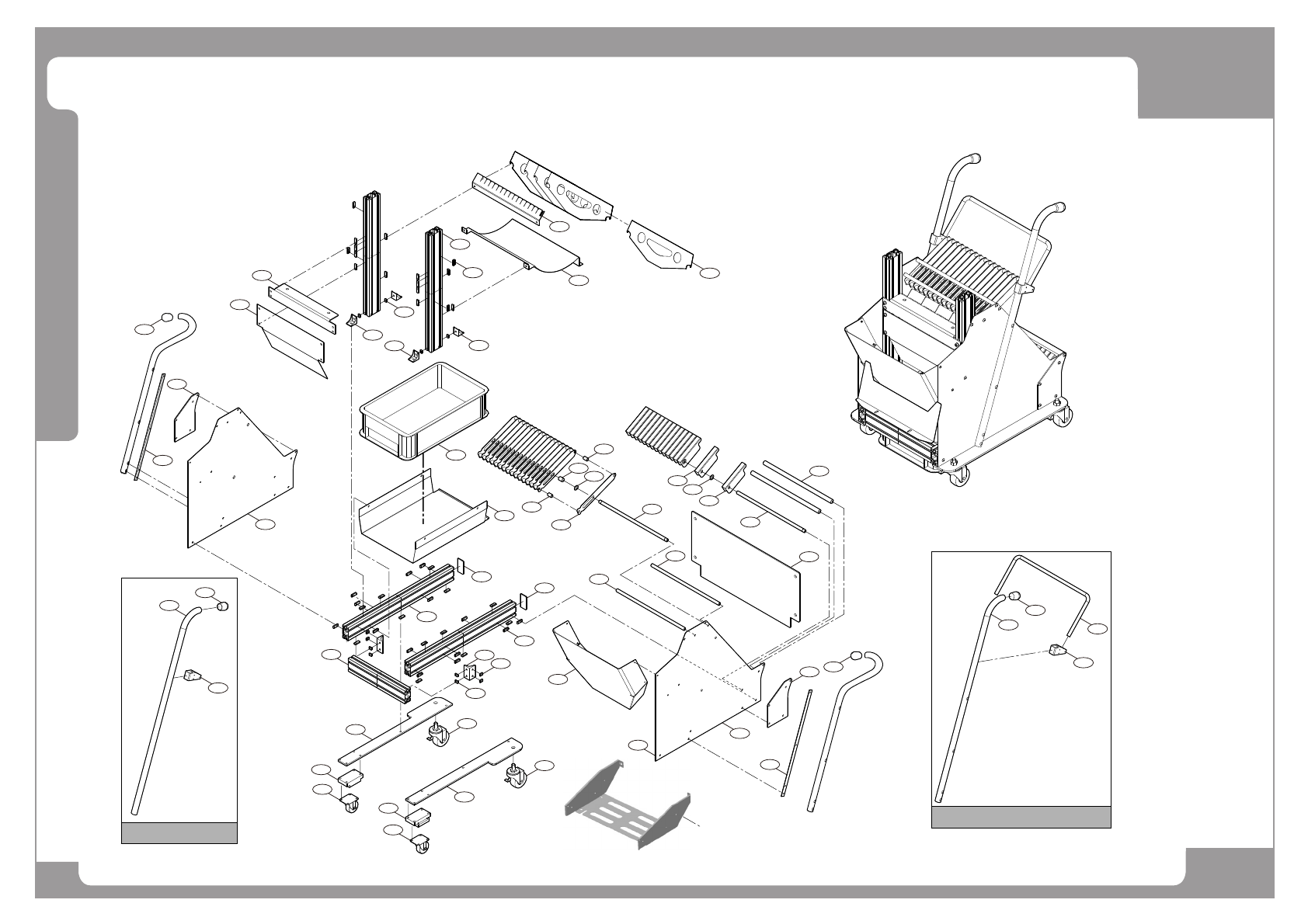

Docking Cart(2/2)
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC30-004295A PARTITION J70653898A 5 J70653898A/ FC30-004090A
2 FC30-004273A PARTITION_HOLDER J70653892A 1 J70653892A
3 J70653890A MAIN_LILLE_HOLDER J70653890A 1
4 FC39-003226A AL_FRAME_B 1 J71651950A
5 FC18-000311 NUT-SPRING_NUT_M6;YKN-S306 54
6 FC09-900009 BRACKET 4
7 FC09-006557A STOPPER_BKT1 J70653894A 1 J70653894A
8 J70653907A CHUTE_B J70653907A 1
9 FC10-900011 GRIP C-31-3-EP-UL 2
10 FC29-001412B V1P08-HANDLE 2 FC29-001412B
11 FC09-001999A BRACKET-V1P08-BAR 2
12 FC07-000439D BLOCK-V08-HANDLE_BLOCK_CLOSED_M 2 FC07-000439A /FC07-000439B/ FC07-000439C
13 FC30-001016B PLATE-V1P08-325-SIDE_COVER_SUPPORT 2 FC30-001016A
14 FC30-001015A PLATE-V08-315-SIDE_COVER_R 1
15 FC30-001012A PLATE-V08-314-SIDE_COVER_L 1
16 FC08-000099A BOX 1 FC08-900001
17 FC29-002881A DUMP_BOX_GUIDE 1 J70653893A
18 FC29-900016 END-CAP 2
19 FC39-003227A AL_FRAME_C 2 J71651951A
20 FC09-900010 BRACKET 2
21 FC39-003225A AL_FRAME_A 1 J71651949A
22 FC30-004106A CASTER_PLATE 2 J70653872A/ FC30-001221A/ FC30-001221B
23 FC18-003080A CASTER,WHEEL-CASTER;K-612ES-65-N2,65,25 4 MC14-000003/
24 FC15-002279A CHUTE 1 J70653902A
25 FC02-000009C ANGLE-V08-REEL_BAR_F 1 FC02-000009A
26 MC19-000417A SHAFT-V1P08-SHAFT_D 2
27 J70653876A SHAFT_B J70653876A 1
28 J70653877A SHAFT_C J70653877A 1
29 J70653875A SHAFT_A J70653875A 2
30 J70653897A LILLE_PLATE J70653897A 32
31 FC29-003623A POST-V1P08-UPPER_REEL_POST 16
