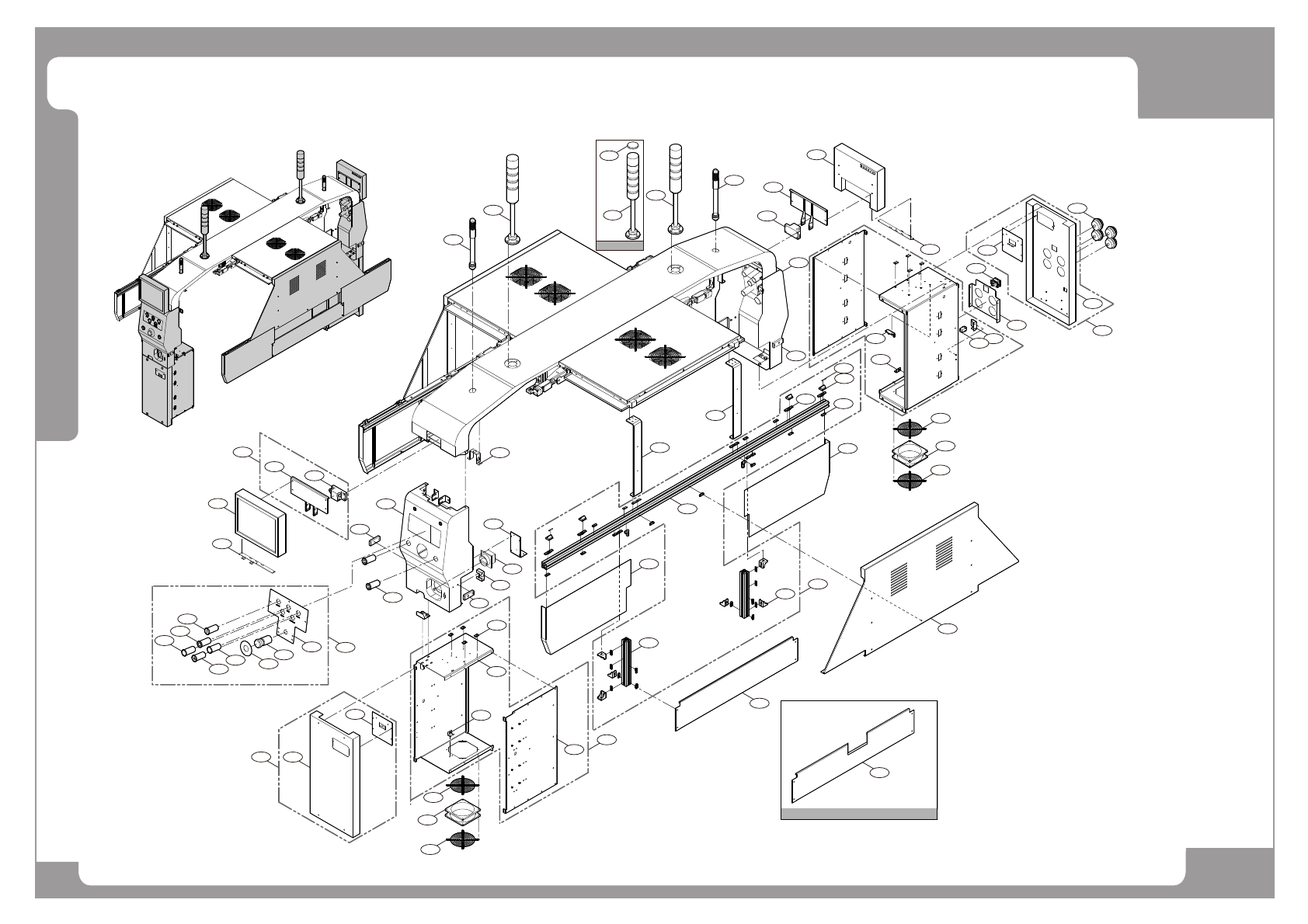

Cover(1/3)
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 CD06-001007 MONITOR-APD-C1210-CRAB 2 CD05-900128
2 AM03-004529A ASSY,COVER-MONITOR_HINGE_ASSY 2
3 FC09-001038A BRACKET-V1_MONITOR_BKT 2
4 FC07-000348A BLOCK-V1_MONITOR_BLOCK 2
5 FC15-001076B COVER-FRONT_COVER_PA 2 FC15-001076A
FC15-004921A COVER-MTED-COVER002A_ST_FRONT_COVER;. 1 EXCEN PRO(D)
6 FC29-001339A GUIDE-GUIDE_PLT_66 4
7 EP20-000114 SWITCH-LW6ML-M1C14W_SWITCH_1B_LED_WHI 4
8 AM03-008603A ASSY,ELECTRIC-V1+ FRONT OP PANEL ASSY 1
AM03-021192A ASSY,ELECTRIC-MTED_ST_FRONT OP PANEL ASS 1 EXCEN PRO(D)
9 EP20-900084 XW1E-BV403MFR ; EP20-900084 2
10 PT03-000285A STICKER-STICKER-EMERGENCY_V1;STICKER 2
11 EP20-000114 SWITCH-LW6ML-M1C14W_SWITCH_1B_LED_WHI 2
12 EP20-000114 SWITCH-LW6ML-M1C14W_SWITCH_1B_LED_WHI 2
13 EP20-000127 SWITCH-LW6ML-M1C14S 2
14 EP20-000114 SWITCH-LW6ML-M1C14W_SWITCH_1B_LED_WHI 2
15 EP20-000116 SWITCH-LW6ML-M1C24G_SWITCH_2b_LED_GRE 2
16 FC30-000937A PLATE-SWITCH_PLT_C 2
17 EP07-900017 F-03SV LF DR 1
18 J70521621A MAIN_SW_BKT J70521621A 1
19 AM03-008128A ASSY,COVER-DRIVER_BOX_F_SUB_ASSY 1
20 FC18-903190 PROFILE MOUNT DIA4.0 8
21 FC09-001906D BRACKET-DRIVER_BOX_BKT_P 2 FC09-001906B /FC09-001906C
22 J70521602A CN_BKT_B J70521602A 2
23 FC30-000938D PLATE-DRIVER_BOX_PLT_P 2 FC30-000938B /FC30-000938C
24 AM03-004046A ASSY,COVER-V1_DRIVER-COVER_F ASSY 1
25 J70521591A DRIVER_COVER_F J70521591A 1
26 J70521644A SCANNER_BKT J70521644A 2
27 EP07-901530 FAN 9GL1224H1J01 2
28 HP04-900011 FINGER_GUARD 109-019E 4
29 FC15-000044A COVER-SIDE_COVER_C;ME1:Steel 1
Page
+$1:+$
112
Cover(1/3)
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Reference
30 FC15-000045A COVER-SIDE_COVER_D;ME1:Steel 1
31 AM03-006194A ASSY,COVER-LOWER_COVER_FRAME ASSY_P 1
32 FC39-000051A FRAME-AL_FRAME_B;ME6:Aluminum 1
33 FC18-000311 NUT-SPRING_NUT_M6;YKN-S306 41
34 FC09-003110A BRACKET-ACRYL_GUIDE_S 4 FC09-002451A
35 FC29-002447A STOPPER-STOPPER_UTMA5 2 FC29-001944A
36 FC18-000310 NUT-SPRING_NUT_M4;YKN-S304 10
37 FC39-000050A FRAME-AL_FRAME_A;ME6:Aluminum 2
38 FC09-000468A BRACKET-BRACKET_A 6
39 FC15-001287A COVER-CONVEYOR_COVER 1
40 FC15-001084C COVER-VP_SIDE_CENTER_COVER 1 FC15-001084A/ FC15-001084B Side Tray Option
41 AM03-008129A ASSY,COVER-DRIVER_BOX_R_SUB_ASSY 1
42 FC09-001328A BRACKET-LAN_CONNECT_BKT 1
43 FC09-002307A BRACKET-SCANNER_CN_BKT 1
44 AM03-019261A CABLE ASSY-NEW OUTER ETHERNET CABLE ASSY 1 AM03-008398A
45 AM03-008130A ASSY,COVER-DRIVER_COVER_R_ASSY 1
AM03-021168A ASSY,COVER-MTED-DRIVER_COVER_R_ASSY 1 EXCEN PRO(D)
46 FC15-001190A COVER-DRIVER_COVER_R 1
FC15-004916A COVER-MTED-COVER001A_DRIVER_COVER_R;. 1 EXCEN PRO(D)
47 TE07-000100 GAUGE,PRESSURE-METER 4
48 AM03-007638A METER ISE30A-C4H-N-MB 1 TE07-900094 Pair parts : TE07-900094 + EP02-000961A
Pair parts : AM03-007638A + EP02-001107A
FC09-000043 BRACKET,MOUNTING-SAMHT-P4-F+G 1 EXCEN PRO(D)
49 FC09-002081A BRACKET-GAGE_BKT 1
50 EP13-000046 LAMP,WARNING-PLDL102B 2
51 EP13-900142 SP1_TOWER_LAMP_ADJUST PTE-AJV-302-RYG(C) 2
52 FC09-001901B BRACKET-SIDE_COVER_BKT_45 2 FC09-001901A
53 FC09-001903A BRACKET-TOWER_BKT 2
54 AM03-008604A ASSY,ELECTRIC-V1+REAR OP PANEL ASSY 1
AM03-021200A ASSY,ELECTRIC-MTED_ST_REAR OP PANEL ASSY 1 EXCEN PRO(D)
55 FC15-001809A COVER-CONVEYOR_COVER_SIDE 1 Side Tray Option
