Excellent Modular Component Placer EXCEN Series EXCEN PRO(M)/(D)/(L) Technical Reference - 第119页
Page +$1:+$ 11 3 Cover(1/3) EXCEN PRO(M) EXCEN PRO(D) EXCEN PRO(L) NO. P ART NO. P A RT NAME Q'TY Old No. Reference 56 FC09-004250A MTV1PP-CV028A-MOL EX_USB_BKT_2 1 AM03-01334 2A 57 EP13-000 126 LAM P ,W ARNING 2 OP…
Page
+$1:+$
112
Cover(1/3)
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Reference
30 FC15-000045A COVER-SIDE_COVER_D;ME1:Steel 1
31 AM03-006194A ASSY,COVER-LOWER_COVER_FRAME ASSY_P 1
32 FC39-000051A FRAME-AL_FRAME_B;ME6:Aluminum 1
33 FC18-000311 NUT-SPRING_NUT_M6;YKN-S306 41
34 FC09-003110A BRACKET-ACRYL_GUIDE_S 4 FC09-002451A
35 FC29-002447A STOPPER-STOPPER_UTMA5 2 FC29-001944A
36 FC18-000310 NUT-SPRING_NUT_M4;YKN-S304 10
37 FC39-000050A FRAME-AL_FRAME_A;ME6:Aluminum 2
38 FC09-000468A BRACKET-BRACKET_A 6
39 FC15-001287A COVER-CONVEYOR_COVER 1
40 FC15-001084C COVER-VP_SIDE_CENTER_COVER 1 FC15-001084A/ FC15-001084B Side Tray Option
41 AM03-008129A ASSY,COVER-DRIVER_BOX_R_SUB_ASSY 1
42 FC09-001328A BRACKET-LAN_CONNECT_BKT 1
43 FC09-002307A BRACKET-SCANNER_CN_BKT 1
44 AM03-019261A CABLE ASSY-NEW OUTER ETHERNET CABLE ASSY 1 AM03-008398A
45 AM03-008130A ASSY,COVER-DRIVER_COVER_R_ASSY 1
AM03-021168A ASSY,COVER-MTED-DRIVER_COVER_R_ASSY 1 EXCEN PRO(D)
46 FC15-001190A COVER-DRIVER_COVER_R 1
FC15-004916A COVER-MTED-COVER001A_DRIVER_COVER_R;. 1 EXCEN PRO(D)
47 TE07-000100 GAUGE,PRESSURE-METER 4
48 AM03-007638A METER ISE30A-C4H-N-MB 1 TE07-900094 Pair parts : TE07-900094 + EP02-000961A
Pair parts : AM03-007638A + EP02-001107A
FC09-000043 BRACKET,MOUNTING-SAMHT-P4-F+G 1 EXCEN PRO(D)
49 FC09-002081A BRACKET-GAGE_BKT 1
50 EP13-000046 LAMP,WARNING-PLDL102B 2
51 EP13-900142 SP1_TOWER_LAMP_ADJUST PTE-AJV-302-RYG(C) 2
52 FC09-001901B BRACKET-SIDE_COVER_BKT_45 2 FC09-001901A
53 FC09-001903A BRACKET-TOWER_BKT 2
54 AM03-008604A ASSY,ELECTRIC-V1+REAR OP PANEL ASSY 1
AM03-021200A ASSY,ELECTRIC-MTED_ST_REAR OP PANEL ASSY 1 EXCEN PRO(D)
55 FC15-001809A COVER-CONVEYOR_COVER_SIDE 1 Side Tray Option
Page
+$1:+$
113
Cover(1/3)
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Reference
56 FC09-004250A MTV1PP-CV028A-MOLEX_USB_BKT_2 1 AM03-013342A
57 EP13-000126 LAMP,WARNING 2 OPTIION
58 FC29-004415A CAP-CAP-LAMP CAP 50 - B 2 OPTIION
59 FC09-004288A PAN_HOLDER_BRACKET 2
60 FC15-004922A COVER-MTED-COVER003A_ST_REAR_COVER;. 1 EXCEN PRO(D)
Page
+$1:+$
114
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)

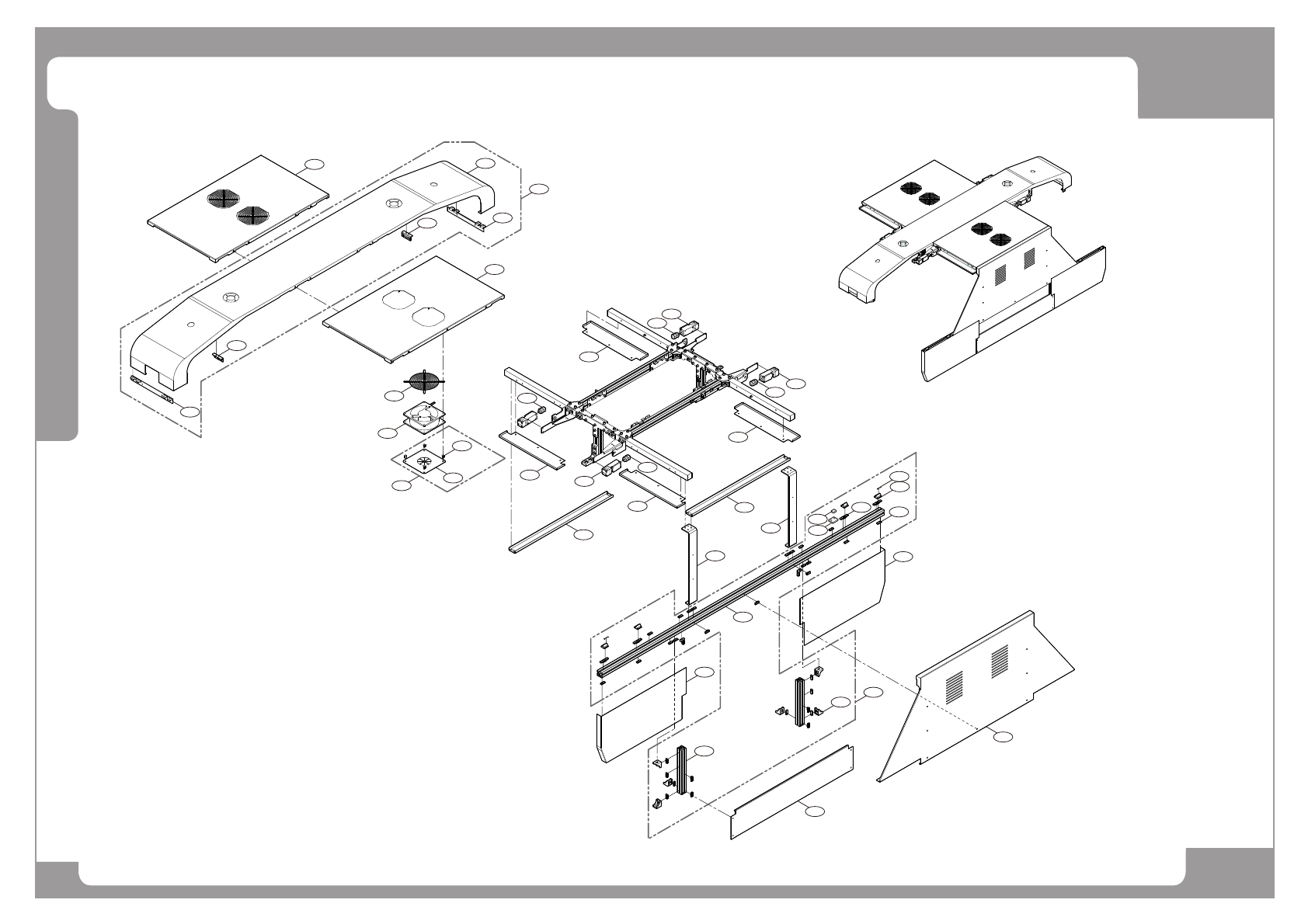

Cover(2/3)
