Excellent Modular Component Placer EXCEN Series EXCEN PRO(M)/(D)/(L) Technical Reference - 第125页
Page +$1:+$ 11 9 Cutter EXCEN PRO(M) EXCEN PRO(D) EXCEN PRO(L) NO. PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference 1 FC18-902046 STRIPPER BOL T 2 2 FC30-001529A PLA TE-MTV1P P-CT101A-CONNECT OR_PL T…
Page
+$1:+$
118
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)
Cutter
27
29
10
23
17
20
21
21
11
12
1
22
2
28
3
4
6
9
5
16
25
14
24
13
7
19
8
22
15
30
18
26
Page
+$1:+$
119

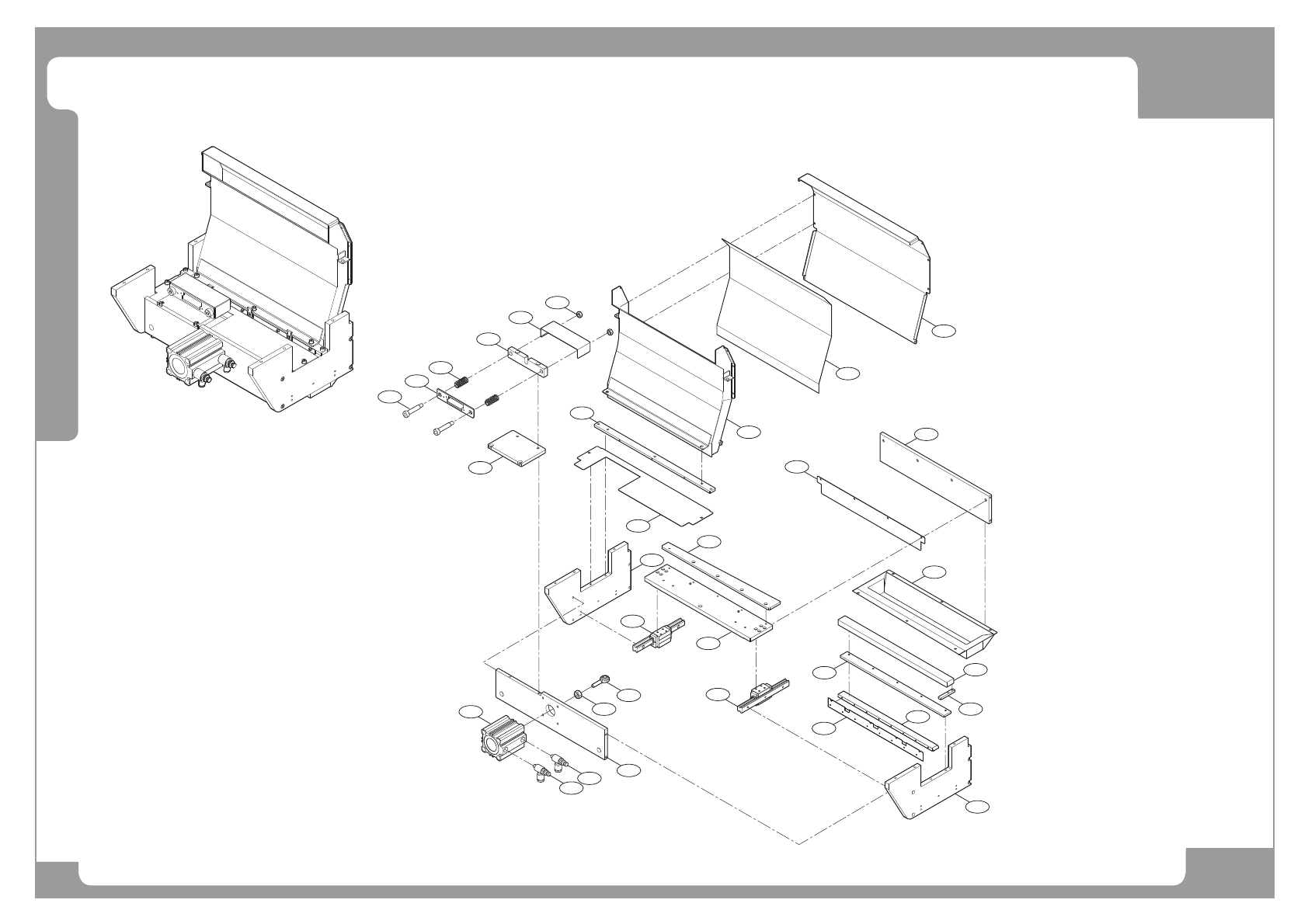

Cutter
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC18-902046 STRIPPER BOLT 2
2 FC30-001529A PLATE-MTV1PP-CT101A-CONNECTOR_PLT_B;SPCC 1 J70653856A
3 FC38-000004A SPRING-V1_CUT_SPRING;ME1:Steel 2
4 FC15-001793B COVER-MTV1PP-CT102B-CONNECTOR_COVER 1 J70653860A
5 FC18-901036 HEX NUT [M8 (BLACK)] 2
6 J70653855A PLATE J70653855A 1
7 J70653847A CONNECTOR_PLATE_A J70653847A 1
8 J70653975A UPPER_COVER 1
9 FC30-000625A PLATE-LONG_PLATE 1
10 FC29-003942E CHUTE-MTV1PP-TAPE_CHUTE_C 1 FC29-003942B
11 RM04-000156B TAPE-MTV1PP-CT104B-TEFLON_TAPE 1 RM04-000122A/ RM04-000156A
12 FC29-003941B CHUTE-MTV1PP-TAPE_CHUTE_A 1 FC29-003941A
13 FC09-001753B BRACKET-CUTTER_SIDE_PLT_1 1 FC09-001753A
14 FC30-000896B PLATE-MOVE_CUTTER 1 FC30-000896A
15 J70653850A CUTTER_HOLDER J70653850A 1
16 J70653861A COVER J70653861A 1
17 FC30-000895A PLATE-CUTTER GUIDE 1
18 FC30-000897A PLATE-FIXED_CUTTER 1
19 FC30-004445A SLIDE_PLATE 1 J70653840A
20 J70653848A CYL_PLATE J70653848A 1
21 HP06-900232 SPICON AS2201F-02-06S 2
22 MC13-001057 LM GUIDE_1 2 MC13-900127/ MC13-000289/ MC13-000271
23 FC09-001754B BRACKET-CUTTER_SIDE_PLT_2 1 FC09-001754A
24 FC15-002323A COVER-MTV1PP-CT111A-TAPE_UNDER_CHUTE 1 J70653858A
25 FC30-004428A JOINT_PLATE 1 J70653852A
26 FC09-003589C BRACKET-MTV1PP-CT109C-TAPE_GUIDE_BKT 1
27 FC14-000123 ROD END 1
28 HP03-001015 CYLINDER-ACQS50X50;0.5,50 1 HP03-000119
29 FC18-901040 HEX NUT M10 (BL/Zn) 4
30 FC07-001165C TAPE_GUIDE_BLK 1
Page
+$1:+$
120
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)

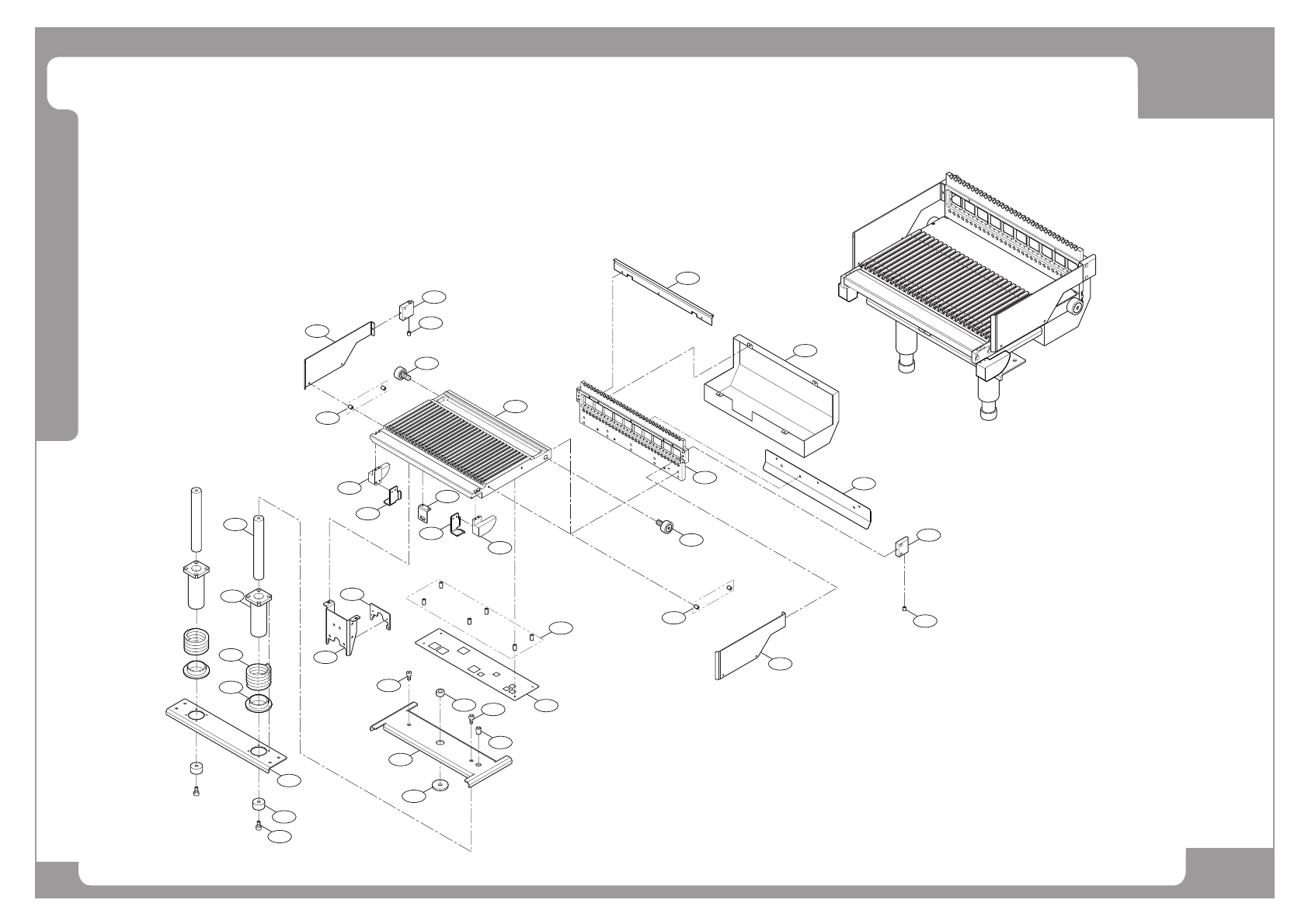

Docking Cart(1/2)
