Excellent Modular Component Placer EXCEN Series EXCEN PRO(M)/(D)/(L) Technical Reference - 第133页
Page +$1:+$ 127 EXCEN PRO(M) EXCEN PRO(D) EXCEN PRO(L)
Page
+$1:+$
126
Docking Cart(2/2)
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
32 FC29-006637A COLLAR J70653874A 1 J70653874A
33 J70653891A SUB_LILLE_HOLDER J70653891A 16
34 FC18-000069A WASHER-V1_DC_WASHER_B 16
35 FC18-000069A WASHER-V1_DC_WASHER_B 1
36 FC15-001458D BOX-V1P08-DUMP_BOX_520 1 FC08-000099A/ FC15-001458B
37 FC18-900916 NUT-SQUARE_NUT_M6;YKN-SQ306 12
38 FC29-003623A V1P08-UP_REEL_POST_SUS_12 16
39 FC07-001678A BRACKET-CASTER_S 2 FC09-002358A
40 MC14-000088 CASTER,WHEEL-K-612J-50-N;K-612J,50,20,65 2 MC14-000048
41 RM01-003091A HANDLE-DC_HANDLE_CD 2
Page
+$1:+$
127
EXCEN PRO(M)
EXCEN PRO(D)
EXCEN PRO(L)
Page
+$1:+$
128
EXCEN PRO(M)
EXCEN PRO(D
)
EXCEN PRO(L)

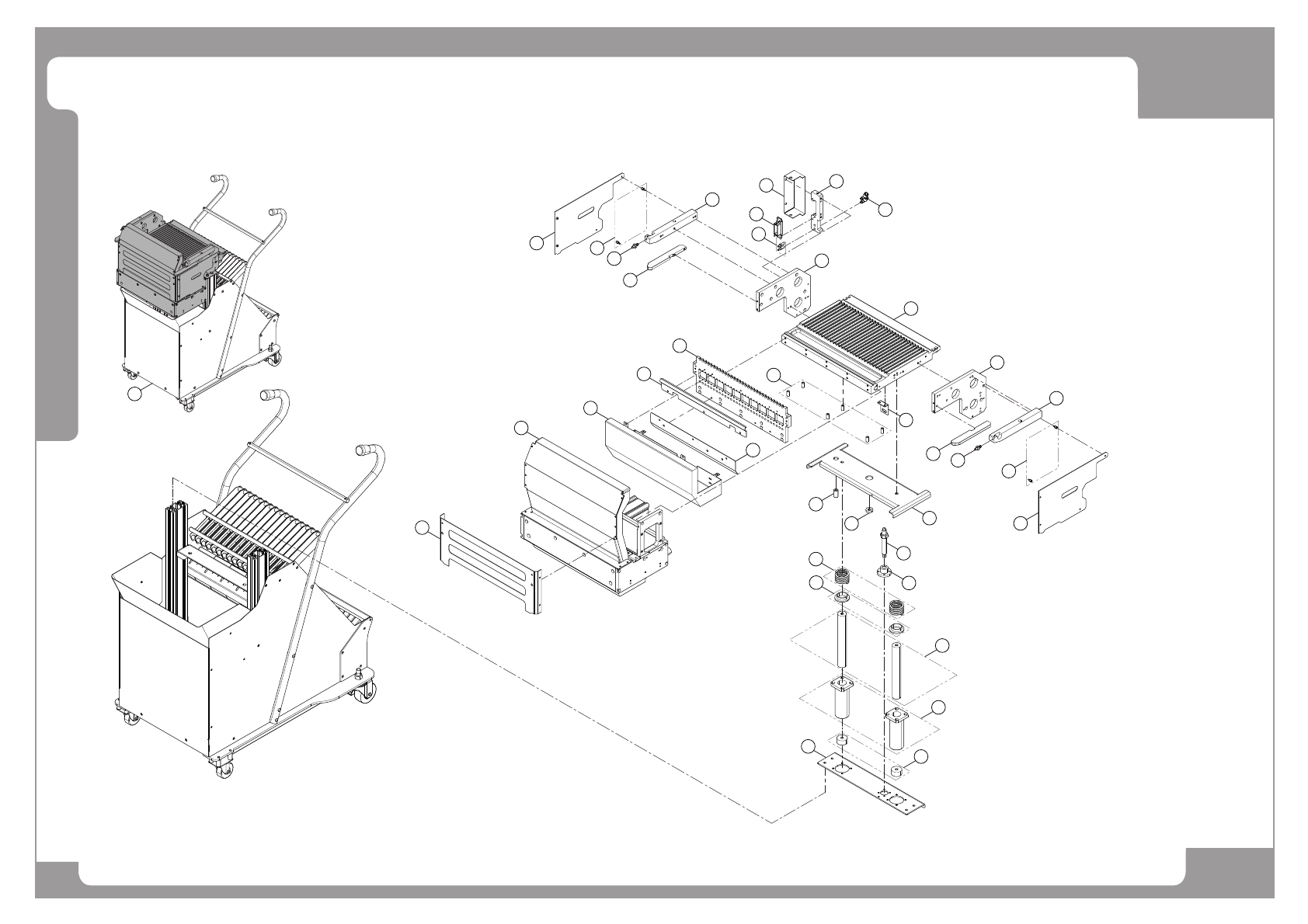

Docking Cart(1/3) - Direct Tray Docking Cart Option
25
26
30
18
34
15
19
31
32
7
8
9
22
21
4
17
3
2
4
3
2
1
27
28
29
33
5
6
12
13
16
10
23
24
20
14
11
design by h.t2
A
